3QMachine overview introduction

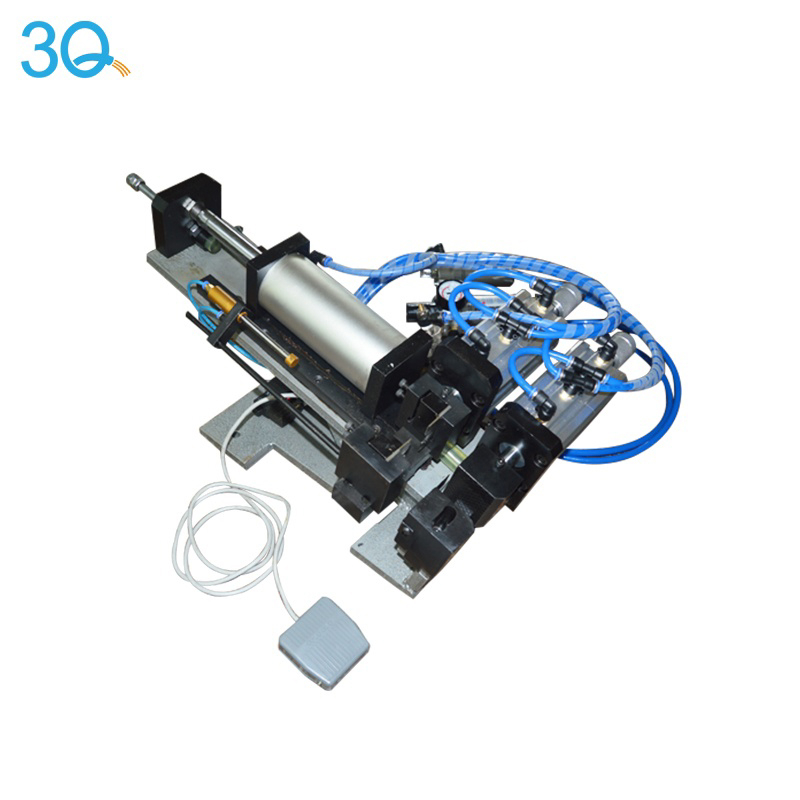

Product name: Pneumatic wire stripping machine
Double acting cylinder
Power cord , Electronic cord , Multicore cord
Computer stripping bending machine

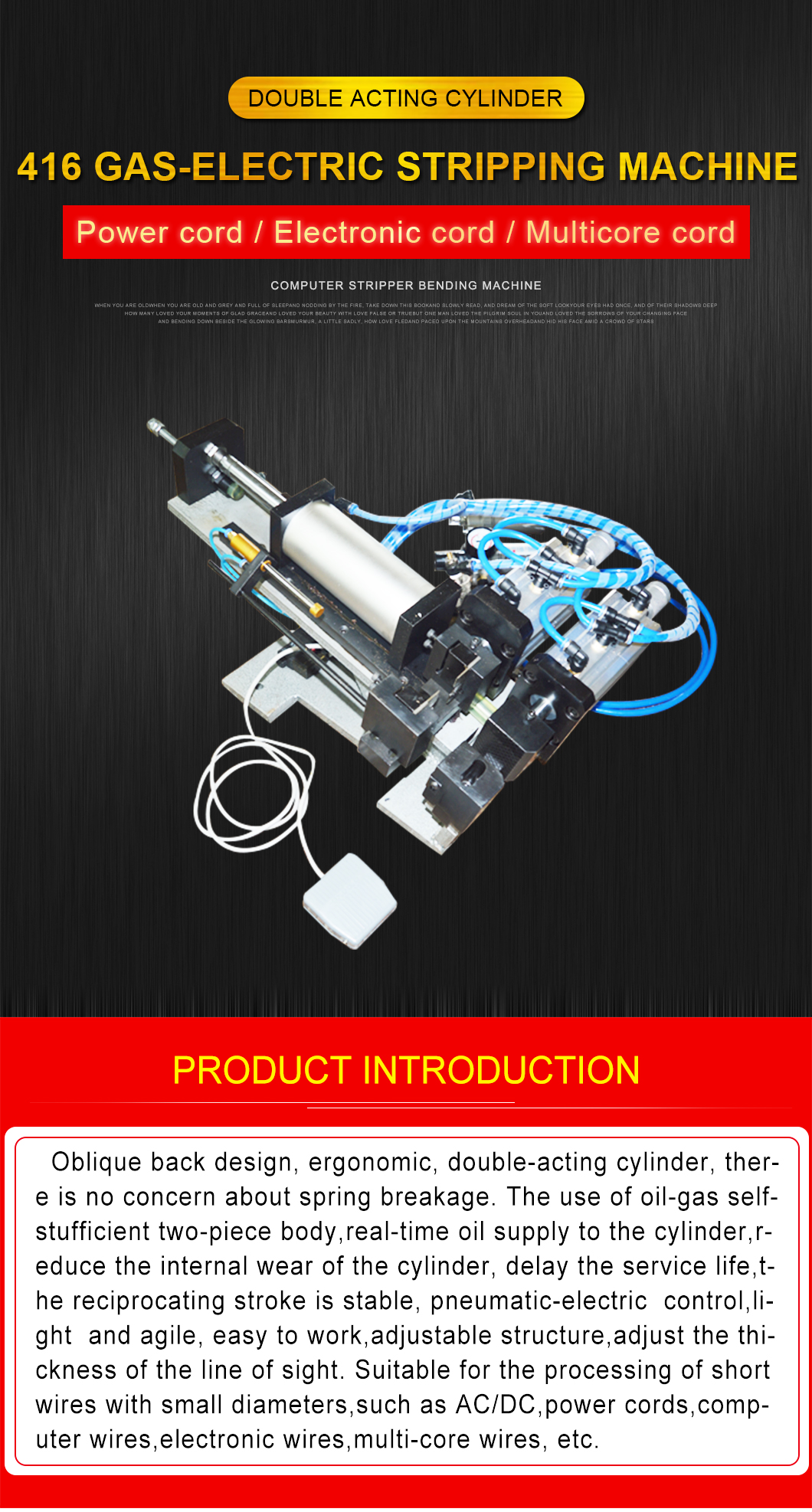

Product introduction
Oblique back design, ergonomic, double-acting cylinder, there is no concern about spring breakage. The use of oil-gas self stufficient two-piece body ,real-time oil supply to the cylinder,reduce the internal wear of the cylinder, delay the service life,the reciprocating stroke is stable, pneumatic-electric control,light and agile, easy to work, adjustable structure,adjust the thickness of the line of sight. Suitable for the processing of short wires with small diameters, such as AC/DC, power cords, computer wires,electronic wires ,multi-core wires, etc.
3QMachine blade
Flat knife suitable for stripping flat wire
Standard V knife suitable for stripping flat wire
Round knife suitable for special wire
Details
Each machine is standard equipped with a blade (a pair of 2 pieces), the equipped blade users can choose one of the above three pieces according to their own stripping needs, users with other blade needs can contact customer service personnel. (Note: the size of round knives with different wire diameters is not the same. If you need round knives, please provide the size of wire diameters first.) A V knife is standard.

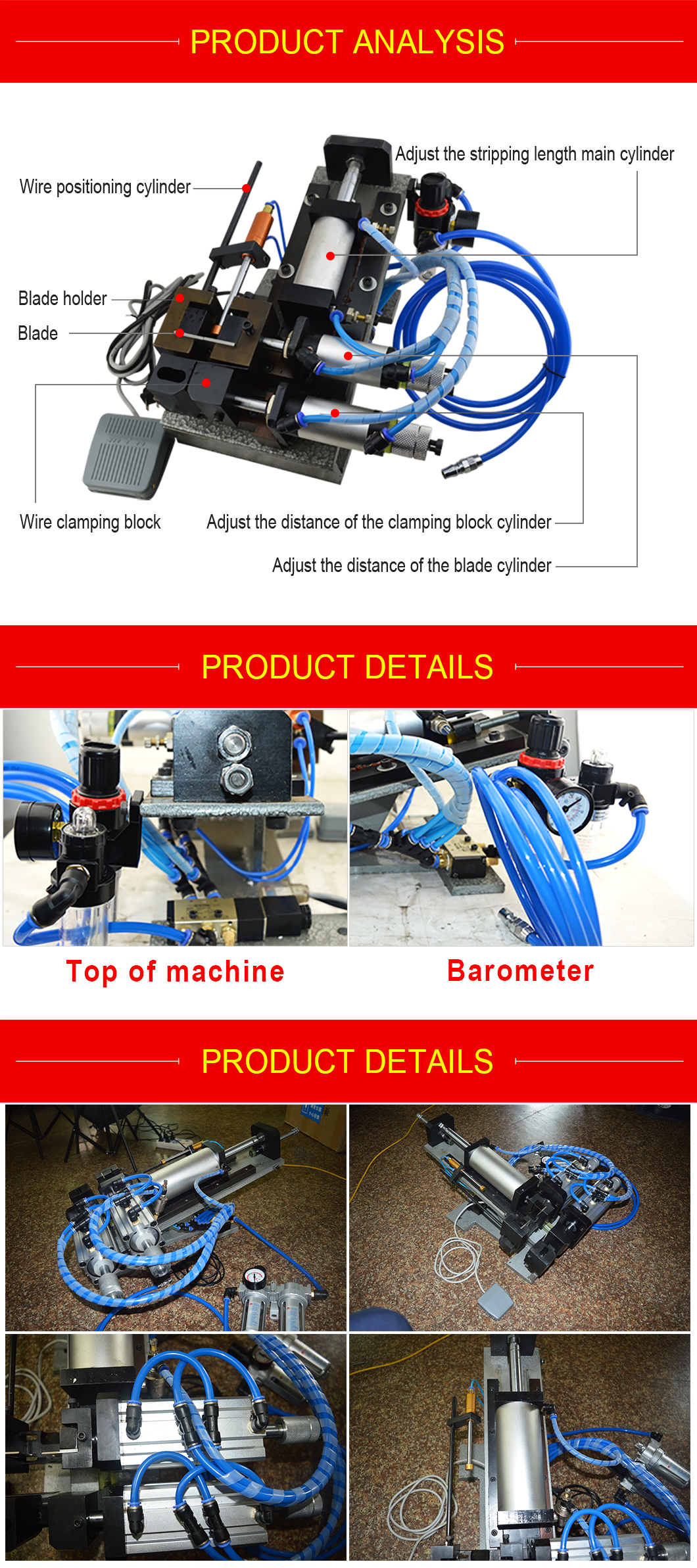

Product analysis
Adjust the stripping length main cylinder
Wire positioning cylinder-
Blade holder
Blade
Wire clamping block
Adjust the distance of the clamping block cylinder.
st the distance of the blade cylinder
Data Sheet
Running distance | 1 50mm |
Stripping ability | 5- 30mm |
Air pressure | 5~ 8kg/cm2 |
Voltage | 220/50HZ |
Strength | 165~ 300kg |
Cylinder diameter | 80mm |
Weight | 50kg |
Specification | 615 x 425 x 375mm |
