Overview introduction：

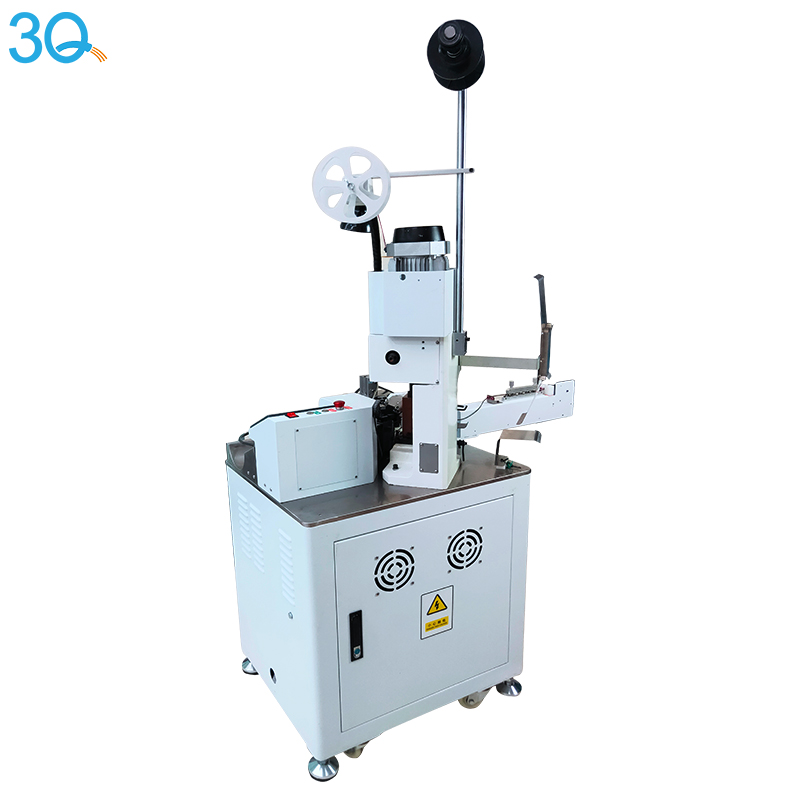

Product name: Automatic terminal machine
1. Automatic cutting
2. Automatic peeling
3. Automatic twisting

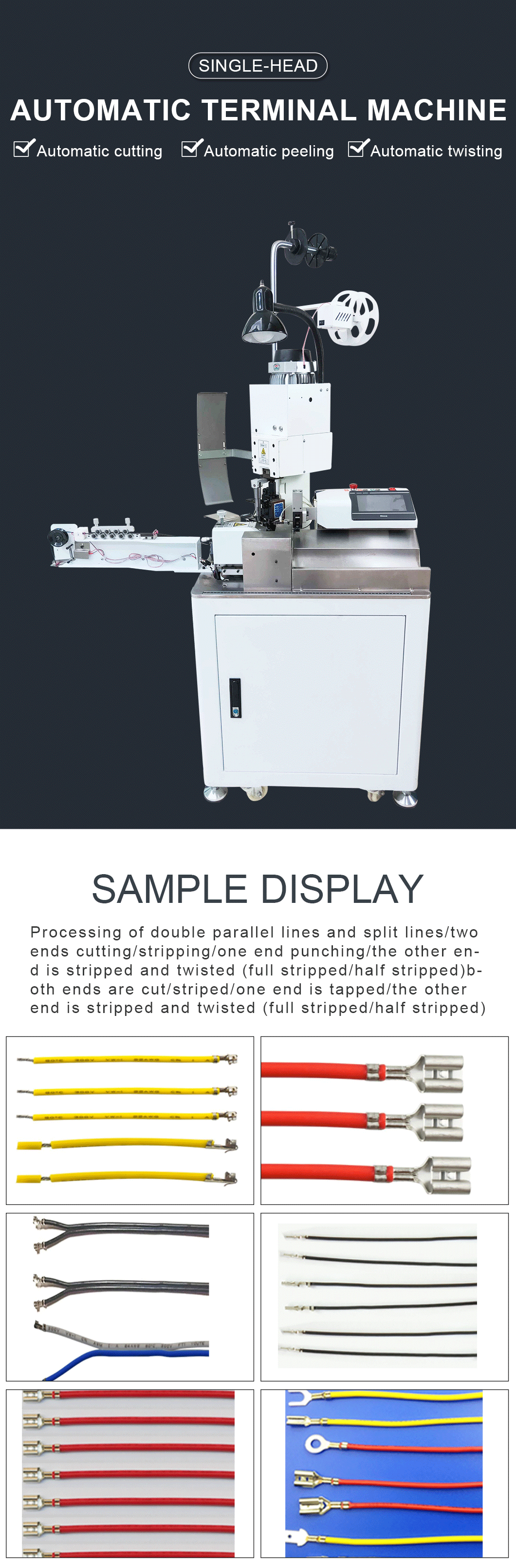

Application:
Processing of double parallel lines and split lines/two ends cutting/stripping/one end punching/the other end is stripped and twisted (full stripped/half stripped)both ends are cut/striped/one end is tapped/the other end is stripped and twisted (full stripped/half stripped)
Features:
1. Automatically cut wires, single-ended stripping, double-ended stripping, single-ended twisting, single-ended crimping,Multi-stage peeling and other functions, automatic completion of simple operation, fast speed, stable performance, The speed can reach 6100 bars/H.
2. Suitable for horizontal, vertical, flag and OTP molds.

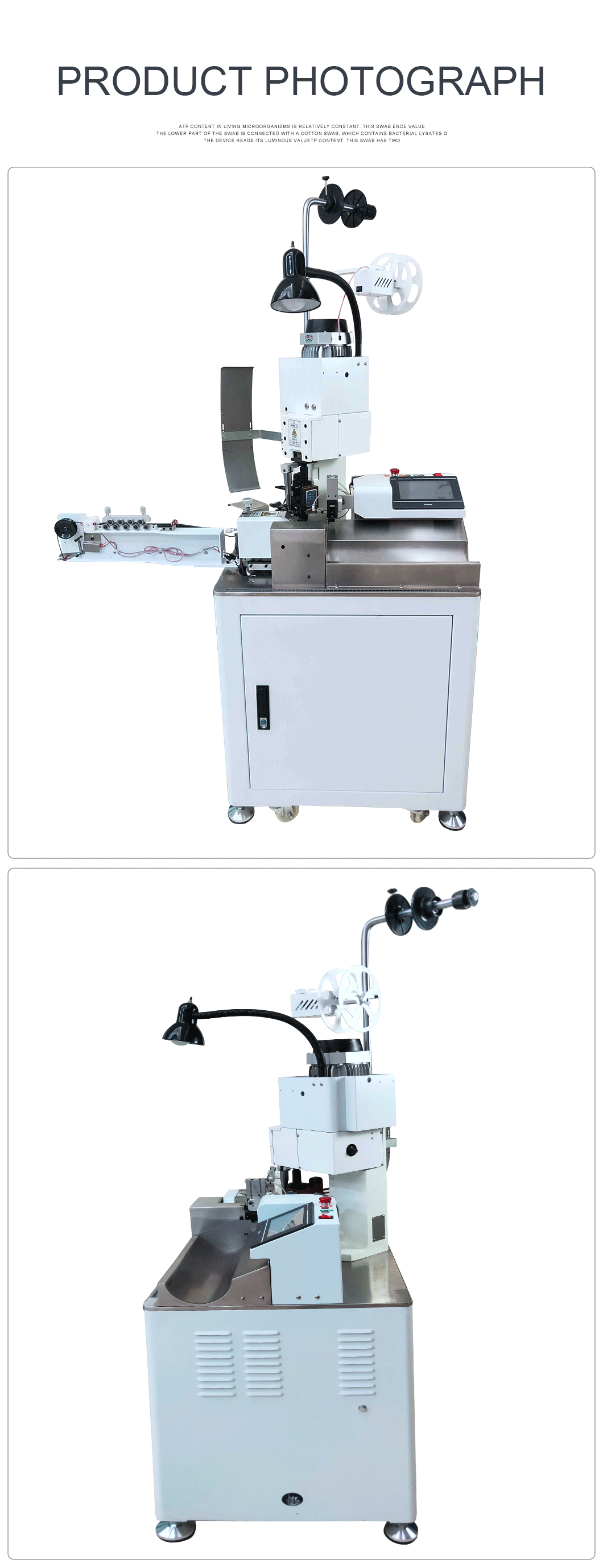

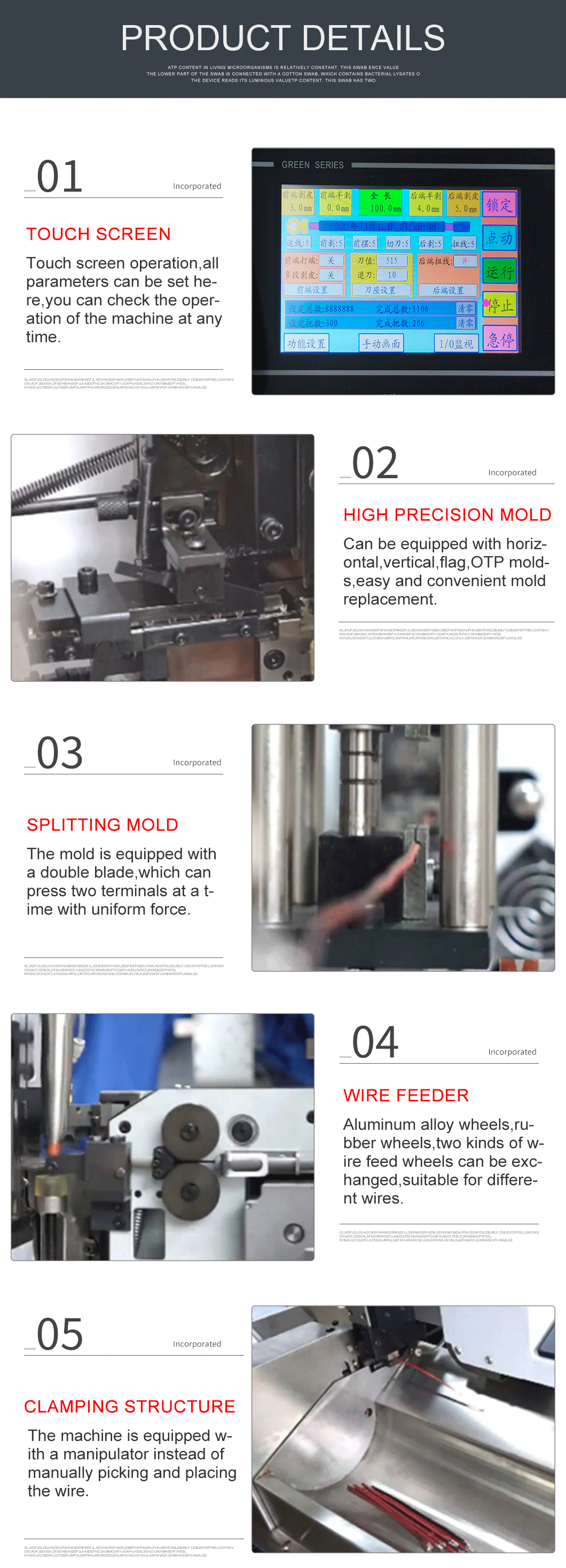

3. LCD screen, Chinese interface, high-definition, simple operation.
4. Equipped with wire detection, air pressure detection and riveting detection devices.
4 The equipment composition mainly adopts imported original parts, and completes the cutting of wires, Stripping, terminal crimping and other precise actions simple operation and stable performance.
5. The peeling length of the whole process is directly set by the Chinese menu panel of the touch membrane switch. The best features are: fast technical performance adjustment, short adjustment time, and easy operation.

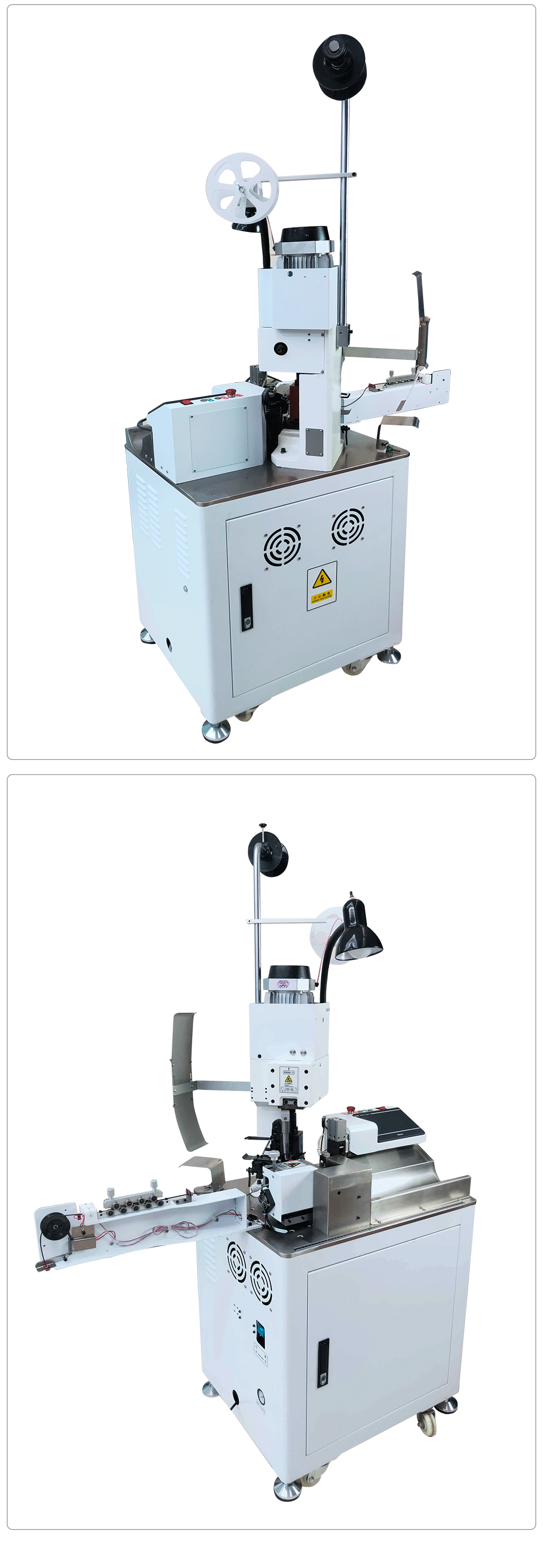

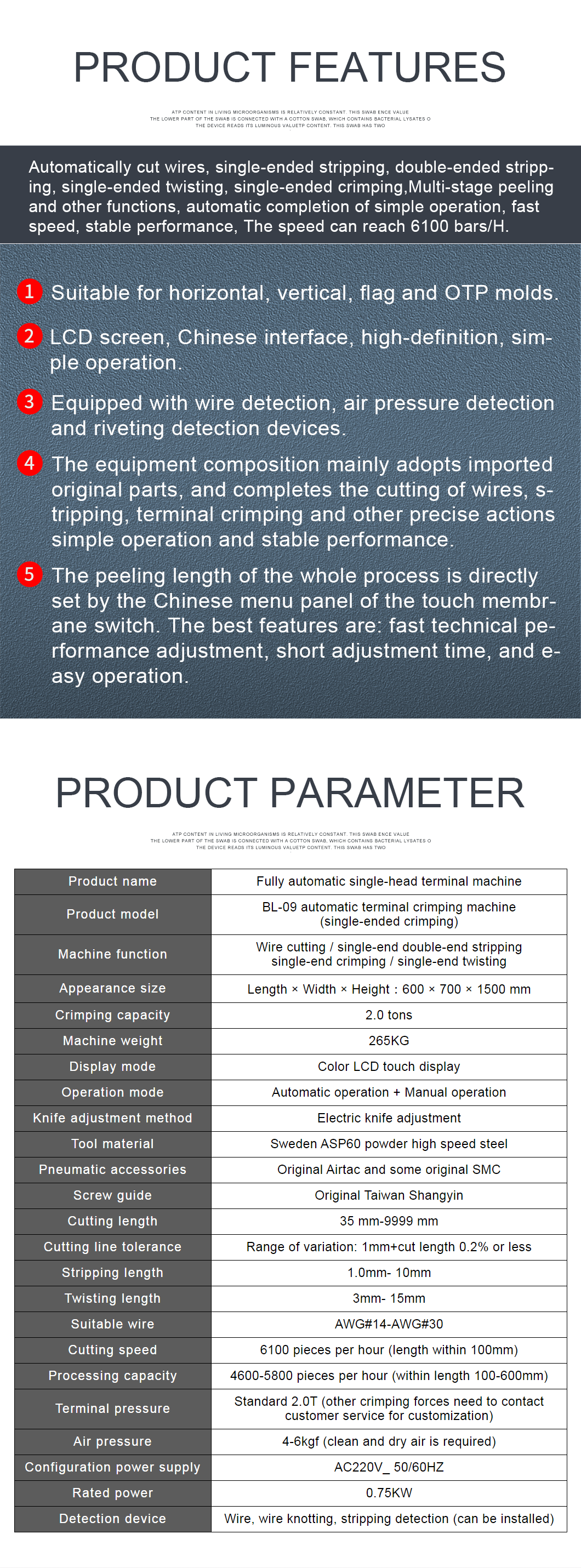

Data Sheet:
| Product name | Fully automatic single-head terminal machine |
| Product model | BL-09 automatic terminal crimping machine (single-ended crimping) |
| Machine function | Wire cutting 1 single-end double-end stripping single-end crimping / single-end twisting |
| Appearance size | Length x Width x Height : 600 x 700 x 1500 mm |
| Crimping capacity | 2.0 tons |
| Machine weight | 265KG |
| Display mode | Color LCD touch display |
| Operation mode | Automatic operation + Manual operation |
| Knife adjustment method | Electric knife adjustment |
| Tool material | Sweden ASP60 powder high speed steel |
| Pneumatic accessories | Original Airtac and some original SMC |
| Screw guide | Original Taiwan Shangyin |
| Cutting length | 35 mm-9999 mm |
| Cutting line tolerance | Range of variation: 1mm+cut length 0.2% or less |
| Stripping length | 1.0mm- 10mm |
| Twisting length | 3mm- 15mm |
| Suitable wire | AWG# 14-AWG#30 |
| Cutting speed | 6100 pieces per hour (length within 100mm) |
| Processing capacity | 4600-5800 pieces per hour (within length 100-600mm) |
| Terminal pressure | Standard 2.0T (other crimping forces need to contact customer service for customization) |
| Air pressure | 4-6kgf (clean and dry air is required) |
| Configuration power supply | AC220V_ 50/60HZ |
| Rated power | 0.75KW |
| Detection device | Wire, wire knotting, stripping detection (can be installed) |
