Mute Terminal Crimping Machine | 1.5T/2T

Availability:
Quantity:
  • 3Q machine

静音端子机详情页_01静音端子机详情页_02静音端子机详情页_03静音端子机详情页_04

wire stripping machine

工厂展示_01工厂展示_02工厂展示_03独立站证书


WIRE STRIPPING MACHINE

Overview introduction:

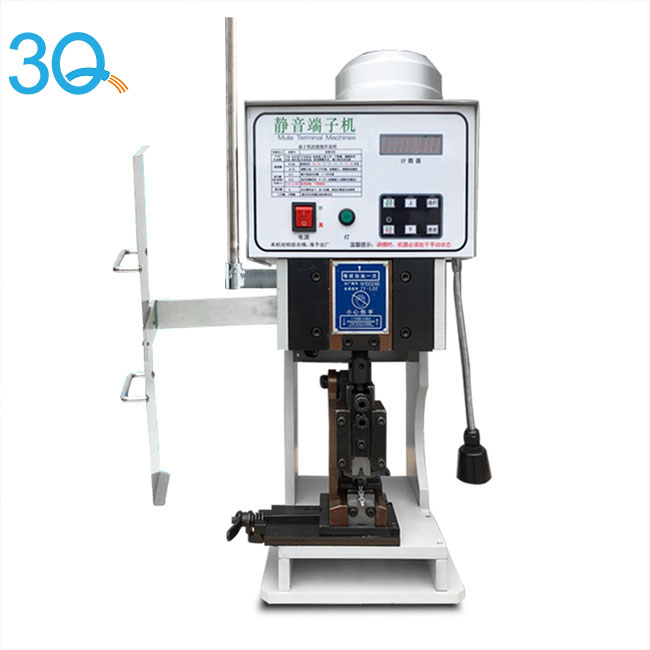

Product name: Automatic terminal crimping machine



Features:

1. Fast / L .ow failure

2. Automatic terminal machine: When crimping, the noise of the motor is smaller than the traditional one and it Saves electricity.

3. Using frequency conversion technology: Electronic precision positioning

4. Silent terminal machine, using cash inverter, frequency conversion motor control, equipped with high-precision imported proximity Switch, reducer, agile and accurate action, accurate feeding, high efficiency, electronic positioning, the motor noise during crimping is less than traditional, and Power saving, convenient and quick mold adjustment, avoiding common obstacles such as traditional terminal clutches and electromagnets, and saving time for adjusting the crimping height. The height of crimping can be directly adjusted on the operation panel.

5. Machine grinding tool conjoined.

6. Computer terminals, DC terminals and connected terminals.

7. The voltage is stable, the speed is fast, and the accuracy is high.

8. The structure is light and handy, easy to move the workplace, and the operation sound is small.

9. HD display: With counting function

10. Pure copper motor: Not easy to short circuit

11. The mold can be changed at will

12. Electricity safety Power-off protection



 Data Sheet:

Model1.0T mute terminal machine1.5T mute terminal machine
Specification21 5*1 90*450mm245*240*620mm
Power supply220V 50HZ220V 50HZ
Journey30mm (40mm can be customized)30mm (40mm can be customized)
Weight26KG45KG
Crimping ability10KN1 5KN
Motor power0.35KW0.55KW
Model2.0T mute terminal machine3.0T mute terminal machine
Specification270* 260*640mm270* 260*640mm
Power supply220V 50HZ220V 50HZ
Journey30mm (40mm can be customized)30mm (40mm can be customized)
Weight50KG55KG
Crimping ability20KN 30KN
Motor power0.75KW1.1KW
Model4.0T mute terminal machine6.0T mute terminal machine
Specification280*270*71 0mm550* 430*650mm
Power supply220V 50HZ220V 50HZ
Journey30mm (40mm can be customized)30mm (40mm can be customized)
Weight60KG80KG
Crimping ability40KN60KN
Motor power1.5KW2.0KW
