Overview introduction:

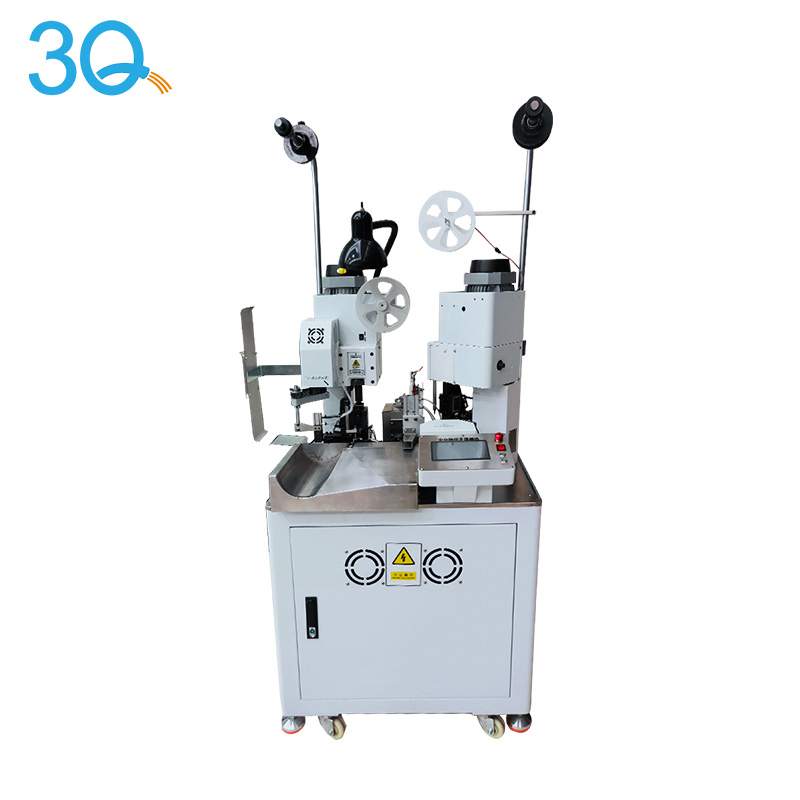

Product name: Fully automatic double-head terminal machine
Features:
1. stripping/single-end
2. crimping/ multi-section
3. twisting/single-end
4. stripping
5. The latest 32-bit Cortex-M3 core processor of the control system + large-capacity FPGA logic
processing chip dual-core architecture, combined with a 7-inch Delta industrial touch screen, is
easy to operate, powerful, and stable;
6. With 4-wheel drive, the contact area between the roller and the wire is larger, the wire feeding is stable, and the length is accurate;
7. The control system is highly integrated, which greatly reduces the failure rate of the system!
8. Equipped with a large-capacity memory, which can save 100 groups of parameters at the same
time, which is convenient for operation;
9. Fully automatic computer adjustment of the knife, debugging is more convenient;
10. The terminal crimping machine adopts frequency conversion drive, which is more energy-saving and quieter;
11. Touch screen: using Touch screen operation, all parameter can be set here, monitoring the machine’s operation at any time.
12. Treplaceable mold: using touch screen operation, all parameters can be set here. Monitoring operation at any time.
13. Manipulator: The manipulator takes the thread instead of labor, and pays the thread neatly and fast
14. Control board: circuit box, eight-generation core processor, 64-bit intelligent control system, fast running speed.
Data Sheet:
Mechanical function | Wire cutting, single-ended stripping, double-ended stripping |
physical dimension | 800* 830* 1530MM |
Machine weight | 315KG (including wooden box packaging) |
Display method | Color LCD touch screen |
Operation mode | Automatic operation + manual operation |
Knife adjustment method | Electric knife adjustment |
Tool material | Sweden ASP60 powder high speed steel |
Pneumatic accessories | Original Airtac |
Screw guide | Original Taiwan Shanghai Bank |
Cutting tolerance | Range of variation 1MM+cut length*0.2% or less |
Cutting length | 45-9999mm |
Stripping length | 1.5- 10mm |
Applicable wire | AWG18-28# |
Cutting speed | 6500pcs/hour (within 100MM in length) |
Processing capacity | 4500 pieces/hour (within 100MM in length) |
Terminal pressure | Standard 2.0T (other crimping force needs to be customized) air pressure |
air pressure | 5.0KG (requires stable, dry air) |
Detection device | The presence of terminals, wires, crimping detection, air pressure detection, etc. |
Configure power | AC220V |
rated power | 2.5KW |
