High Speed Auto Wire Cutting Machine

Availability:
Quantity:
  • 3Q machine

cable cutting machine detailscable cutting machine detailscable cutting machine detailscable cutting machine details

工厂展示_01工厂展示_02工厂展示_03独立站证书

WIRE STRIPPING MACHINE

Overview introduction:

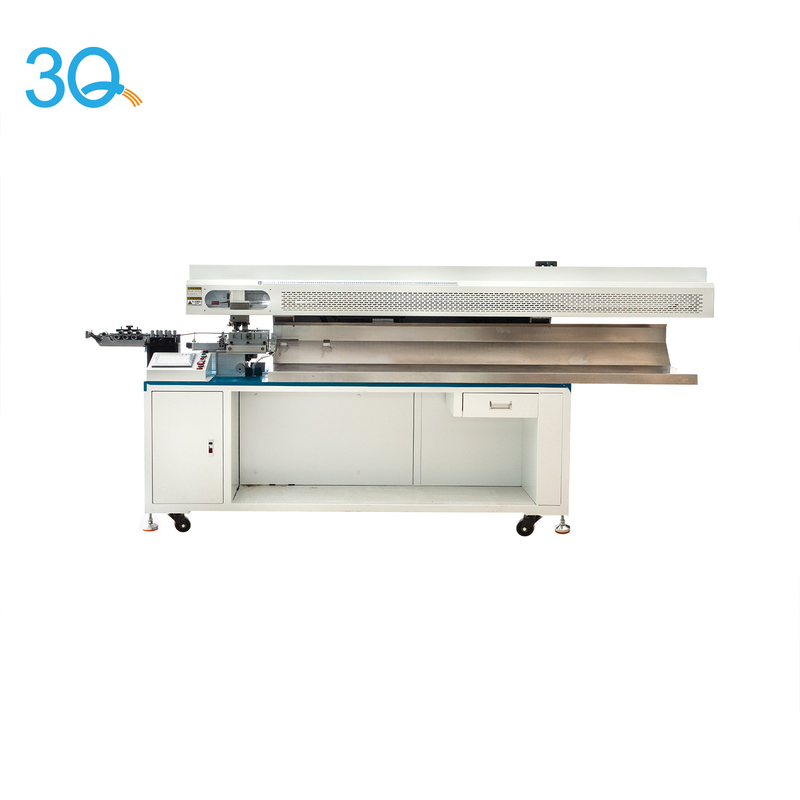

Product name: 950 high speed wire cutting machine



Features:

1. This machine is to cut wire size at high speed, automatic wire cutting machine with single-end peeling and half-stripping

2. 10 strips can be cut at one time

3. Simple replacement/save time and effect

4. High output of mechanical cutting wire

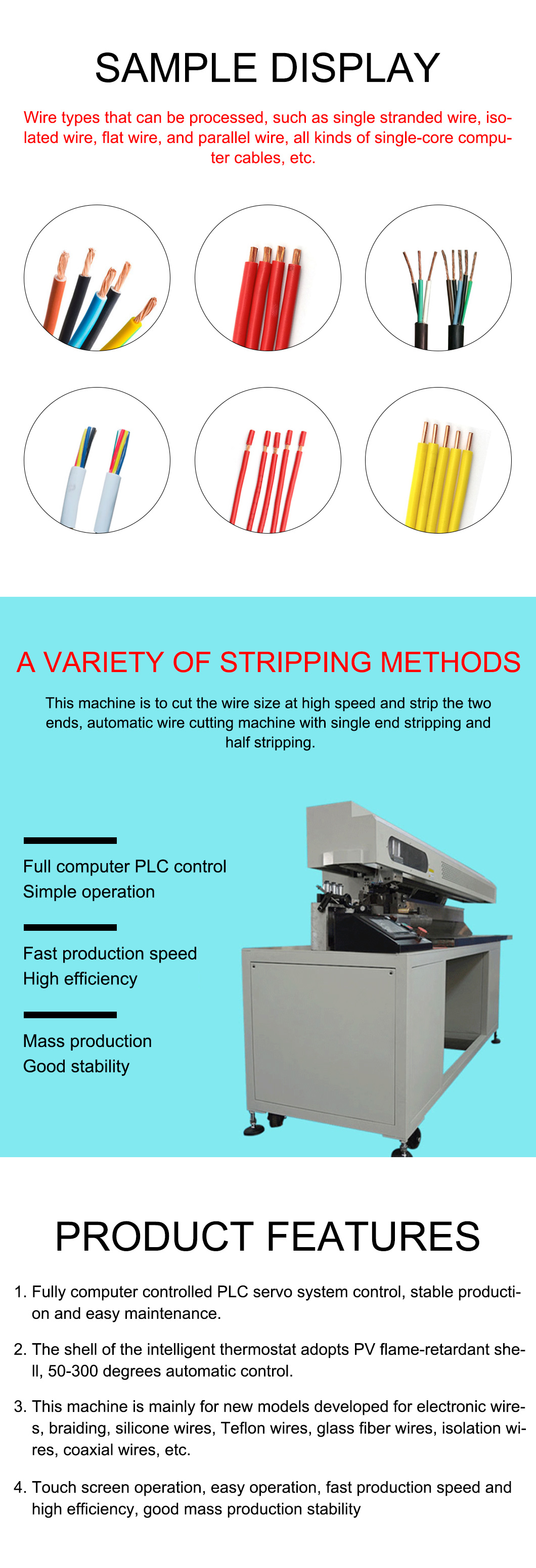

5. Wire types that can be processed, such as single stranded wire, isolated wire, flat wire, and parallel wire, all kinds of single-core computer cables, etc.

6. A variety of stripping methods: This machine is to cut the wire size at high speed and strip the two ends, automatic wire cutting machine with single end stripping and half stripping.

7. Full computer PLC control Simple operation

8. Fast production speed

9. High efficiency

10. Mass production

11. Good stability

12. Fully computer controlled PLC servo system control, stable producti-

on and easy maintenance.

13. The shell of the intelligent thermostat adopts PV flame-retardant sheII, 50-300 degrees automatic control.

14. This machine is mainly for new models developed for electronic wires, braiding, silicone wires, Teflon wires, glass fiber wires, isolation wires, coaxial wires, etc.

15. Touch screen operation, easy operation, fast production speed and high efficiency, good mass production stability

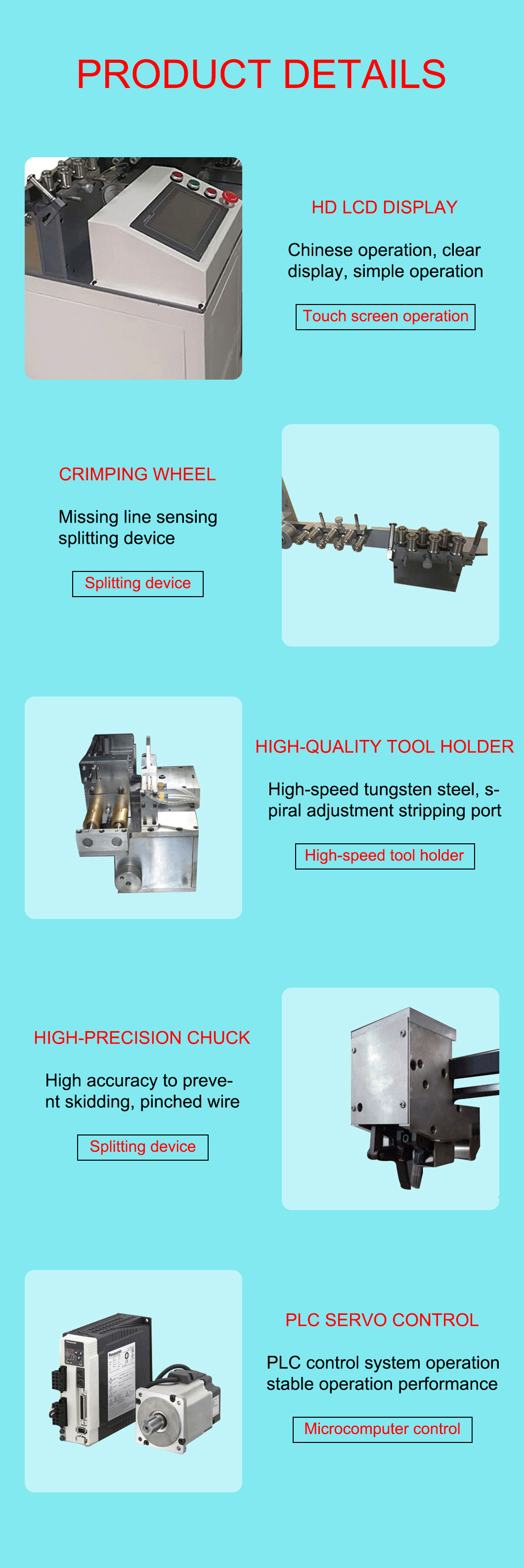

16. HD LCD display: Chinese operation, clear display, simple operation Touch screen operation

17. Crimping wheel: Missing line sensing, splitting device, Splitting device

18. High-quality holder: High-speed tungsten steel, Spiral adjustment stripping port, High-speed tool holder

19. High precision chuck: High accuracy to prevent skidding, pinched wire Splitting device

PL .C SERVO CONTROL

20. PLC servo control: PLC control system operation, stable operation performance, Microcomputer control

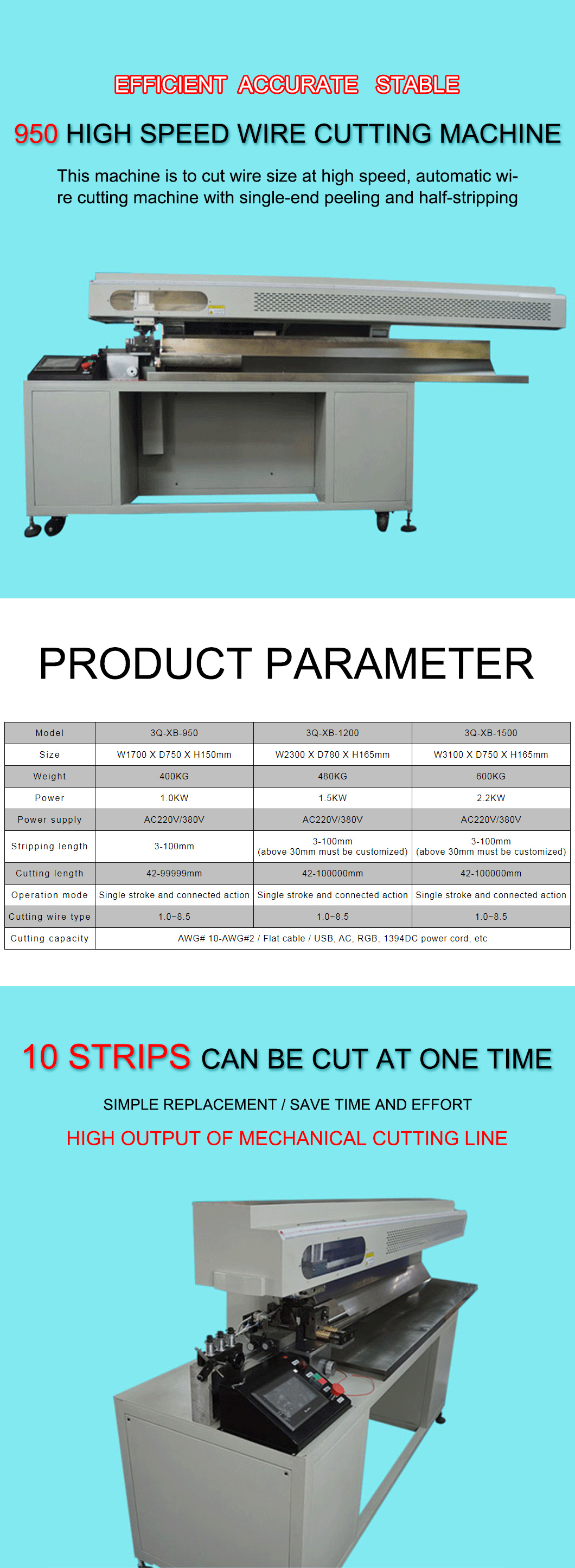

Data Sheet:

Model3Q-XB -9503Q-XB- 12003Q-XB-1500
SizeW1700 X D750 X H150mmW2300 X D780 X H165mmW3100 X D750 X H165mm
Weight400KG480KG600KG
Powe r1.0KW1. 5KW2.2KW
Power supplyAC220V/380VAC220V/380VAC220V/380V
Stripping length3- 100mm3-100mm
(above 30mm must be customized)
3-100mm
(above 30mm must be customized)
Cutting length42-99999mm42- 100000mm42-1 00000mm
Operation modeSingle stroke and connected actionSingle stroke and connected actionSingle stroke and connected action
Cutting wire type1.0~8.51.0~8.51.0~8.5
Cutting capacityAWG# 10-AWG#2 1 Flat cable 1 USB, AC,RGB 1394DC power cord, etc
