3Q machine
Product overview

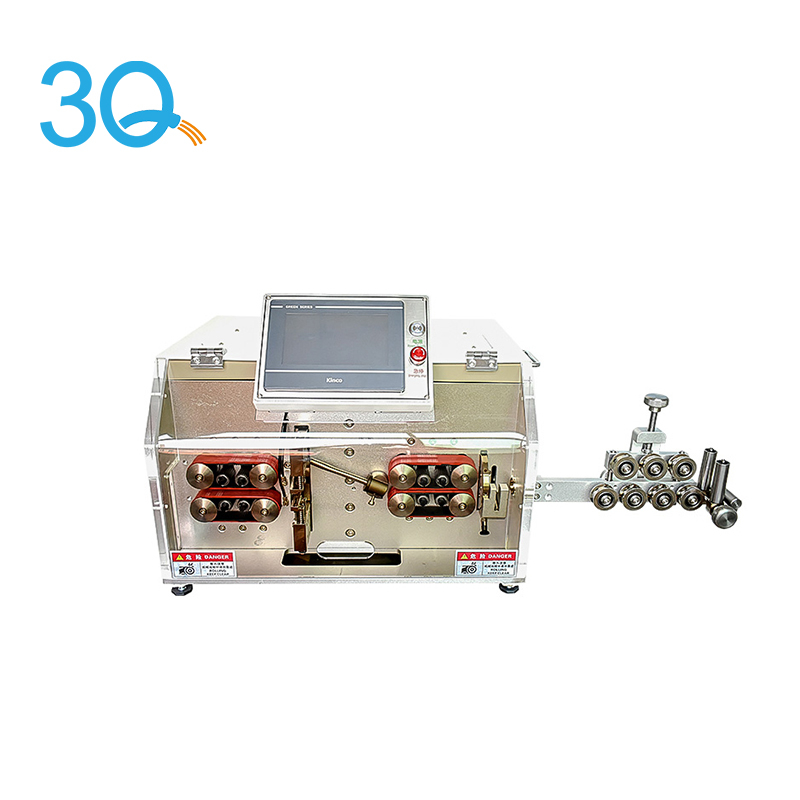

Product name: Sheathed wire inner and outer stripping machine
Multi core sheathed wire outer skin peeling
Multi-core wire stripping
Finished at once
Processing sample display:
This machine is suitable for simultaneous stripping inside and outside of various wires such as wires, multi-core sheathed wires, and cable wires.
Feature:
1. Stable performance
2. Precision drive
3. Computer control
4. High speed operation
5. Reduce the labor intensity of employees
Product analysis:
1. HD touch screen
2. Belt feed pulley
3. Tool holder
4. Catheter
5. Vents
6. Straightener
7. Pneumatic solenoid valve
Product details:
1. Belt feed
1 6-wheel drive wire feeding, no indentation or imprinting on the cable,more accurate wire feeding, higher cutting and stripping accuracy
2. Wire stripper conduit
Diameter 16, replaceable,so that the wire is in line with the center of the knife edge when passing through the catheter
3. Wire straightener
Excellent performance and high precision, to ensure that the wire is free from scratches and scratches during the straightening process
4. Touch screen
7-inch true color touch screen, intelligent control system, more simple and convenient operation
5. Pneumatic solenoid valve
Using multiple pneumatic solenoid valves, no heat is not easy to be stuck, and the efficiency is higher
6. Reinforced thickened blade
Higher hardness, stronger corrosion resistance, saving time and effort
7. Control board circuit box
The eighth-generation core processor, 64-bit intelligent control system, runs faster, and meets your pursuit of speed

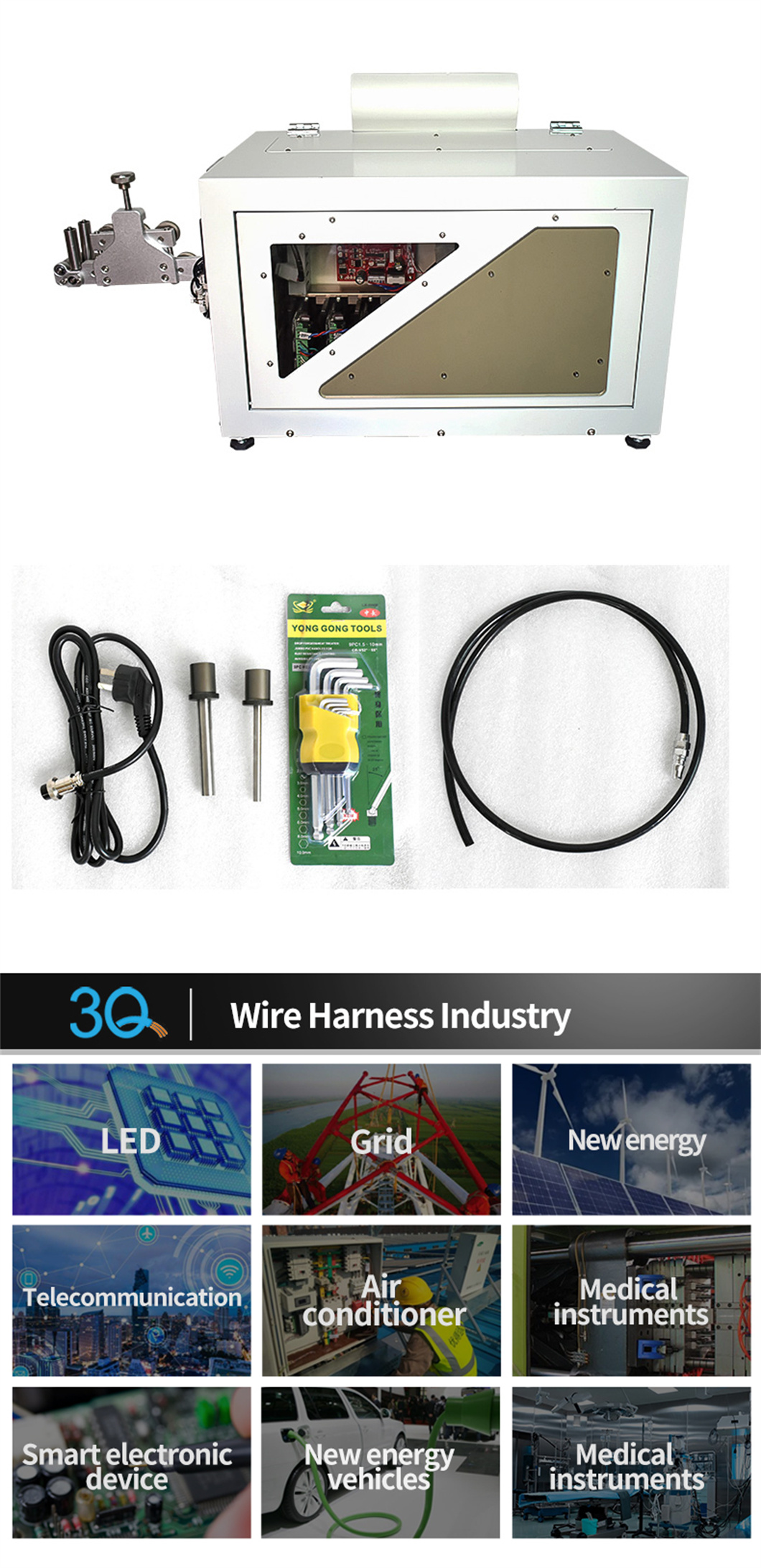

Wire harness industry:
1. LED
2. GRID
3. NEW ENERGY
4. TELECOMMUNICATION
5. AIR CONDITIONER
6. MEDICAL INSTRUMENTS
7. SMART ELECTRONIC DEVICE
8. NEW ENERGY VEHICLES
9. MEDICAL INSTRUMENTS
Data sheet:
| STRIPPING RANGE | 4-30 square meters (including sheathed wires below 6 cores) |
| CUT LENGTH | 1mm-999999.99mm |
| CUTTING TOLERANCE | Within 0.002"L (L=cutting length) |
| PEELING LENGTH | Front stipping: 10-120mm of outer sheath, 1-1 20mm of inner core After stripping: 10-120mm of outer sheath, 1-80mm of inner core |
| MAXIMUM DIAMETER OF CATHETER | 16 |
| TOOL MATERIAL | High-quality imported high speed steel |
| PRODUCTIVITY | 2300pcs/h (sheathed wire 800pcs/H) |
| DRIVE MODE | 16 wheel drive |
| FEEDING METHOD | Belt feeding, no embossing and no scratches on the cable |
| REMARK | Special cable, can be customized for special requirements, need to send sample cable for testing |
