3Q machine
Overview introduction:

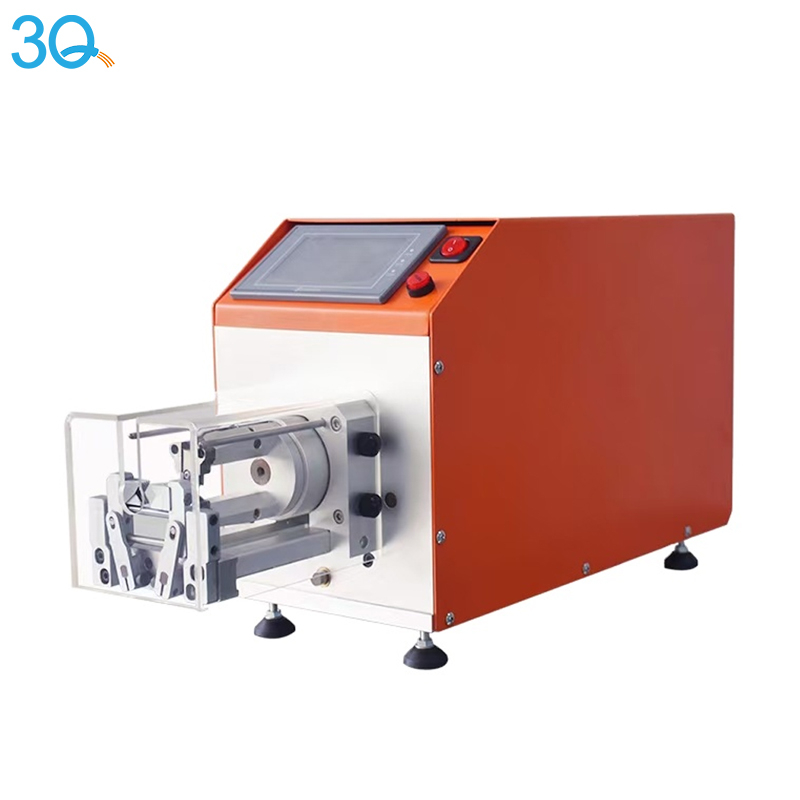

Product name: Coaxial wire stripper
Features:
1. Efficient
2. Fast
3. Stable
4. Convenient

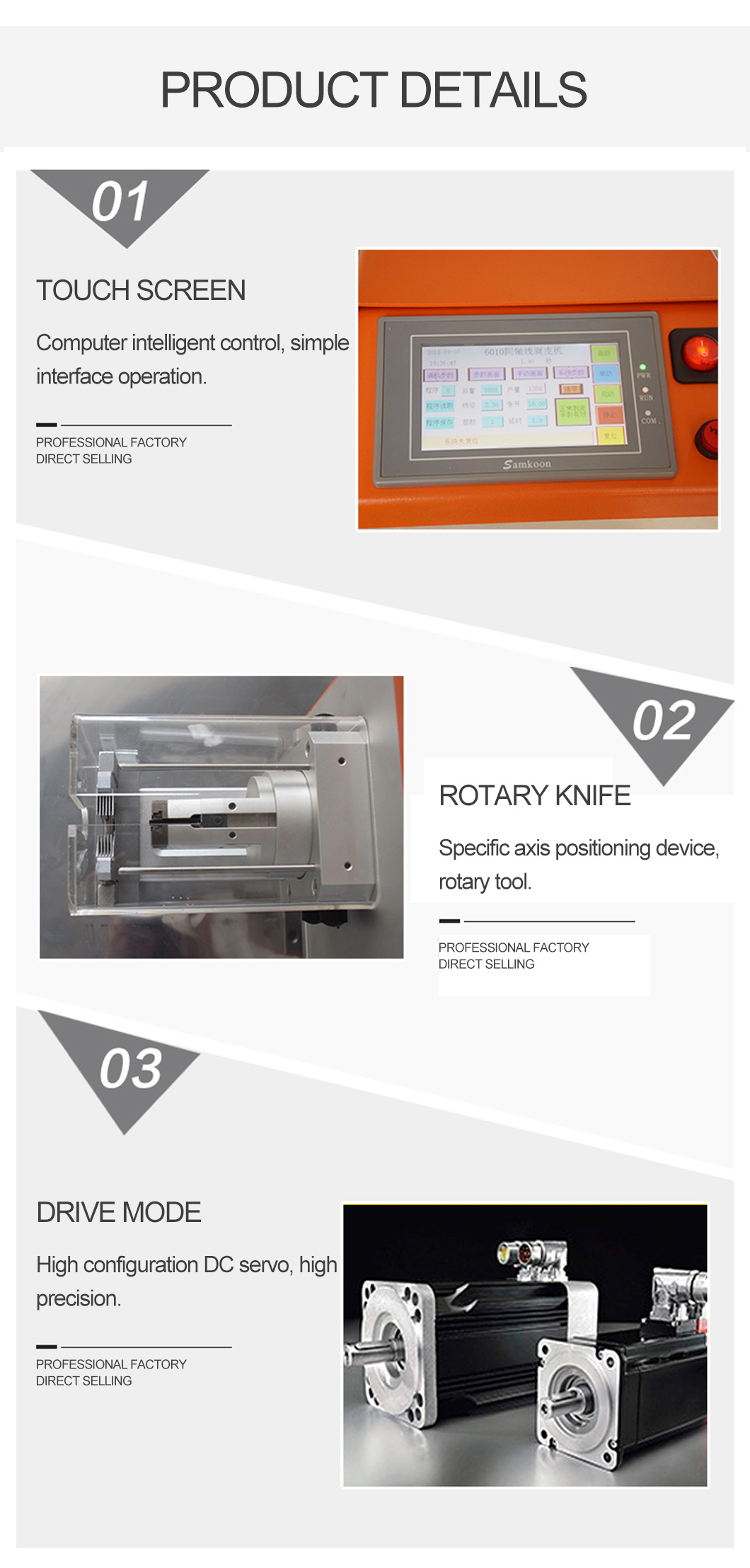

5. Touch screen: Computer intelligent control, simple interface operation.
6. Rotary knife: Specific axis positioning device, rotary tool.
7. Drive mode: High configuration DC servo, high precision.
Application:

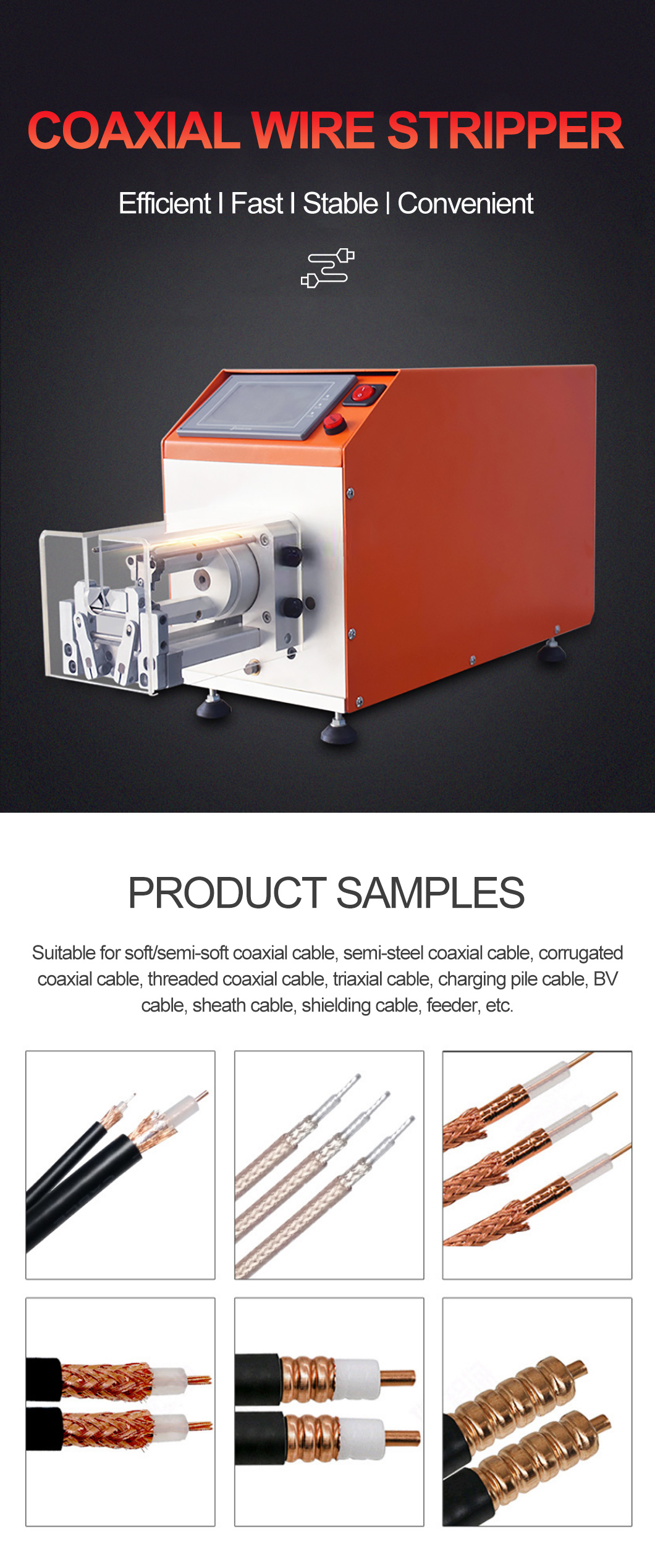

Suitable for soft/semi-soft coaxial cable, semi steel coaxial cable, corrugated, coaxial cable, threaded coaxial cable, triaxial cable, charging pile cable, BV cable, sheath cable, shielding cable, feeder, etc.
Data Sheet:

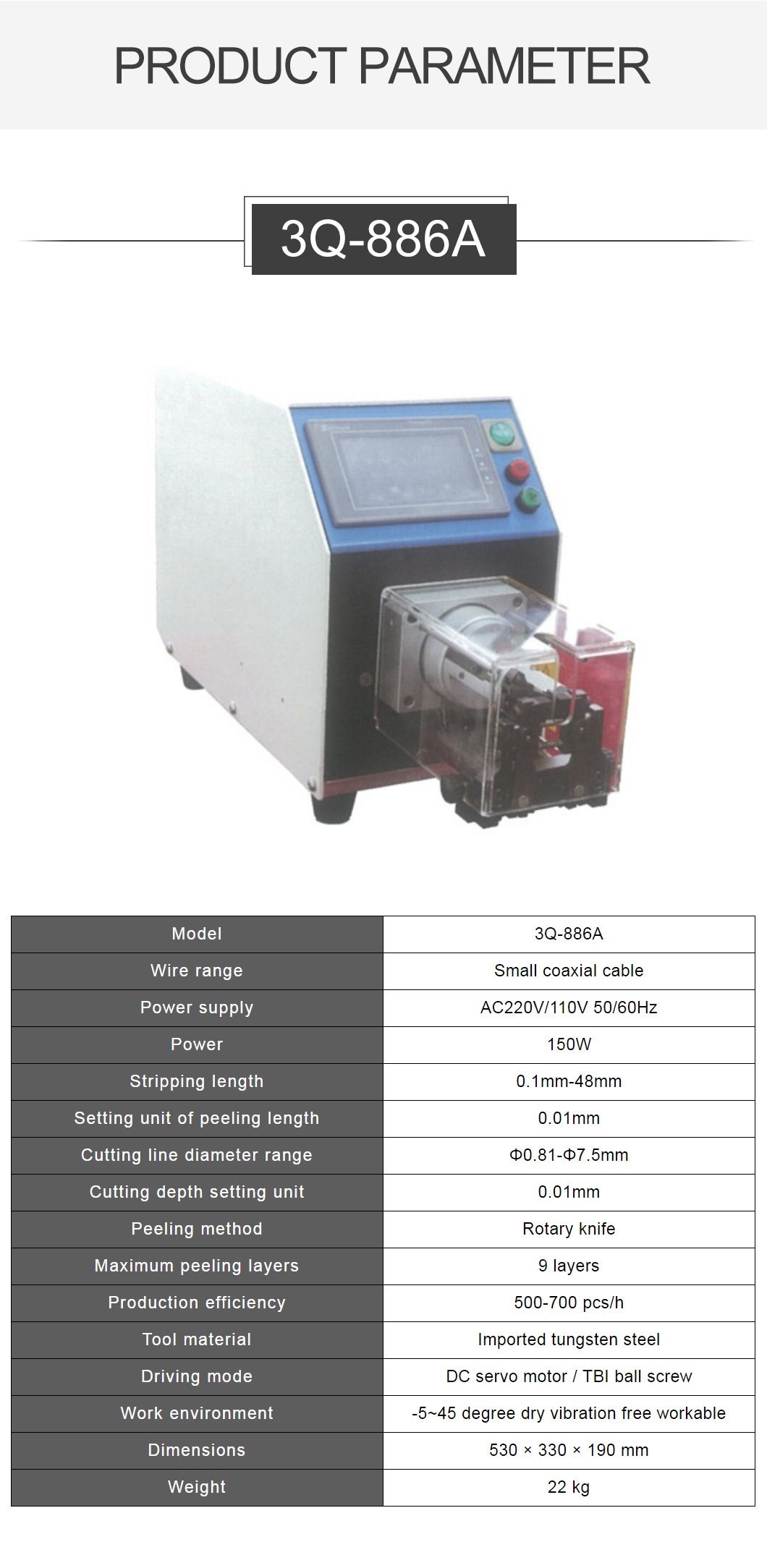

| Model | 3Q-886A |
| Wire range | Small coaxial cable : |
| Power supply | AC220V/110V 50/60Hz |
| P ower | 1 50W |
| Stripping length | 0.1 mm-48mm |
| Setting unit of peeling length | 0.01mm |
| Cutting line diameter range | 中0.81-φ7.5mm |
| Cutting depth setting unit | 0.01 mm |
| Peeling method | Rotary knife |
| Maximum peeling layers | 9 layers |
| Production efficiency | 500-700 pcs/h |
| Tool material | Imported tungsten steel |
| Driving mode | DC servo motor 1 TBI ball screw |
| Work environment | -5~45 degree dry vibration free workable |
| Dimensions | 530x330x190mm |
| Weight | 22 kg |

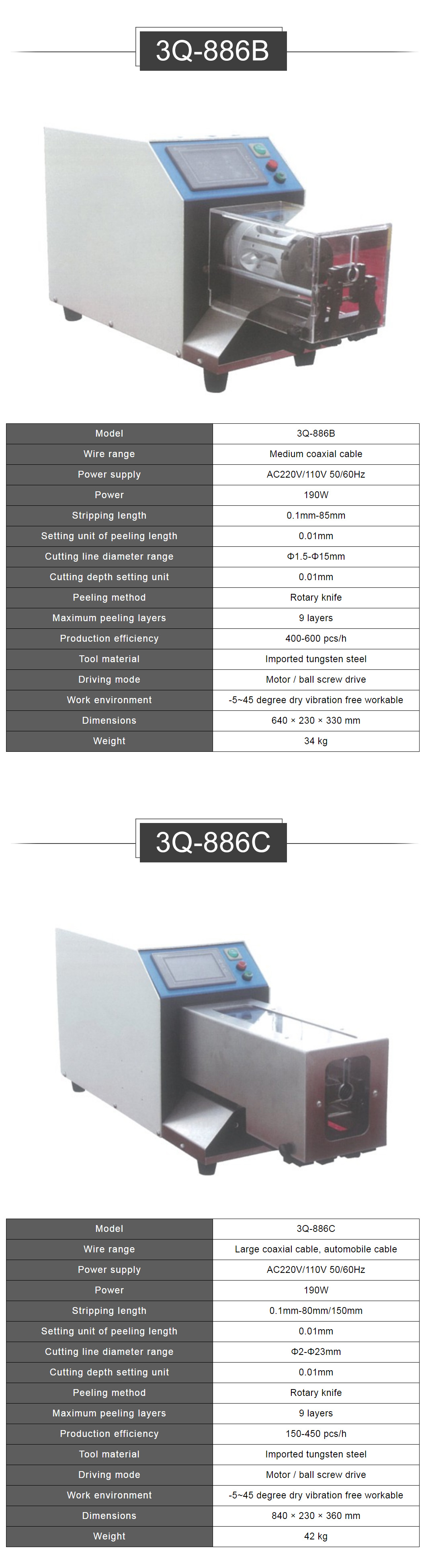

| Model | 3Q-886B |
| Wire range | Medium coaxial cable |
| Power supply | AC220V/110V 50/60Hz |
| P ower | 1 90W |
| Stripping length | 0.1 mm-85mm |
| Setting unit of peeling length | 0.01 mm |
| Cutting line diameter range | 中1.5-中15mm |
| Cutting depth setting unit | 0.01 mm |
| Peeling method | Rotary knife |
| Maximum peeling layers | 9 layers , |
| Production efficiency | 400-600 pcs/h |
| Tool material | Imported tungsten steel |
| Driving mode | Motor 1 ball screw drive |
| Work environment | -5~45 degree dry vibration free workable |
| Dimensions | 640x230x330mm |
| Weight | 34 kg |
| Model | 3Q-886C |
| Wire range | Large coaxial cable, automobile cable |
| Power supply | AC220V/110V 50/60Hz |
| Power | 190W! |
| Stripping length | 0.1 mm-80mm/150mm |
| Setting unit of peeling length | 0.01 mm |
| Cutting line diameter range | 中2-中23mm |
| Cutting depth setting unit | 0.01mm |
| Peeling method | Rotary knife |
| Maximum peeling layers | 9 layers |
| Production efficiency | 1 50-450 pcs/h |
| Tool material | Imported tungsten steel |
| Driving mode | Motor 1 ball screw drive |
| Work environment | -5~45 degree dry vibration free workable |
| Dimensions | 840x230x360mm |
| Weight | 42 kg |

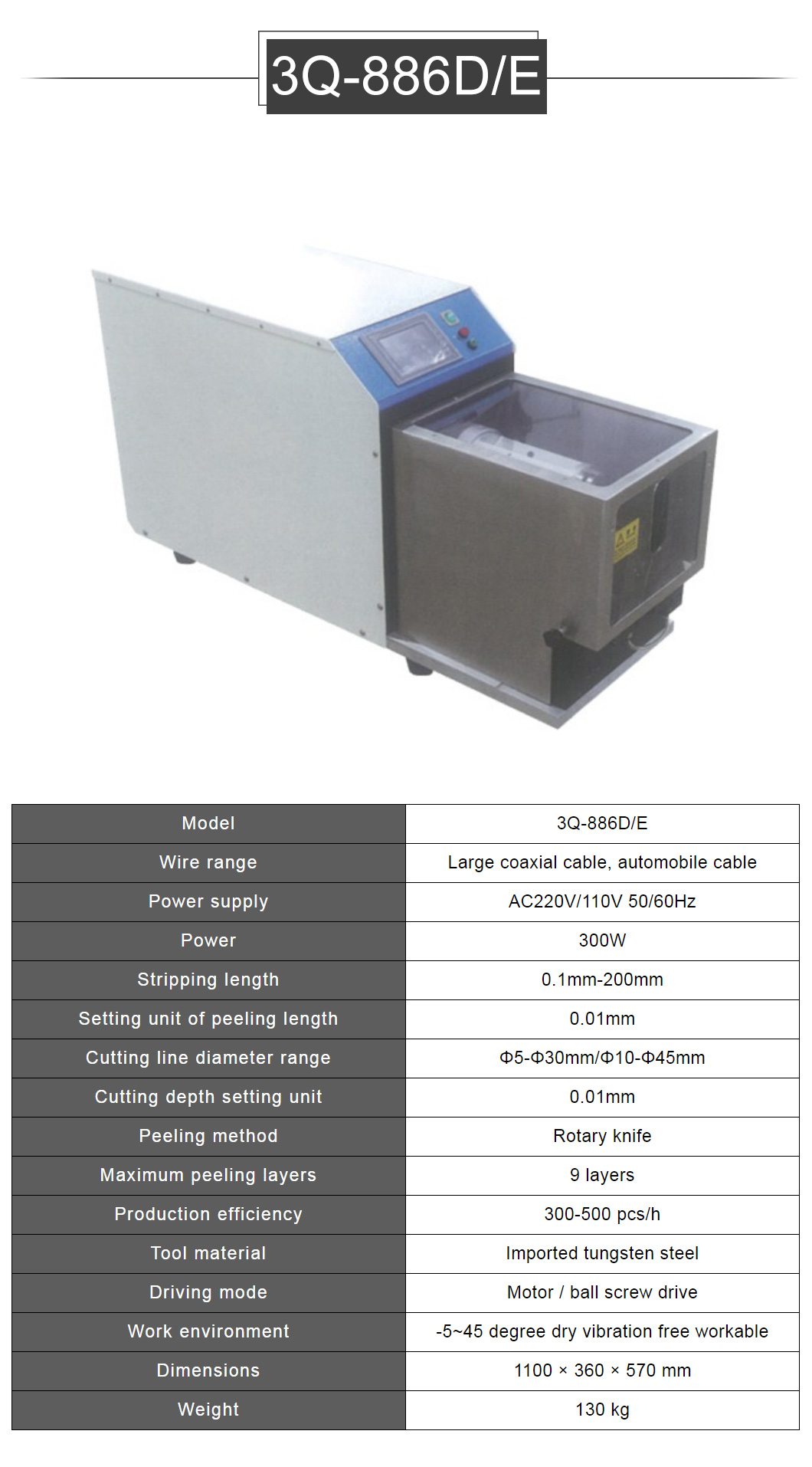

| Model | 3Q-886D/E |
| Wire range | Large coaxial cable, automobile cable |
| Power supply | AC220V/110V 50/60Hz |
| Power | 300W |
| Stripping length | 0.1mm-200mm |
| Setting unit of peeling length | 0.01 mm |
| Cutting line diameter range | 中5-中30mm/中1 0-中45mm |
| Cutting depth setting unit | 0.01mm |
| Peeling method | Rotary knife |
| Maximum peeling layers | 9 layers |
| Production efficiency | 300-500 pcs/h |
| Tool material | Imported tungsten steel |
| Driving mode | Motor / ball screw drive . |
| Work environment | -5~45 degree dry vibration free workable |
| Dimensions | 1100x360x570mm |
| Weight | 130 kg |
