Overview introduction:

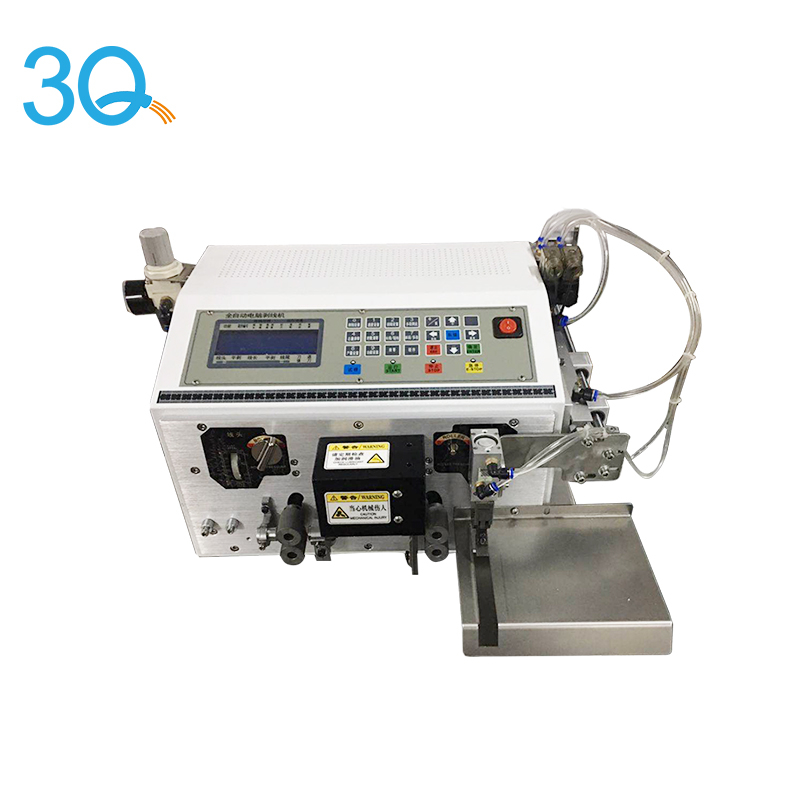

Product name: computer wire cable cutting and stripping machine



Product overview

No.1 this machine is controlled by computer and operated by keys. It has stable performance

and easy operation;

No.2 high speed wire stripping, the head, tail and total length of wire can be set arbitrarily

within the range of wire cutting

No.3 can independently set wire feeding, tangent and stripping speed to meet the best

stripping effect;

No.4 has the functions of setting the total amount, number of wires, delay and intermediate

stripping;

No.5 motor drive adopts subdivision mode, with high precision and long service life;

No.6 can store 100 kinds of different specifications of wire processing data. .

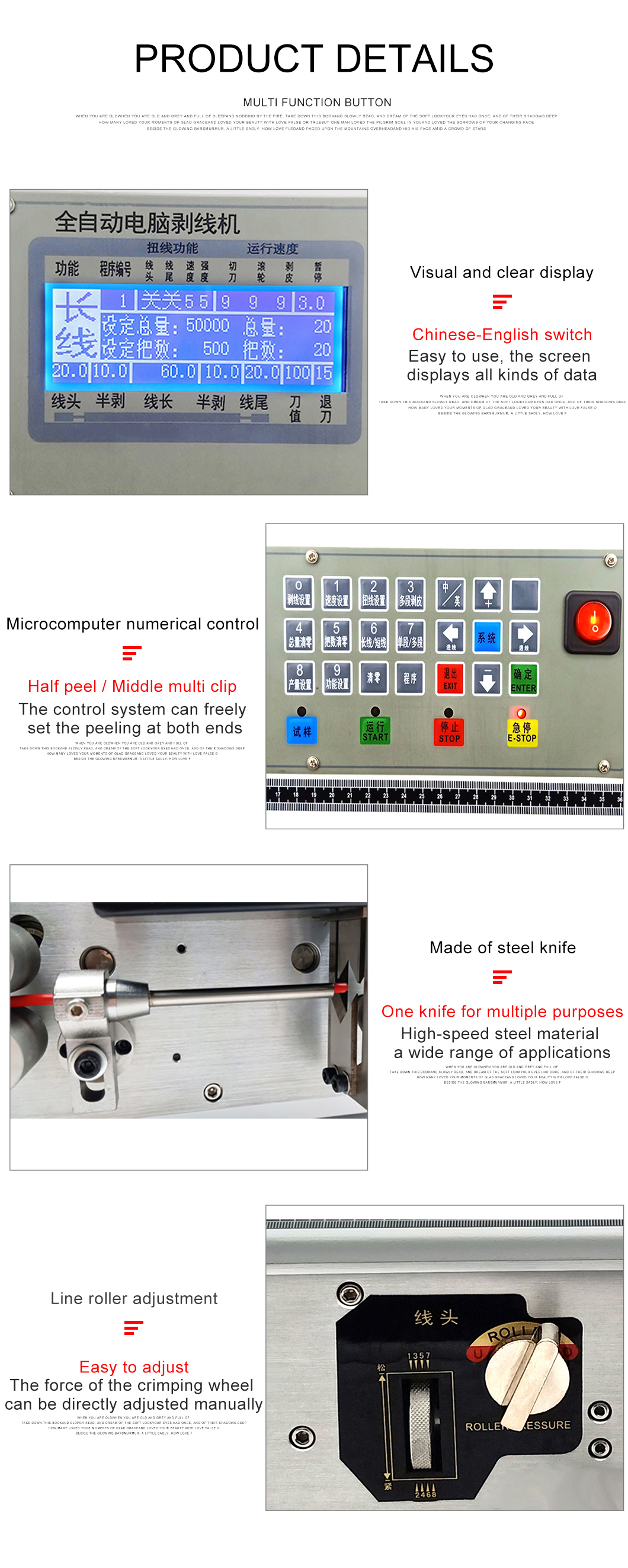

Features:

Visual and clear display: Chinese- English switch, Easy to use, the screen displays all kinds of data

Microcomputer numerical control: Half peel / Middle multi clip, The control system can freely set the peeling at both ends

Made of steel knife: One knife for multiple purposes, High-speed steel material, a wide range of applications

Line roller adjustment: Easy to adjust. The force of the crimping wheel can be directly adjusted manually


Data Sheet

Wire diameter range

0.1-6mm2 (special, customi

Wire Range

PVCPE

Cut length

5- 99999mm

Length accuracy

(0.2%*L+1) mm

Stripping Length

0.5-30mm (special, customizable)

Intermediate cutting and stripping

1-13

yield

3000-7000 pcs/h

Blade material

Imported high speed steel and tungsten steel

Driving mode

Four wheel drive

Wire speed

2m/s

Power Supply

220V 50HZ

powe

0.24KW

weight

28kg

Dimensions

420x 340x 280mm
