3Q machine
Product overview

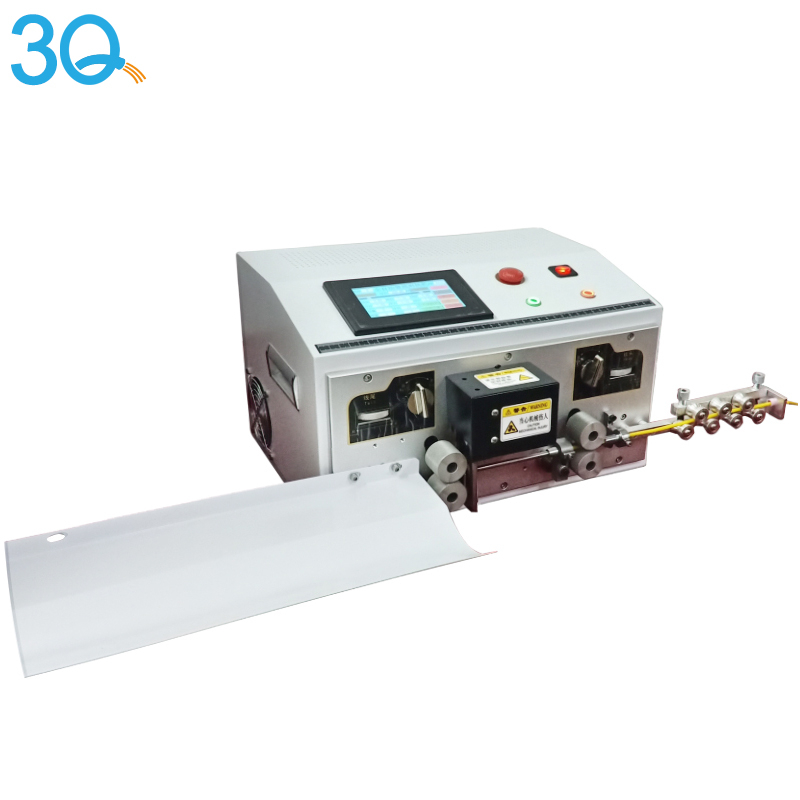

Product name: touch screen Wire Stripping Machine
Four-wheel drive, high precision; economical high-speed design and fast speed. (Slicing andstripping more than 10000 times/hour is suitable for 12-32# different line types) Short line design.(The short length can be cut to 5mm,both ends can be stripped, full stripping or half stripping or multiple stripping in the middle) suitable for various enterprises. (Applicable to wire processing companies/transformer manufacturers, socket manufacturers and other materials (also companies that need to use the wire cutting and stripping process) Diversified suitable used for cable tie cutting, heat shrink tube cutting, and casing cutting); Low noise, low energy consumption); Chinese and English panel, upgraded touch screen design, simple operation.
Features:
1.Upgrade design: touch screen design
2.Simple operation: chinese English itertace
3.Efficient stripping: cutting and stripping 1000+/hour
4.Can cut short wires: can cut 5MM two ends sripping
5.Widely applicable: suitable for multiple cuting and stipping
6.Multiple wire stripping methods: Full strip/half strip/multi-section peeling in the middle
7.Microcomputer touch screen: Clear display / Chinese-English switch
8.High speed steel blade: Flat incision / Stable stripping
9.Crimping four-wheel drive: The surface has fine lines and does not slip

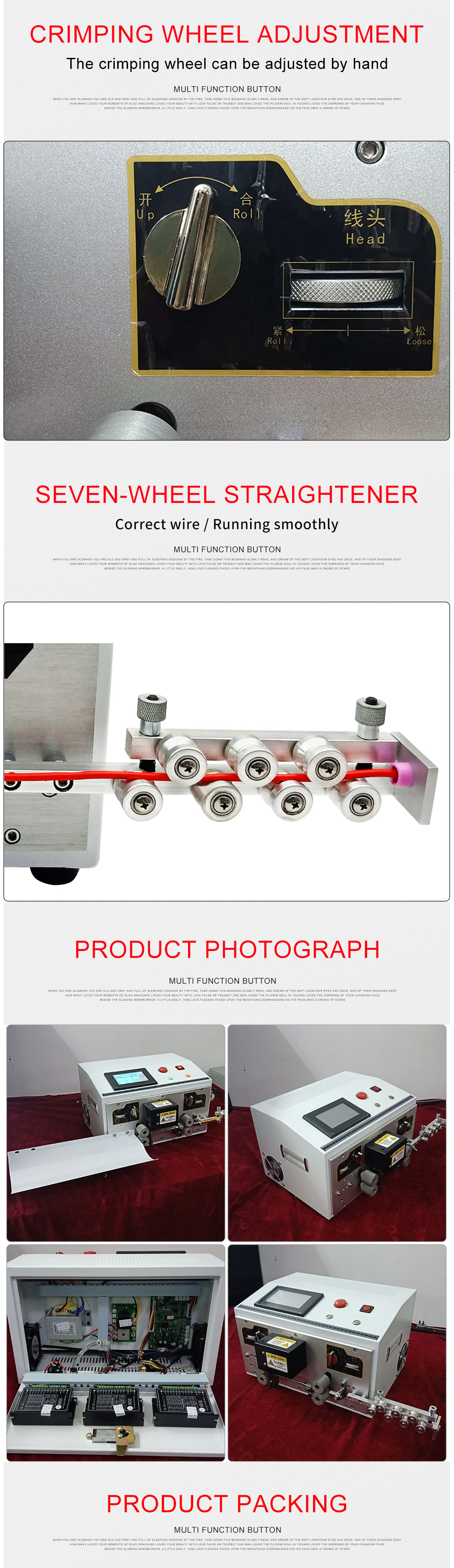

10.Crimping wheel Adjustment: The crimping wheel can be adjusted by hand
11. Seven-wheel Straightener: Correct wire / Running smoothly
Data Sheet:
Product number | 2.5square | 4square |
Stripping length | Head stripping 10mm,tail stripping 10mm | Head stripping 15mm,tail stripping 15mm |
Motor accuracy | Motor 0.005mm per step | Motor 0.001mm per step |
Cutting core | 0.1 ~ 2.5 square meters | 0.1 ~ 4 square meters |
Applicable wire diameter | 1.5~ 5mm | 1.5~6mm |
Weight | 28KG | 32KG |
Cutting length | 3~99999.9mm | |
Productivity | 3500-7000 pieces / hour | |
Display | LCD display 1 Chinese- English switch | |
Drive mode | Four wheel drive at the same time | |
Appearance size | 440*420*270mm | |
Multi- segment stripping | 6 segments | |
Power | 220V 50/ 60HZ | |
Program | Save 80 sets of data | |
Knives thickness | Thicken 4mm |
