3Q machine

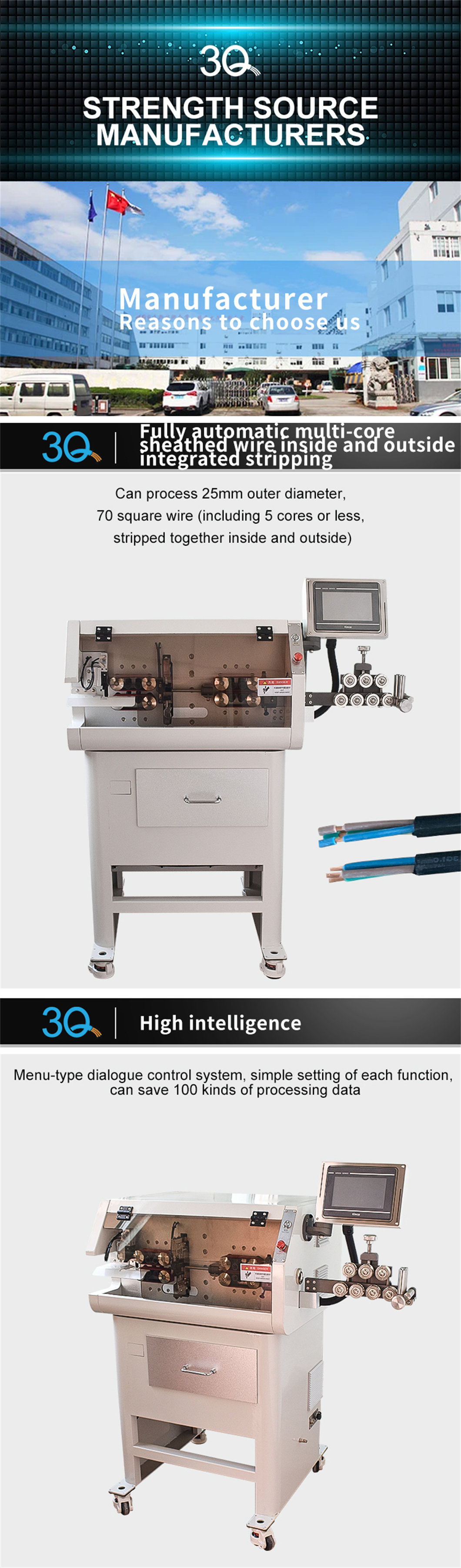

Product overview

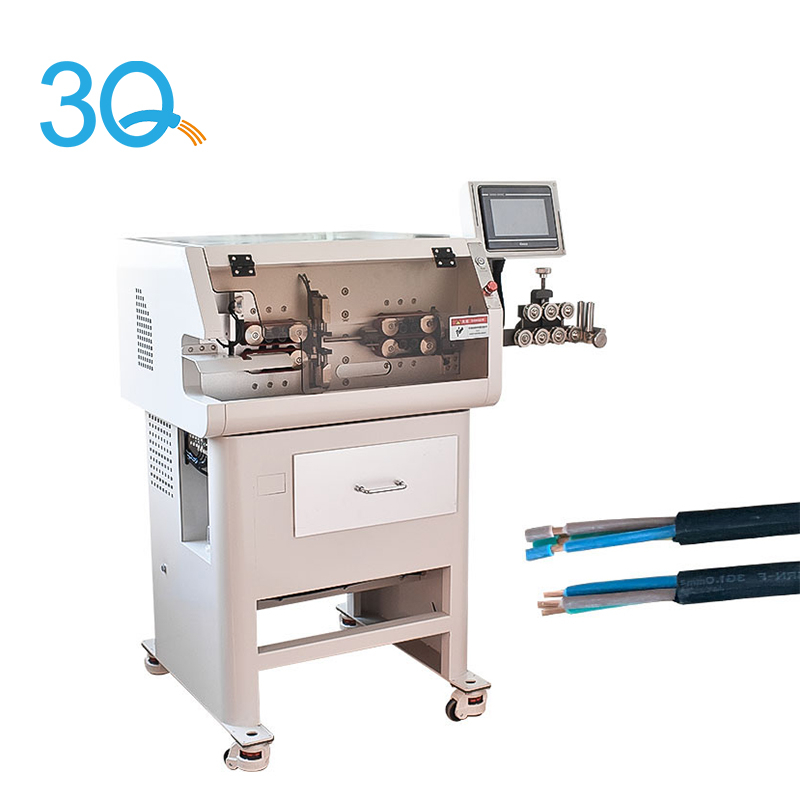

Product name: Fully automatic multi-core sheathed wire inside and outside integrated stripping machine
Product fiction:can process 25mm outer diameter,70 square wire(including 5 cores or less, stripped together inside and outside)

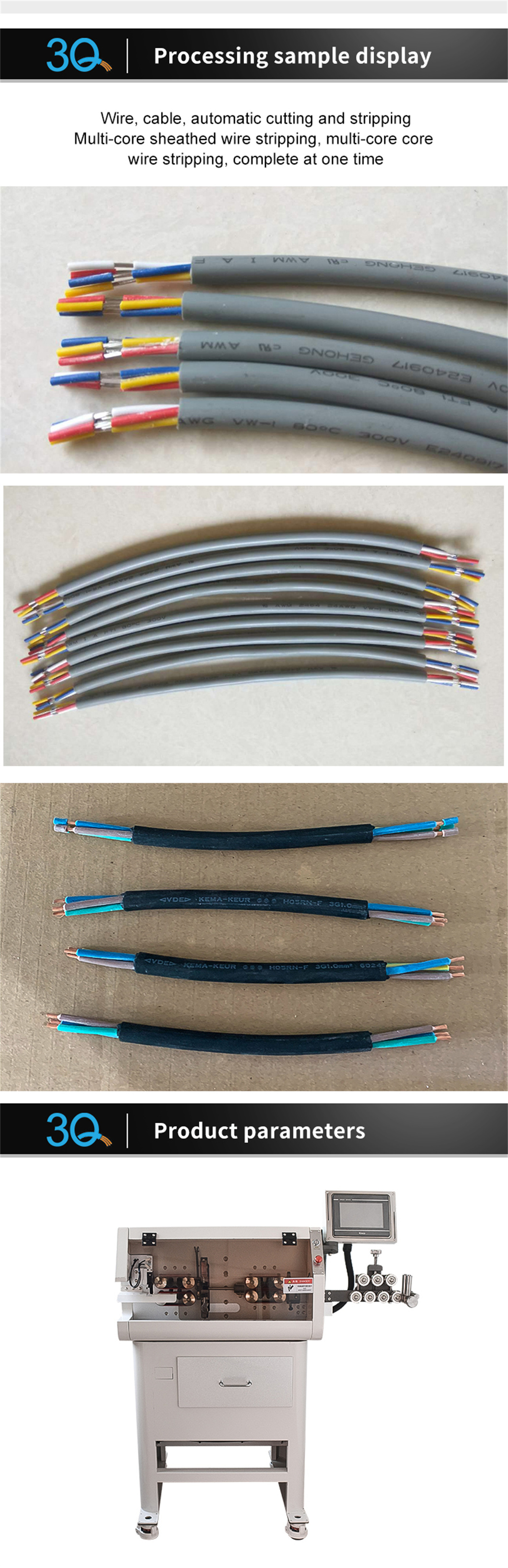

Processing samples:
Wire, cable, automatic cutting and stripping Multi-core sheathed wire stripping, multi-core core wire stripping, complete at one time
Features:
1. High precision
Program upgrade, more refined accessories, higher processing accuracy
2. High quality
Adopt intelligent digital photoelectric technology and imported accessories to improve service life
3. High intelligence
Menu-type dialogue control system, simple setting of each function, can save 100 kinds of processing data
4. Easy to operate
PLC LCD screen operation, full computer control, clear and easy to understand, extensive design and production

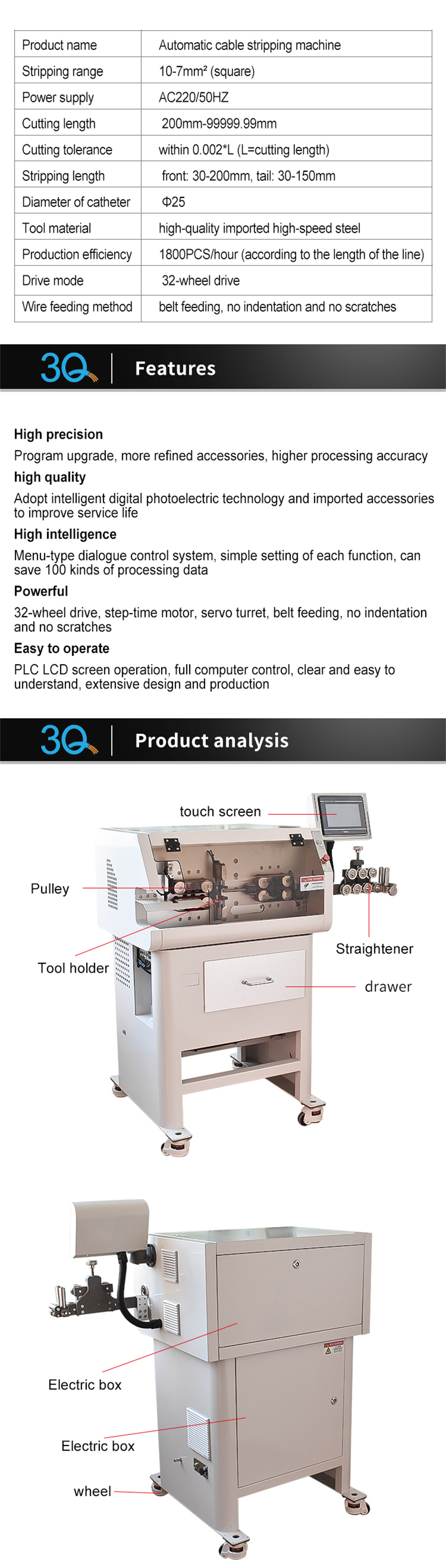

Product analysis:
1. touch screen
2. Pulley
3. Tool holder
4. Straightener
5. Drawer
6. Electric box
7. Electric box
8. Wheel

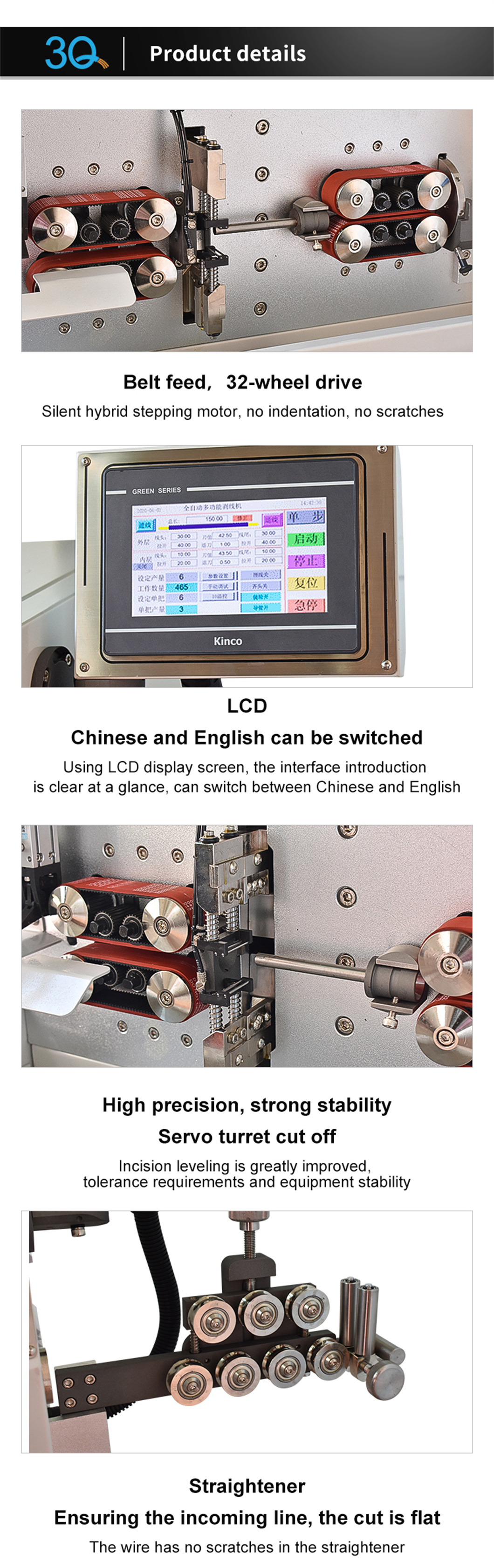

Product details:
1. belt feed,32-wheel drive
Silent hybrid stepping motor, no indentation, no scratches
2. LCD Chinese and English can be switched.
Using LCD display screen,the interface introduction is clear at a glance,can switch between Chinese and English.
3. high precision,strong stability servo turret cut off
Incision leveling is greatly improved,tolerance requirements and equipment stability.
4. Straightener ensuring the incoming line, the cut is flat.the wire has no scratched in the straightener.

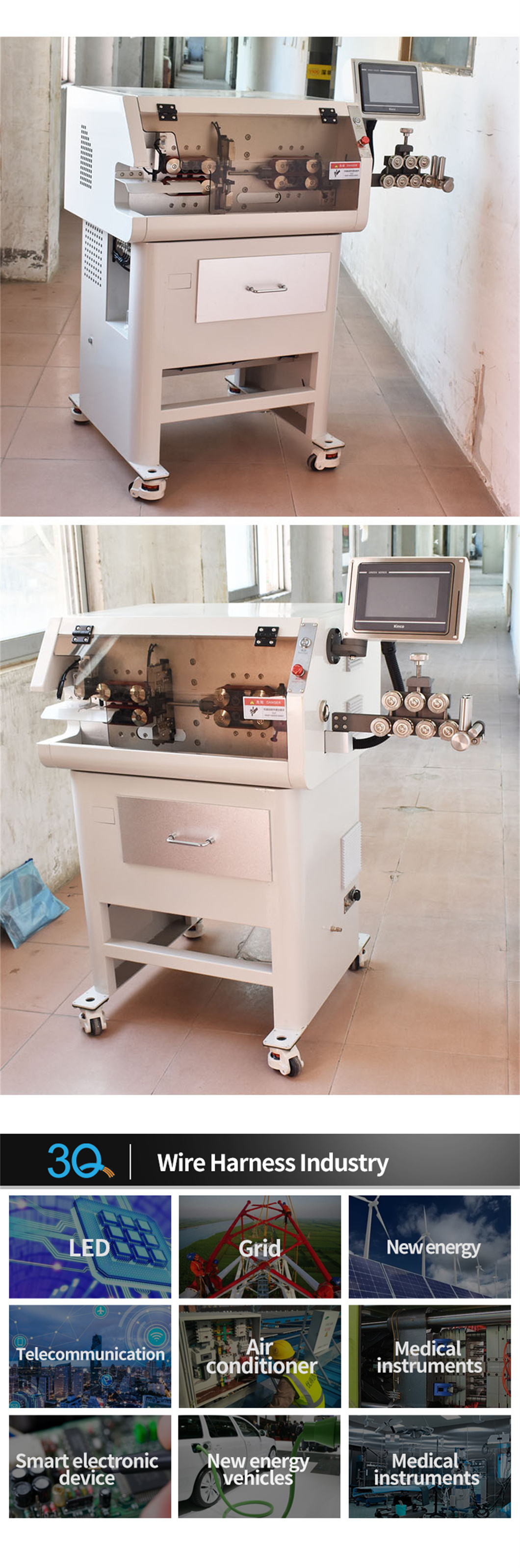

Wire harness industry
1. LED
2. Grid
3. New energy
4. Telecommunication
5. Air conditioner
6. Medical instruments
7. Smart electronic device
8. New energy vehicles
9. Medical instruments.
Data sheet
product name | Automatic cable strpping machine |
stripping range | 10-7mm2 (square) |
power supply | AC220/50HZ |
cutting length | 200mm-99999 99mm |
cutting tolerance | within 0.002L (L=cutting length) |
stripping length | front: 30-200mm, tail: 30-150mm |
diameter of cathete | Φ25 |
tool material | high-quality imported high-speed steel |
production efficiency | 1800PCS/hour (according to the length of the line) |
drive mode | 32-wheel drive |
wire feeding method | belt feeding, no indentation and no scratches |
