3Q machine
Product overview

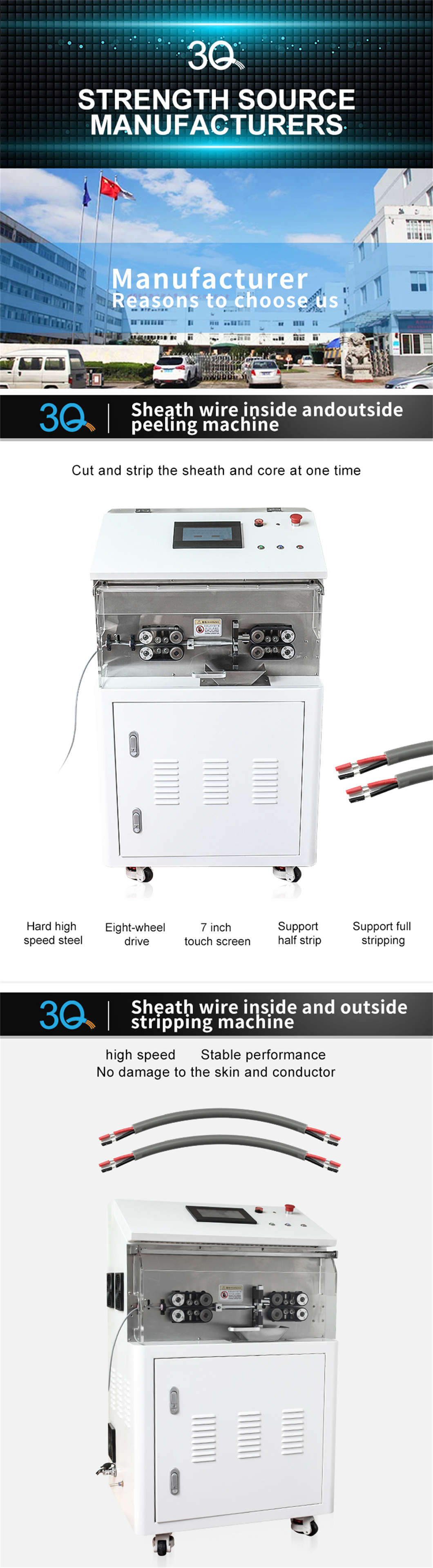

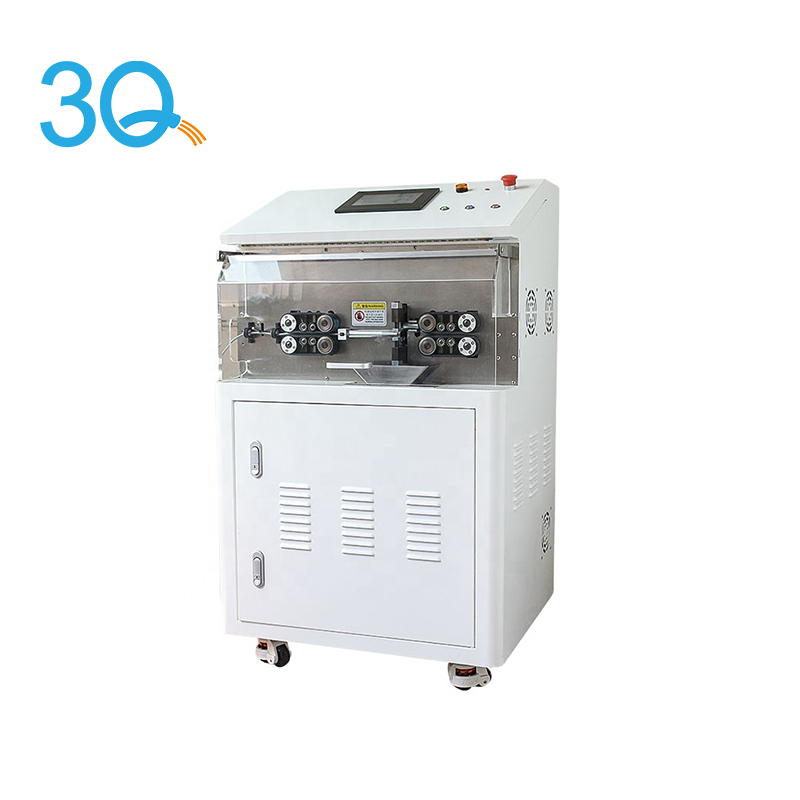

Product name:sheath wire inside and outside peeling machine.
Product feature:
1. Hard high speed steel
2. Eight-wheel drive
3. 7 inch touch screen
4. Support half strip
5. Support full stripping
6. high speed
7. Stable performance
8. No damage to the skin and conductor
9. more stable more durable more precise
10. Touch screen operation panle
11. Suitable for various companies
12. Energy saving and environmental protection
13. One machine for multiple uses efficient
14. Mobile tool holder
15. Diversified cutting materials
16. Fine workmanship

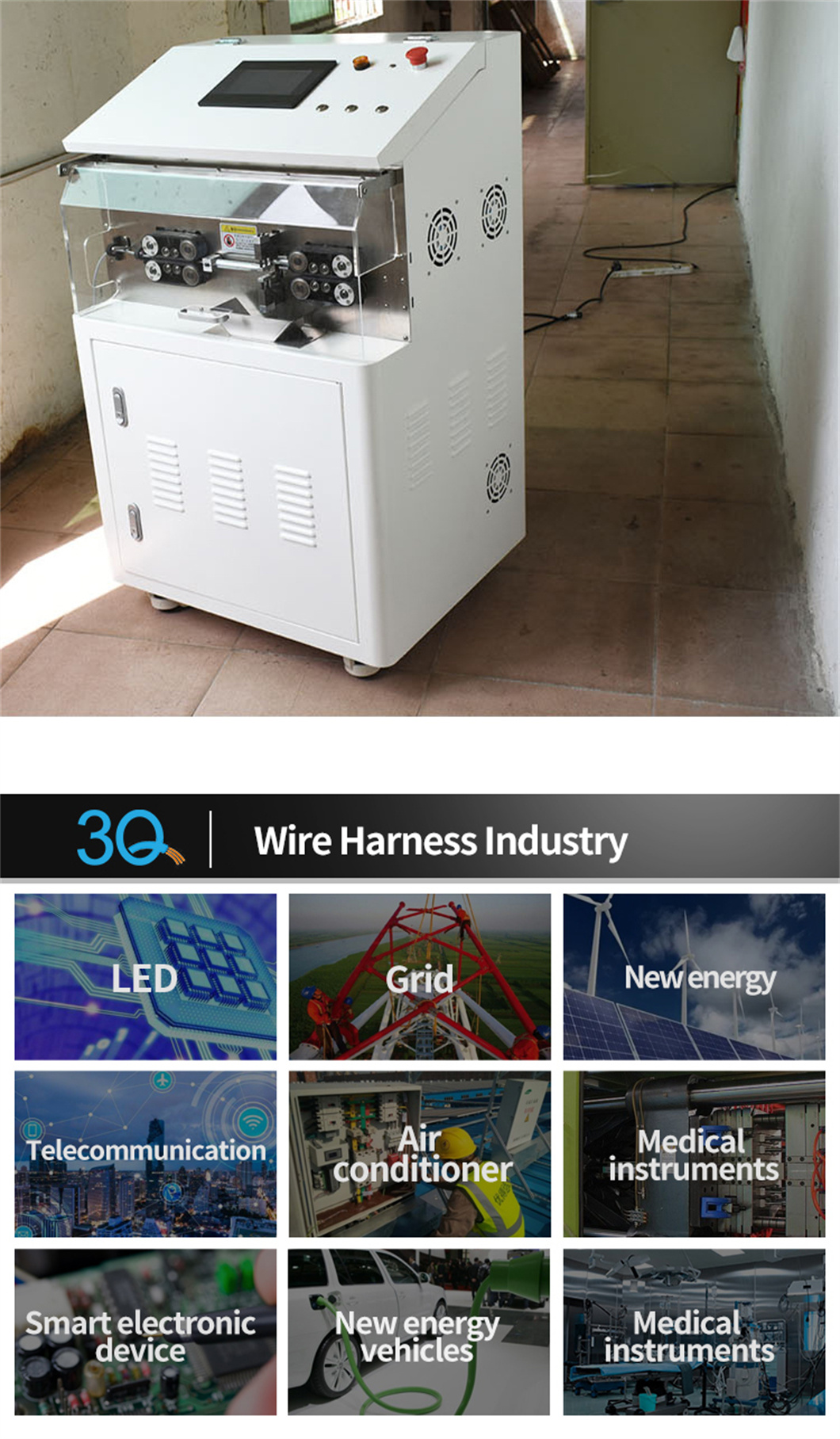

Wire harness industry:
1. LED
2. GRID
3. NEW ENERGY
4. TELECOMMUNICATION
5. AIR CONDITIONER
6. MEDICAL INSTRUMENTS
7. SMART ELECTRONIC DEVICE
8. NEW ENERGY VEHICLES
9. MEDICAL INSTRUMEMTS

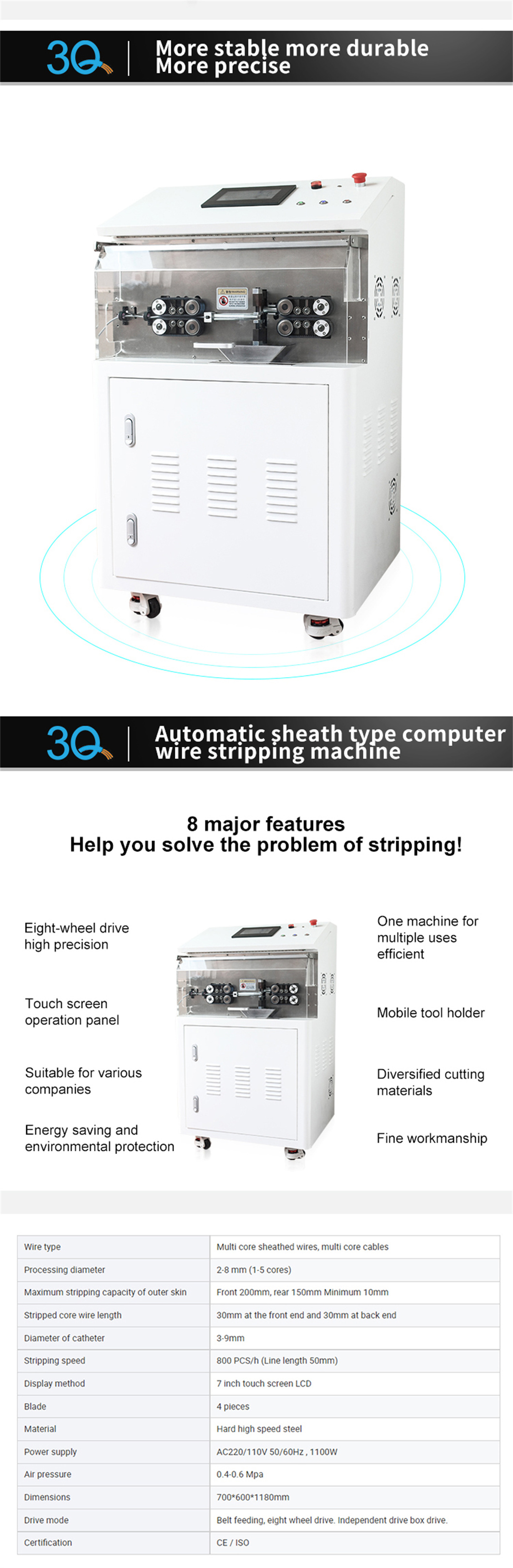

Data sheet:
Wire type | Mult core sheathed wires. multl core cables |
Processing diameter | 2-8 mm (1-5 cores) |
Maximum stipping capacity of outer skin | Front 200mm, rear 150mm Minimum 10mm |
stripped core wire length | 30mm at the front end and 30mm at back end |
Diameter of catheter | 3-9mm |
stripping speed | 800 PCS/h (Line length 50mm) |
Display method | 7 inch touch screen LCD |
Blade | 4 pleces |
Material | Hard high speed steel |
Power supply | AC220/110V 50/60HZ。1100W |
Alr pressure | 0.4-0.6 Mpa |
Dimenstions | 700*600*1180mm |
Drive mode | Belt feeding. eight wheel drive. Independent drive box drive. |
Certication | CE/IS0 |
Product overview
Product name:sheath wire inside and outside peeling machine.
Product feature:
1. Hard high speed steel
2. Eight-wheel drive
3. 7 inch touch screen
4. Support half strip
5. Support full stripping
6. high speed
7. Stable performance
8. No damage to the skin and conductor
9. more stable more durable more precise
10. Touch screen operation panle
11. Suitable for various companies
12. Energy saving and environmental protection
13. One machine for multiple uses efficient
14. Mobile tool holder
15. Diversified cutting materials
16. Fine workmanship
Wire harness industry:
1. LED
2. GRID
3. NEW ENERGY
4. TELECOMMUNICATION
5. AIR CONDITIONER
6. MEDICAL INSTRUMENTS
7. SMART ELECTRONIC DEVICE
8. NEW ENERGY VEHICLES
9. MEDICAL INSTRUMEMTS
Data sheet:
Wire type | Mult core sheathed wires. multl core cables |
Processing diameter | 2-8 mm (1-5 cores) |
Maximum stipping capacity of outer skin | Front 200mm, rear 150mm Minimum 10mm |
stripped core wire length | 30mm at the front end and 30mm at back end |
Diameter of catheter | 3-9mm |
stripping speed | 800 PCS/h (Line length 50mm) |
Display method | 7 inch touch screen LCD |
Blade | 4 pleces |
Material | Hard high speed steel |
Power supply | AC220/110V 50/60HZ。1100W |
Alr pressure | 0.4-0.6 Mpa |
Dimenstions | 700*600*1180mm |
Drive mode | Belt feeding. eight wheel drive. Independent drive box drive. |
Certication | CE/IS0 |
