Wire Stripping And Cutting Machine | 16 Square

Availability:
Quantity:
  • 3Q machine

详情页_01详情页_02详情页_03详情页_04详情页_05

wire stripping machine

工厂展示_01工厂展示_02工厂展示_03

独立站证书

WIRE STRIPPING MACHINE

Product overview

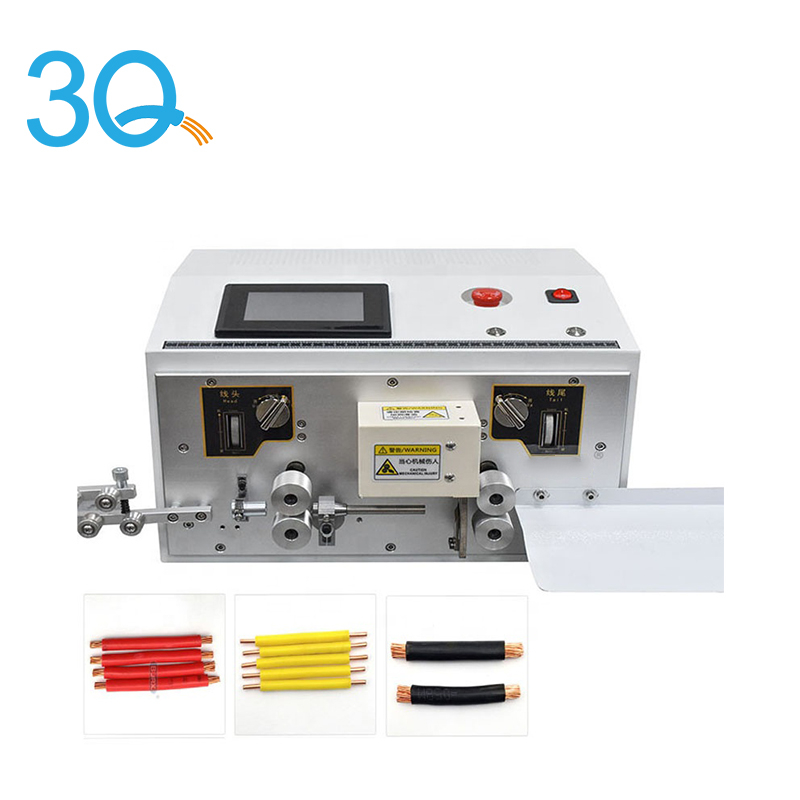

Product name:Wire Stripping And Cutting Machine | 16 Square


Features:

1. Upgrade design: touch smart and easy operation

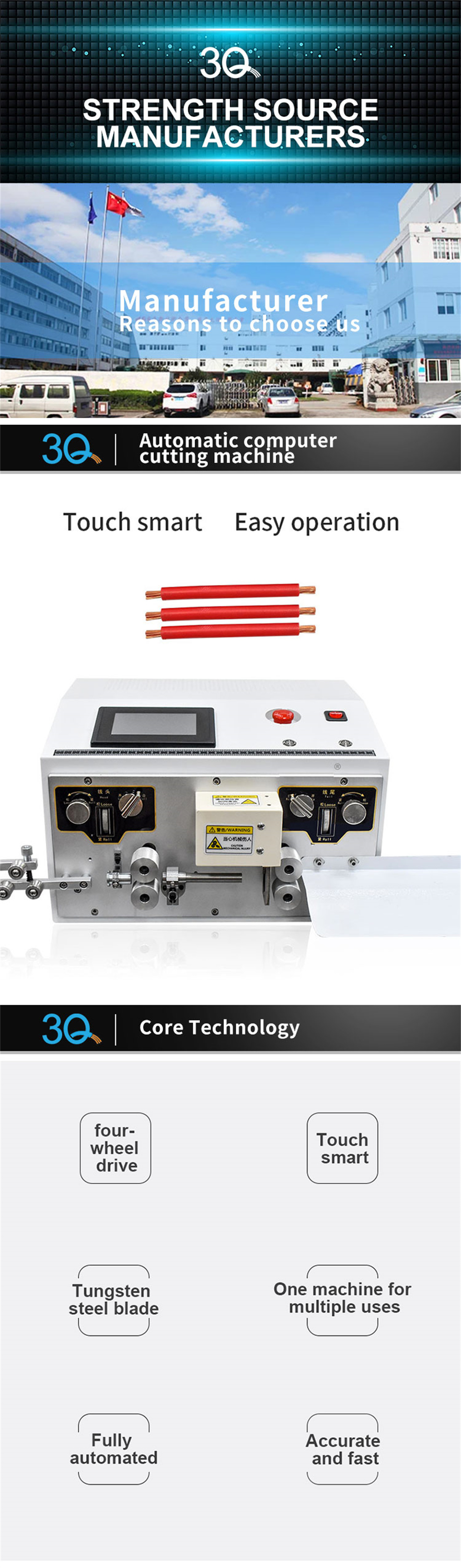

2. Core technology:four-wheel drive, touch smart,tungsten steel blade, one machine for multiple uses, fully automated and accurate and fast.

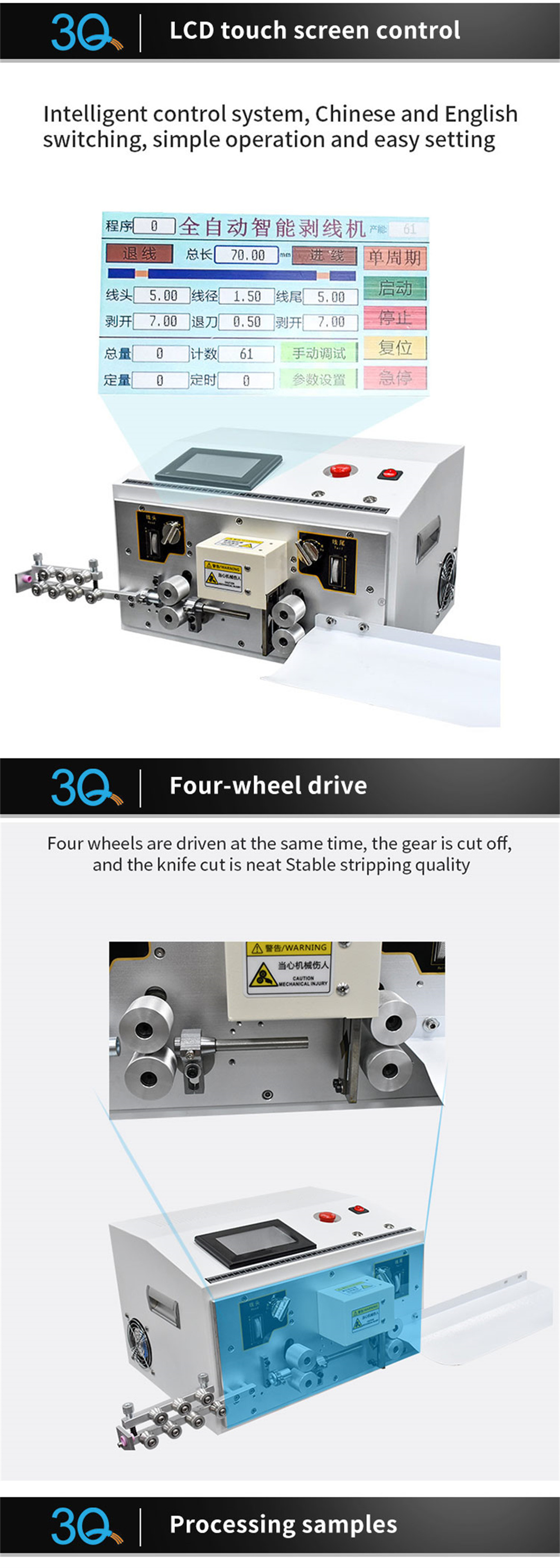

3. LCD touch screen control: Intelligent control system, Chinese and English

switching, simple operation and easy setting

4. Four-wheel drive:Four wheels are driven at the same time, the gear is cut off,

and the knife cut is neat Stable stripping quality

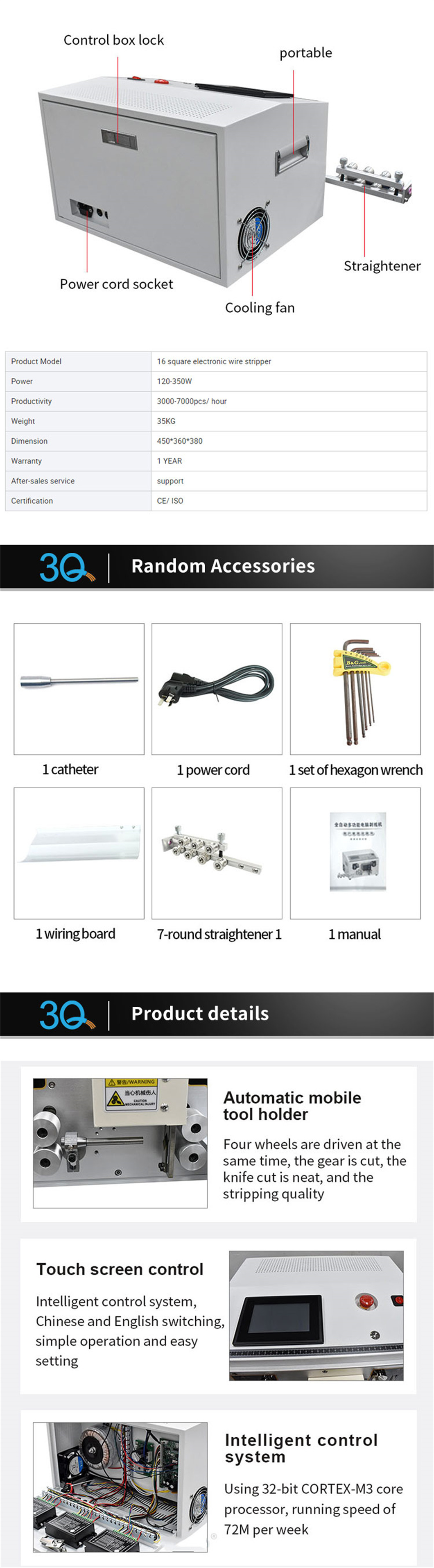

5. Random accessories:1 catheter,1 power cord, 1 set of hexagon wrench. 1 wiring board, 7-rpund straightener 1 and 1 manual.


Product more details:

1. Automatic mobile tool holder:

Four wheels are driven at the same time, the gear is cut, the knife cut is neat, and the stripping quality.

2. Touch screen control

intelligent control system,Chinese and English switching, simple operation and easy
setting Touch screen control.

3. Intelligent control system

Using 32- bit CORTEX-M3 core processor, running speed of 72M per week.

4. Using 7-round straightener

The wire is straighter and more precise, improving work quality and efficiency.


Data Sheet:

Product Model

16 square electronic wire stripper

Power

120-350W

Productivity

3000 7000pcs/ hour

Weight

35KG

Dimension

450*360*380

Warranty

1 YEAR

After-sales service

Support

Certification

CE/ IS0


Further and updatest data:

Equipment modelSQ-BJYJ8112-1SQ-BJYJ8112-2
Equipment functionThread cutting and peeling (half peeling, full peeling)Thread cuting and peeling (half peling, full peeling)
production efficiencyAbout 2000-5000 pieces/hour (depending on the line of sight length)About 3000 pieces 1 hour (depending on the line of sight length)
Overall dimension400x420x360mm490*450*280mm
Cutting wire core0.5-10mm21.5-16mm2
Equipment weight45kg48kg
Rated power supplyAC220V 50/60HzAC220V 50/60Hz
Motor power750W800W
Cutting line length1-99999.9mm1-99999.9mm
Stripping Length1- 50mm1-100MM
Cutting toleranceWithin 0 002xImmWithin 0 002xImm
