Product overview

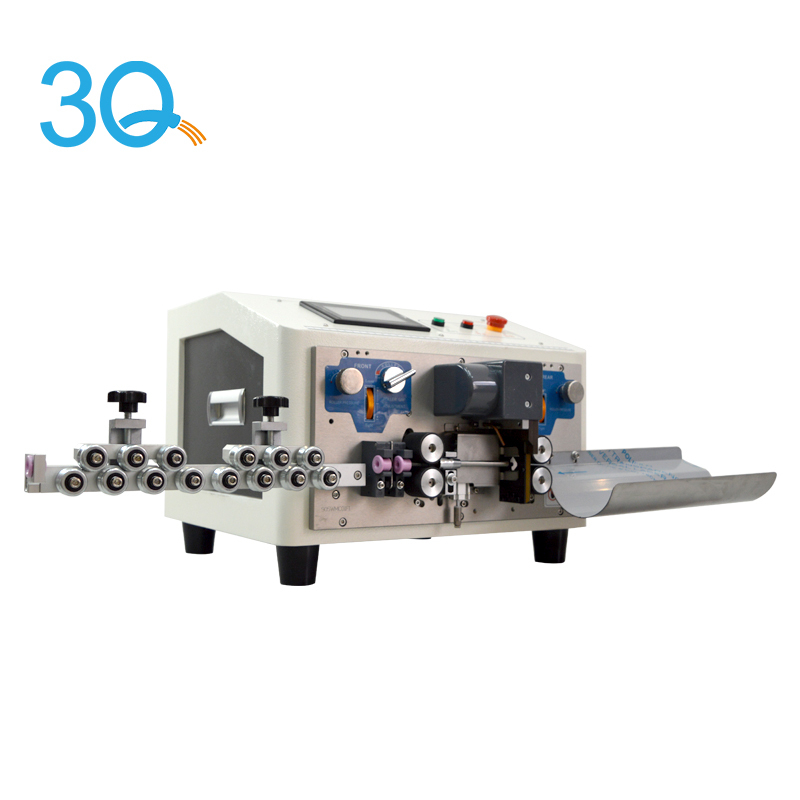

Product name: automatic sheath wire stripping machine.
Product fiction:can process 25mm outer diameter,70 square wire(including 5 cores or less, stripped together inside and outside)
Processing samples:
Wire, cable, automatic cutting and stripping Multi-core sheathed wire stripping, multi-core core wire stripping, complete at one time
Features:

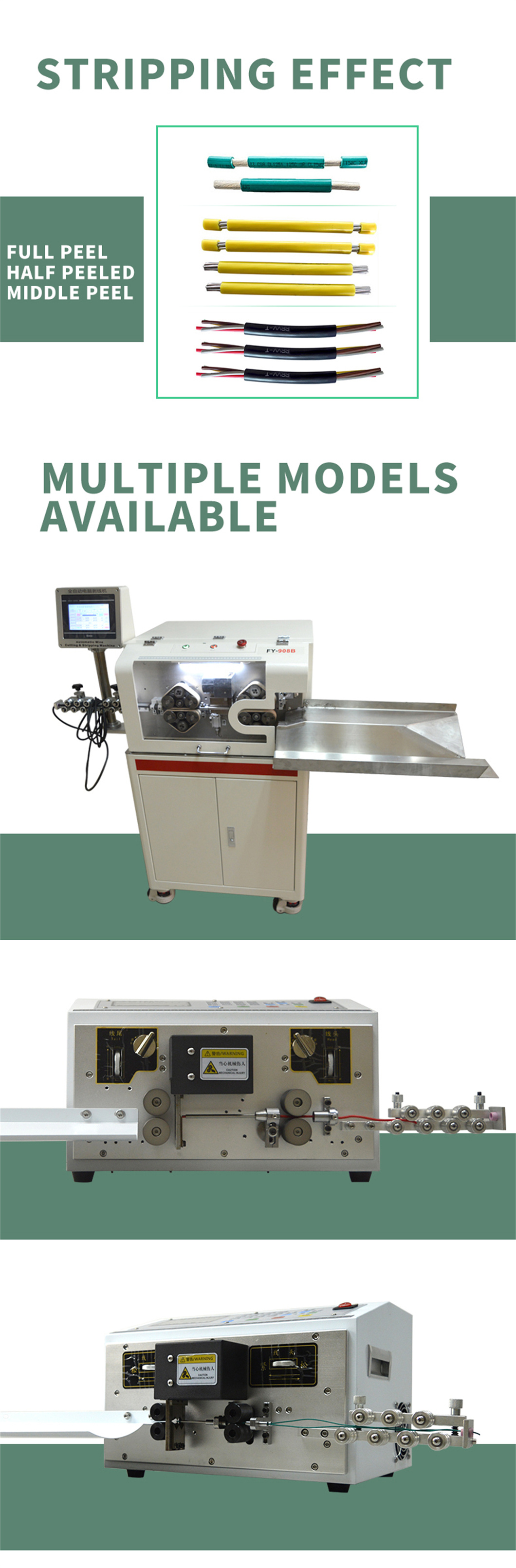

1. Multiple models available.
2. Multi-purpose machine.
3. Save labor
4. Easy to use
Product analysis:

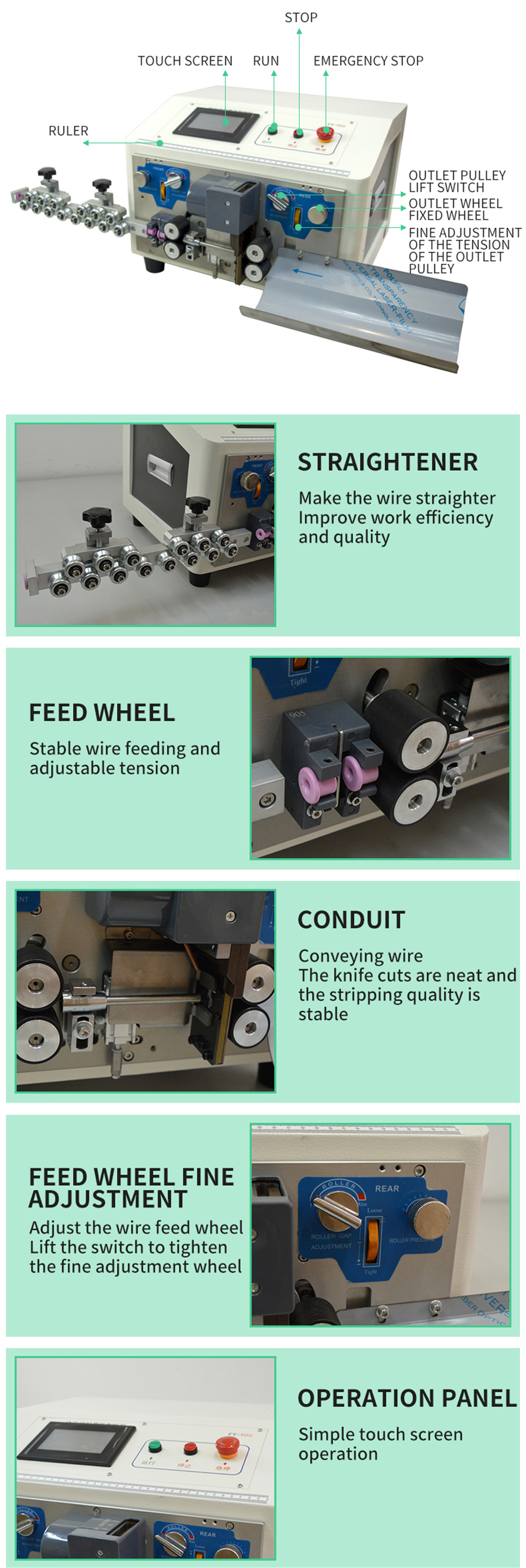

1. Incoming pulley lift switch
2. Fine adjustment of the tension of the wire feeder
3. Incoming wire wheel fixed wheel
4. Wire guide
5. Feed wheel
Stable wire feeding and adjustable tension
6. Feed wheel adjustment
Adjust the wire feed wheel lift the switch to tighten the fine adjustment wheel.
7. Conduit
Conveying wire the knife cuts are neat and the stripping quality is stable.
8. Outlet wheel
9. Terminal block.
10. Stop
11. Ruler
12. Touch screen
13. Run
14. Emergency stop
15. Outlet pulley
16. Lift switch
17. Outlet wheel
18. Fixed wheel
19. Fine adjustment of the tension of the outlet pulley.
20. Straightener
21. operation panel

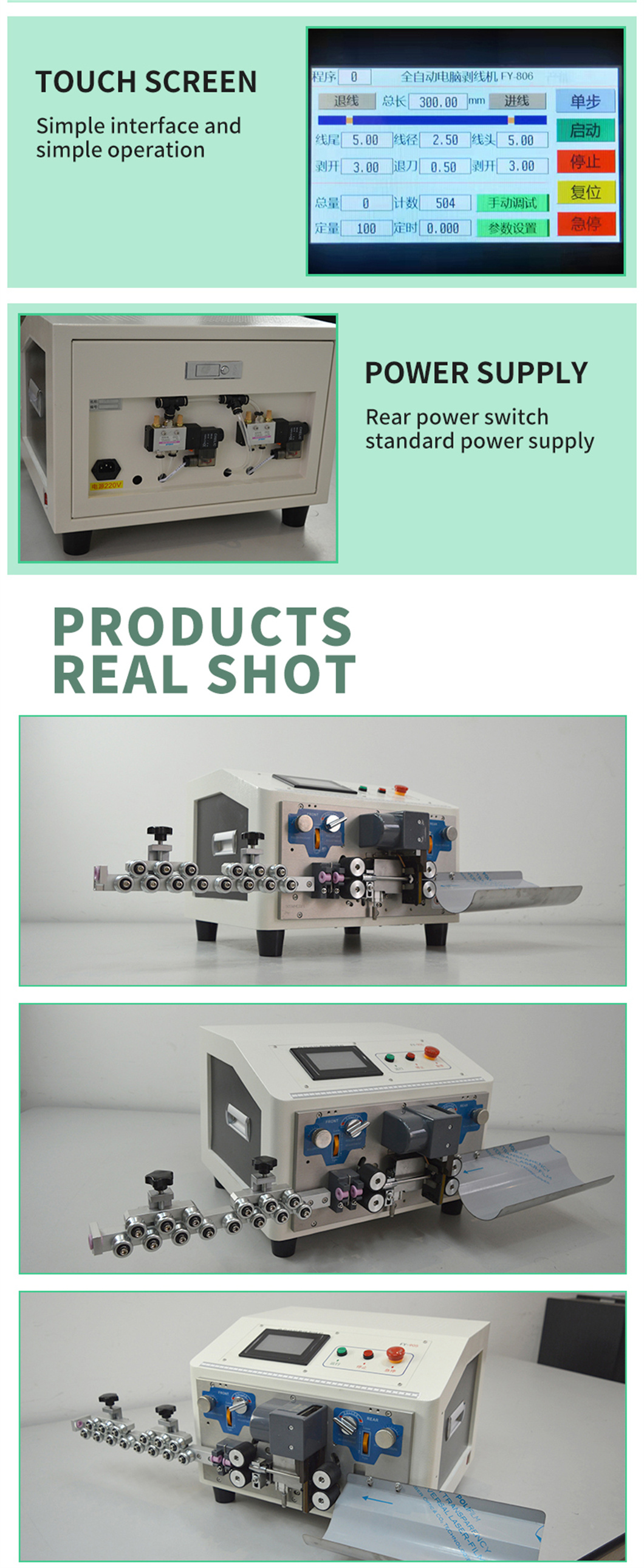

Simple touch screen operation.
22. touch screen
23. Power supply
Product analysis:
1. Touch screen
2. Pulley
3. Tool holder
4. Straightener
5. Drawer
6. Electric box
7. Electric box
8. Wheel

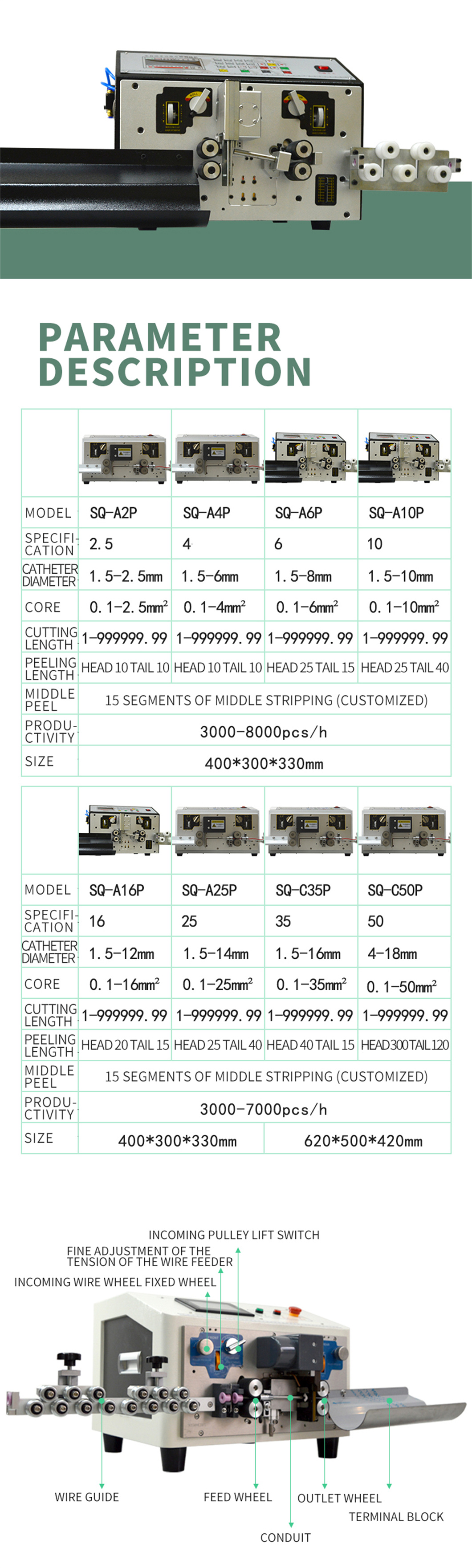

Data sheet：
| model | SQ-A2P | SQ-A4P | SQ-A6P | SQ-A10P | SQ-A16P | SQ-A25P | SQ-C35P | SQ-C50P |
| specification | 2.5 | 4 | 6 | 10 | 16 | 25 | 35 | SQ-C50P |
| catheter diameter | 1.5-2.5MM | 1.5-6mm | 1.5-8mm | 1.5-10mm | 1.5-12mm | 1.5-14mm | 1.5-16mm | 4-18mm |
| core | 0.1-2.5MM2 | 0.1-4mm2 | 0.1-6mm2 | 0.1-10mm2 | 0.1-16mm2 | 0.1-25mm2 | 0.1-35mm2 | 0.1-50mm2 |
| cutting length | 1-999999.99 | 1-999999.99 | 1-999999.99 | 1-999999.99 | 1-999999.99 | 1-999999.99 | 1-999999.99 | 1-999999.99 |
| peeling length | head 10 tail 10 | head 10 tail 10 | head 25 tail 15 | head 25 tail 40 | head 20 tail 15 | head 25 tail 40 | head 40 tail 15 | head 300 tail 120 |
| middle peel | 15 segments of middle stripping (customized) |
| productivity | 3000-8000pcs/h | 3000-7000pcs/h |
| size | 400*300*330mm | 400*300*330mm | 620*500*450mm |
