3Q machine
Product overview

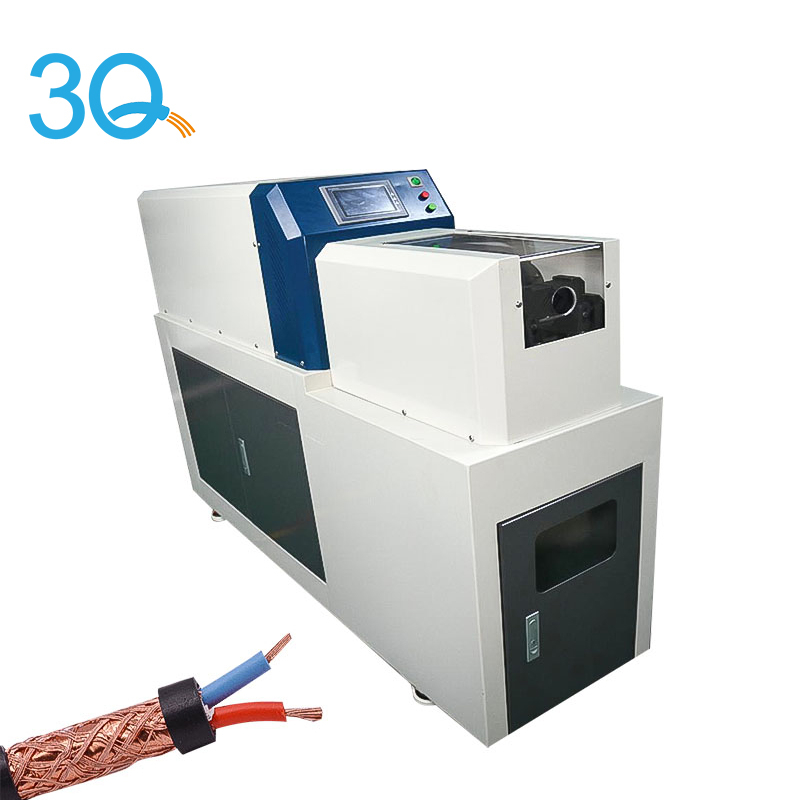

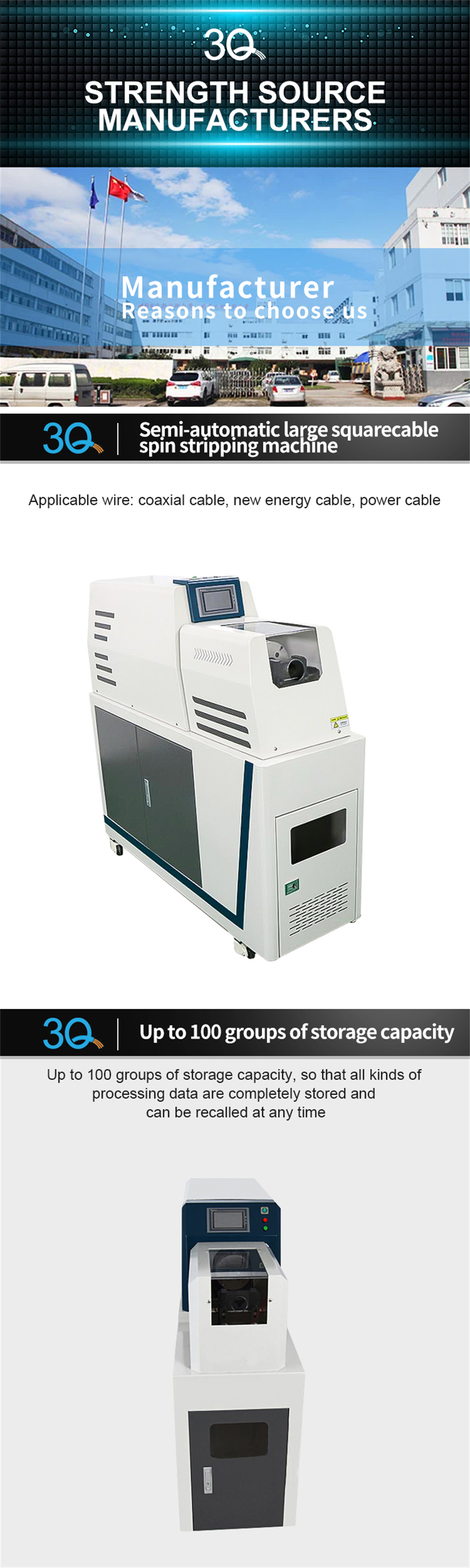

Product name: Semi-automatic large square cable spin stripping machine.
Applicable wire: coaxial cable,new energy cable,power cable.
Product introduction:
This equipment is mainly used for wire stripping, cutting, double-ended twisted wire dip tin, single-head twisted wire dip tin, ultra-short wire stripping dip tin.
Features:
1. Up to 100 groups of storage capacity
Up to 100 groups of storage capacity, so that all kinds of processing data are completely stored and can be recalled at any time

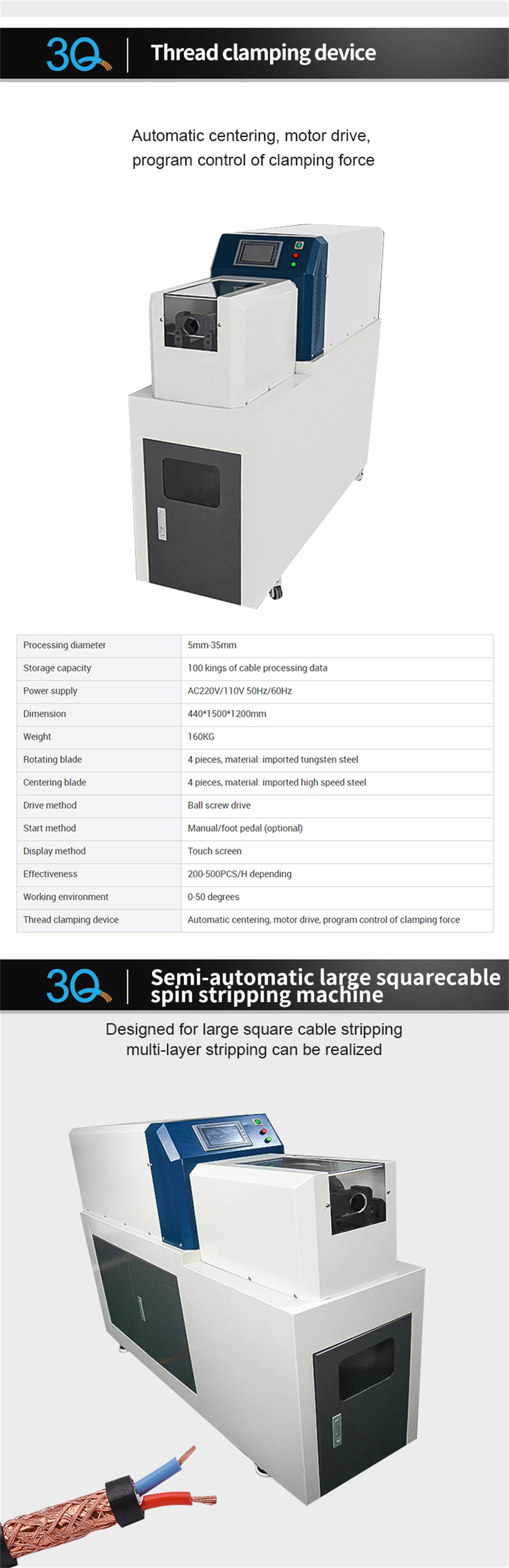

2. Thread clamping device
Automatic centering,motor drive, program control of clamping force.
3. Semi-automatic large square cable spin stripping machine
Designed for large square cable stripping multi-layer stripping can be realized

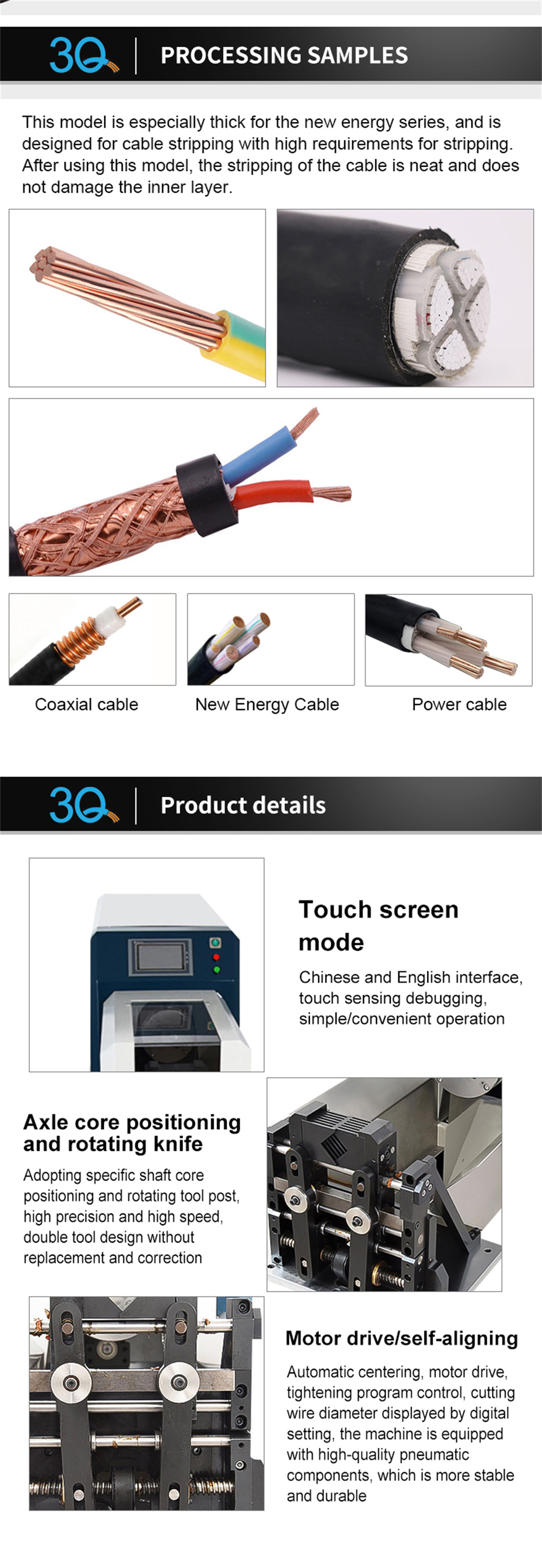

Processing samples:
This model is especially thick for the new energy series, and is designed for cable stripping with high requirements for stripping.After using this model, the stripping of the cable is neat and does not damage the inner layer.
Product details:
1. Touch screen mode
Chinese and English interface,touch sensing debugging, simple/convenient operation
2. Axle core positioning and rotating knife
Adopting specific shaft core positioning and rotating tool post,high precision and high speed,double tool design without replacement and correction
3. Motor drive/self aligning.
Automatic centering. motor drive,tightening program control, cutting wire diameter displayed by digital setting.the machine is equipped with high-quality pneumatic components, which is more stable and durable.
Data sheet:
Processing diameter | 5mm-35mm |
Storage capacity | 100 kings of cable processing data |
Power supply | AC220V/110V 50Hz/60Hz |
Dimension | 440*1 500*1200mm |
Weight | 160KG |
Rotating blade | 4 pieces, material: imported tungsten steel |
Centering blade | 4 pieces, material: imported high speed steel |
Drive method | Ball screw drive |
Start method | Manual/foot pedal (optiona) |
Display method | Touch screen |
Effectiveness | 200-500PCS/H depending |
Working environment | 0-50 degrees |
Thread clamping device | Automatic centering, motor drive, program control of clamping force |
