Product overview

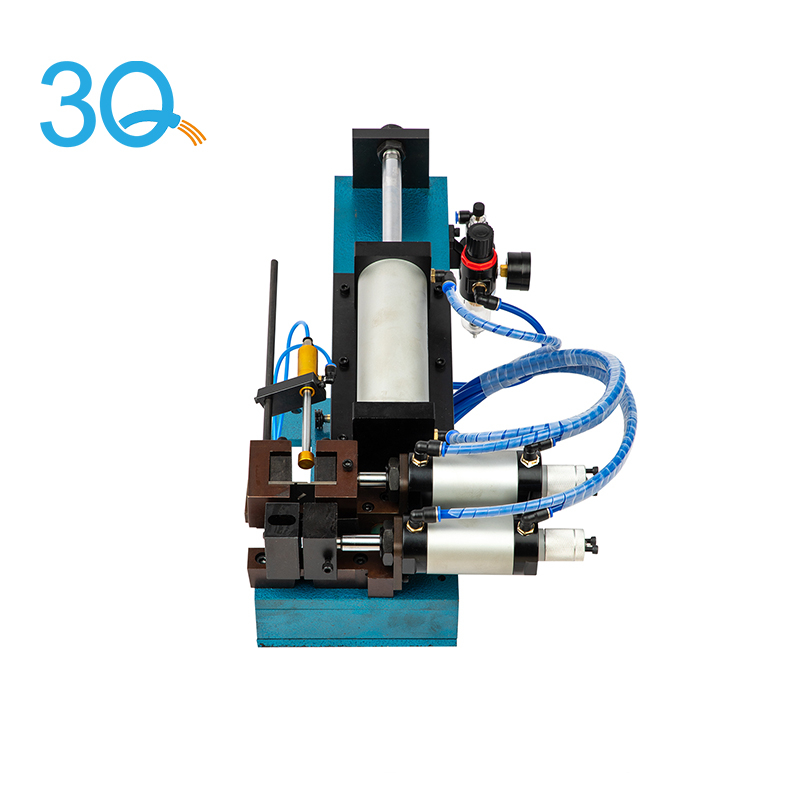

Product name:Pneumatic stripping machine.

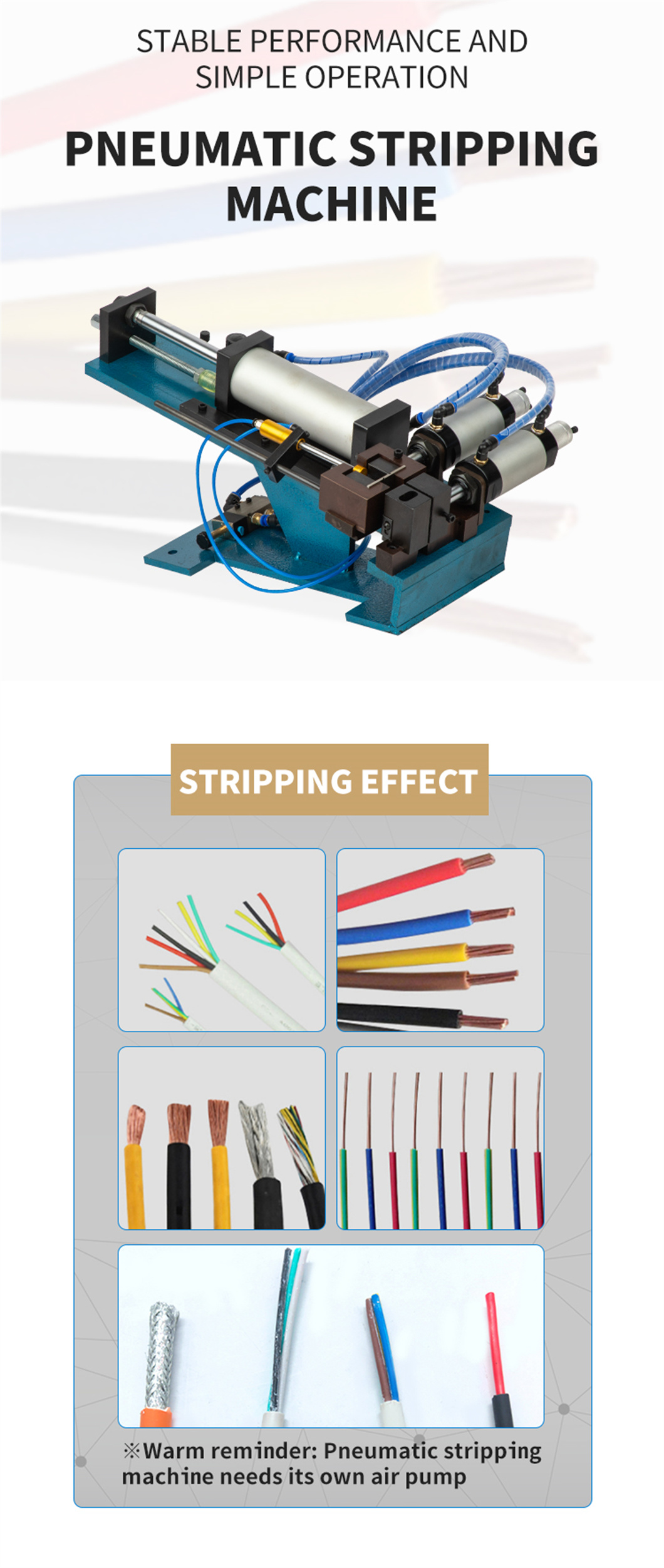

Warm reminder:pneumatic stripping machine need its own air pump.

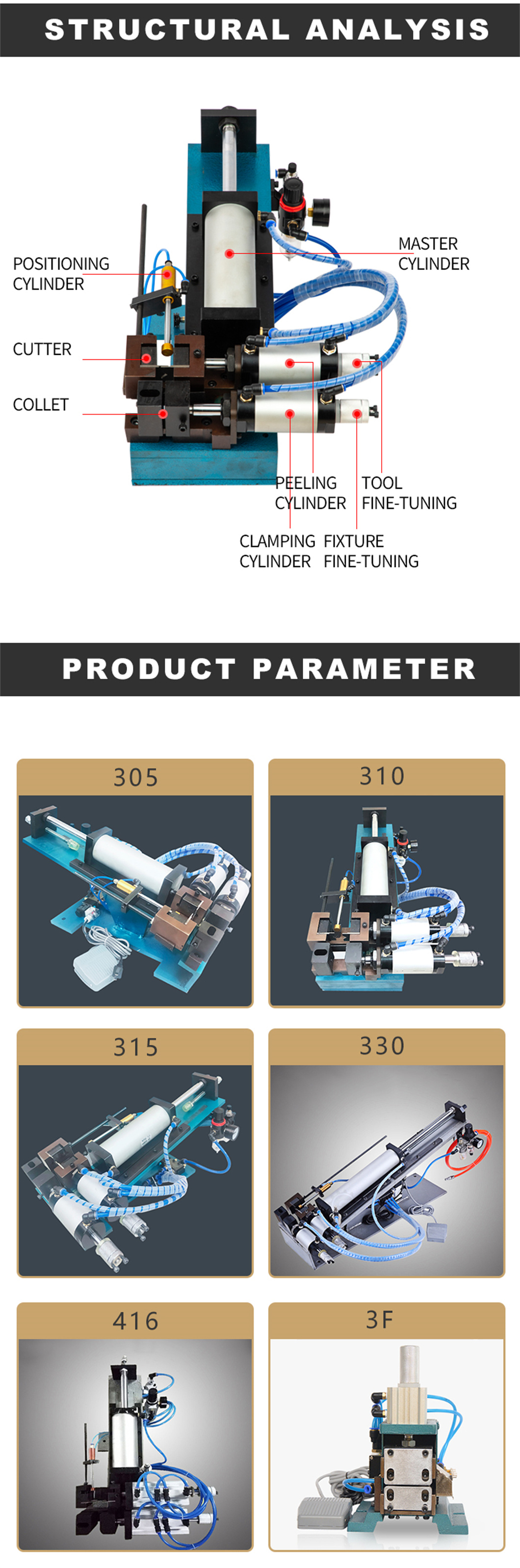

Product analysis:
1. Positioning cylinder
2. Cutter
3. Collect
4. Master cylinder
5. Peeling cylinder
6. Tool fine-tuning
7. Clamping cylinder
8. Fixture fine-tuning

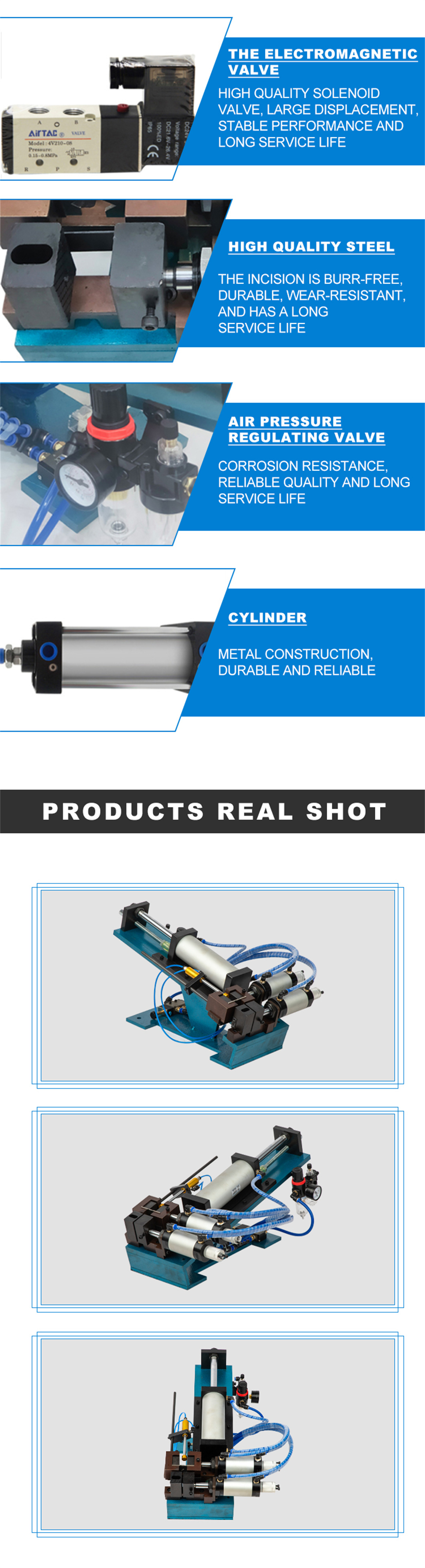

Product details:
1. The electromagnetic value
HIGH QUALITY SOL ENOID VALVE, L ARGE DISPL ACEMENT,STABL .E PERFORMANCE AND LONG SERVICE LIFE
2. High quality steel
THE INCISION IS BURR-FREE, DURABLE, WEAR-RESISTANT, ANDHASALONG
SERVICE LIFE
3. Air pressure regulation value
CORROSION RESISTANCE, RELIABL E QUALITY AND L .ONG SERVICE L .IFE
4. Cylinder
METAL CONSTRUCTION, DURABLE AND RELIABL E

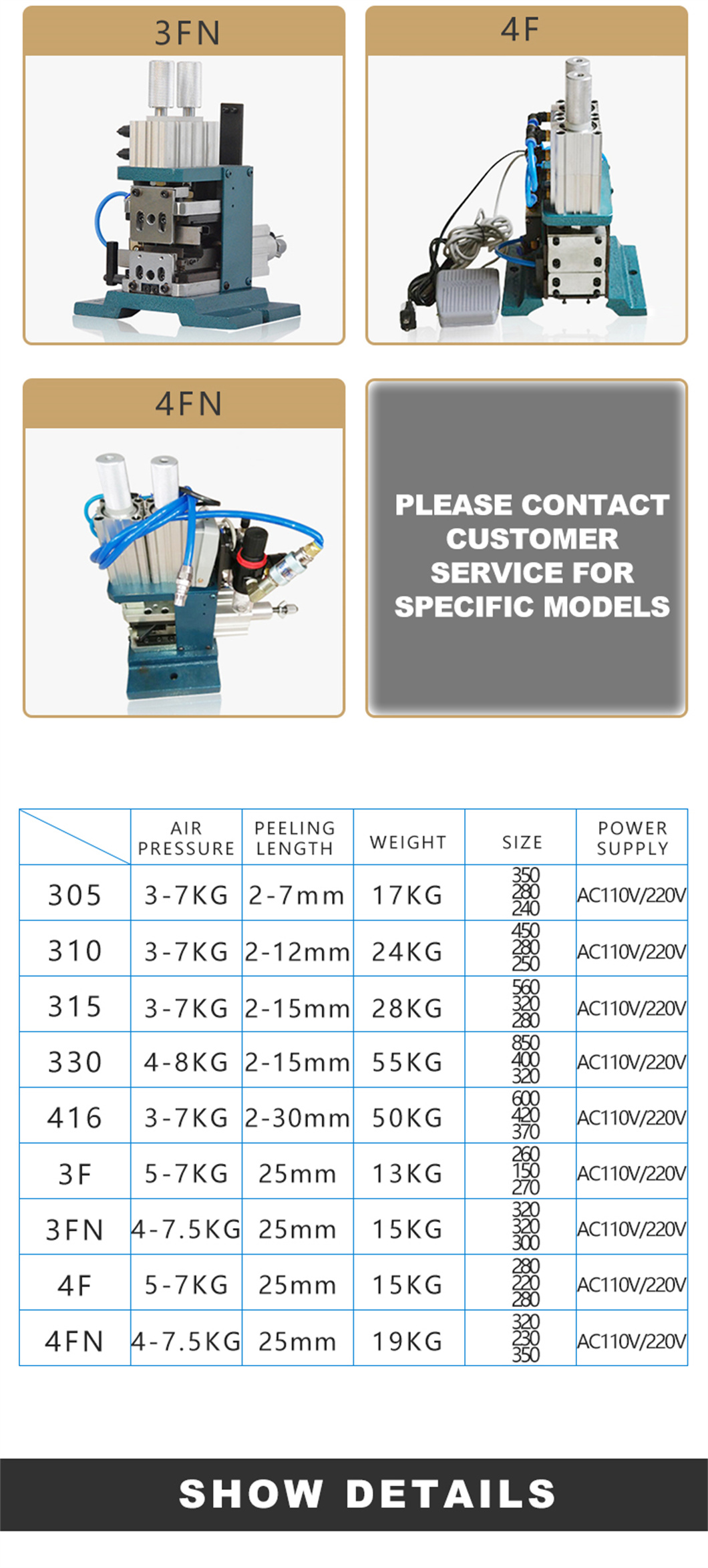

Data sheet:
model | air pressure | peeling length | weight | size | power supply |
305 | 3-7kg | 2-7mm | 17KG | 350*280*240 | AC110V/220V |
310 | 3-7kg | 2-12mm | 24KG | 450*280*250 | AC110V/220V |
315 | 3-7kg | 2-15mm | 28KG | 560*320*280 | AC110V/220V |
330 | 4-8kg | 2-15mm | 55KG | 850*400*320 | AC110V/220V |
416 | 3-7kg | 2-30mm | 50KG | 600*420*370 | AC110V/220V |
3f | 5-7kg | 25mm | 13KG | 260*150*270 | AC110V/220V |
3fn | 4-7.5kg | 25mm | 15KG | 320*320*300 | AC110V/220V |
4f | 5-7kg | 25mm | 15KG | 280*220*280 | AC110V/220V |
4fn | 4-7.5kg | 25mm | 19KG | 320*230*350 | AC110V/220V |
