3Q machine
Product overview

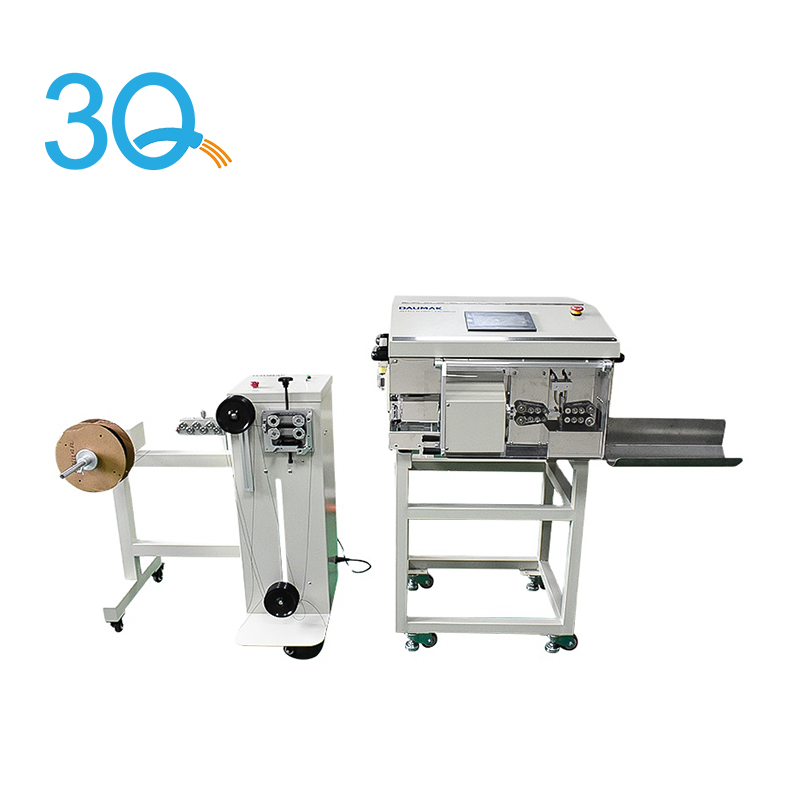

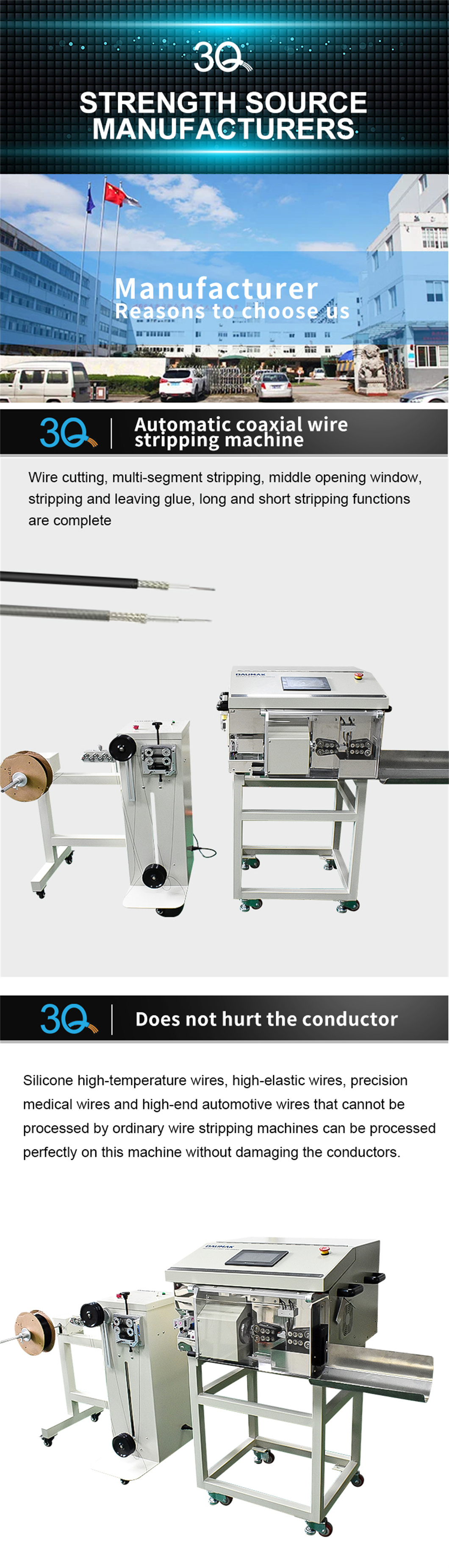

Product name:Automatic coaxial wire stripping machine.
Applicable range:Wire cutting, multi-segment stripping, middle opening window,
stripping and leaving glue, long and short strpping functions
are complete.
Features:
1. Safety design
Silicone high-temperature wires, high-elastic wires, precision medical wires and high-end automotive wires that cannot be processed by ordinary wire stripping machines can be processed perfectly on this machine without damaging the conductors.

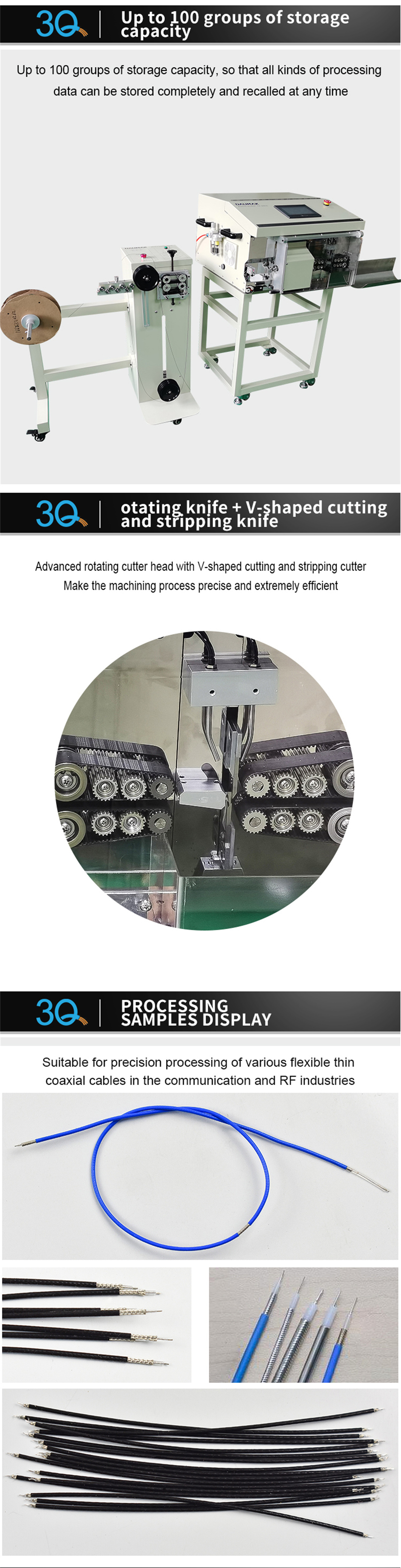

2. Huge storage capacity
Up to 100 groups of storage capacity, so that all kinds of processing
data can be stored completely and recalled at any time
3. Otating knife + V;shaped cutting and stripping knife
Advanced rotating cutter head with V-shaped cutting and stripping cutter
Make the machining process precise and extremely efficient
4. Processing samples display
Suitable for precision processing of various flexible thin coaxial cables in the communication and RF industries.

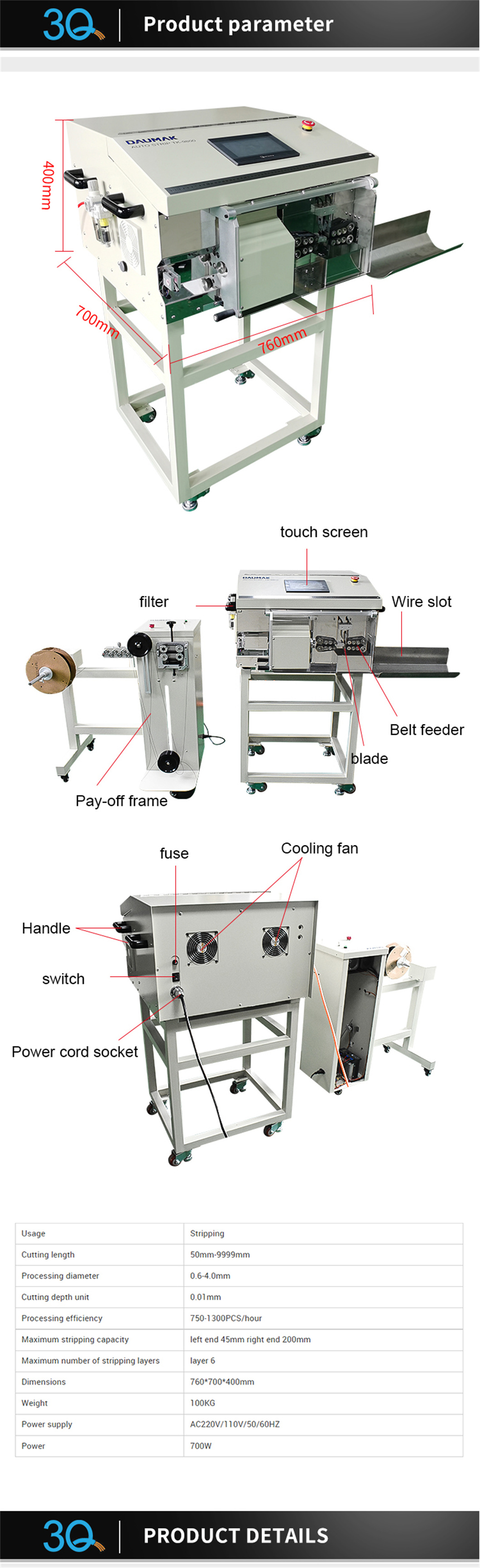

Product all parts introduction:
1. Filter
2. Pay-off frame
3. Touch-screen
4. Wire slot
5. Belt feeder
6. Blade
7. Cooling fan
8. Fuse
9. Handle
10. Switch
11. Power cord socket
Product details:

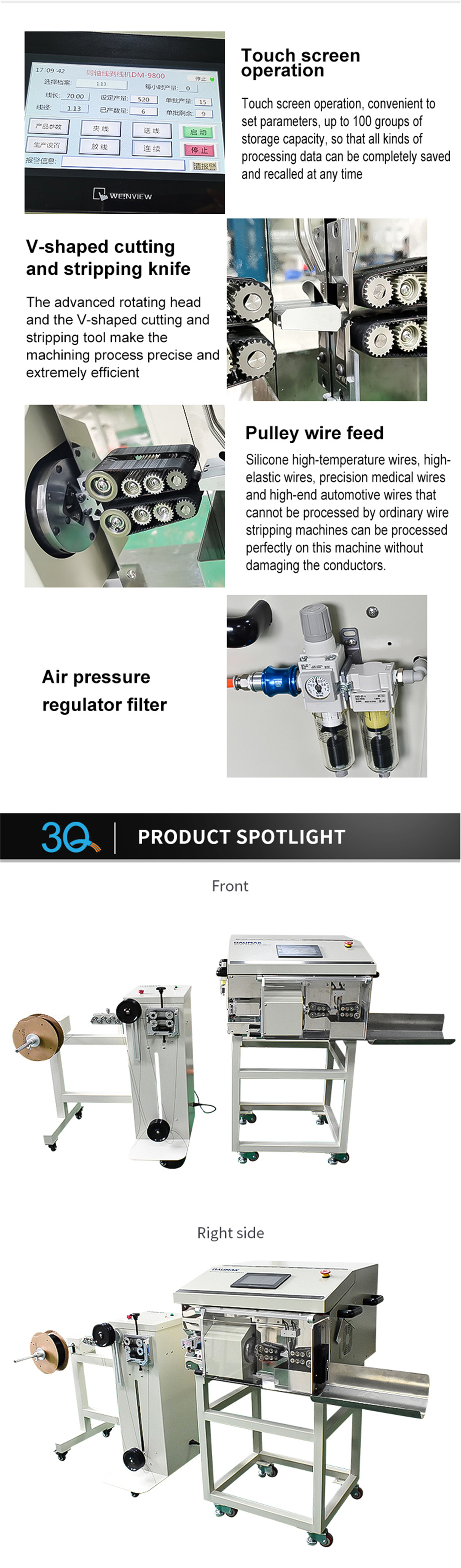

1. Touch screen operation
Touch screen operation, convenient to set parameters, up to 100 groups of storage capacity, so that all kinds of processing data can be completely saved and recalled at any time.
2. V-shaped cutting
and stripping knife
The advanced rotating head and the V-shaped cutting and stripping tool make the machining process precise and extremely efficient.
3. Pulley wire feed
Silicone high-temperature wires, high- elastic wires, precision medical wires and high-end automotive wires that cannot be processed by ordinary wire stripping machines can be processed perfectly on this machine without damaging the conductors.
5. Air pressure regulator filter

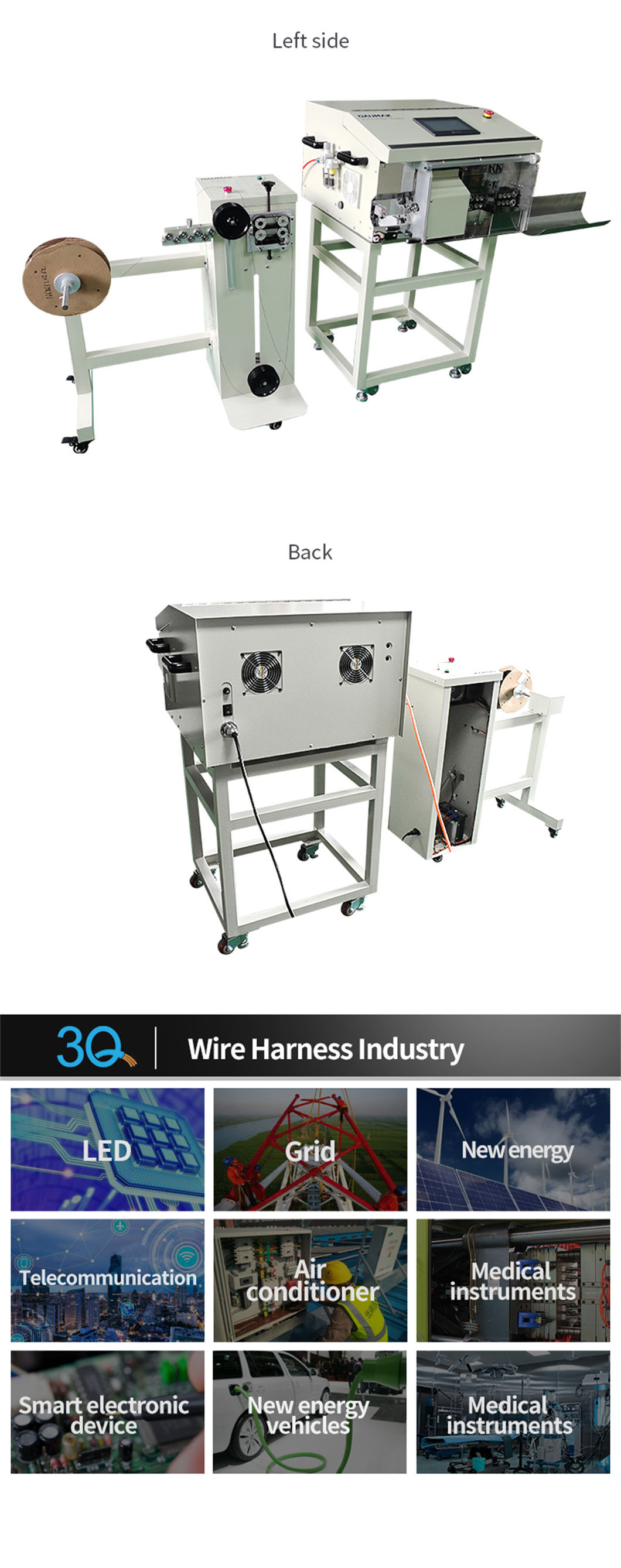

Wire harness industry:
1. Led
2. Grid
3. New energy
4. Telecommunication
5. Air conditioner
6. Medical instruments
7. Smart electronic device
8. New energy vehicles
9. Medical instruments
Data sheet:
Usage | Stripping |
Cutting length | 50mm-9999mm |
Processing diameter | 0.6-4.0mm |
Cutting depth unit | 0.01mm |
Processing eficiency | 750-1 300PCS/hour |
Maximum stripping capacity | left end 45mm right end 200mm |
Maximum number of stripping layers | layer 6 |
Dimensions | 760*700*400mm |
Weight | 100KG |
Power supply | AC220V/1 10V/50/60HZ |
Power | 700W |
