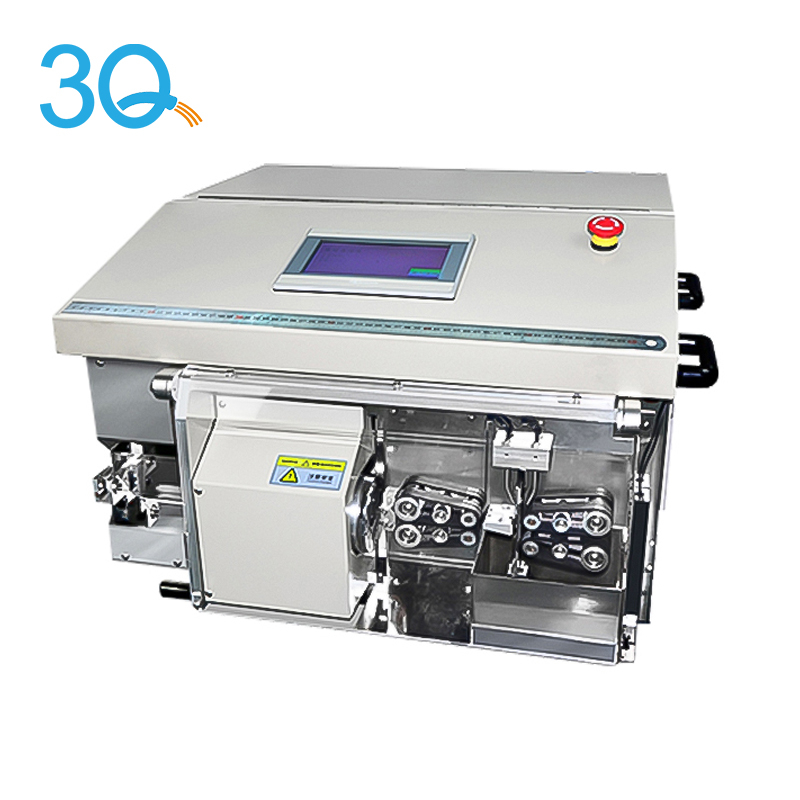

Wire Cutting And Multi Segment Peeling Machine for RF Industries

Availability:
Quantity:
  • 3Q machine

详情页新_01详情页新_02详情页新_03详情页新_04详情页新_05详情页新_06详情页新_07

wire stripping machine

工厂展示_01工厂展示_02工厂展示_03

独立站证书

WIRE STRIPPING MACHINE

Product overview

Product name: Fully Automatic Double-head wire stripping and tinning machine.



Product introduction:


Features:

1. A wide range of production wires: from AWG18 to AWG32, 8 wires can be processed at the same time, with high production capacity and wide application range;

2. Full Chinese touch operation: simple and easy to learn, full CNC tool adjustment, CNC adjustment of length, depth and other parameters.

3. Hybrid servo drive, high precision and fast speed

The in furnace is designed with automatic tin scraping and wire feeding devices so that there is no tin oxide slag and smoke in the tin area, while ensuing the cleanliness of the table and reducing the damage to the human body by the smoke,

4. With a waste recycling device,the stripped rubber can be automatically recycled to the storage bag.

5. Wire cutting,single-ended peeling,double-ended peeling,double-ended half strip.double-ended half strip,double-ended twisted wire,single-ended tip tin,double-ended dip tin.

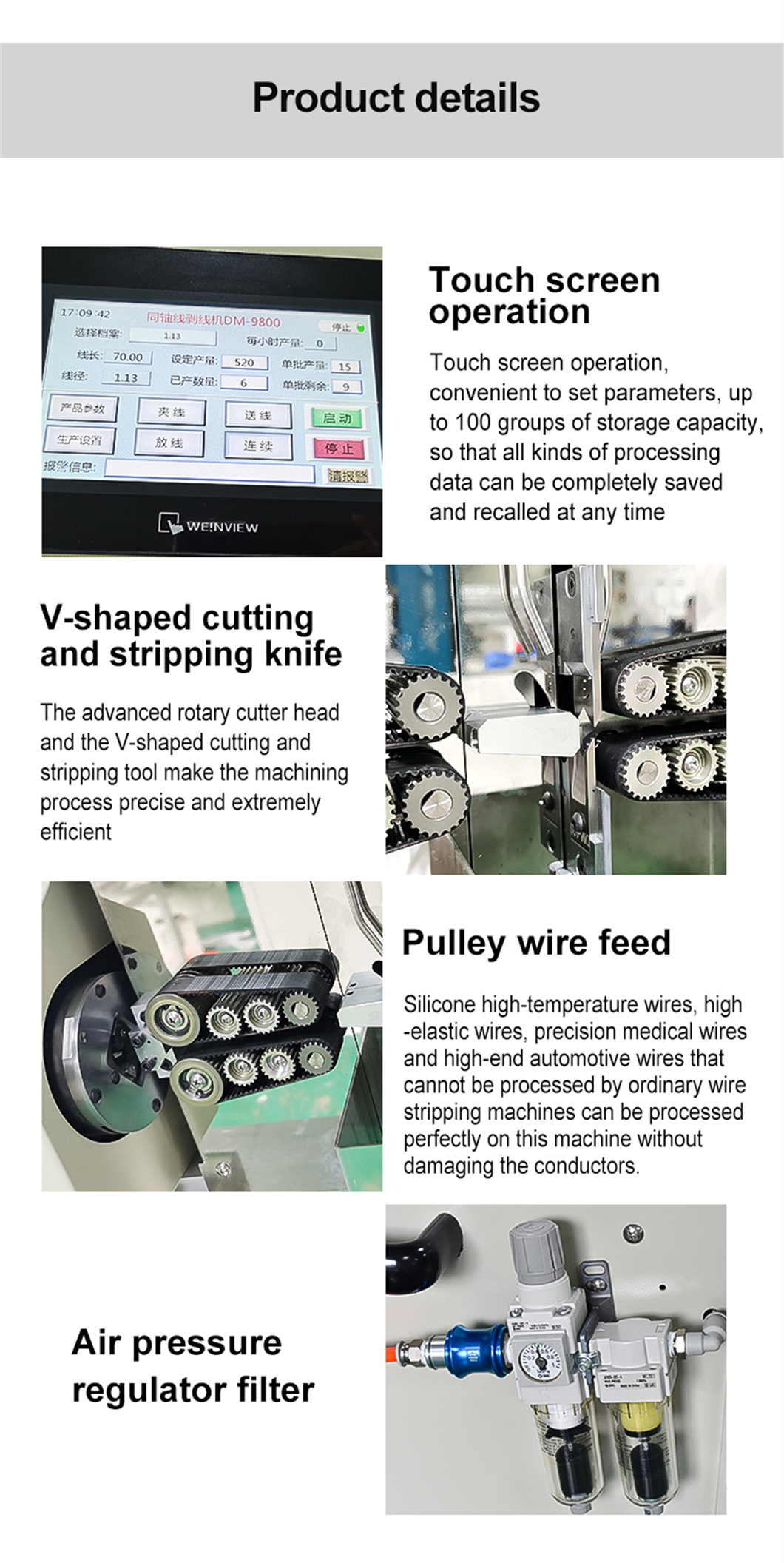

Product details:

1. Easy to use chinese interface high definition

LCD screen, high-definition Chinese interface, simple operation, quick to get started

2. High efficiency Fully automatic work

Using dedicated single-board computer control, full automatic working speed is fast and high efficiency.

3. Servo Control Depth precision

The whole machine adopts servo control, the 90 degree soldering point is even and the depth is accurate.

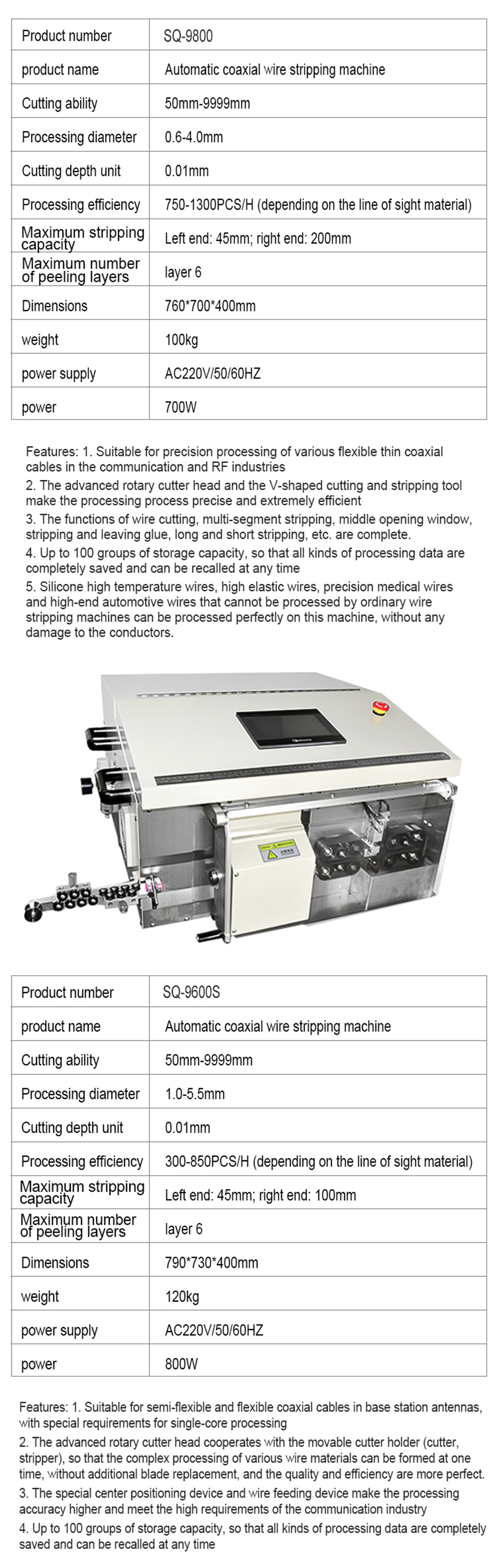

Data sheet:

Product dimension840*670*1200MM
Processing methodsroller wire feeding
Production caPacity16000-22000Pcs/h
Machine caPacity1600-22000 er hour(dePanding)
Applicable wireAWG#18-AWG#32
Cutting length8MM-9999MM
StriPPing length0.1-10MM(length can be customized)
Twisted wire length3~10MM
Dip length1~10MM
Air Pressure6kgf(need to use clean and dry air)
Weight310KG
CertificationCE,lso
