WIRE STRIPPING MACHINE

Product overview

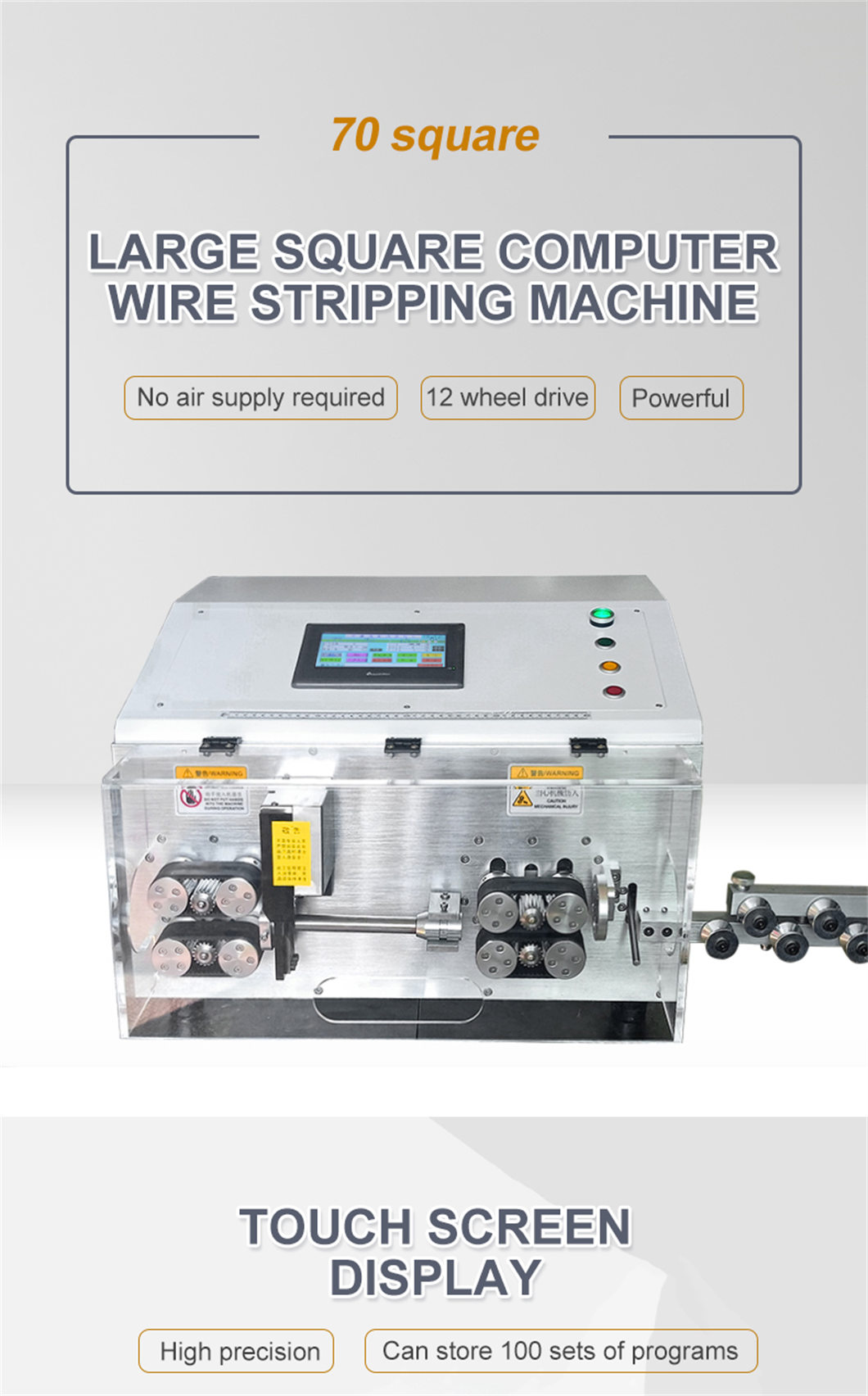

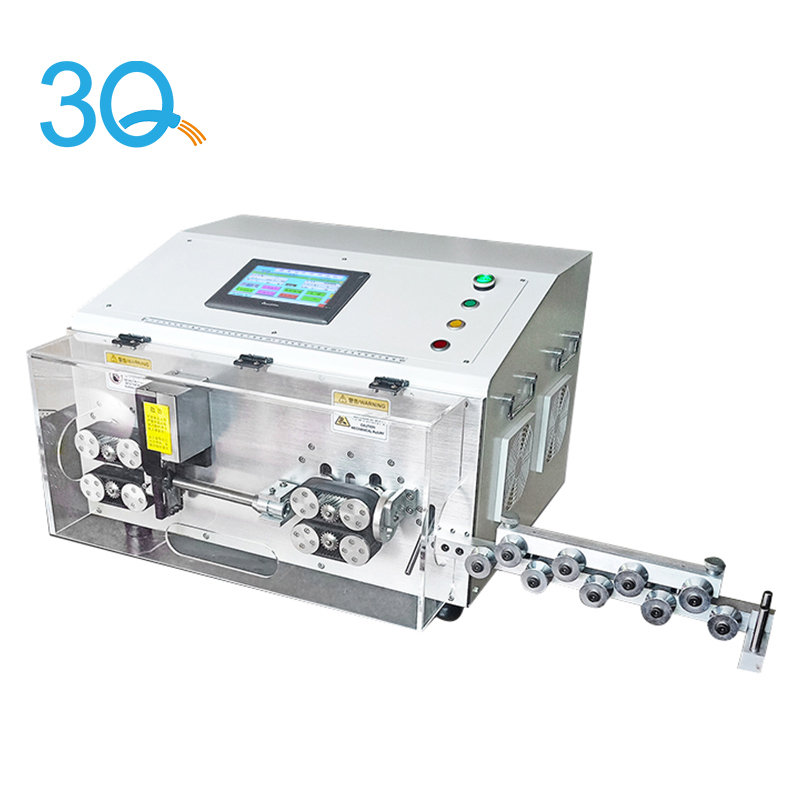

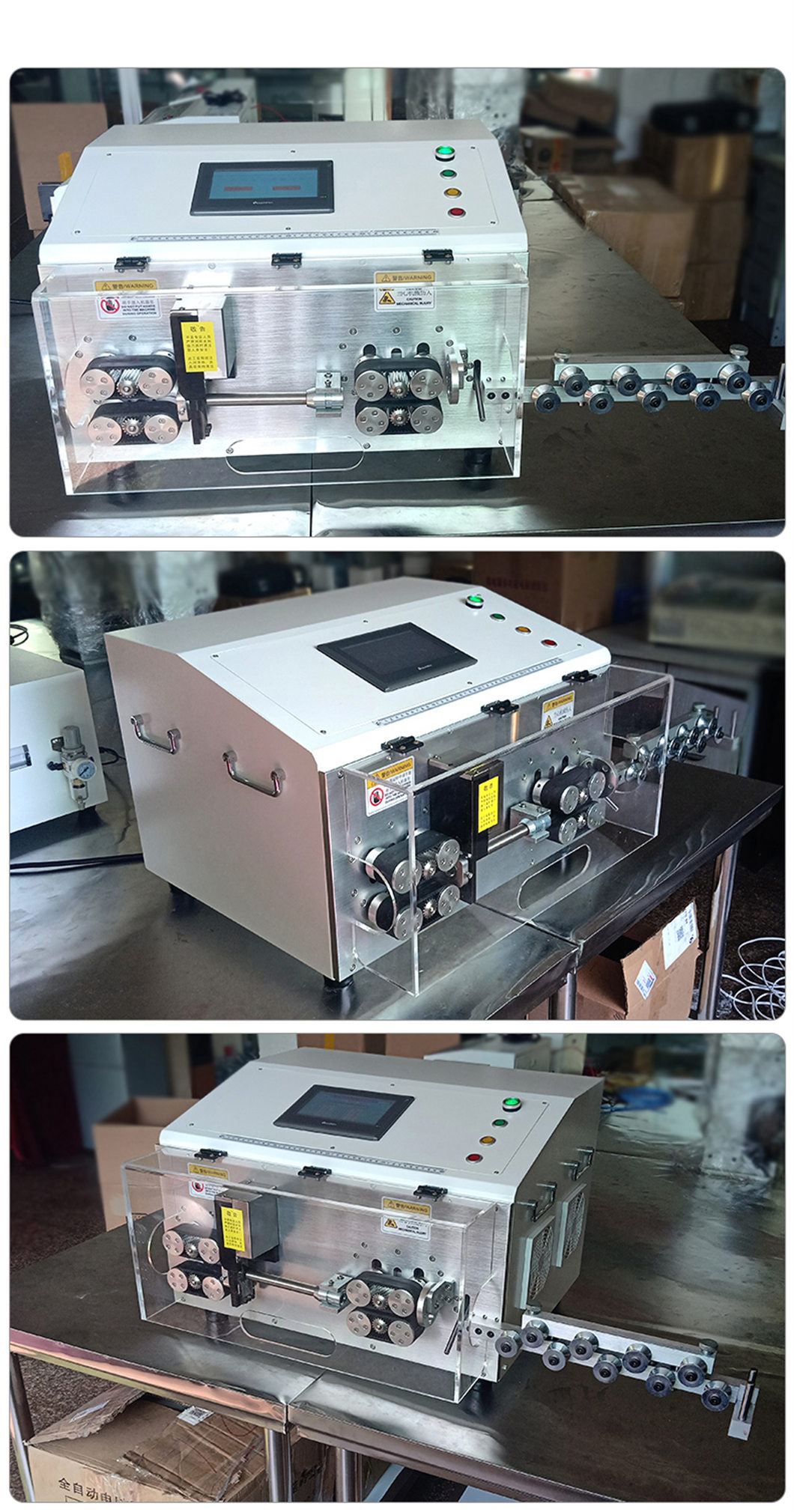

Product name:70 square large square computer wire stripping machine


Feature:

1. no air supply required

2. 12 wheel drive

3. Powerful

4. High precision

5. Can store 100 sets of programs

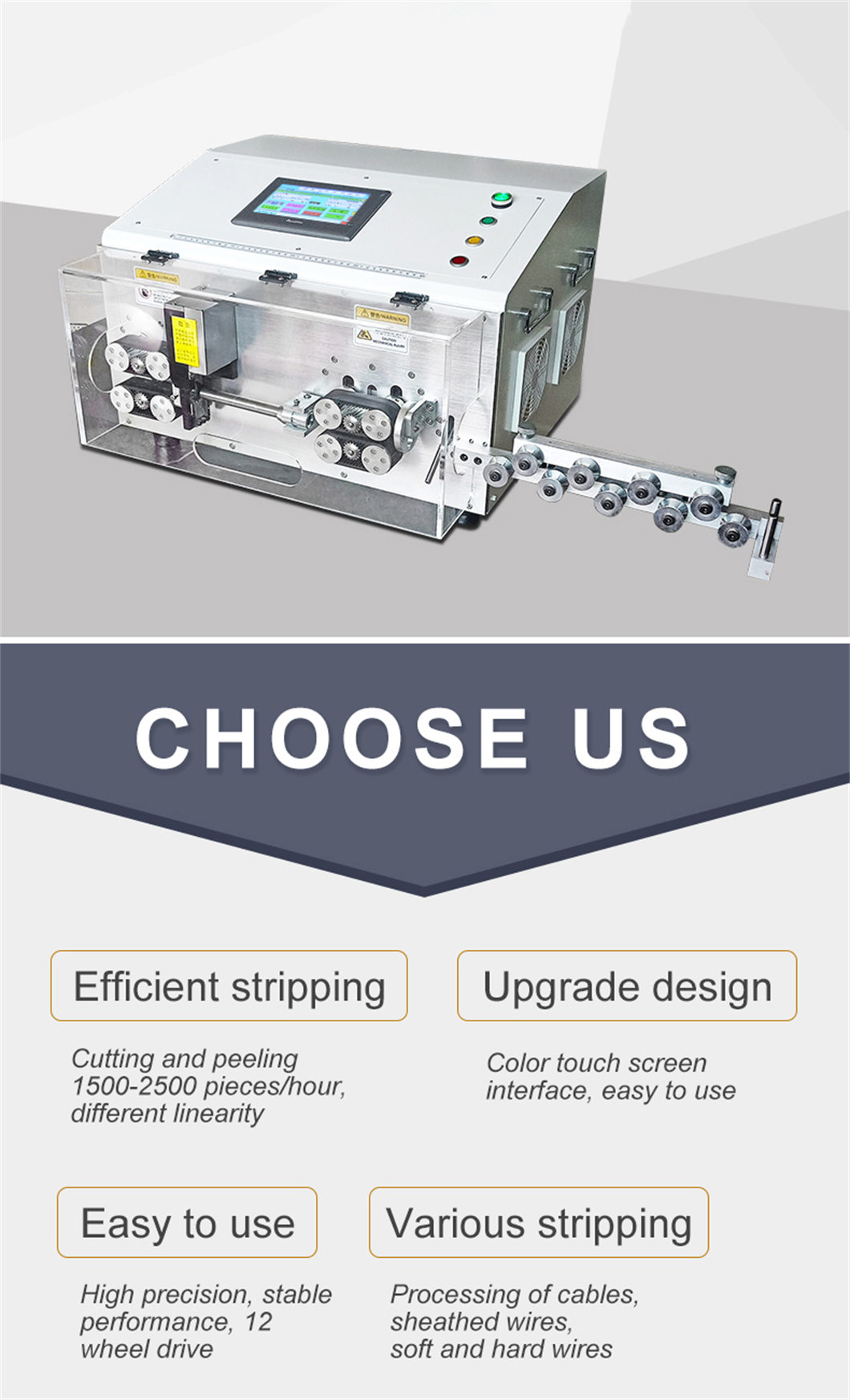

6. Efficient stripping-Cutting and peeling 1500-2500pieces/hour,different linearity

7. Upgrade design-color touch screen interface,easy to use

8. Easy to use-high precision,stable performance,12 wheel drive

9. Various stripping-processing of cables,sheathed wires,soft and hard wires

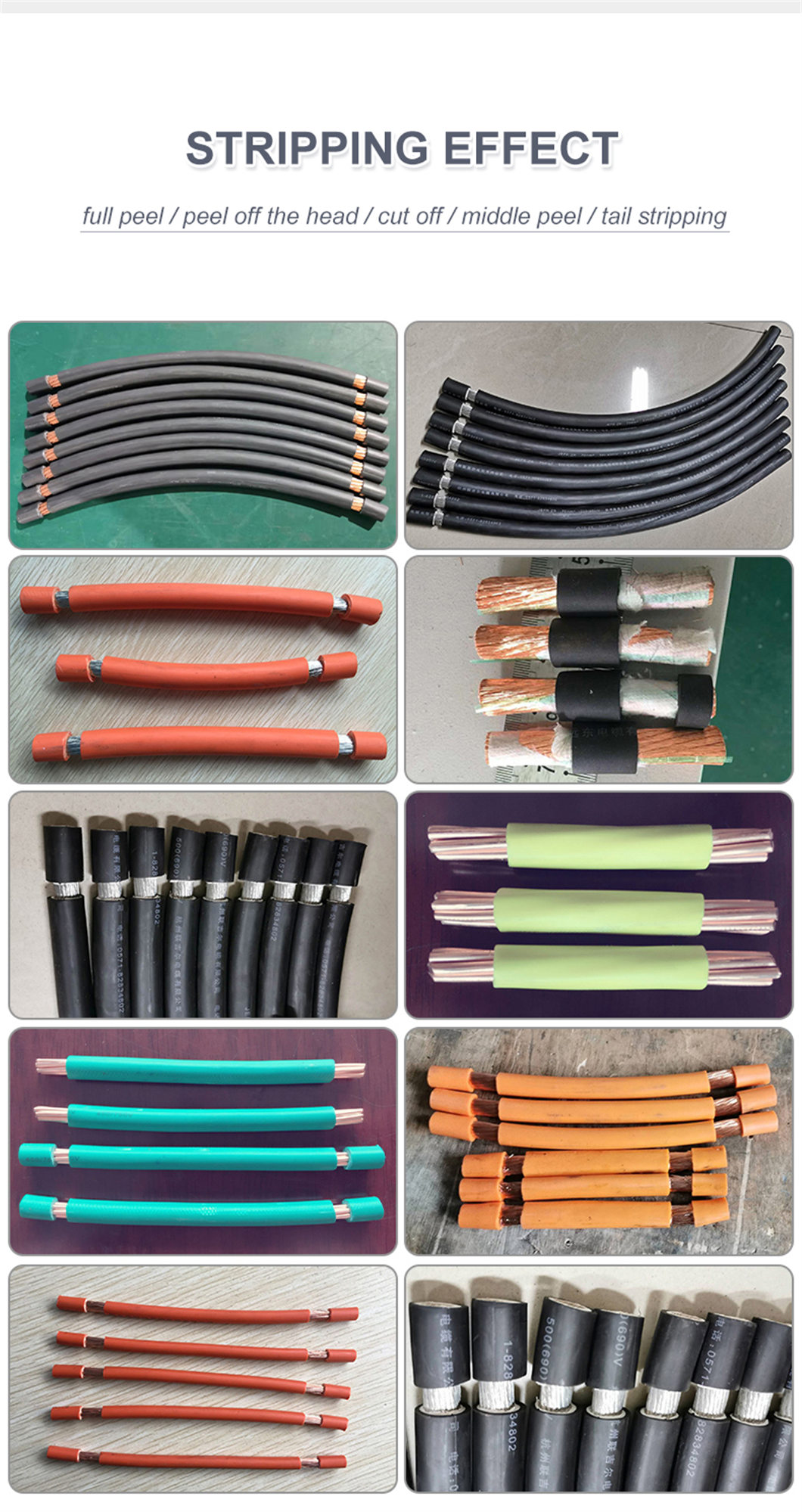

10. Can achieve full peel, peel off the head/cut off/ middle peel/tail stripping


Show detail:

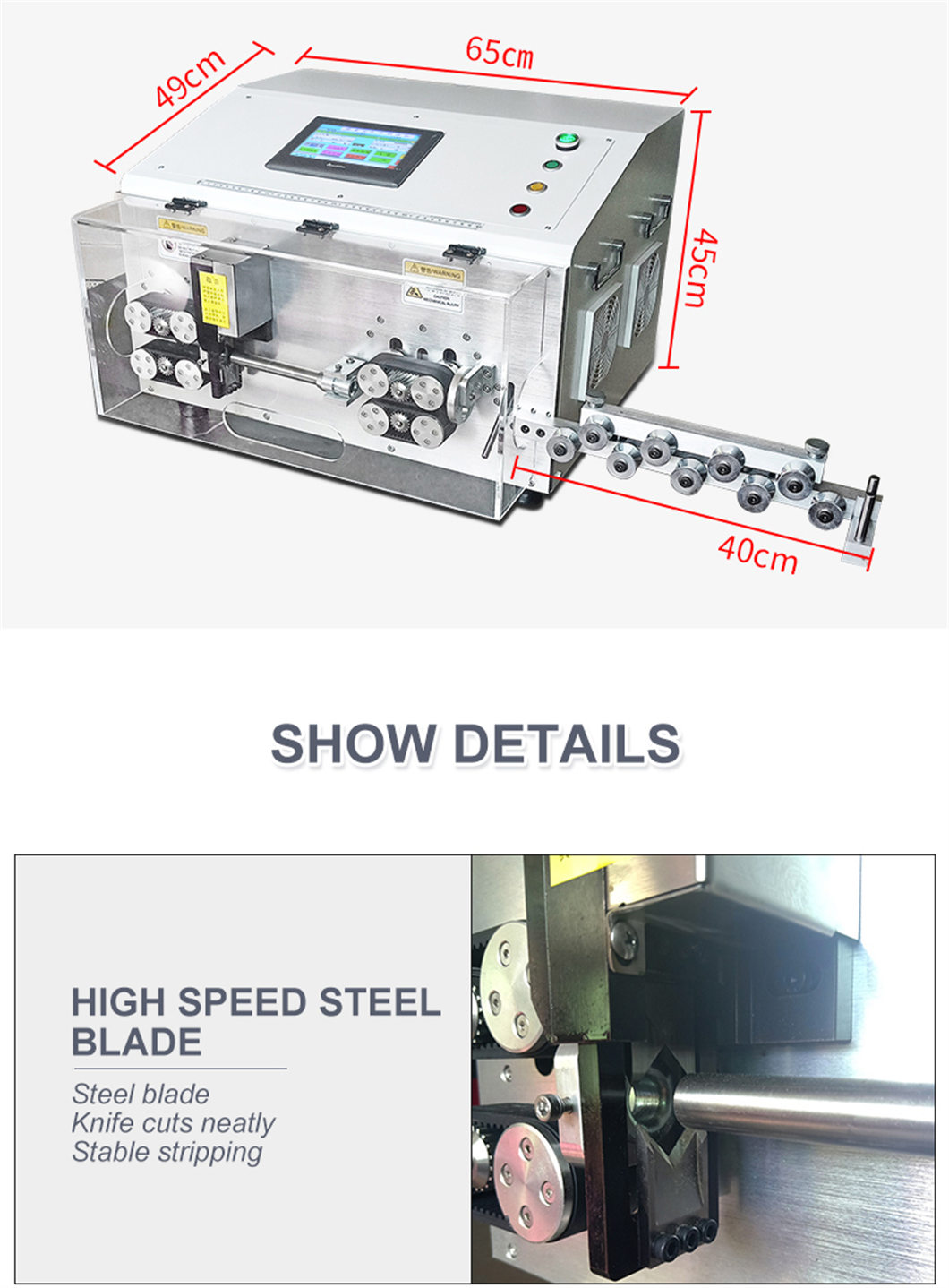

1. High speed steel blade

Steel blade knife cuts neatly stable stripping

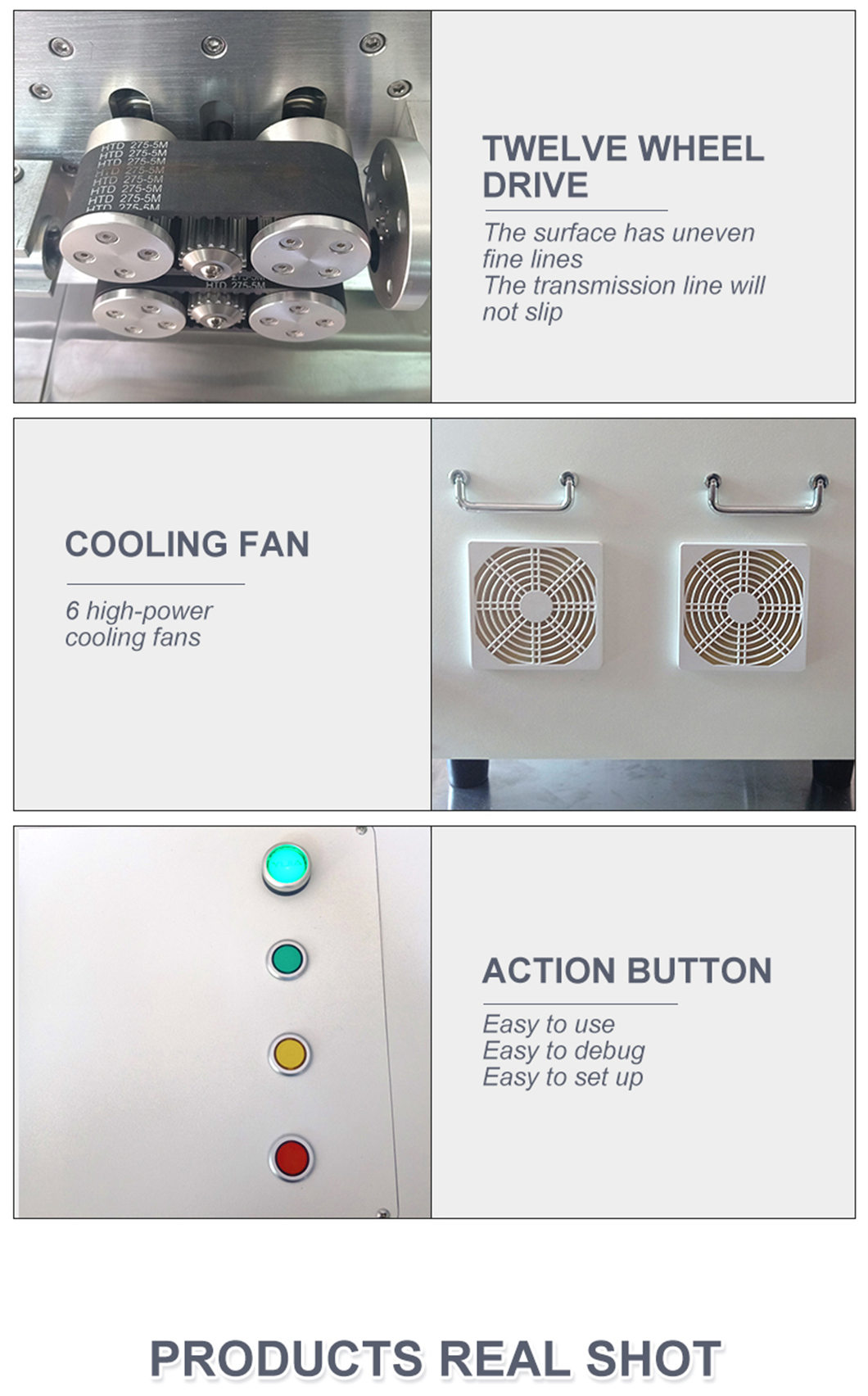

2. TWELVE WHEEL DRIVE

The surface has uneven fine lines The transmission line will not slip

3. COOLING FAN 6 high-power cooling fans

6 high-power cooling fans

4. Action button

Easy to use,easy to debug,easy to set up

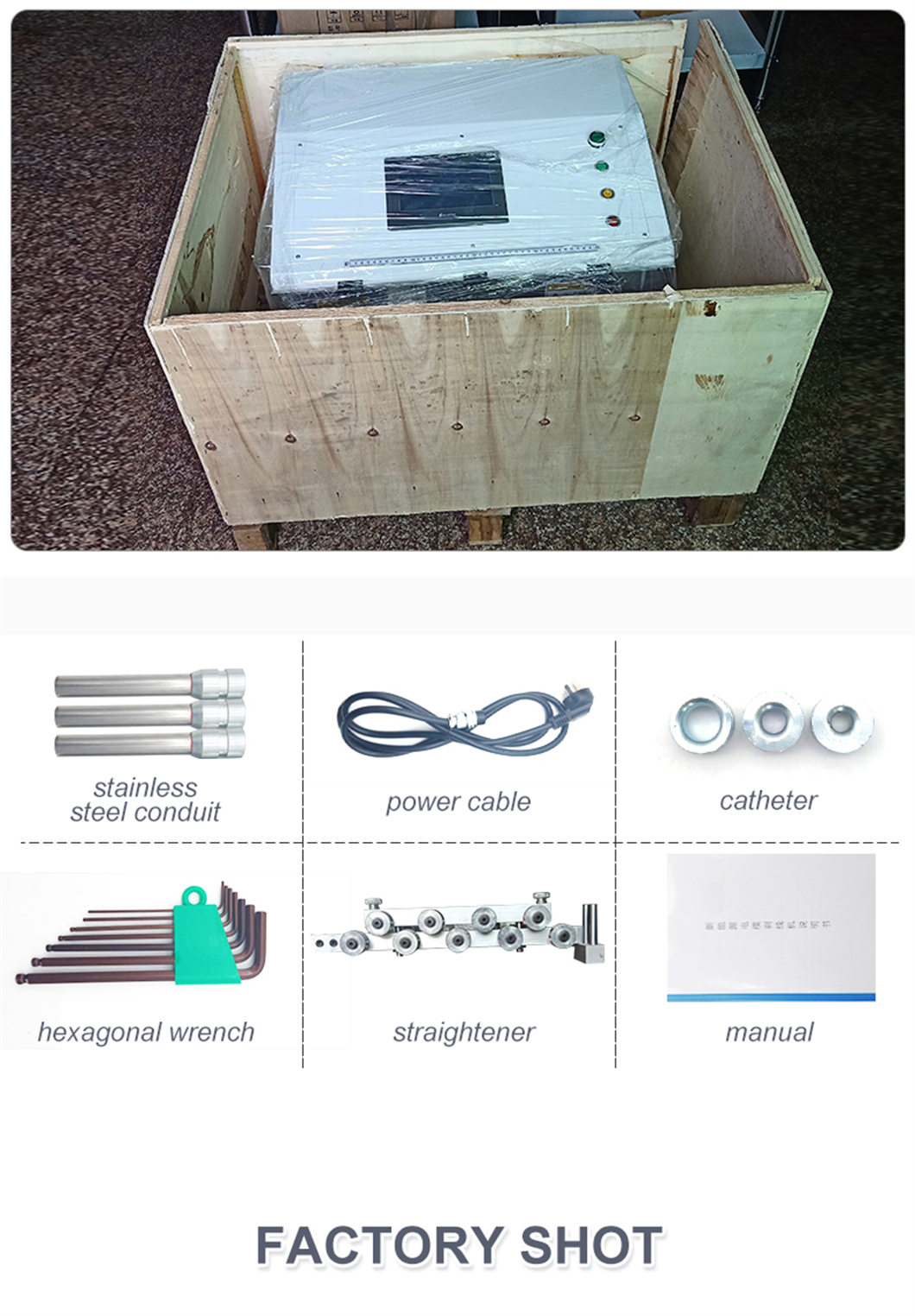

Accessories display:

1. Stainless steel conduit

2. Power cable

3. Catheter

4. Hexagonal wrench

5. Straightener

6. Manual

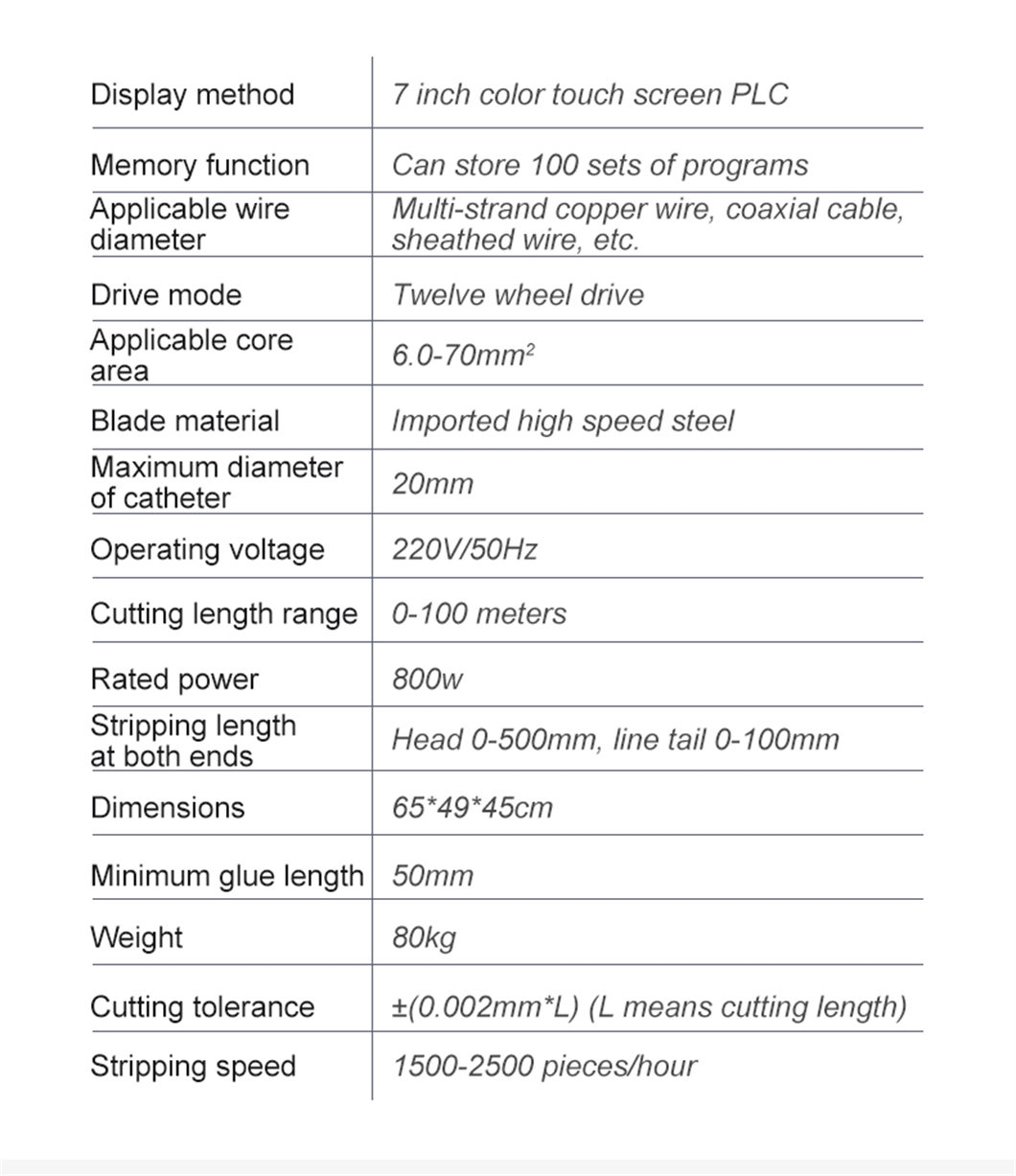

Data sheet:

Display method7 inch color touch screen PLC
Memory functionCan store 100 sets of programs
Applicable wireMulti-strand copper wire, coaxial cable,
diametersheathed wire, etc.
Drive modeTwelve wheel drive
Applicable core area6.0-70mm2
Blade materialImported high speed steel
Maximum diameter of catheter20mm
Operating voltage220V/50Hz
Cutting length range0- 100 meters
Rated power800w
Stripping length at both endsHead 0- 500mm, line tail 0- 100mm
Dimensions65*49*45cm
Minimum glue length50mm
Weight80kg
Cutting tolerance+(0.002mm*L) (L means cutting length)
Stripping speed1500-2500 pieces/hour
