3Q machine
Overview introduction:
Product name：Terminal crimping machine mould

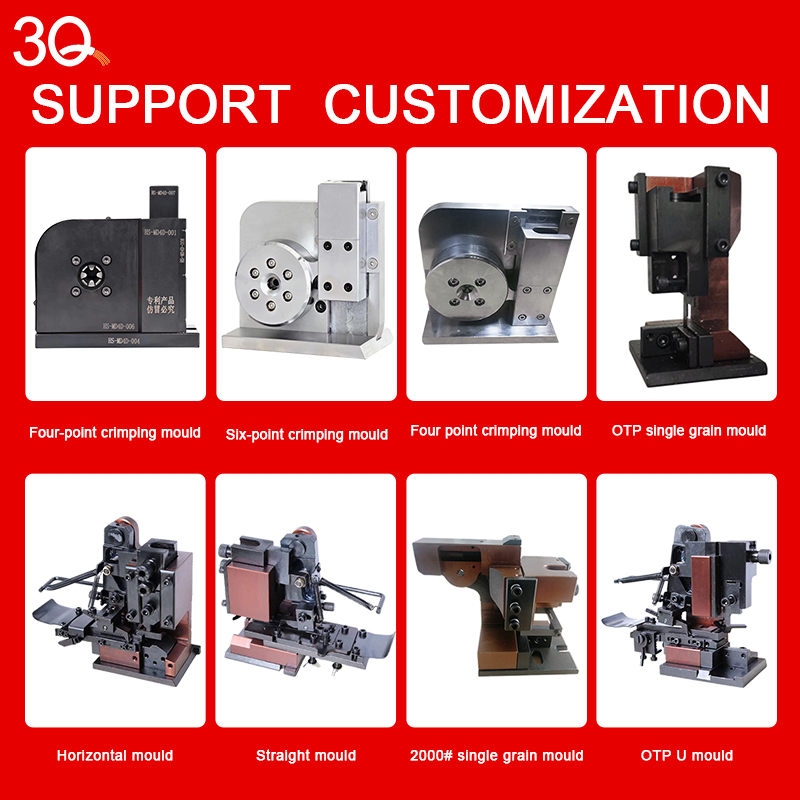

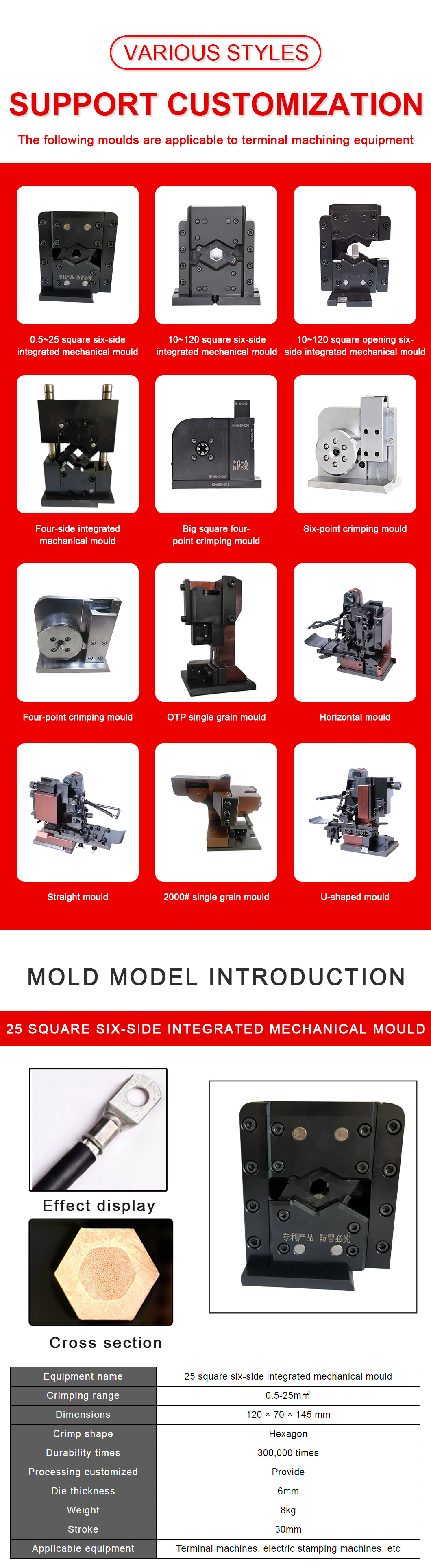

Application:
1. 0.5~25 square six side, integrated mechanical mould
2. 10~120 square six- side, integrated mechanical mould
3. 10~120 square opening six side integrated mechanical mould
4. Four-point crimping mould
5. OTP single grain mould
6. Horizontal mould
7. Straight mould
8. 2000# single grain mould
9. U-shaped mould
Data Sheet:
| Equipment name | 25 square six-side integrated mechanical mould |
| Crimping range | 0.5-25mmi |
| Dimensions | 120x70x145mm |
| Crimp shape | Hexagon |
| Durability times | 300,000 times |
| Processing customized | Provide |
| Die thickness | 6mm |
| Weight | 8kg |
| Stroke | 30mm |
| Applicable equipment | Terminal machines, electric stamping machines, etc |

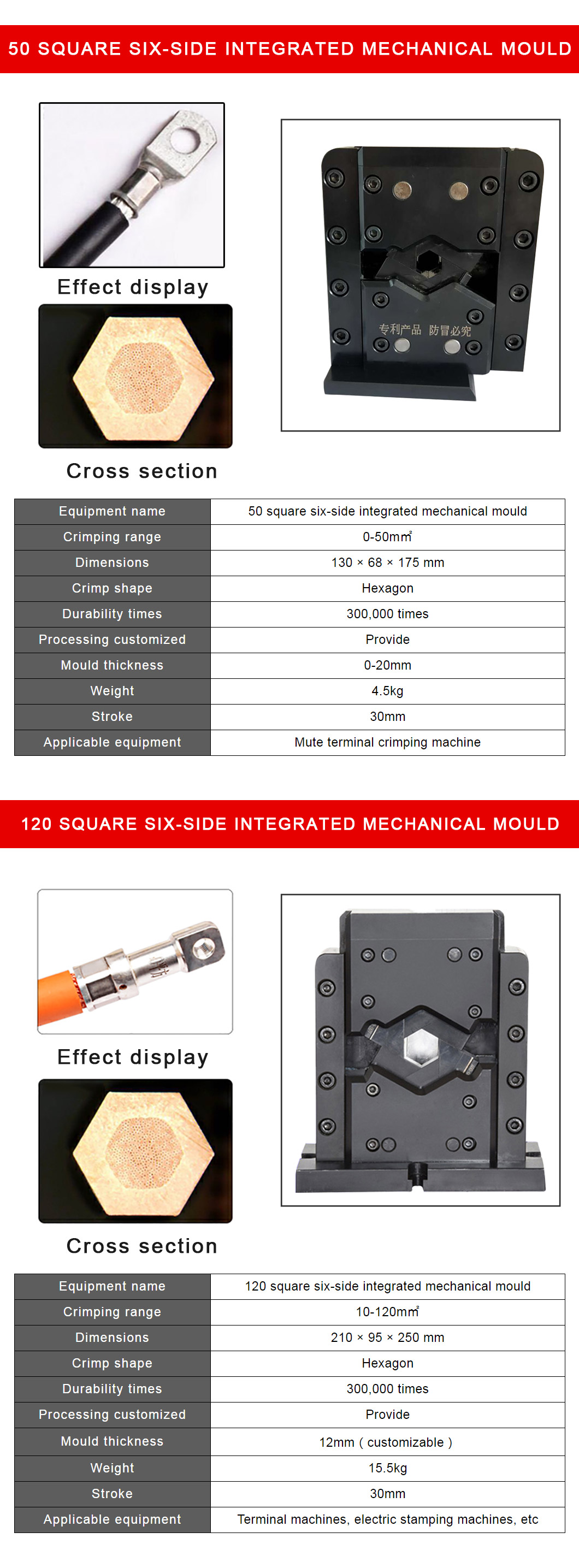

| Equipment name | 50 square six-side integrated mechanical mould |
| Crimping range | 0-50mmi |
| Dimensions | 130x68x175mm |
| Crimp shape | Hexagon |
| Durability times | 300,000 times |
| Processing customized | Provide |
| Mould thickness | 0-20mm |
| Weight | 4.5kg |
| Stroke | 30mm |
| Applicable equipment | Mute terminal crimping machine |
| Equipment name | 120 square six-side integrated mechanical mould |
| Crimping range | 10-120mmi |
| Dimensions | 210x95x250mm |
| Crimp shape | Hexagon |
| Durability times | 300,000 times |
| Processing customized | Provide |
| Mould thickness | 12mm ( customizable ) |
| Weight | 15.5kg |
| Stroke | 30mm |
| Applicable equipment | Terminal machines, electric stamping machines, etc |

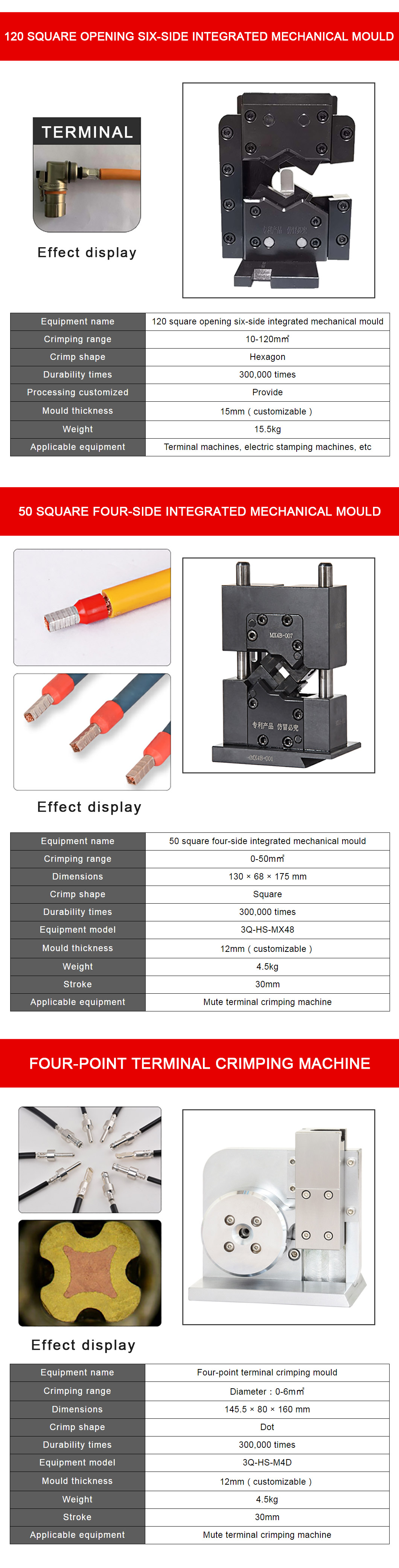

| Equipment name | 120 square opening six-side integrated mechanical mould |
| Crimping range | 10-120mm |
| Crimp shape | Hexagon |
| Durability times | 300, ,000 times |
| Processing customized | Provide |
| Mould thickness | 15mm ( customizable ) |
| Weight | 15.5kg |
| Applicable equipment | Terminal machines, electric stamping machines, etc |
| Equipment name | 50 square four-side integrated mechanical mould |
| Crimping range | 0-50mmi |
| Dimensions | 130X68x175mm |
| Crimp shape | Square |
| Durability times | 300,000 times |
| Equipment model | 3Q-HS-MX48 |
| Mould thickness | 12mm ( customizable ) |
| Weight | 4.5kg |
| Stroke | 30mm |
| Applicable equipment | Mute terminal crimping machine |
| Equipment name | Four-point terminal crimping mould |
| Crimping range | Diameter : 0-6mmi |
| Dimensions | 145.5x80X160mm |
| Crimp shape | Dot |
| Durability times | 300,000 times |
| Equipment model | 3Q-HS-M4D |
| Mould thickness | 12mm ( customizable ) |
| Weight | 4. 5kg |
| Stroke | 30mm |
| Applicable equipment | Mute terminal crimping machine |

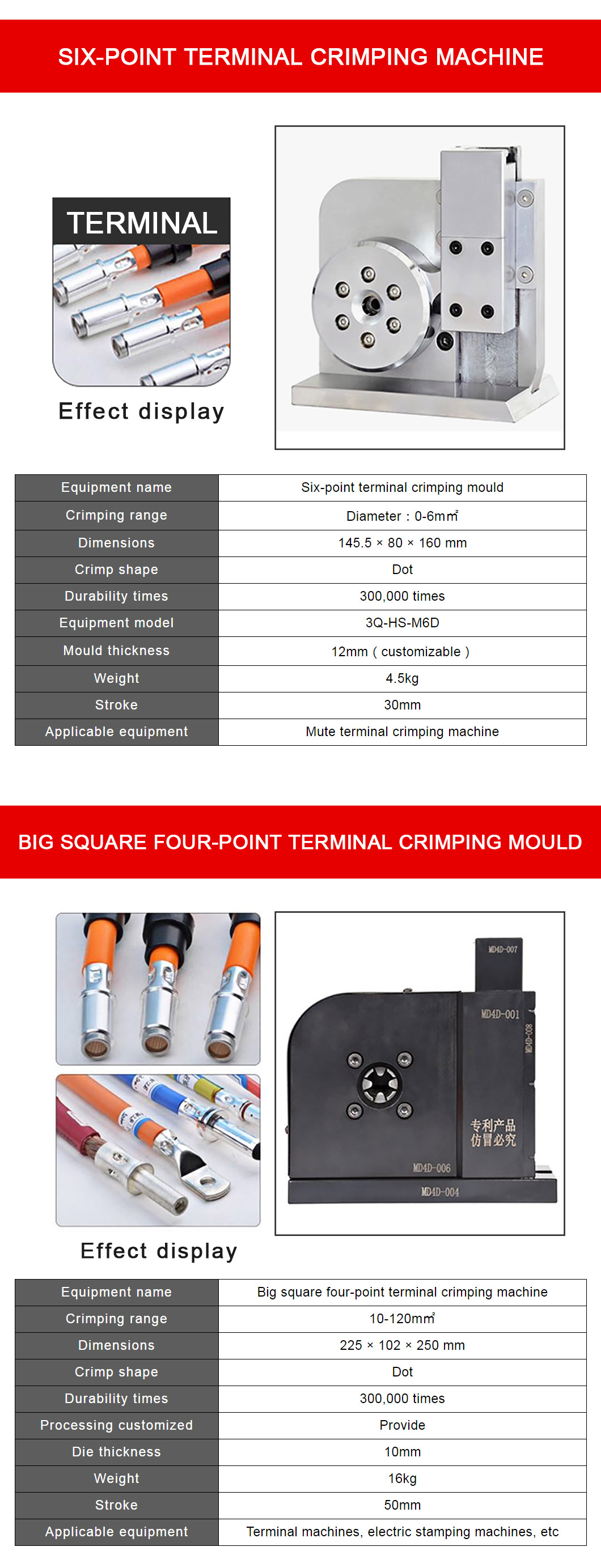

| Equipment name | Six-point terminal crimping mould |
| Crimping range | Diameter : 0-6mmi |
| Dimensions | 145.5x80x160mm |
| Crimp shape | Dot |
| Durability times | 300, 000 times |
| Equipment model | 3Q-HS-M6D |
| Mould thickness | 12mm ( customizable ) |
| Weight | 4.5kg |
| Stroke | 30mm |
| Applicable equipment | Mute terminal crimping machine |
| Equipment name | Big square four-point terminal crimping machine |
| Crimping range | 10-120mmi |
| Dimensions | 225x102x250mm |
| Crimp shape | Dot |
| Durability times | 300,000 times |
| Processing customized | Provide |
| Die thickness | 1 0mm |
| Weight | 16kg |
| Stroke | 50mm |
| Applicable equipment | Terminal machines, electric stamping machines, etc |

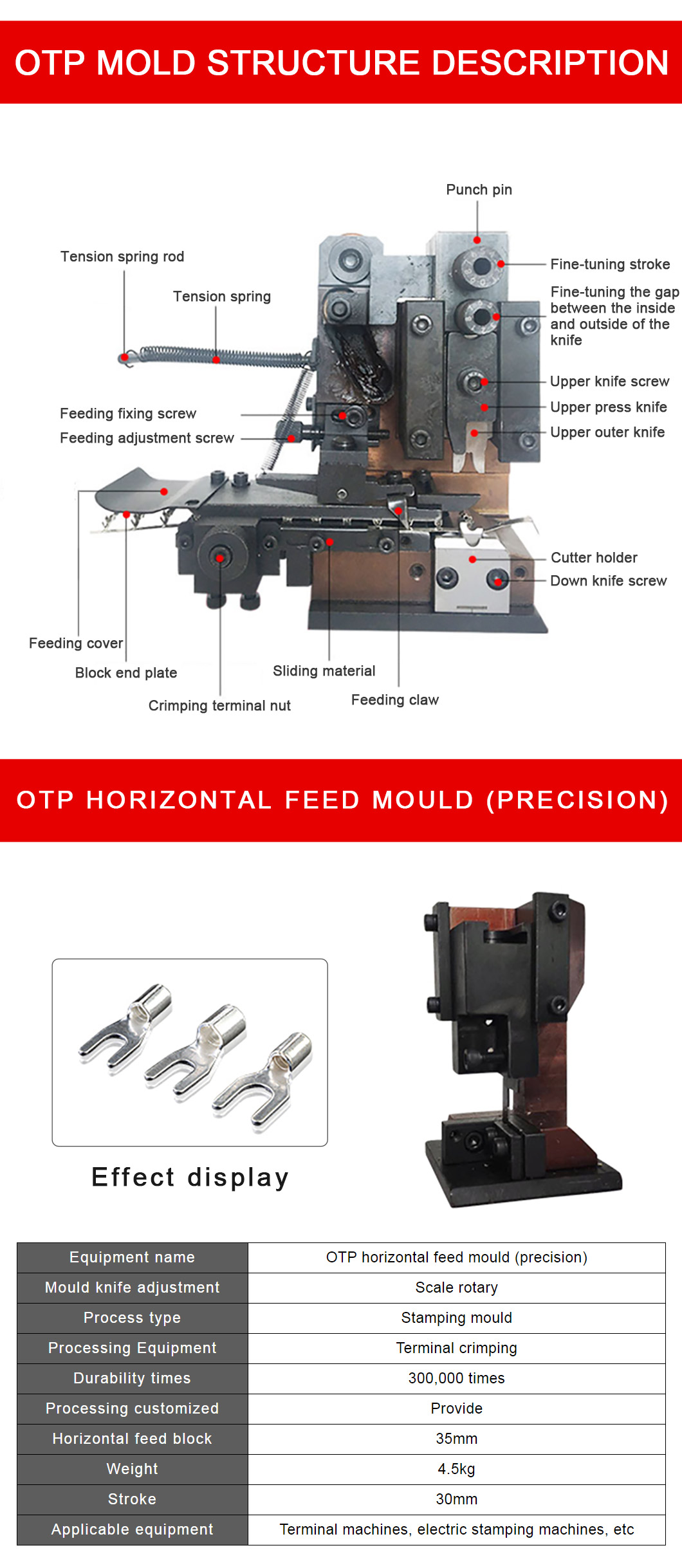

| Equipment | OTP horizontal feed mould (precision) |
| name | Scale rotary |
| Mould knife adjustment | Stamping |
| Process type | mould |
| Processing Equipment | Terminal crimping |
| Durability times | 300,000 times |
| Processing customized | Provide |
| Horizontal feed block | 35mm |
| Weight | 4.5kg |
| Stroke | 30mm |
| Applicable equipment | Terminal machines, electric stamping machines, etc |

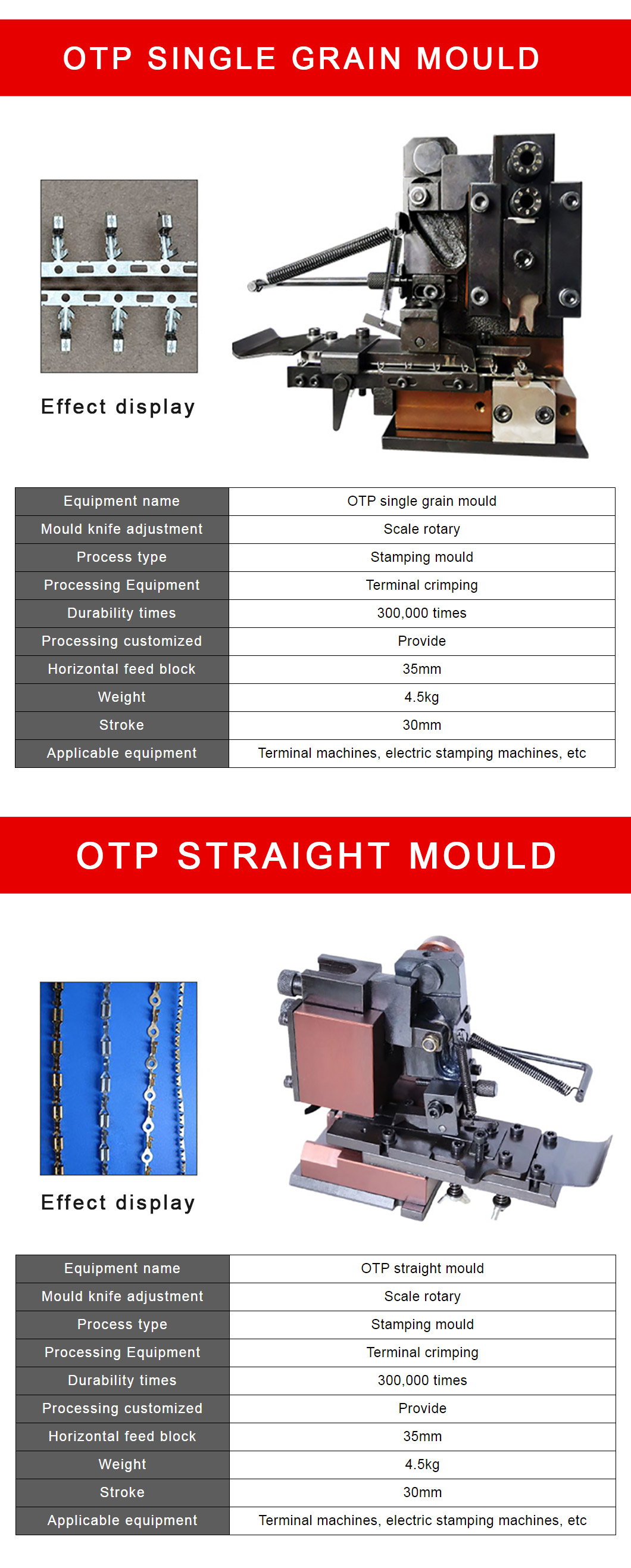

| Equipment name | OTP single grain mould |
| Mould knife adjustment | Scale rotary |
| Process type | Stamping mould |
| Processing Equipment | Terminal crimping |
| Durability times | 300,000 times |
| Processing customized | Provide |
| Horizontal feed block | 35mm |
| Weight | 4. 5kg |
| Stroke | 30mm |
| Applicable equipment | Terminal machines, electric stamping machines, etc |
| Equipment name | OTP straight mould |
| Mould knife adjustment | Scale rotary |
| Process type | Stamping mould |
| Processing Equipment | Terminal crimping |
| Durability times | 300,000 times |
| Processing customized | Provide |
| Horizontal feed block | 35mm |
| Weight | 4.5kg |
| Stroke | 30mm |
| Applicable equipment | Terminal machines, electric stamping machines, etc |

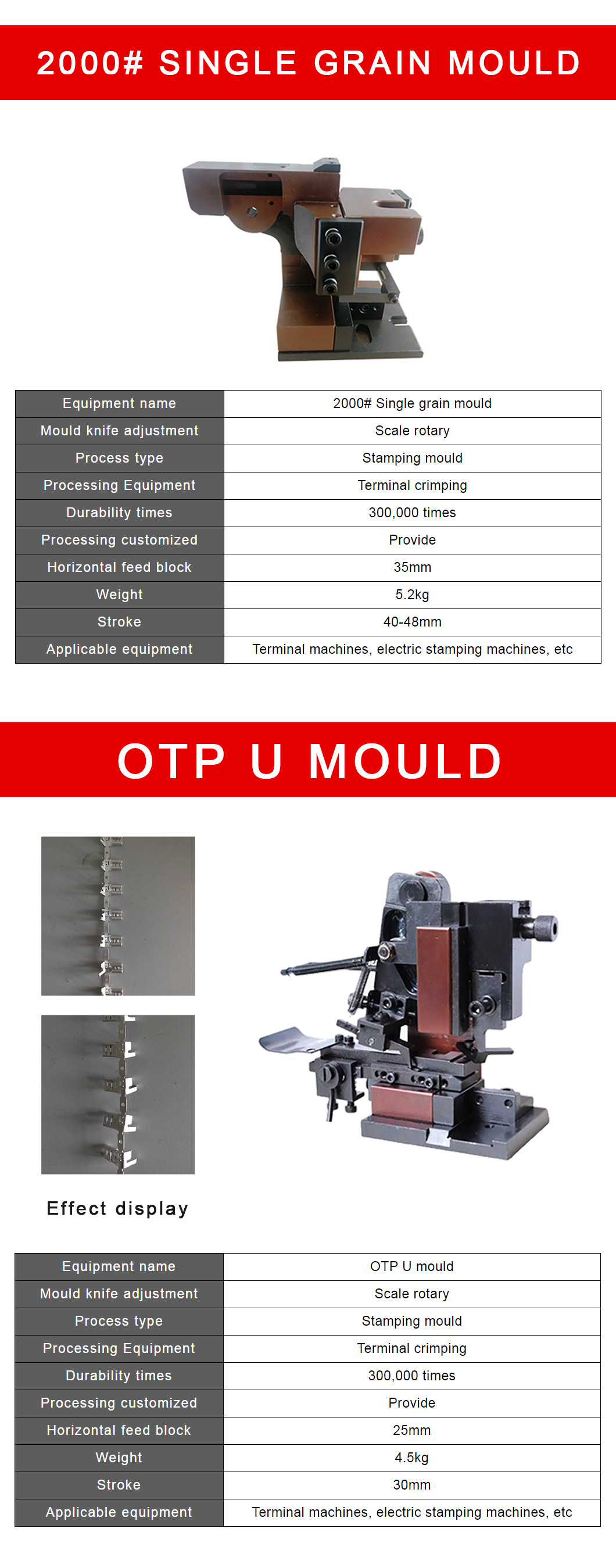

| Equipment name | 2000# Single grain mould |
| Mould knife adjustment | Scale rotary |
| Process type | Stamping mould |
| Processing Equipment | Terminal crimping |
| Durability times | 300,000 times |
| Processing customized | Provide |
| Horizontal feed block | 35mm |
| Weight | 5.2kg |
| Stroke | 40-48mm |
| Applicable equipment | Terminal machines, electric stamping machines, etc |
| Equipment name | 2000# Single grain mould |
| Mould knife adjustment | Scale rotary |
| Process type | Stamping mould |
| Processing Equipment | Terminal crimping |
| Durability times | 300,000 times |
| Processing customized | Provide . |
| Horizontal feed block | 35mm |
| Weight | 5.2kg |
| Stroke | 40-48mm |
| Applicable equipment | Terminal machines, electric stamping machines, etc |
| Equipment name | OTP U mould |
| Mould knife adjustment | Scale rotary |
| Process type | Stamping mould |
| Processing Equipment | Terminal crimping |
| Durability times | 300,000 times |
| Processing customized | Provide |
| Horizontal feed block | 25mm |
| Weight | 4.5kg |
| Stroke | 30mm |
| Applicable equipment | Terminal machines, electric stamping machines, etc |
