Overview introduction:

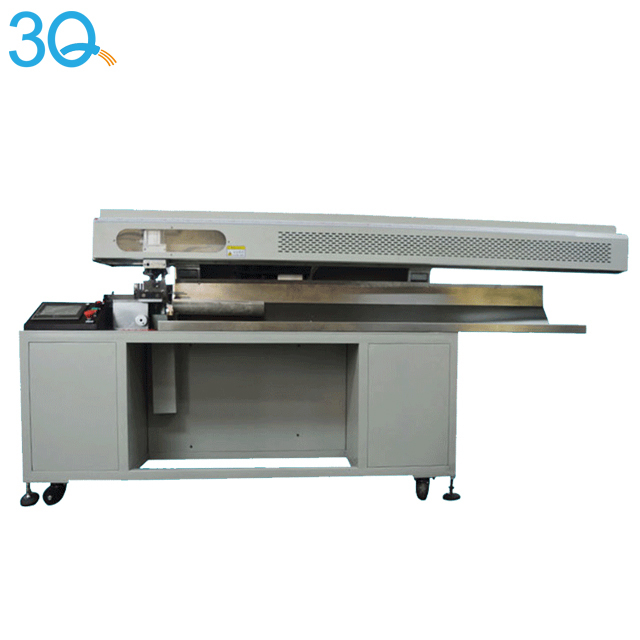

Product name: 950 high speed wire cutting machine
Features:
1. This machine is to cut wire size at high speed, automatic wire cutting machine with single-end peeling and half-stripping
2. 10 strips can be cut at one time
3. Simple replacement/save time and effect
4. High output of mechanical cutting wire
5. Wire types that can be processed, such as single stranded wire, isolated wire, flat wire, and parallel wire, all kinds of single-core computer cables, etc.
6. A variety of stripping methods: This machine is to cut the wire size at high speed and strip the two ends, automatic wire cutting machine with single end stripping and half stripping.
7. Full computer PLC control Simple operation
8. Fast production speed
9. High efficiency
10. Mass production
11. Good stability
12. Fully computer controlled PLC servo system control, stable producti-
on and easy maintenance.
13. The shell of the intelligent thermostat adopts PV flame-retardant sheII, 50-300 degrees automatic control.
14. This machine is mainly for new models developed for electronic wires, braiding, silicone wires, Teflon wires, glass fiber wires, isolation wires, coaxial wires, etc.
15. Touch screen operation, easy operation, fast production speed and high efficiency, good mass production stability
16. HD LCD display: Chinese operation, clear display, simple operation Touch screen operation
17. Crimping wheel: Missing line sensing, splitting device, Splitting device
18. High-quality holder: High-speed tungsten steel, Spiral adjustment stripping port, High-speed tool holder
19. High precision chuck: High accuracy to prevent skidding, pinched wire Splitting device
PL .C SERVO CONTROL
20. PLC servo control: PLC control system operation, stable operation performance, Microcomputer control
Data Sheet:
| Model | 3Q-XB -950 | 3Q-XB- 1200 | 3Q-XB-1500 |
| Size | W1700 X D750 X H150mm | W2300 X D780 X H165mm | W3100 X D750 X H165mm |
| Weight | 400KG | 480KG | 600KG |
| Powe r | 1.0KW | 1. 5KW | 2.2KW |
| Power supply | AC220V/380V | AC220V/380V | AC220V/380V |
| Stripping length | 3- 100mm | 3-100mm
(above 30mm must be customized) | 3-100mm
(above 30mm must be customized) |
| Cutting length | 42-99999mm | 42- 100000mm | 42-1 00000mm |
| Operation mode | Single stroke and connected action | Single stroke and connected action | Single stroke and connected action |
| Cutting wire type | 1.0~8.5 | 1.0~8.5 | 1.0~8.5 |
| Cutting capacity | AWG# 10-AWG#2 1 Flat cable 1 USB, AC,RGB 1394DC power cord, etc
|
