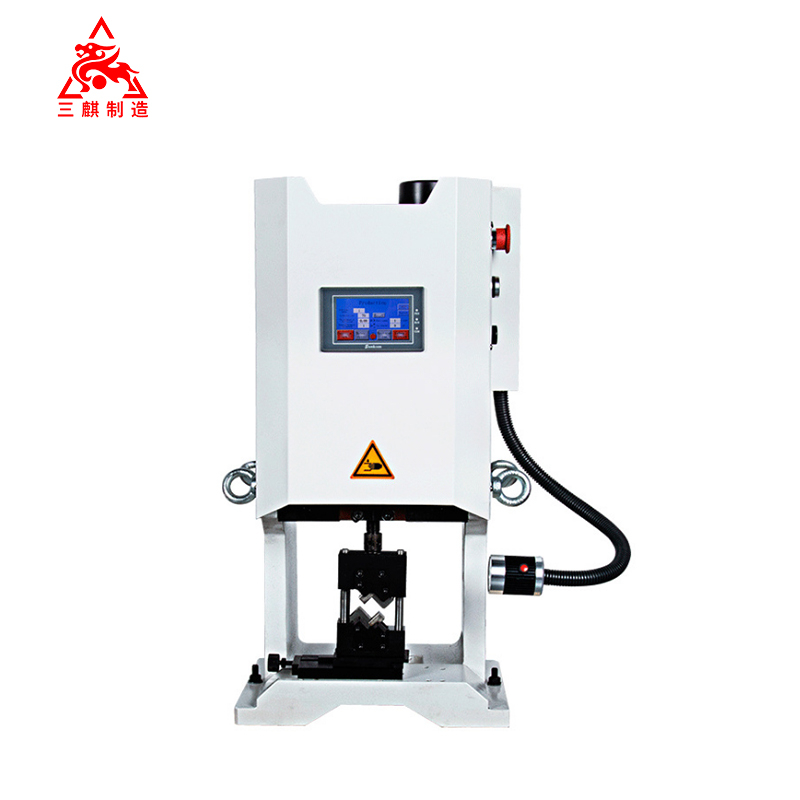

Servo Motor Drived Terminla Crimping Mchine

Overview Introduction

Servo terminal machine crimping machine

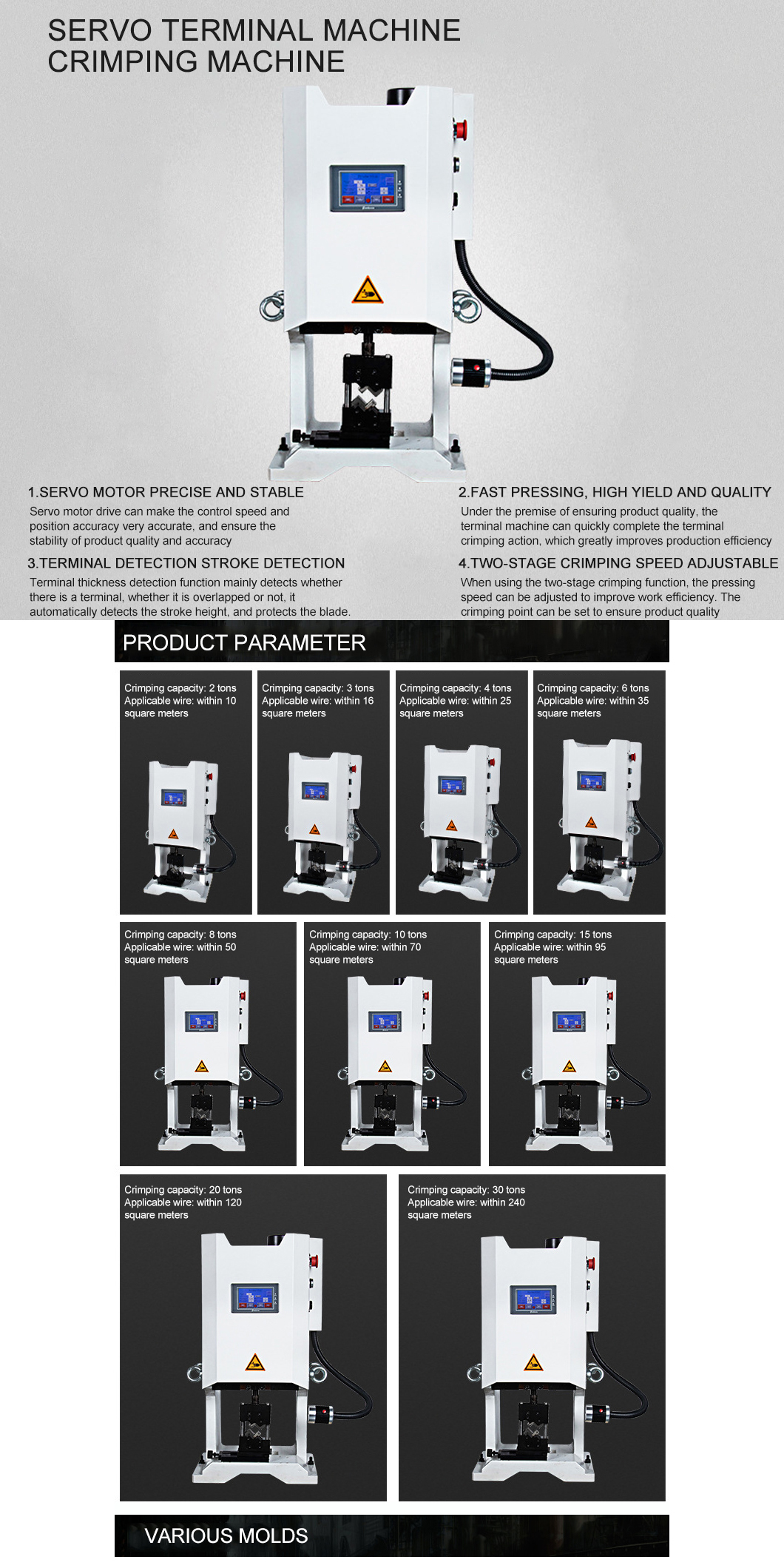

1. Servo motor precise and stable

Servo motor drive can make the control speed and position accuracy very accurate, and ensure the stability of product quality and accuracy

2. Fast pressing, high yield and quality

Under the premise of ensuring product quality, the terminal machine can quickly complete the terminal crimping action, which greatly improves production efficiency

3. Terminal detection stroke detection

Terminal thickness detection function mainly detects whether there is a terminal, whether it is overlapped or not, it automatically detects the stroke height, and protects the blade.

4. Two-stage crimping speed adjustable

When using the two-stage crimping function, the pressing speed can be adjusted to improve work efficiency. The crimping point can be set to ensure product quality

Product parameter

Crimping capacity: 2 tons

Applicable wire: within 10 square meters

Crimping capacity: 3 tons

Applicable wire: within 16 square meters

Crimping capacity: 4 tons

Applicable wire: within 25 square meters

Crimping capacity: 6 tons

Applicable wire: within 35 square meters

Crimping capacity: 8 tons

Applicable wire: within 50 square meters

Crimping capacity: 10 tons

Applicable wire: within 70 square meters

Crimping capacity: 15 tons

Applicable wire: within 95 square meters

Crimping capacity: 20 tons

Applicable wire: within 120 square meters

Crimping capacity: 30 tons

Applicable wire: within 240 square meters

Application

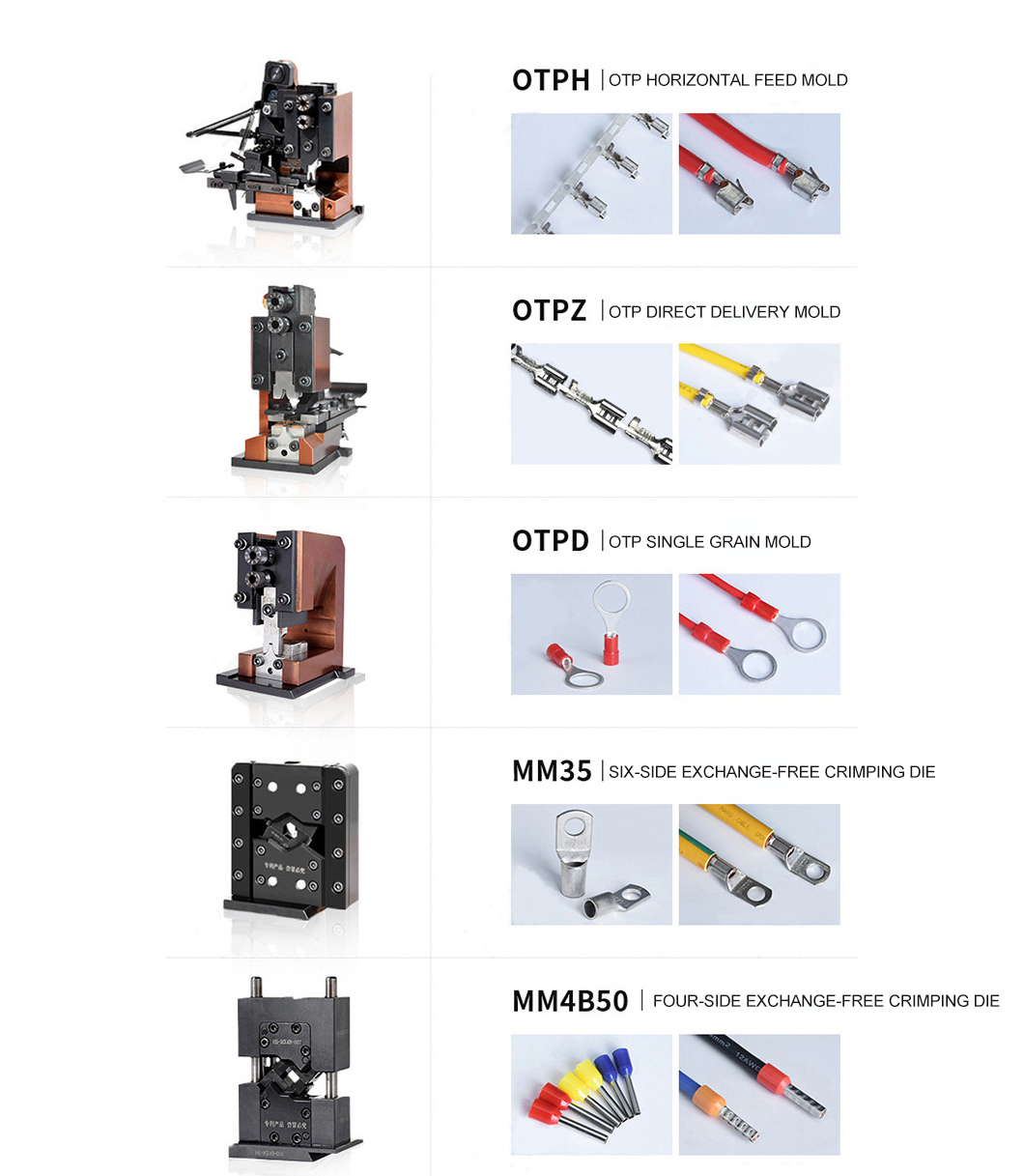

OTPH | OTP HORIZONTAL FEED MOLD

OTPZ | OTP DIRECT DELIVERY MOLD

OTPD | OTP SINGLE GRAIN MOLD

MM35 | SIX-SIDE EXCHANGE-FREE CRIMPING DIE

MM4B50| FOUR-SIDE EXCHANGE-FREE CRIMPING DIE

Product Details

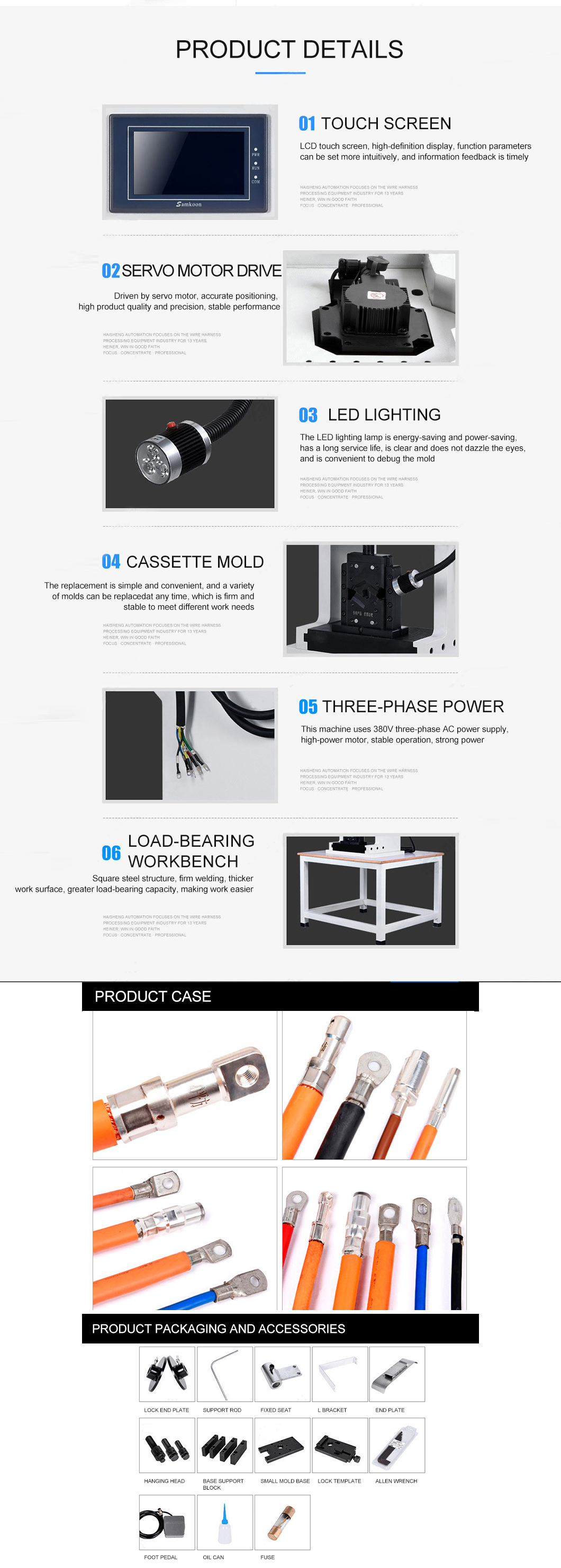

1: TOUCH SCREEN: LCD touch screen, high-definition display, function parameters, can be set more intuitively, and information feedback is timely

2: SERVO MOTOR DRIVE: Driven by servo motor, accurate positioning, high product quality and precision, stable performance

3: LED LIGHTING: The LED lighting lamp is energy-saving and power saving, has a long service life, is clear and does not dazzle the eyes, and is convenient to debug the mold

4: CASSETTE MOLD: The replacement is simple and convenient, and a variety of molds can be replaced at any time, which is firm and stable to meet different work needs

5: THREE-PHASE POWER: This machine uses 380V three -phase AC power supply, high-power motor, stable operation, strong power

5. LOAD-BEARING WORKBENCH: Square steel structure, firm welding, thicker work surface, greater load-bearing capacity, making work easier

Product packing and accessories

1. Lock end plate

2. Support rod

3. Fixed seat

4. L Bracket

5. END PLATE

6. End Plate

7. Hanging head

8. Base support

9. Small mold base

10. LOCK TEMPLATE

11. Lock template

12. Allen wrench

13. Block

14. Foot pedal

15. Oil can

16. Fuse
