    Semi-automatic Pneumatic Touch Screen Soldering Machine

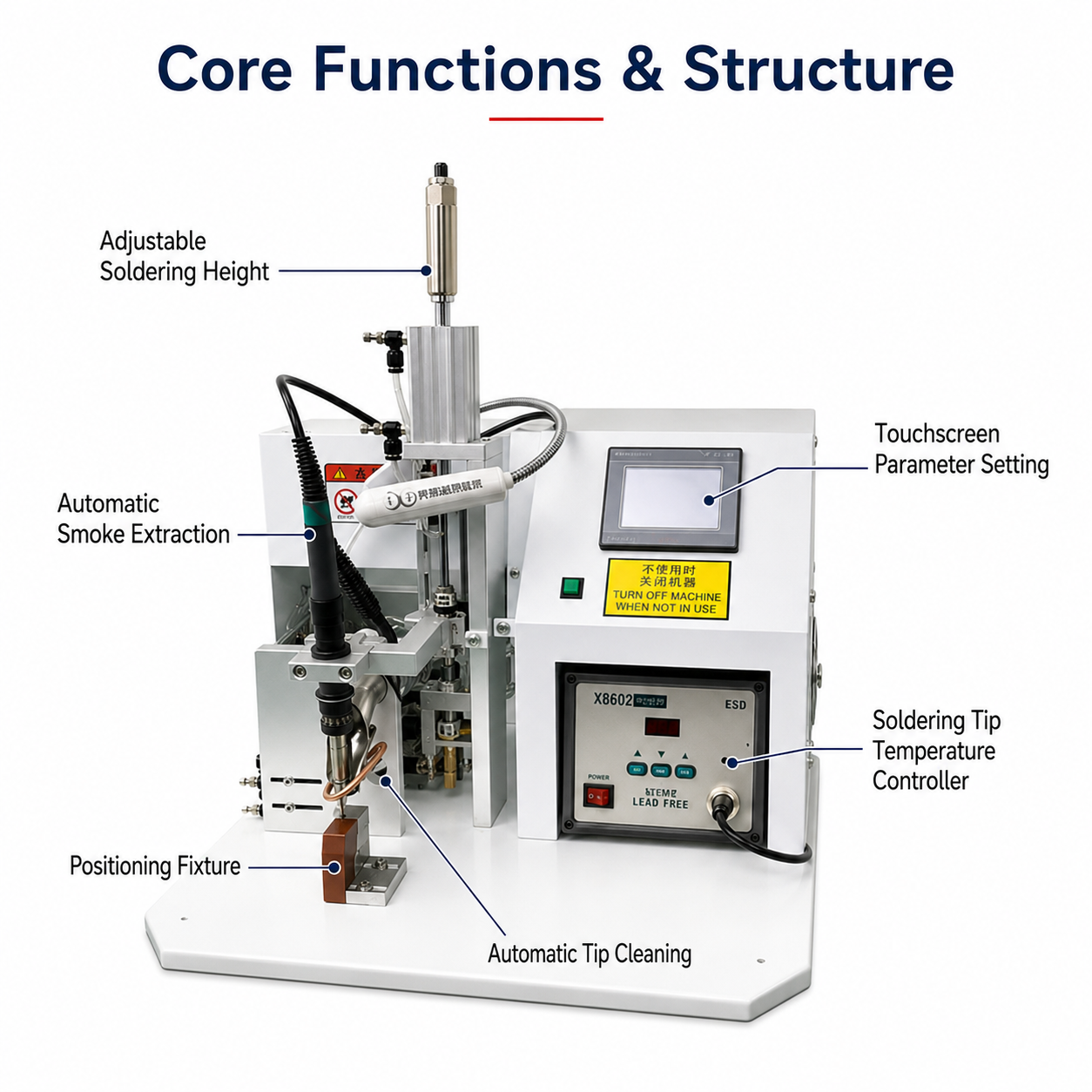

    • Stable Pneumatic Direct Soldering: Engineered with a robust pneumatic drive system (4-6kg) to deliver consistent and powerful welding pressure. Significantly improves the quality of solder joints on automotive connectors and PCB terminals.
    • Intelligent PLC Touchscreen Control: Features a user-friendly color LCD interface for precise digital settings of all soldering parameters. Allows operators to save multiple programs, reducing downtime when switching between different cable assemblies.
    • Automatic Precision Solder Feeding: Equipped with a high-precision motorized feeding mechanism. Automatically delivers the exact amount of solder wire needed for each joint, eliminating material waste and ensuring professional-grade results.
    • Fast-Heating Ceramic Technology: Utilizes a high-power 150W ceramic heating core for rapid warm-up and stable temperature control. Prevents component damage from heat fluctuations during high-volume industrial production cycles.

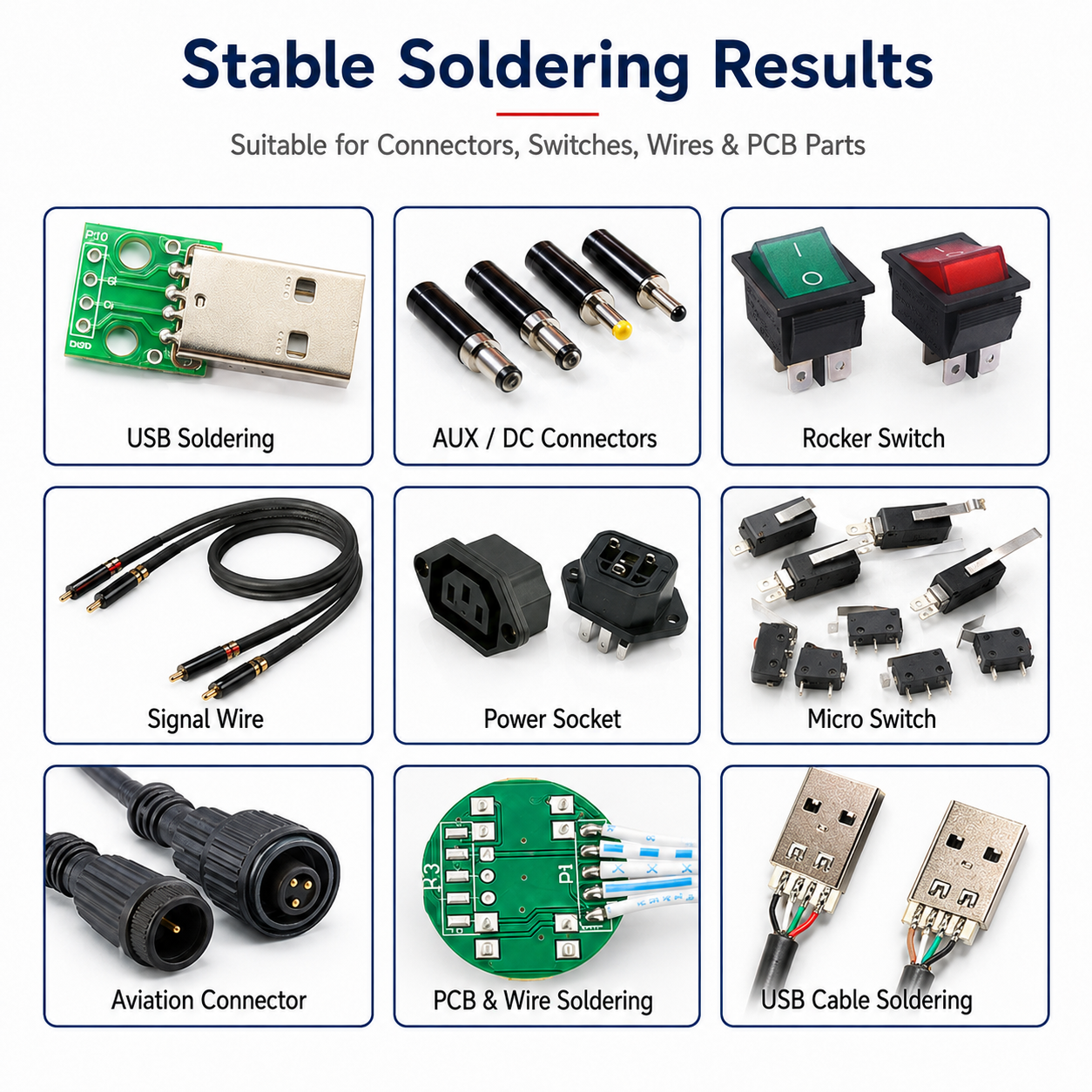

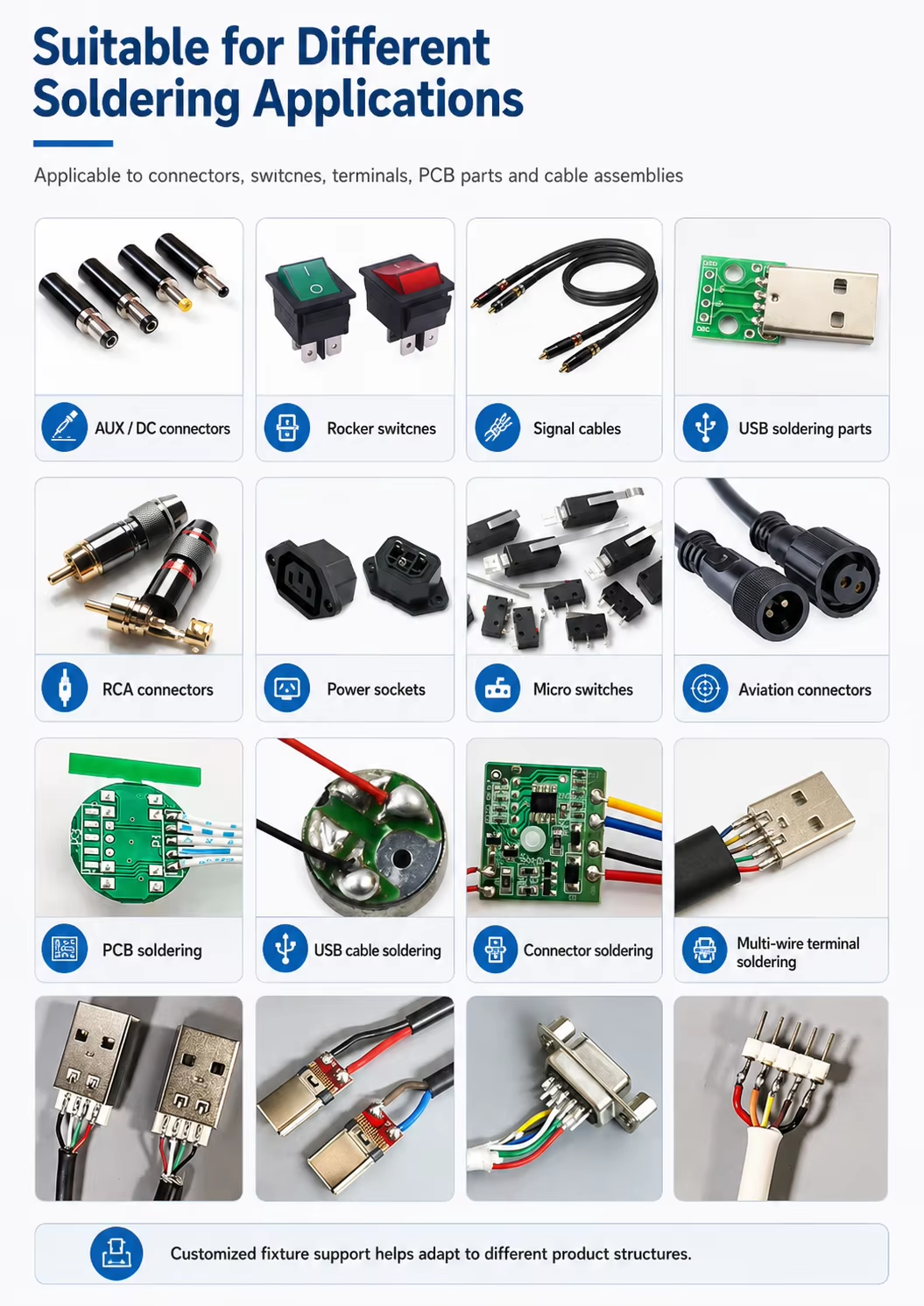

    • Versatile Application & Custom Fixtures: The SQ-XRS02 is highly adaptable for USB assembly, switches, and complex electronic components. We offer professional customized fixture services to match your specific production requirements perfectly.
    Availability:
    Quantity:
    Inquire Add to Basket

    • SQ-XRS02

    • 3Q

    详情 (5).png

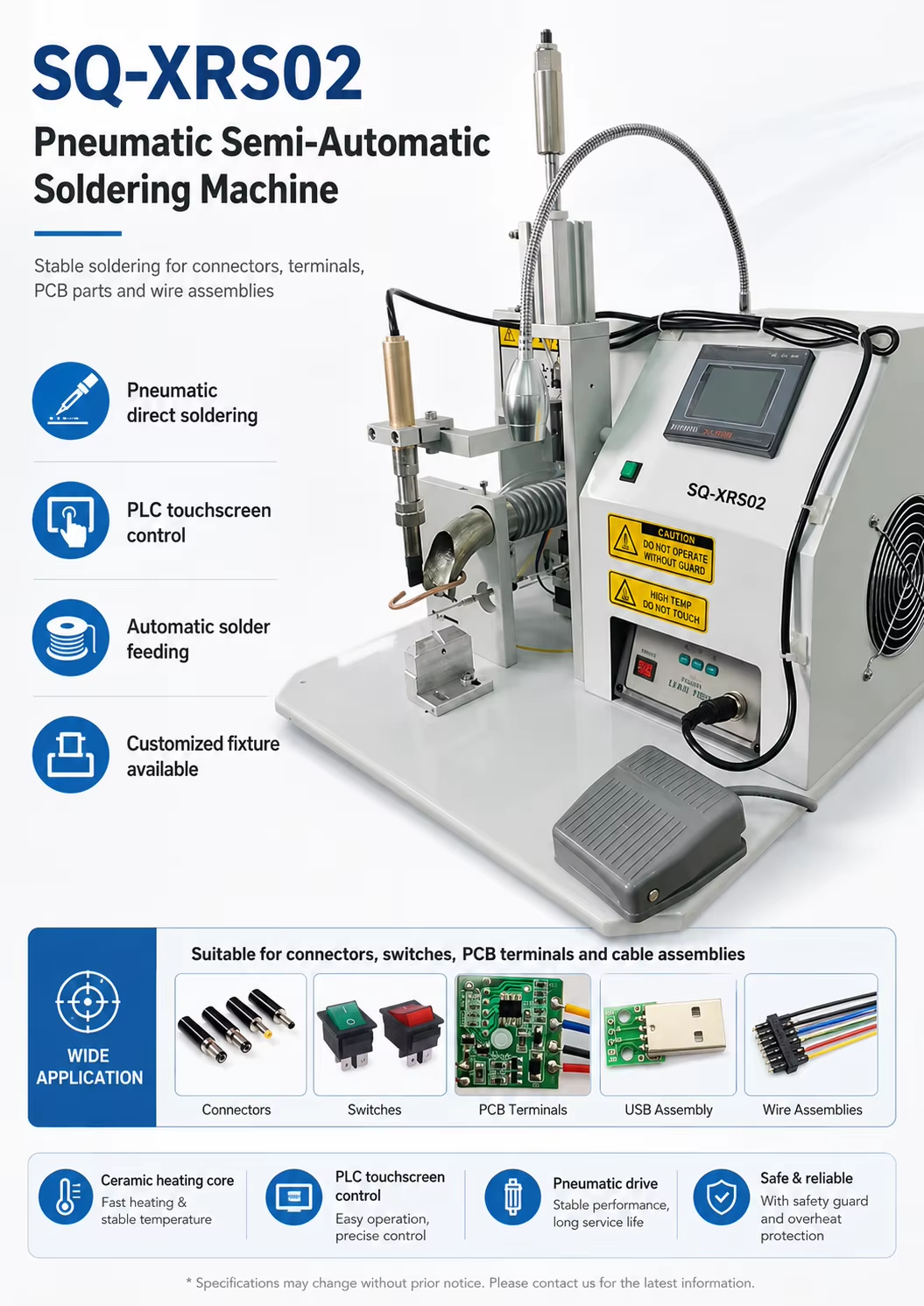

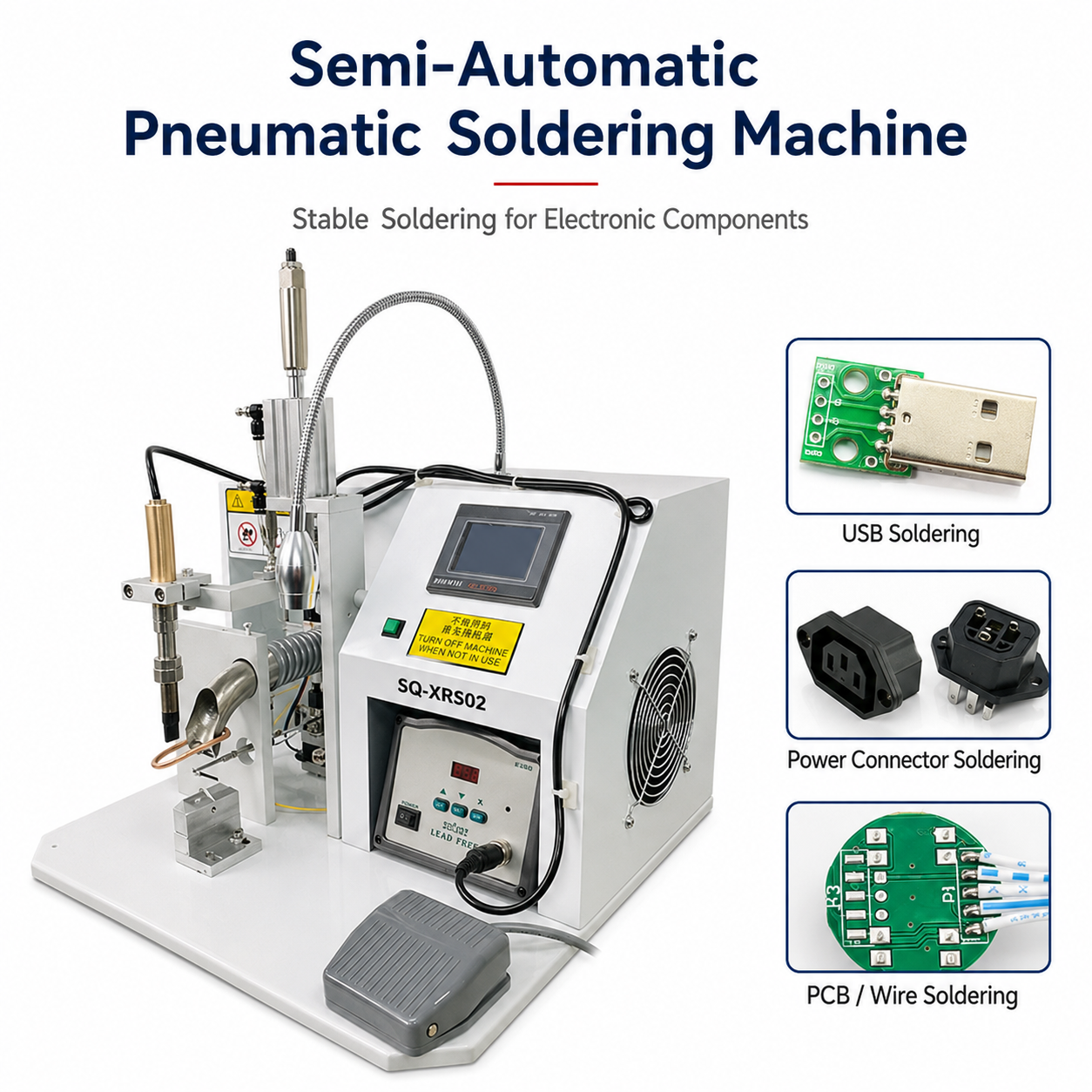

    MODEL: SQ-XRS02 PNEUMATIC SEMI-AUTOMATIC SOLDERING STATION

    详情 (2).png

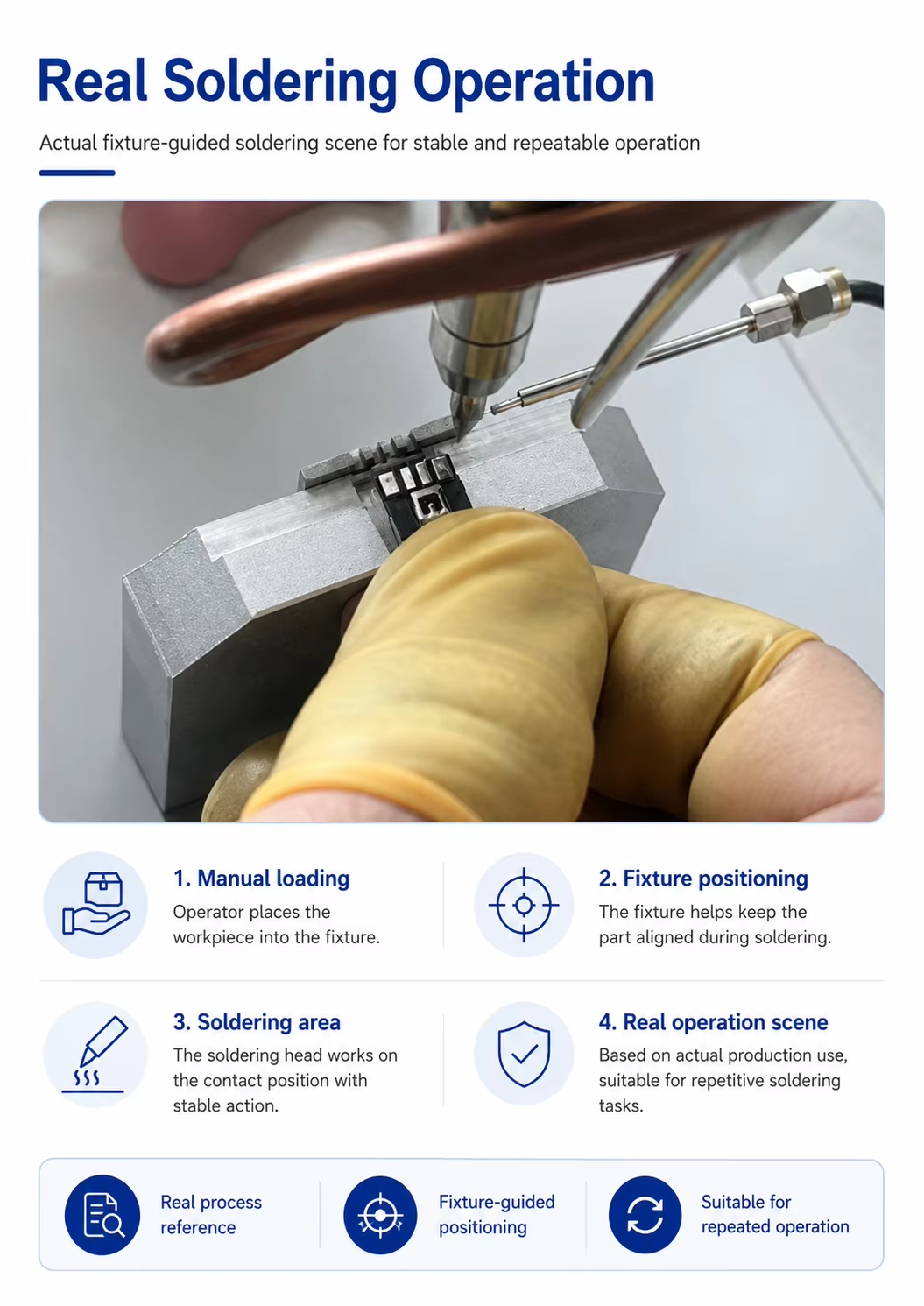

    STABLE PNEUMATIC WELDING FOR INDUSTRIAL QUALITY:

    详情 (7).png

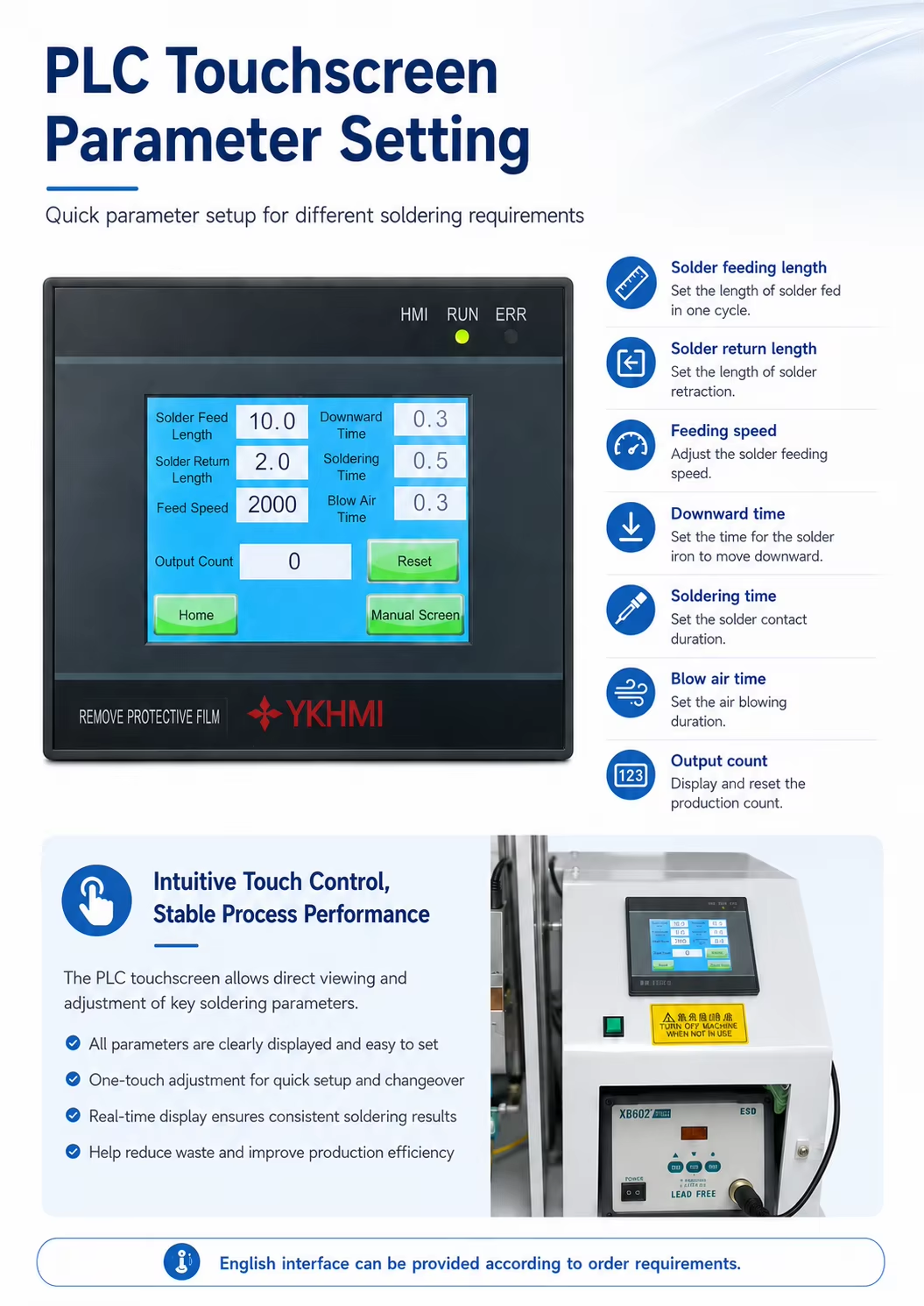

    Smart PLC Interface: The color touchscreen allows for rapid digital adjustment of solder feeding speed and dwell time, ensuring 100% uniformity in batch production.

    详情 (1).png

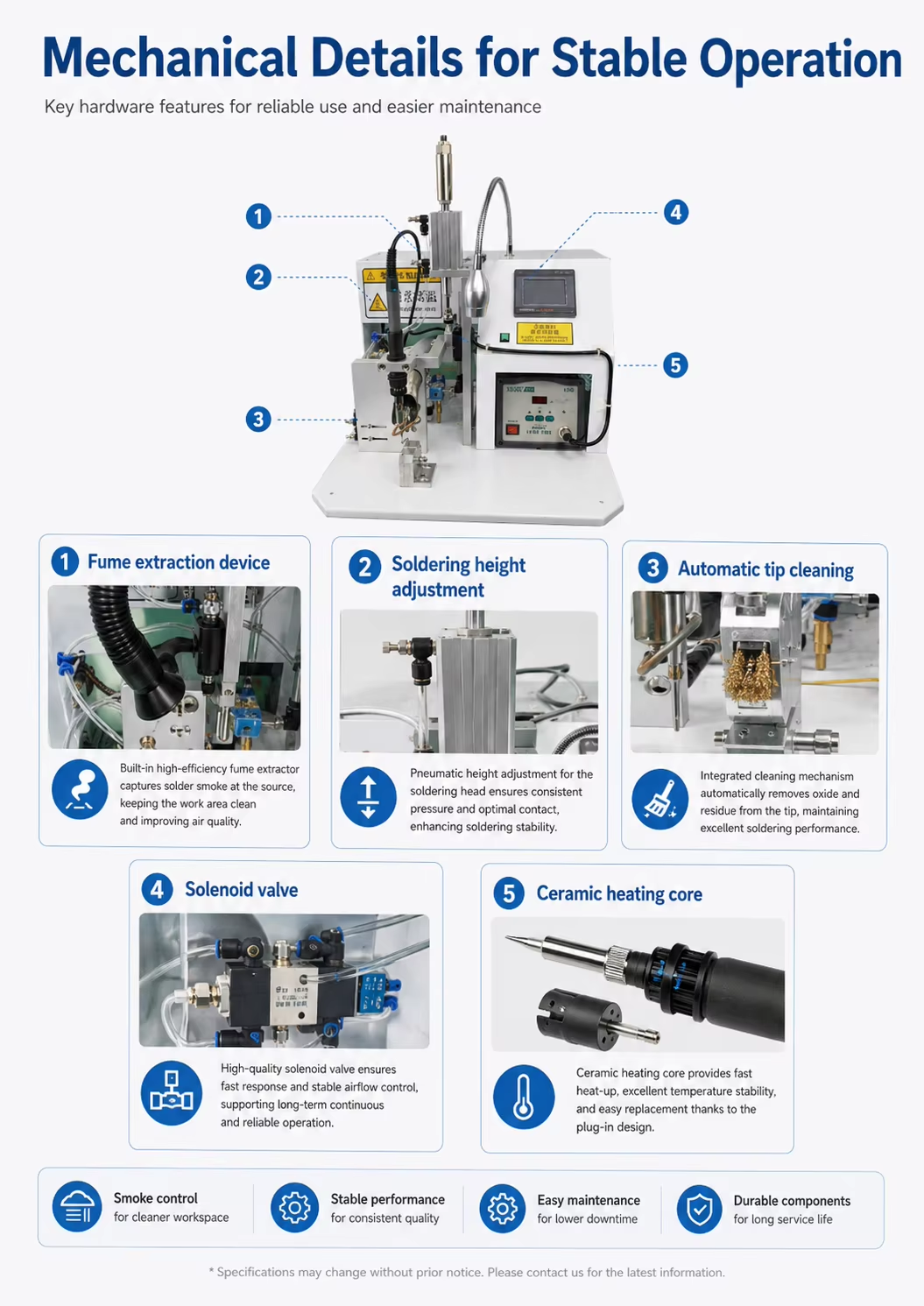

    Pneumatic Precision: Features a stable pneumatic drive system (4-6kg) for consistent soldering pressure. Ideal for high-standard PCB terminals and connectors on pads as small as 0.8 sq mm.

    详情 (6).png

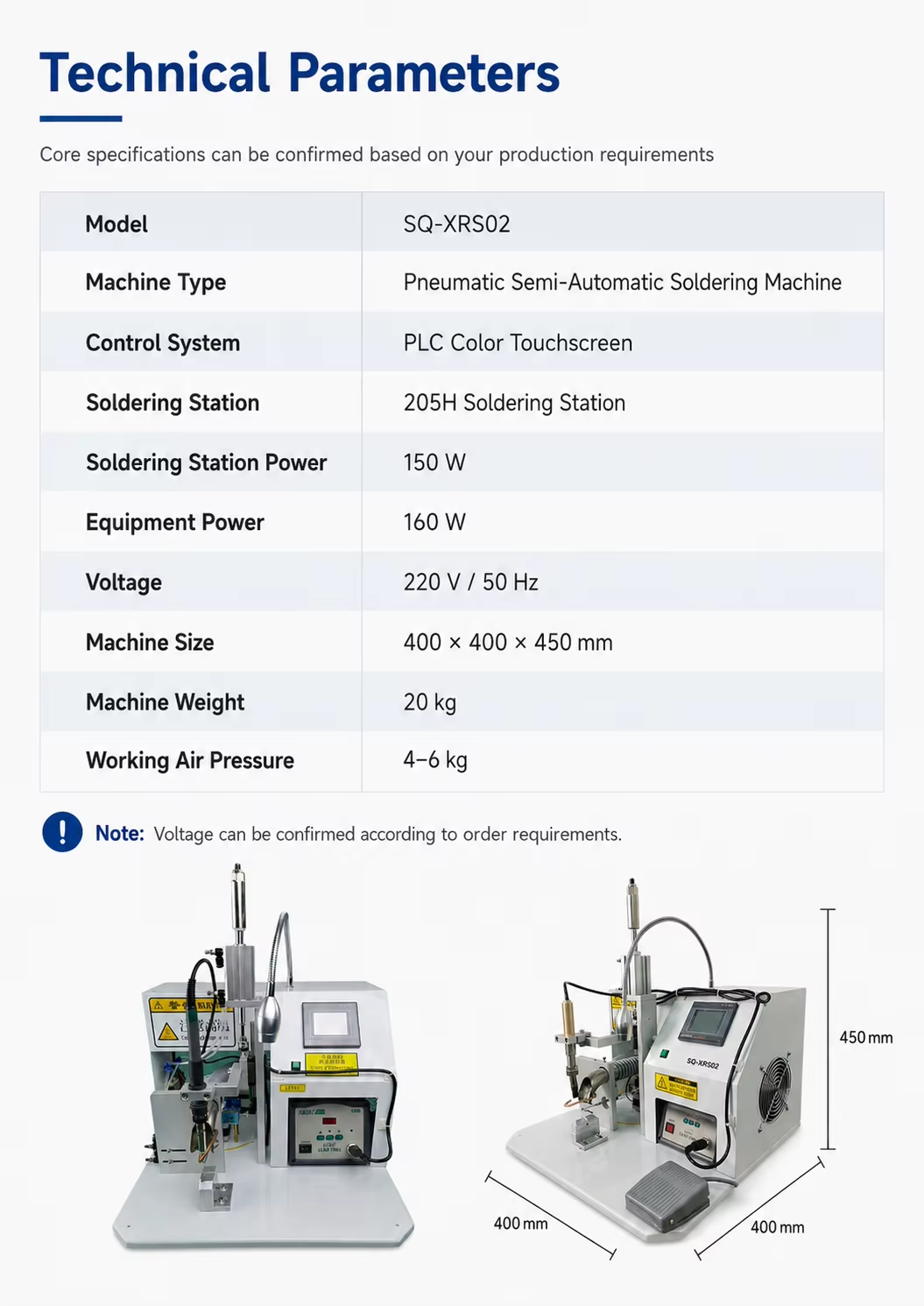

    Rapid Ceramic Heating: Equipped with a 150W ceramic heating core for ultra-fast temperature recovery, maintaining a stable thermal curve during continuous operation.

    详情 (3).png

    SUPPORT:

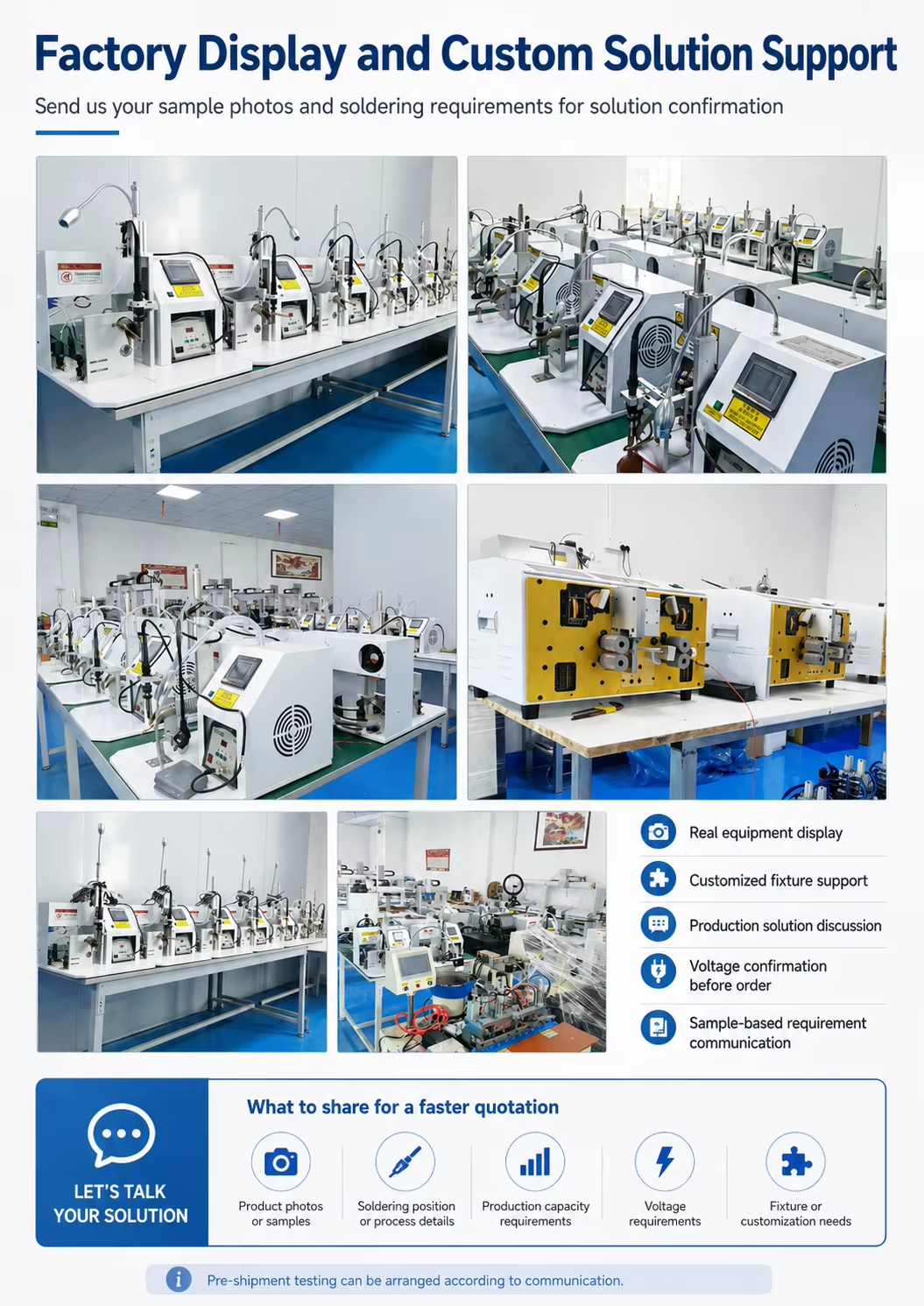

    1-Year Warranty | Customized Fixture Design | Contact us for a FREE soldering test video for your PCB!

    详情 (4).png
