3Q machine
Product overview

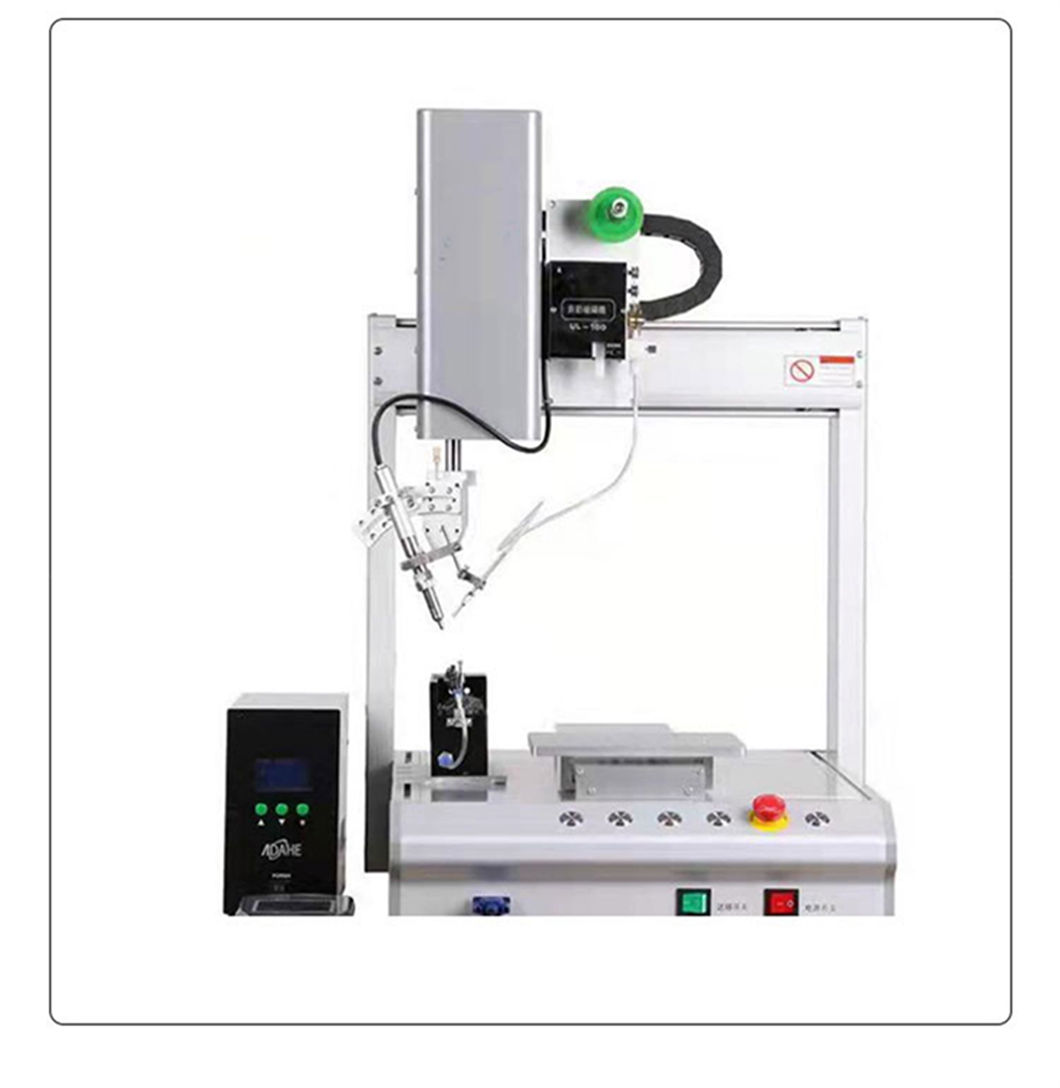

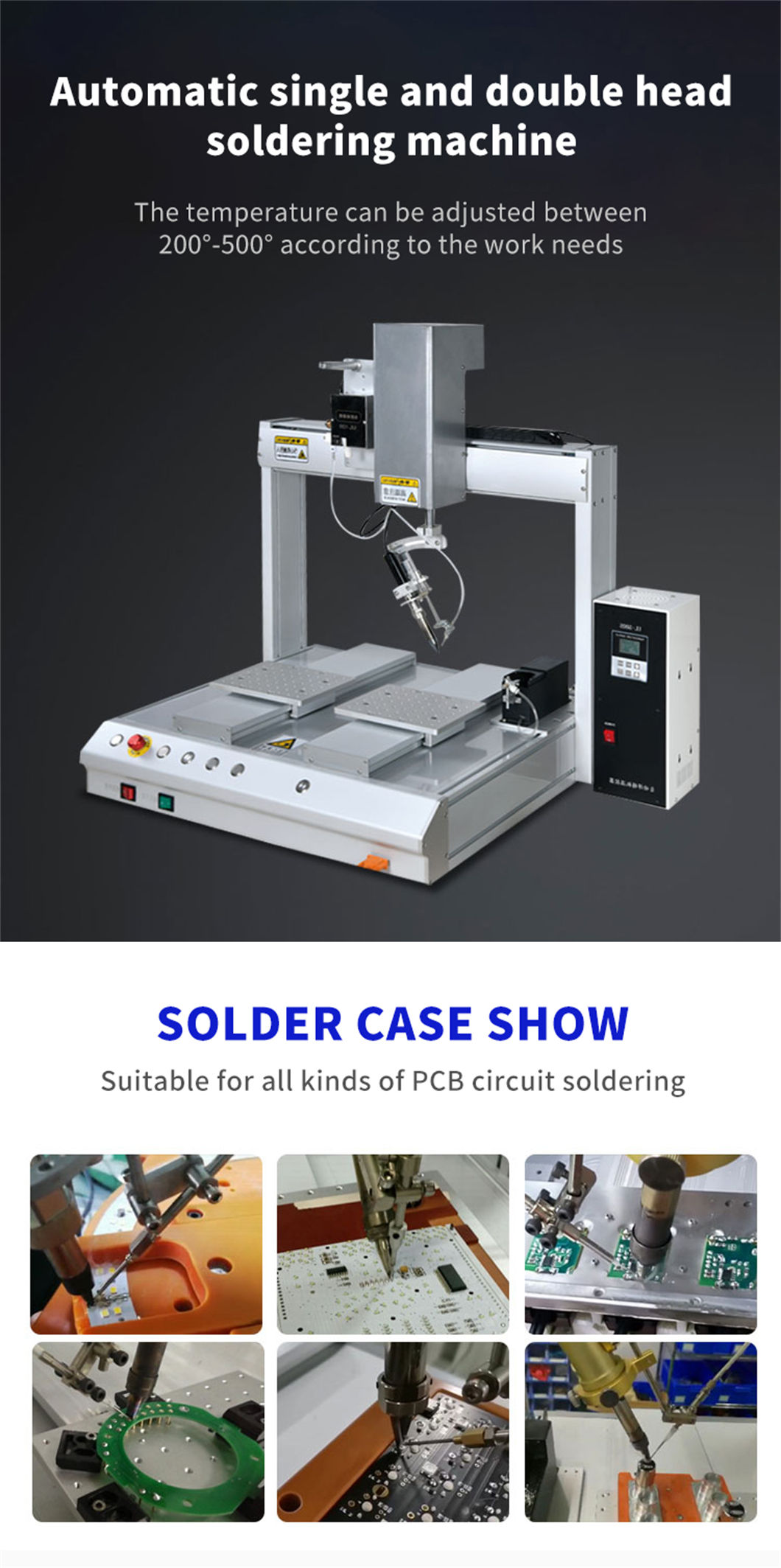

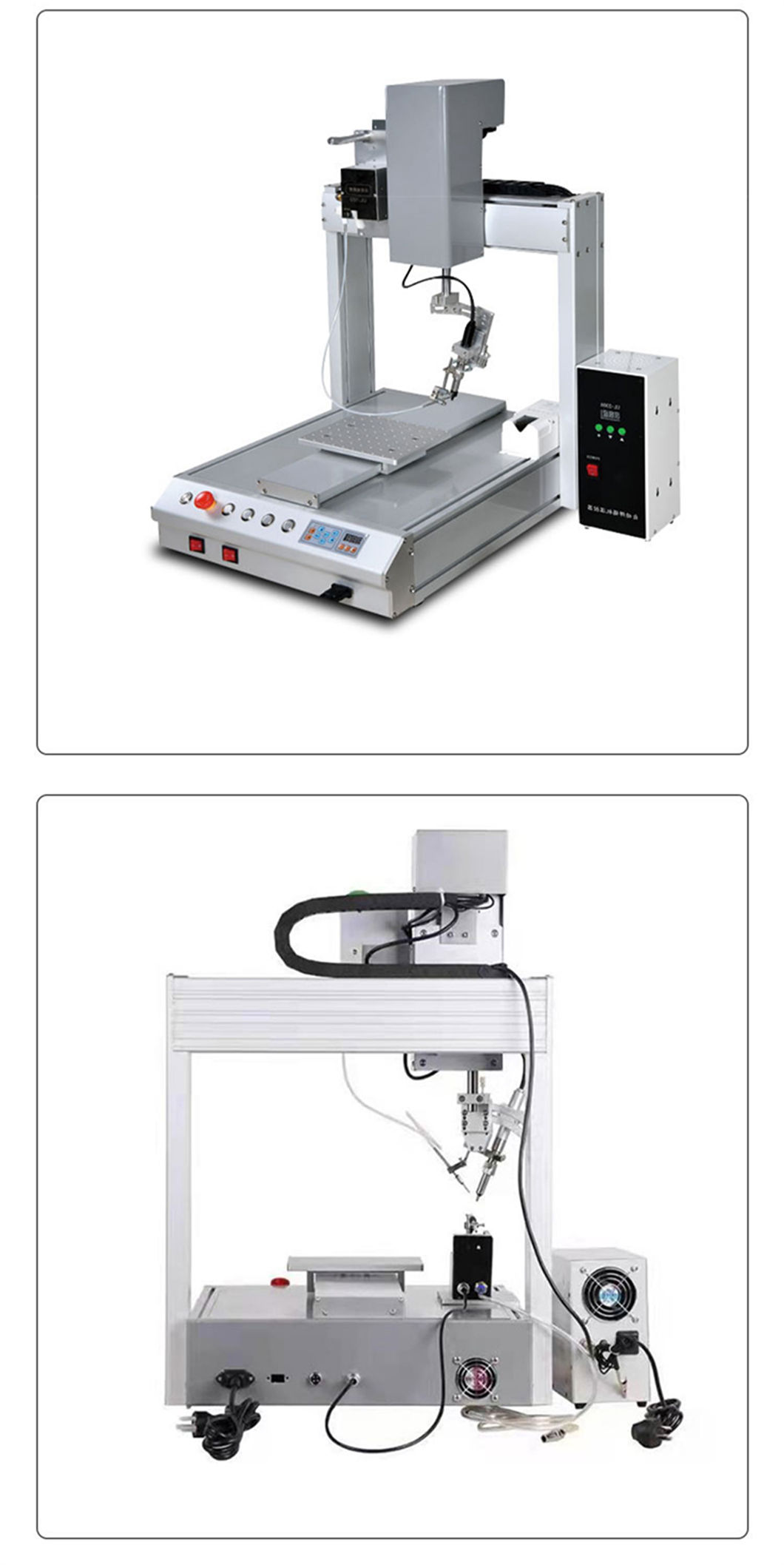

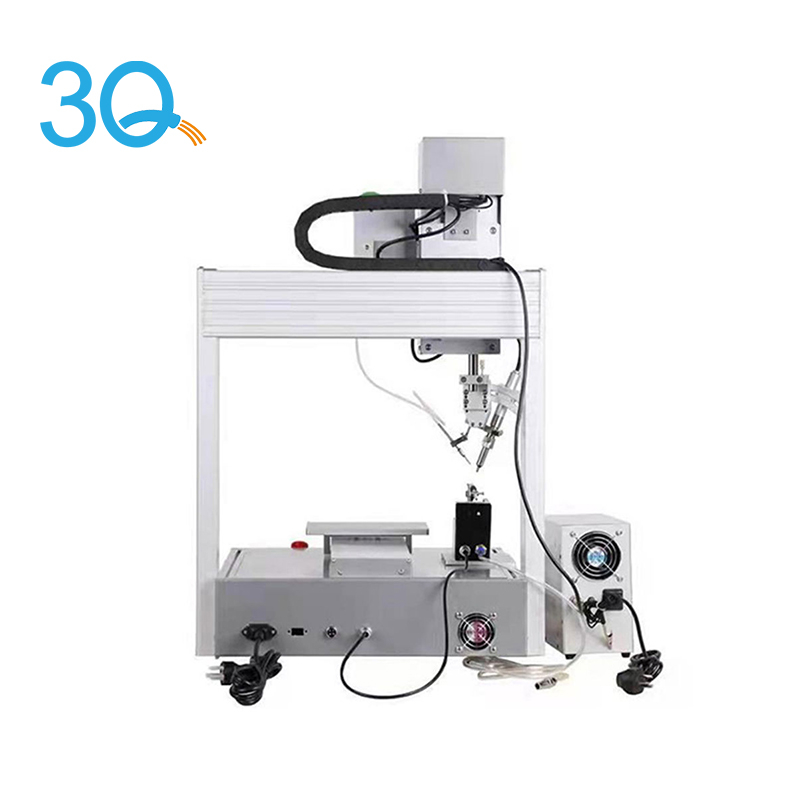

Product name: Automatic single and double head soldering machine
Feature:
1. The temperature can be adjusted between 200°-500°according to the work needs.
2. Suitable for all kinds of PCB circuit soldering

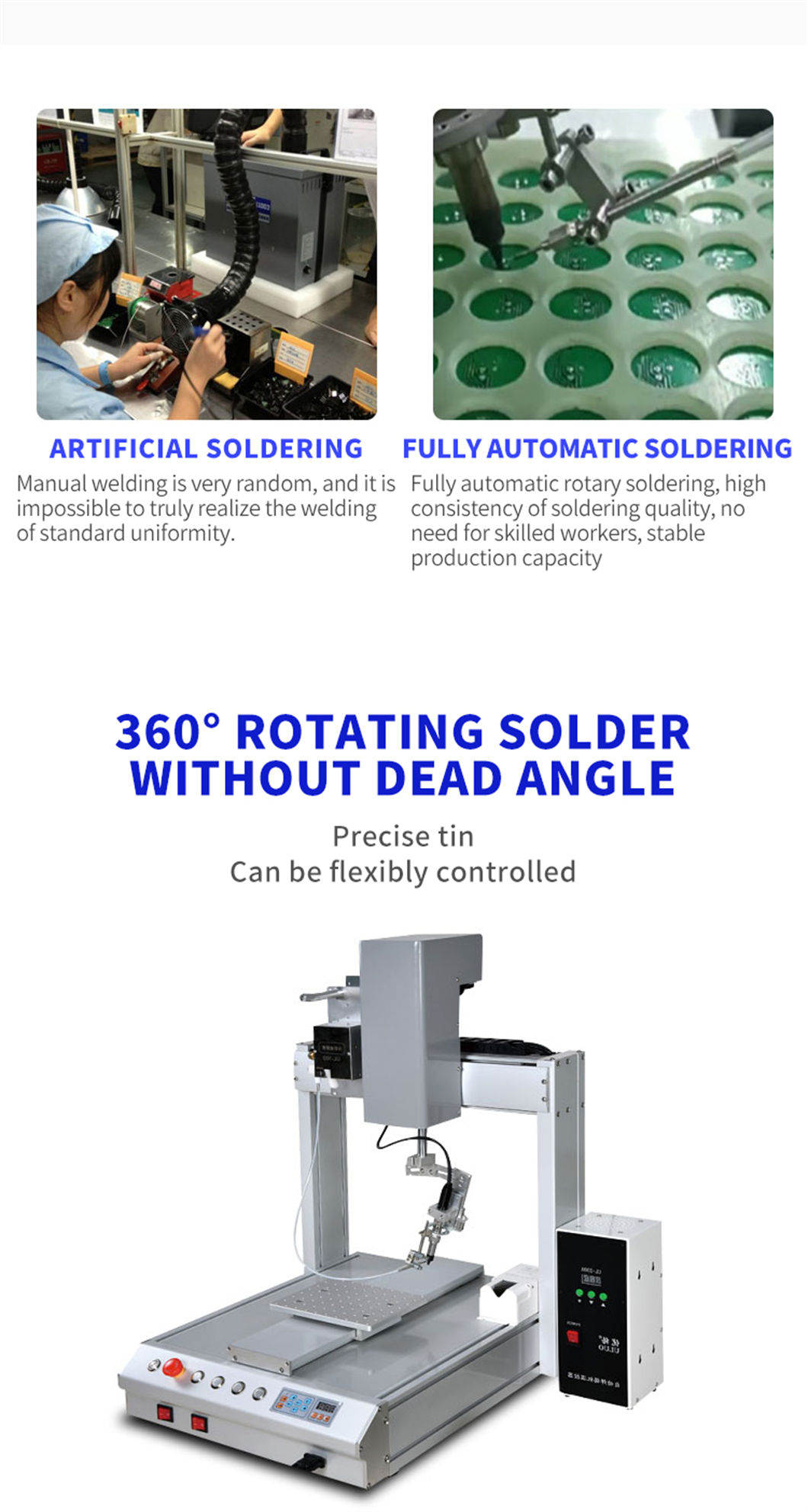

3. Manual welding is very random, and it is impossible to truly realize the welding of standard uniformity.
4. Fully automatic rotary soldering, high consistency of soldering quality, no need for skilled workers, stable production capacity
5. Precise tin can be flexibly controlled

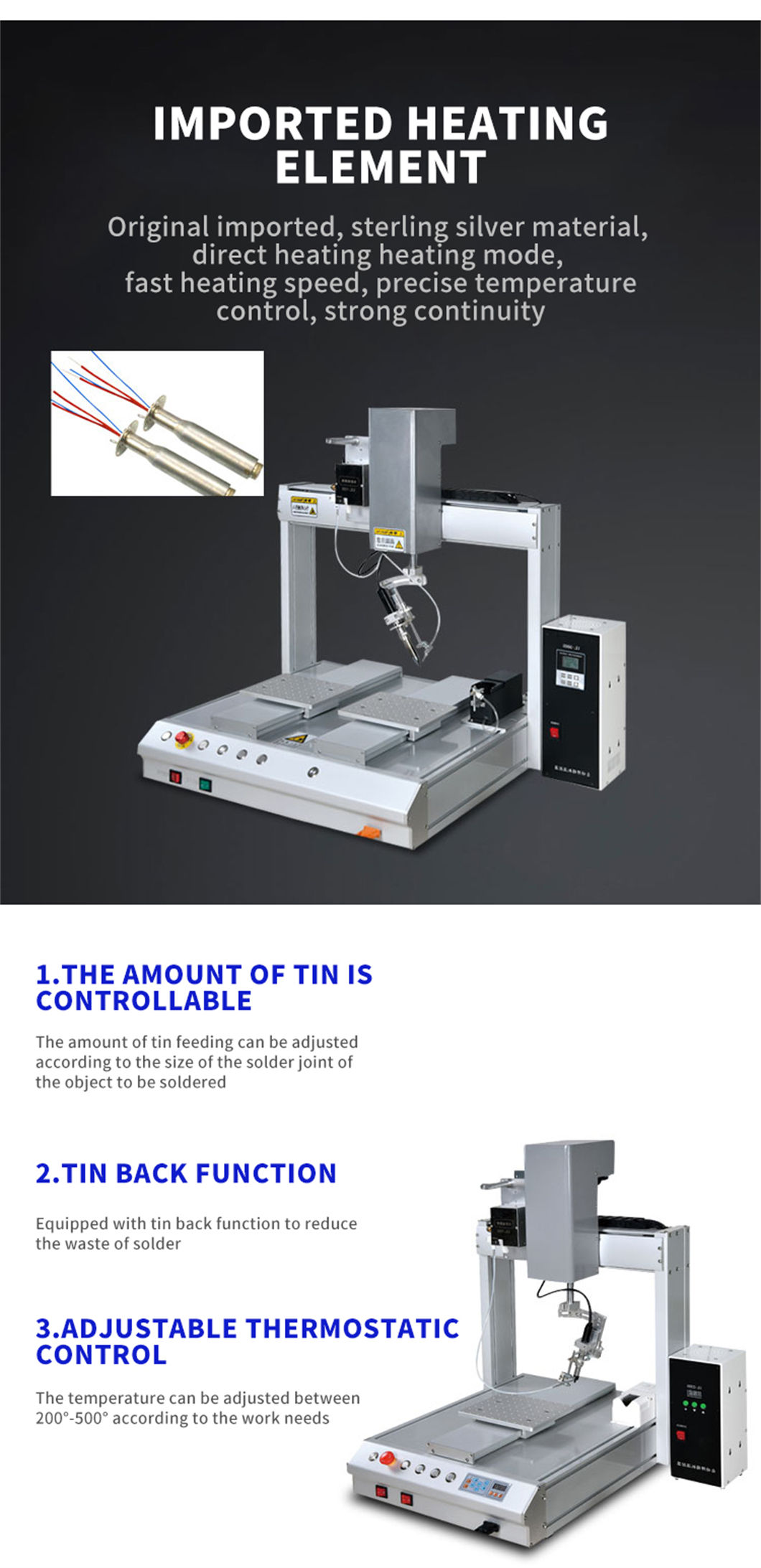

6. Original imported, sterling silver material, direct heating heating mode, fast heating speed, precise temperature control, strong continuity
Advantage:
1. The amount of tin is controllable
Original imported, sterling silver material, direct heating heating mode, fast heating speed, precise temperature control, strong continuity
2. Tin back function
Equipped with tin back function to reduce the waste of solder.
3. Adjustable thermostatic control
The temperature can be adjusted between 200*-500° according to the work needs
Detail:
1. Power supply
Stable voltage output, high efficiency, strong anti-interference
2. Guide
Small friction resistance, high precision, low noise, and smoother walking

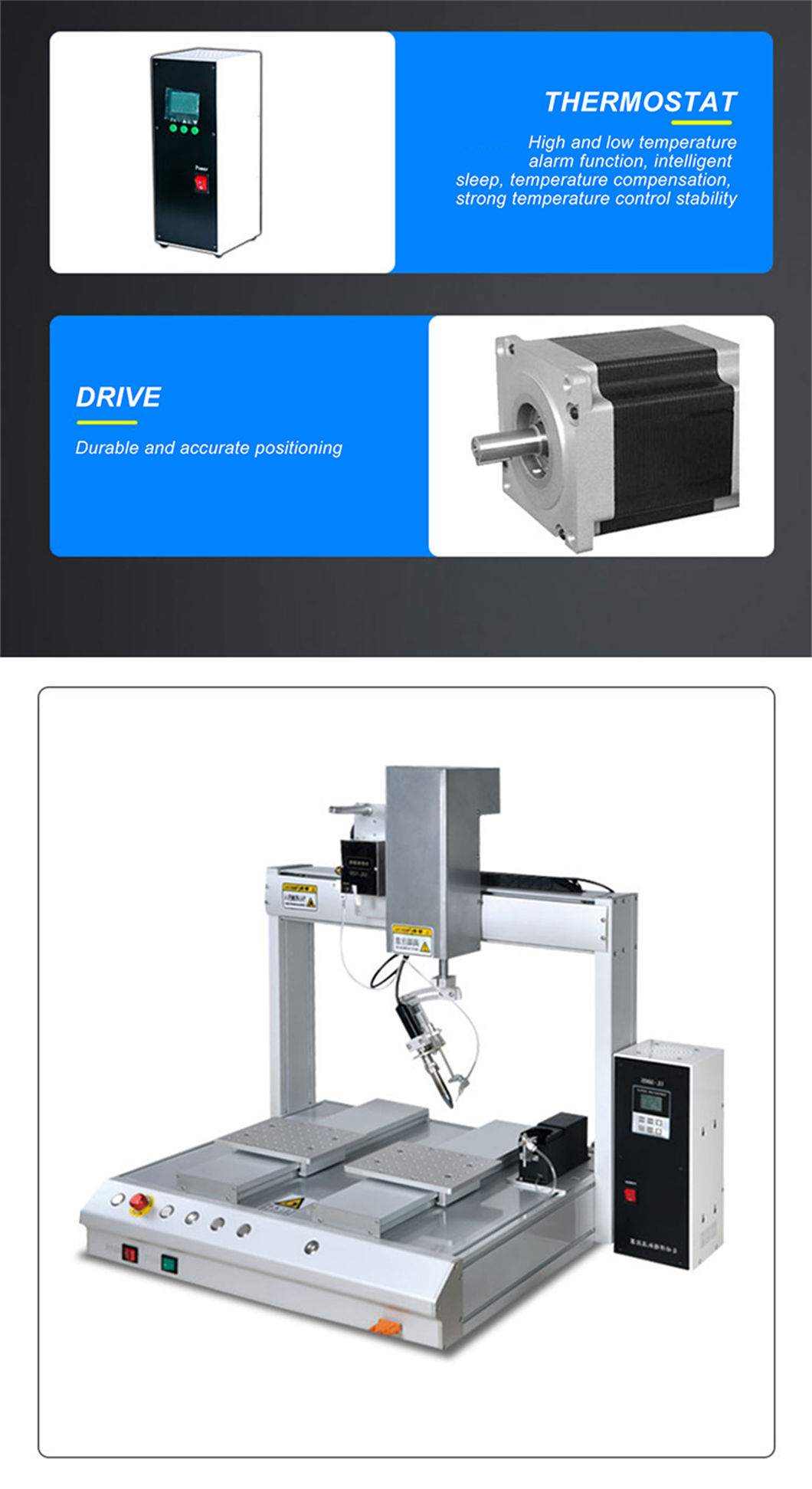

3. Thermostat
High and low temperature alarm function, intelligent sleep, temperature compensation,strong temperature control stability
4. Drive
Durable and accurate positioning

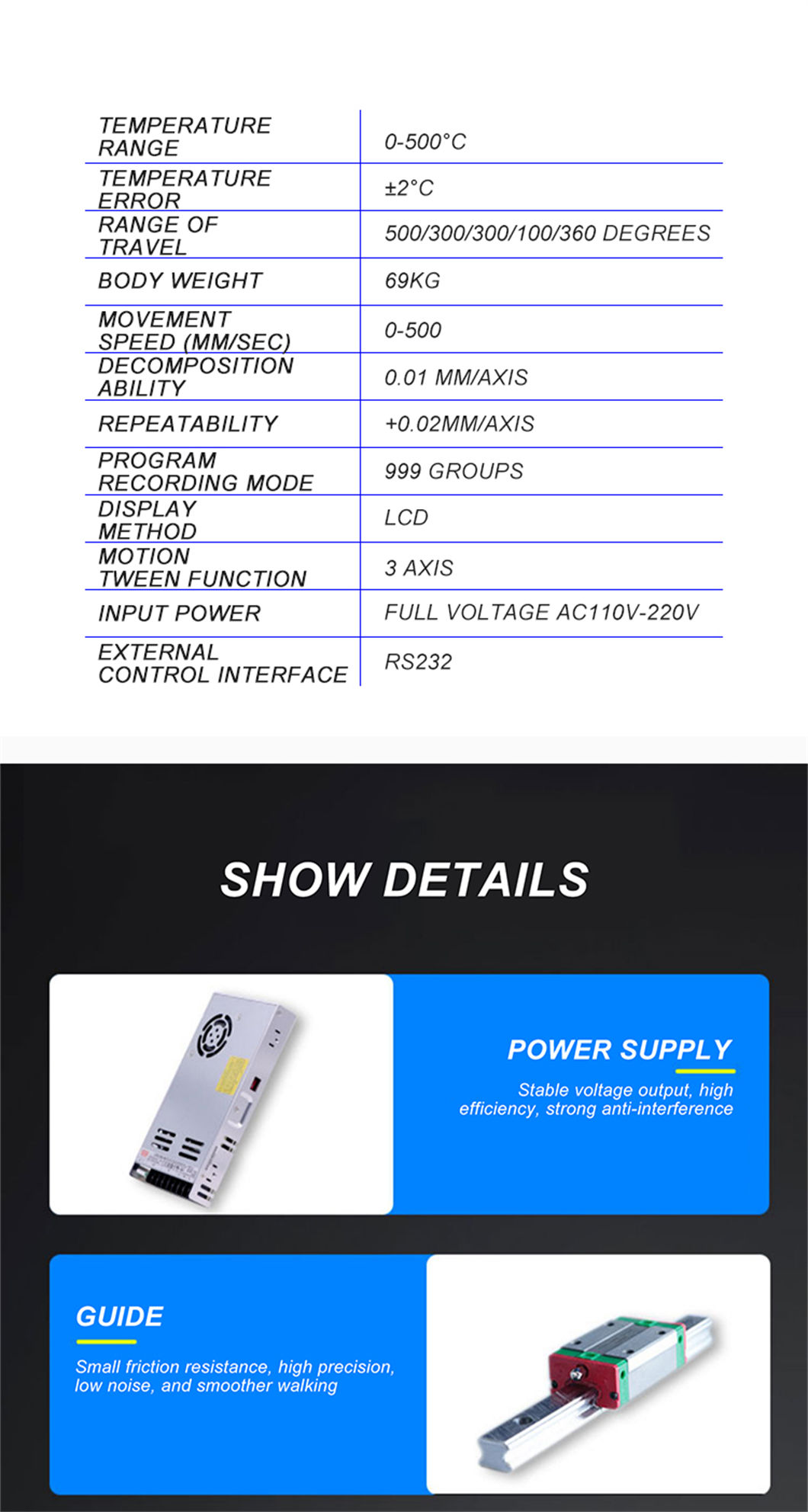

Date Sheet:
Temperature range | 0-500°C |
Temperature error | +2°C |
Range of travel | 500/300/300/100/360 DEGREES |
Body weight | 69KG |
Movement speed(MM/SEC | 0-500 |
Decomposition ability | 0.01 MM/AXIS |
Repeatability | +0.02MM/AXIS |
Program recording mode | 999 GROUPS |
Display method | LCD |
Motion tween funiction | 3 AXIS |
Input power | FULL VOLTAGE AC1 10V-220V |
External control interface | RS232 |
