3Q machine

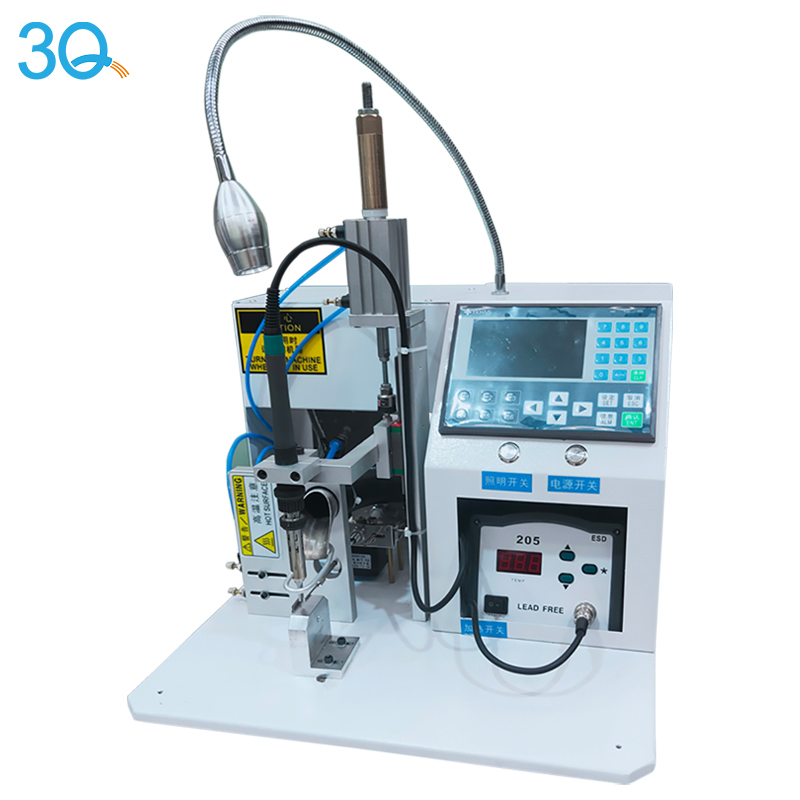

Intelligent Semi-automatic Soldering Machine
Intelligent Semi-automatic Soldering Machine
Overview introduction:
Product name: Semi-automatic Intelligent soldering machine
Features:
1. Full solder joints
2. Uniform tin velocity
3. Stable performance
4.High efficiency soldering
5. Heat up fast
6. High efficiency
7. Labor saving
8.Automatic smoke exhaust: Automatic smoke exhaust function, workers will not smoke eyes when working
9.Panel control: Simplicity of operator
Function introduction:
1. Temperature controlled: Temperature can be adjusted according to work requirements.
2. Automatically return tin: Tin back function can reduce the waste of tin.
3. Controllable tin output speed: Adjust the tin-out speed as required, easy to operate
4. Tin output is controllable: The amount of tin can be adjusted according to the size of the solder joint.
Application:
This product is widely used in electronic components switch motor, USB connector，PCB board，lamp board，transistor, NTC Connector , wire enameled wire and other soldering operations.
Data Sheet:
| Model | 1 |
| Name | Manual type usb cable soldering machine |
| Function | USB, MINI5PIN, MICRO5PIN auto tin welding |
| Power supply | Single phase AC 220V 10A 50Hz |
| Type | Manual type |
| Control mode | constant temperature |
| Voltage | 220V |
| Applicable cables | 28*1P+28*2C, 28*1P+24*2C |
| 28*1P+26*2C, 28*1P+22*2C | |
| 28*1P+20*2C | |
| Working pressure | 0.5Mpa |
| Measurement | 40*40*30(mm) |
| Gross Weight | about 30kg |
