Automatic Wire Soldering Machine
Home » Products » Soldering Machine » Automatic Wire Soldering Machine

Automatic Wire Soldering Machine

Availability:
Quantity:
  • 3Q machine

详情_01详情_02详情_03详情_04详情_05详情_06

工厂展示_01工厂展示_02工厂展示_03独立站证书

WIRE STRIPPING MACHINE

Overview introduction:

Product name:USB automatic soldering machine


Features:

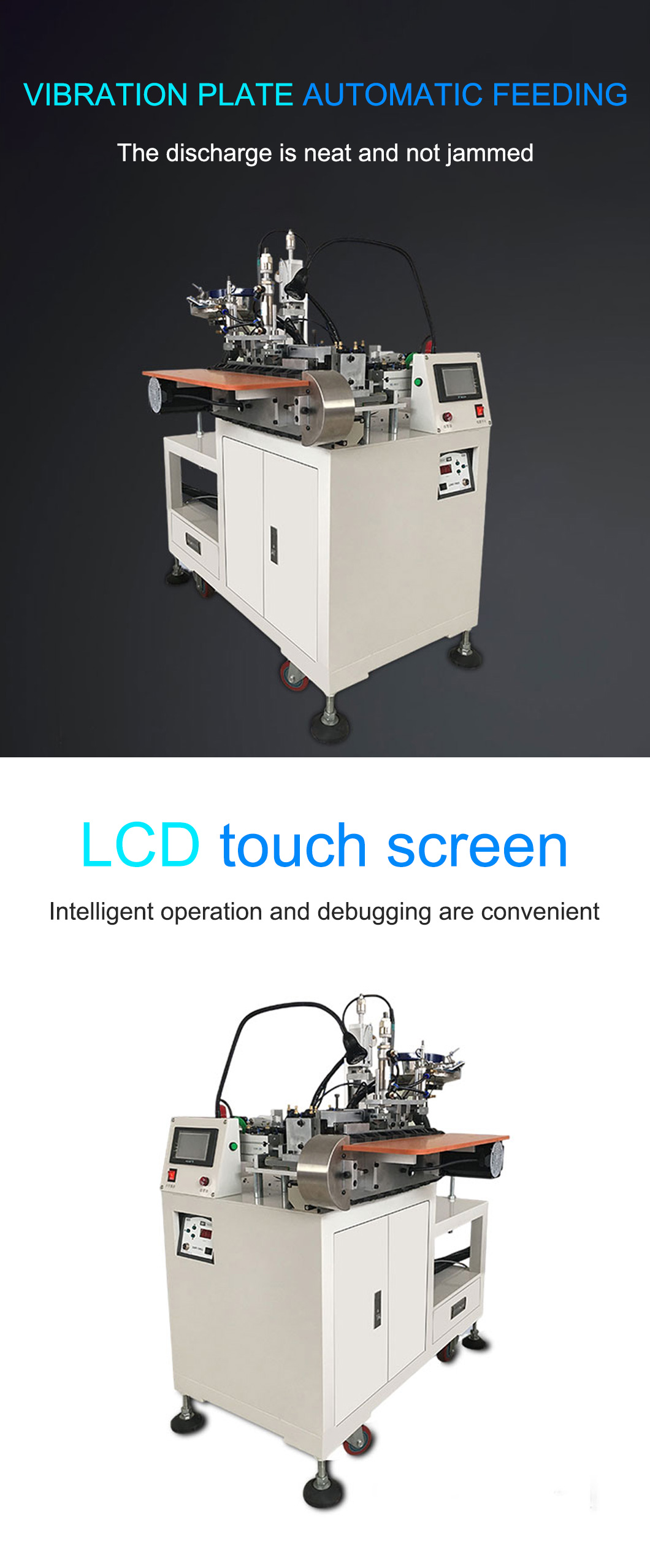

1. Vibration plate automatic feeding: The discharge is neat and not jammed

2. LCD touch screen: Intelligent operation and debugging are convenient

3. High productivity, 1200-1500pcs/h.

function. Stable and easy to operate.Defective rate quite low.


Application:

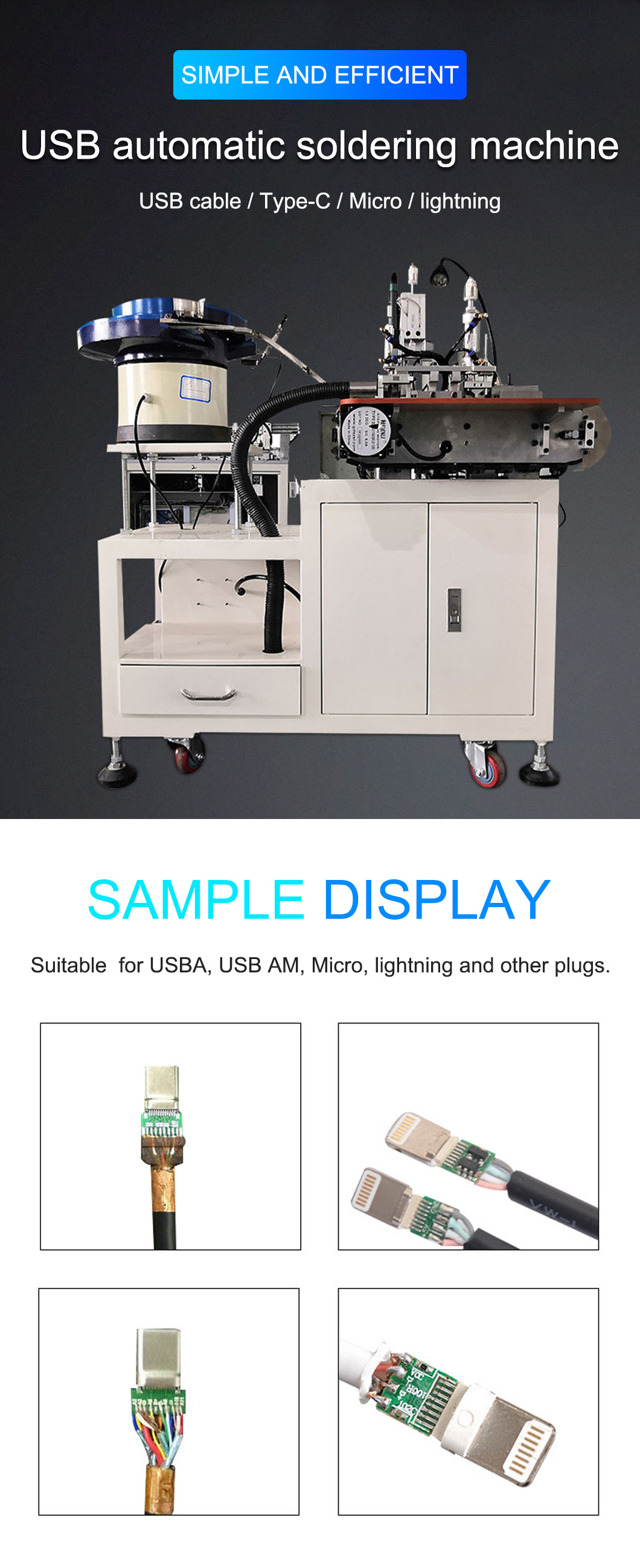

1. USB cable/Type-C/Micro/lightning

2. Suitable for USBA, USB AM, Micro, lightning and other plugs

3. Suitable:USB A,miro,lightning,type C connectoe.self-testing

4. Stable and easy to operate

5. Defective rate quite low.


Data Sheet:

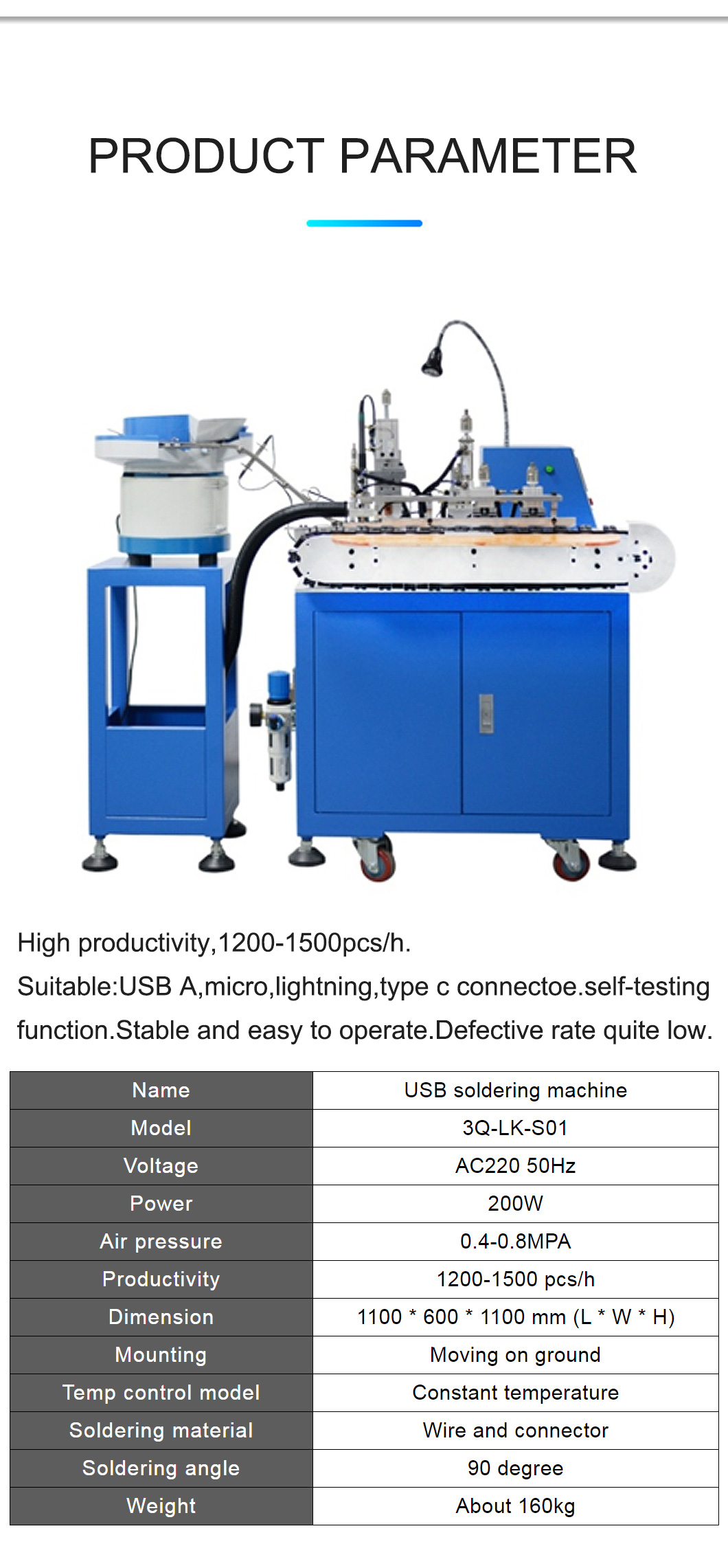

NameUSB soldering machine
Model3Q-LK-S01
VoltageAC220 50Hz
P ower200W
Air pressure0.4-0.8MPA
Productivity1200-1 500 pcs/h
Dimension1100*600*1100(mm)(L*W*H)
MountingMoving on ground
Temp control modelConstant temperature
Soldering materialWire and connector
Soldering angle90 degree
WeightAbout 160kg

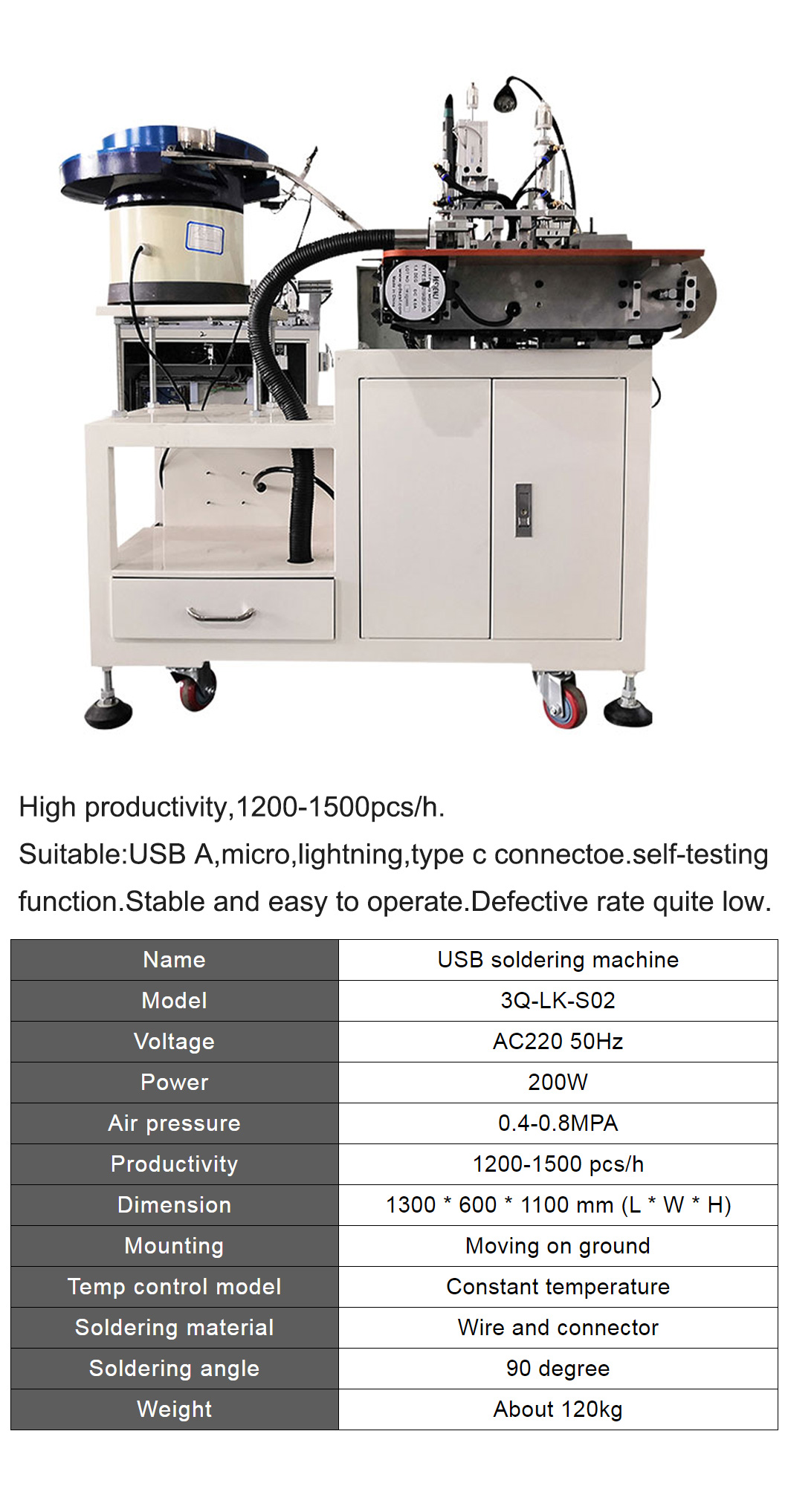

NameUSB soldering machine
Model3Q-LK-S02
VoltageAC220 50Hz
P ower200W
Air pressure0.4-0.8MPA
Productivity1200-1500 pcs/h
Dimension1300*600*1100(mm)(L*W*H)
MountingMoving on ground
Temp control modelConstant temperature
Soldering materialWire and connector
Soldering angle90 degree
WeightAbout 120kg
