Overview introduction:

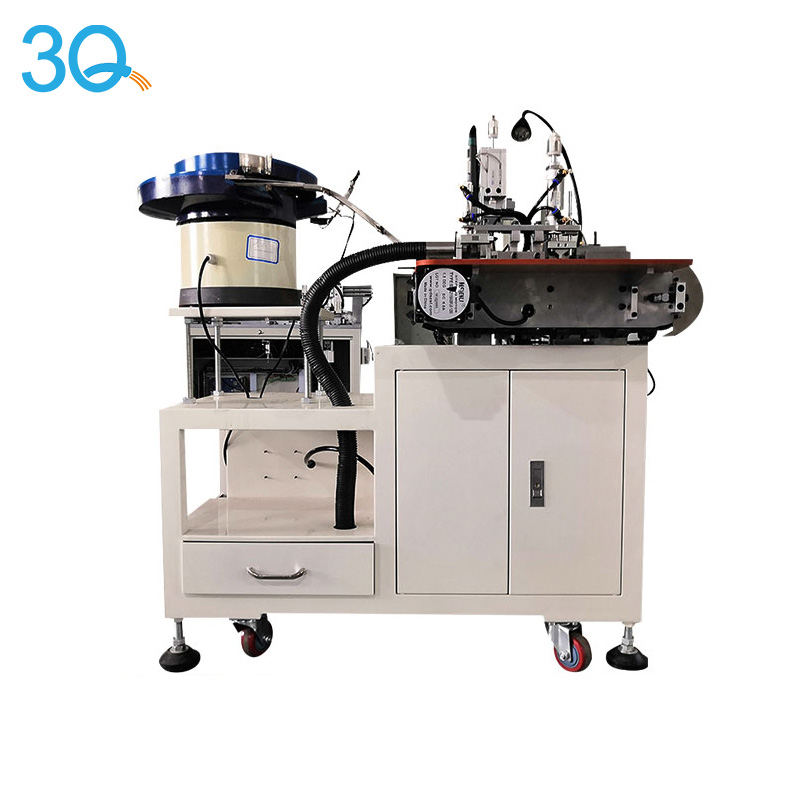

Product name:USB automatic soldering machine
Features:
1. Vibration plate automatic feeding: The discharge is neat and not jammed
2. LCD touch screen: Intelligent operation and debugging are convenient
3. High productivity, 1200-1500pcs/h.
function. Stable and easy to operate.Defective rate quite low.
Application:
1. USB cable/Type-C/Micro/lightning
2. Suitable for USBA, USB AM, Micro, lightning and other plugs
3. Suitable:USB A,miro,lightning,type C connectoe.self-testing
4. Stable and easy to operate
5. Defective rate quite low.
Data Sheet:
| Name | USB soldering machine |
| Model | 3Q-LK-S01 |
| Voltage | AC220 50Hz |
| P ower | 200W |
| Air pressure | 0.4-0.8MPA |
| Productivity | 1200-1 500 pcs/h |
| Dimension | 1100*600*1100(mm)(L*W*H) |
| Mounting | Moving on ground |
| Temp control model | Constant temperature |
| Soldering material | Wire and connector |
| Soldering angle | 90 degree |
| Weight | About 160kg |
| Name | USB soldering machine |
| Model | 3Q-LK-S02 |
| Voltage | AC220 50Hz |
| P ower | 200W |
| Air pressure | 0.4-0.8MPA |
| Productivity | 1200-1500 pcs/h |
| Dimension | 1300*600*1100(mm)(L*W*H) |
| Mounting | Moving on ground |
| Temp control model | Constant temperature |
| Soldering material | Wire and connector |
| Soldering angle | 90 degree |
| Weight | About 120kg |
