Product overview

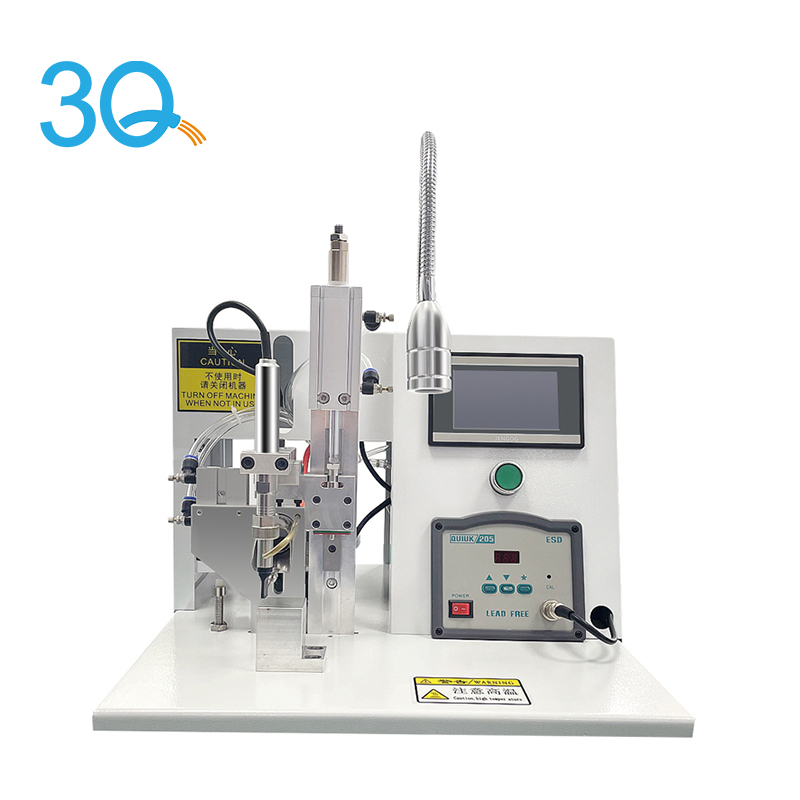

Product name:semi-automatic soldering machine.
Applicable cross-section range:0.25-12mm2
Usage:crimping of non-welded electrical wiring.

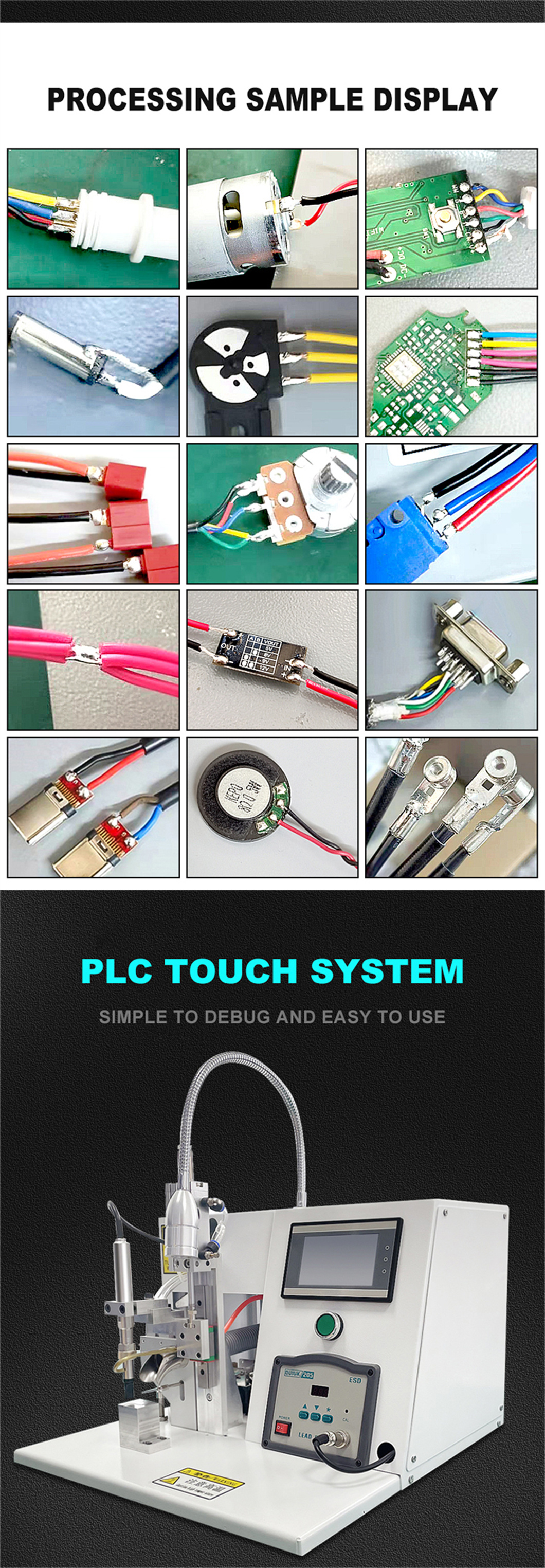

Processing sample display: suitable for crimping of medium and large numbers of terminals.if you need a variety of crimping terminals,you need to choose this product.

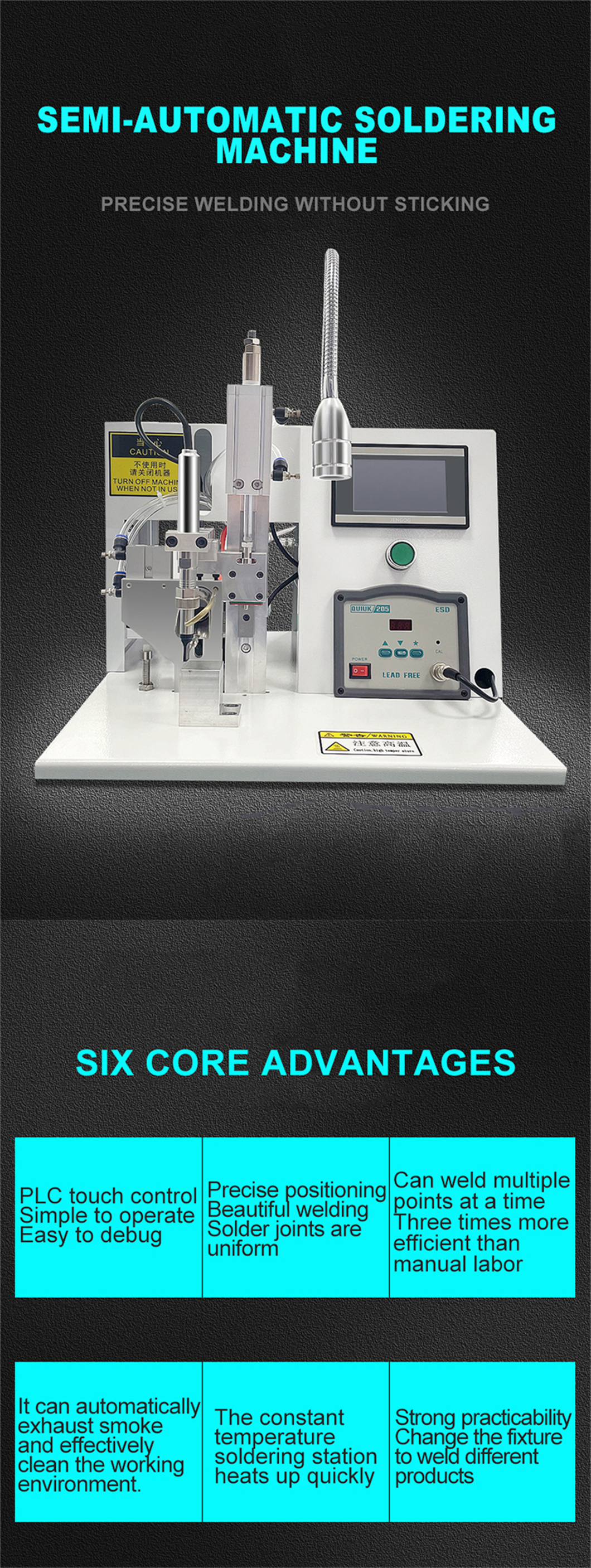

Product advantage:
1. PLC touch control Simple to operate Easy to debug
2. Precise positioning Beautiful welding Solder joints are
uniform
3. Can weld multiple points at a time Three times more efficient than manual labor
4. It can automatically exhaust smoke and effectively clean the working environment.
5. The constant temperature soldering station to heats up quickly
6. Strong practicability Change the fixture' to weld different products
7. Pneumatic control is more stable.lower losses during operation.
8. Customized fixtures weld a variety of products one machine multi-pupose can be soldered can be tinned.
9. 150W high frequency soldering station controllable temperature:50-600
10. Precise welding without sticking.

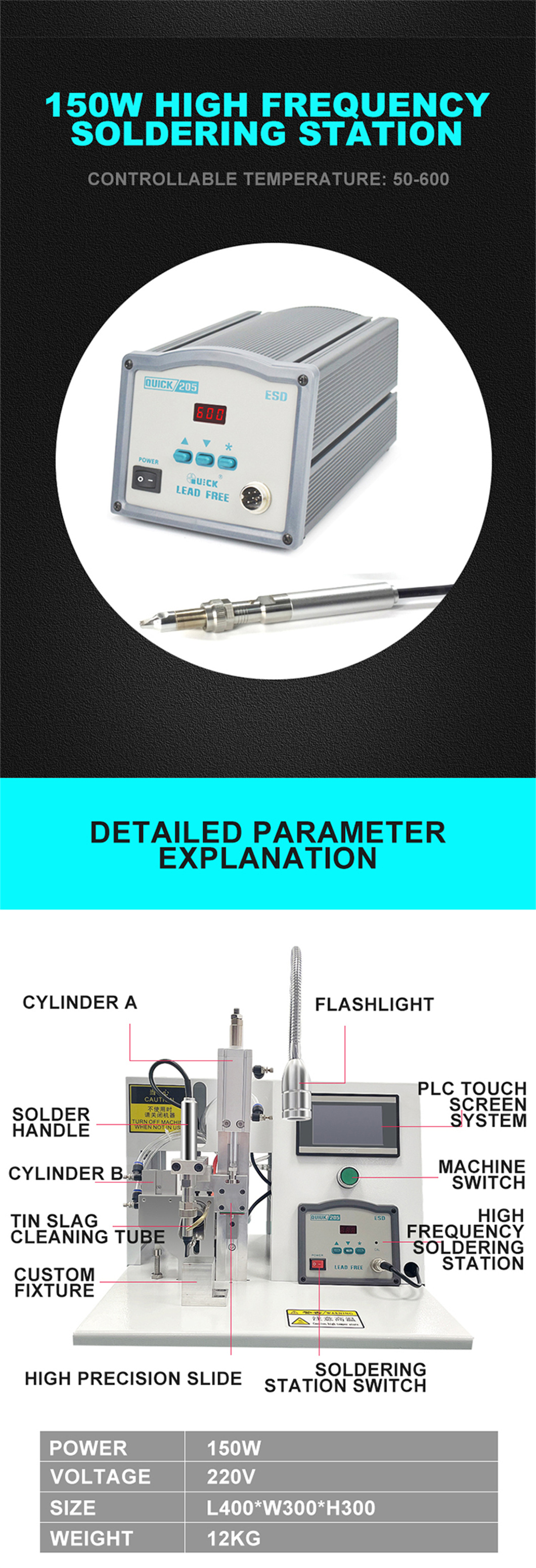

Product analysis:
1. Cylinder A
2. Solder handle
3. Cylinder B
4. Tin slay cleaning tube
5. Custom fixture
6. Flashlight
7. Plc touch screen system
8. Machine switch
9. High frequency soldering station.
10. Soldering station switch
11. High precision slide

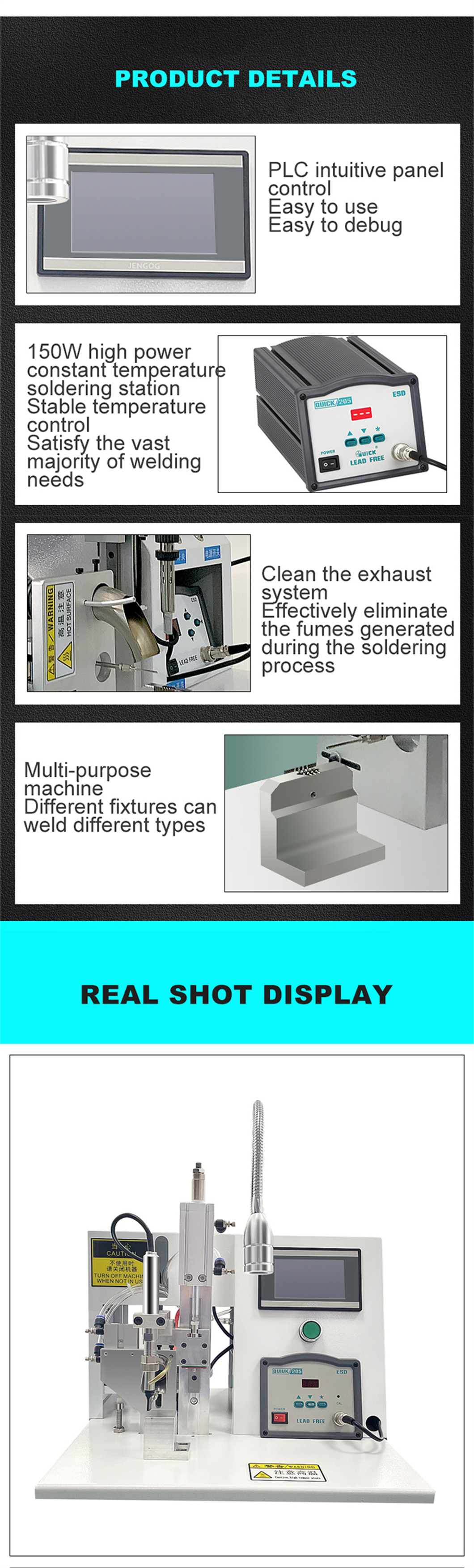

Product details:
1. PLD Intuitive panel control easy to use,easy to debug
2. 150W high power constant temperature soldering station Stable temperature Control Satisfy the vast majority of welding needs
3. Clean the exhaust system Effectively eliminate the fumes generated during the soldering process
4. Multi-purpose machine Different fixtures can weld different types
Data sheet:
| product power | 150W |
| product voltage | 220V |
| product size | L 400*W300*H300 |
| weight | 12KG |
