Product overview

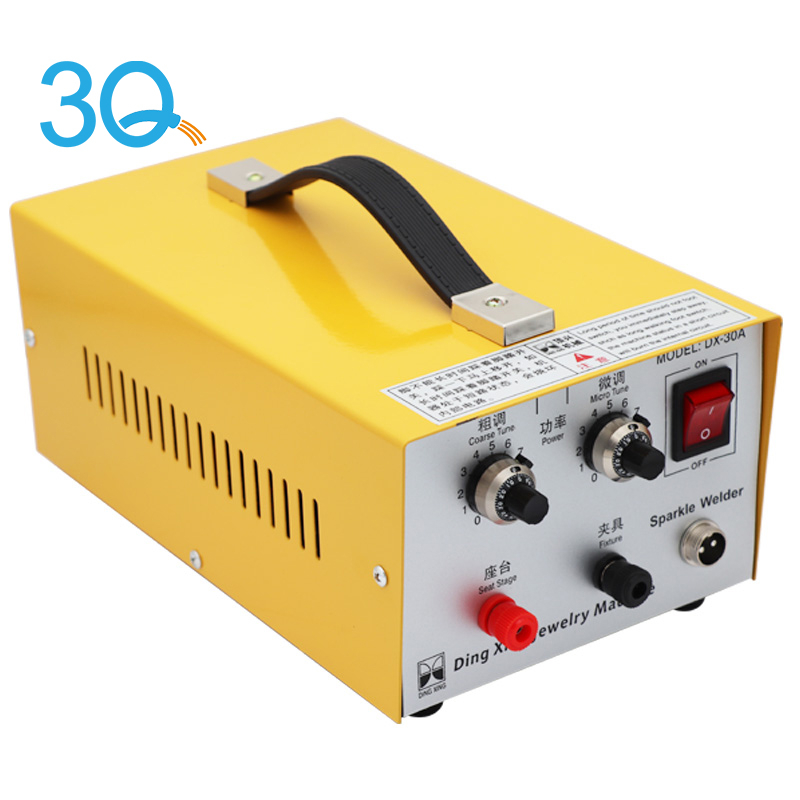

Product name:Spot welding machine
Feature:
Professional quality assurance.

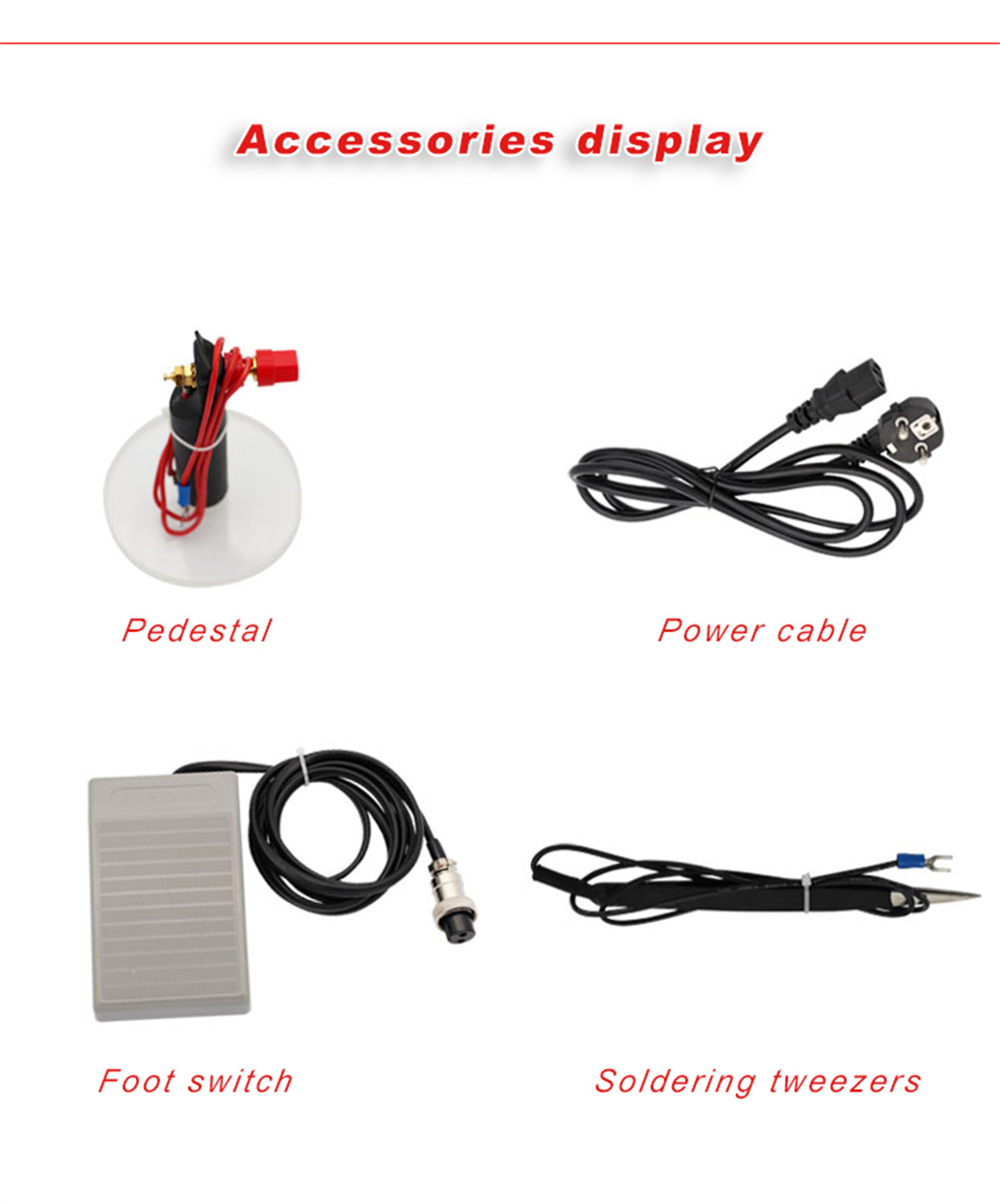

Accessories display:
1. Pedestal
2. Power cable
3. Foot switch
4. Soldering tweezers

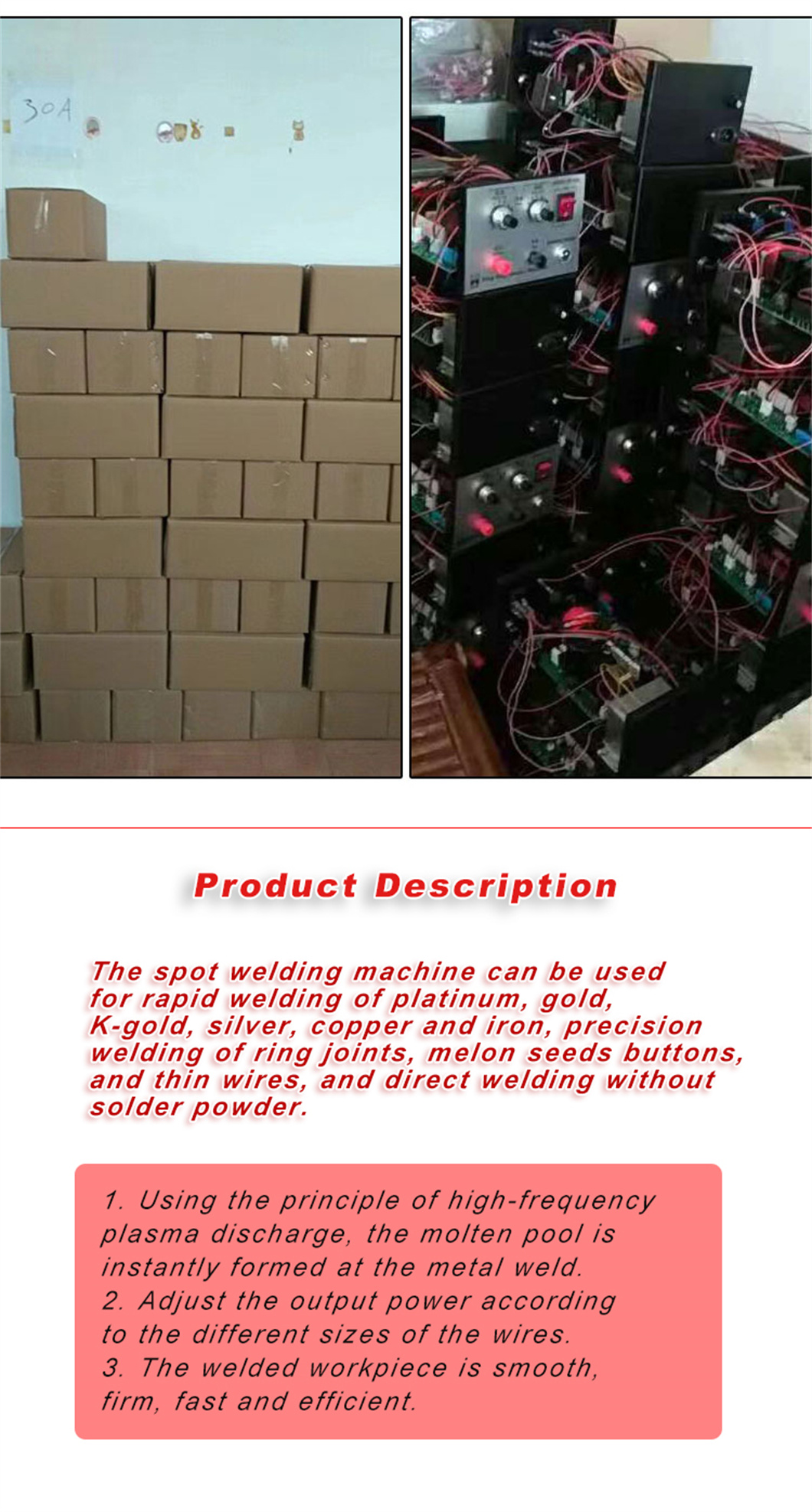

Product Description:
The spot welding machine can be used for rapid welding of platinum, gold, K-gold, silver, copper and iron, precision welding of ring joints, melon seeds buttons,and thin wires, and direct welding without solder powder.
1. Using the principle of high-frequency plasma discharge, the molten pool is instantly formed at the metal weld.
2. Adjust the output power according to the different sizes of the wires.
3. The welded workpiece is smooth, firm, fast and efficient.

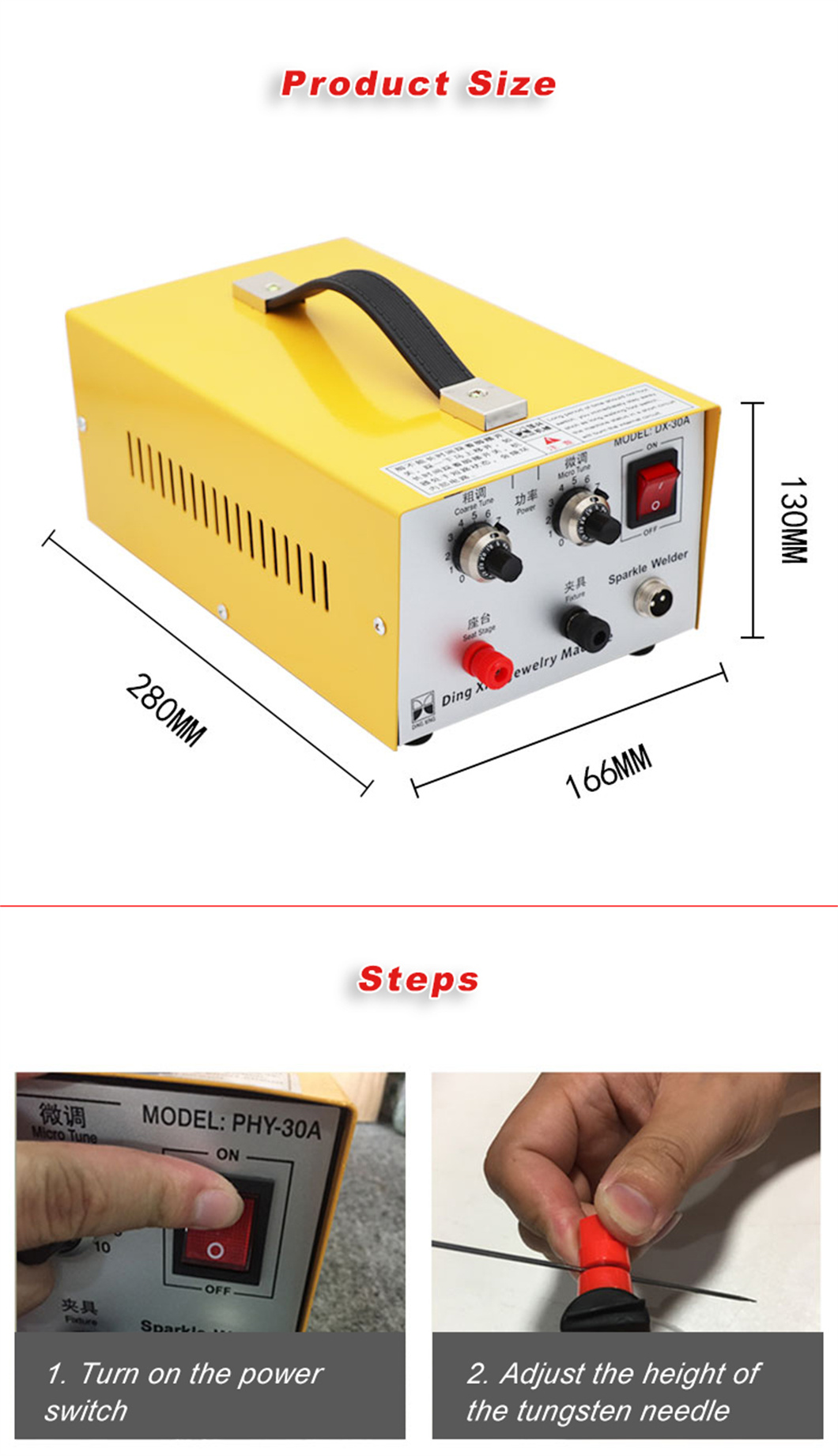

Usage Steps:
1. Turn on the power switch
2. Adjust the height of the tungsten needle

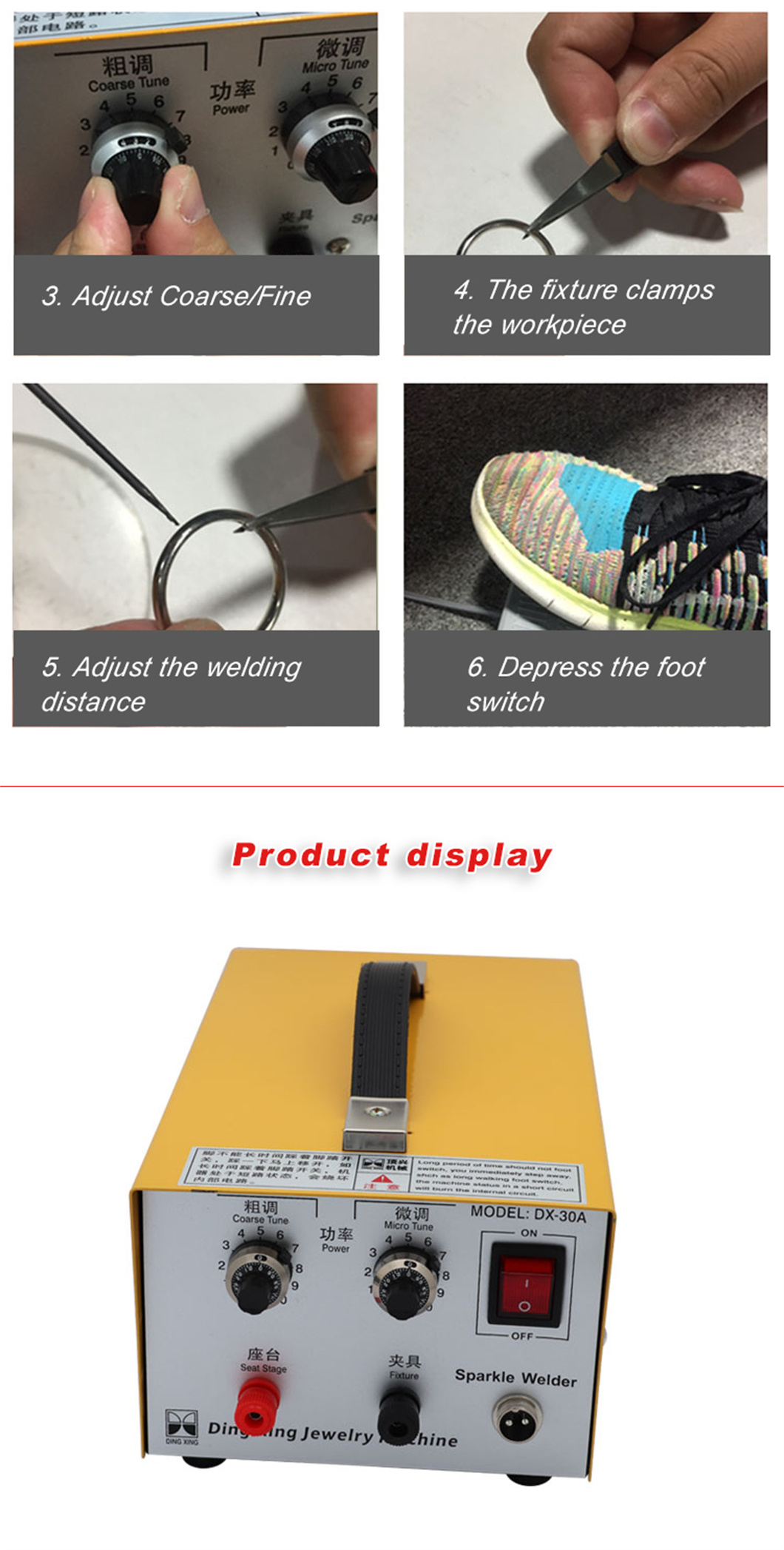

3. Adjust Coarse/Fine
4. The fixture clamps the workpiece
5. Adjust the welding distance
6. Depress the foot switch

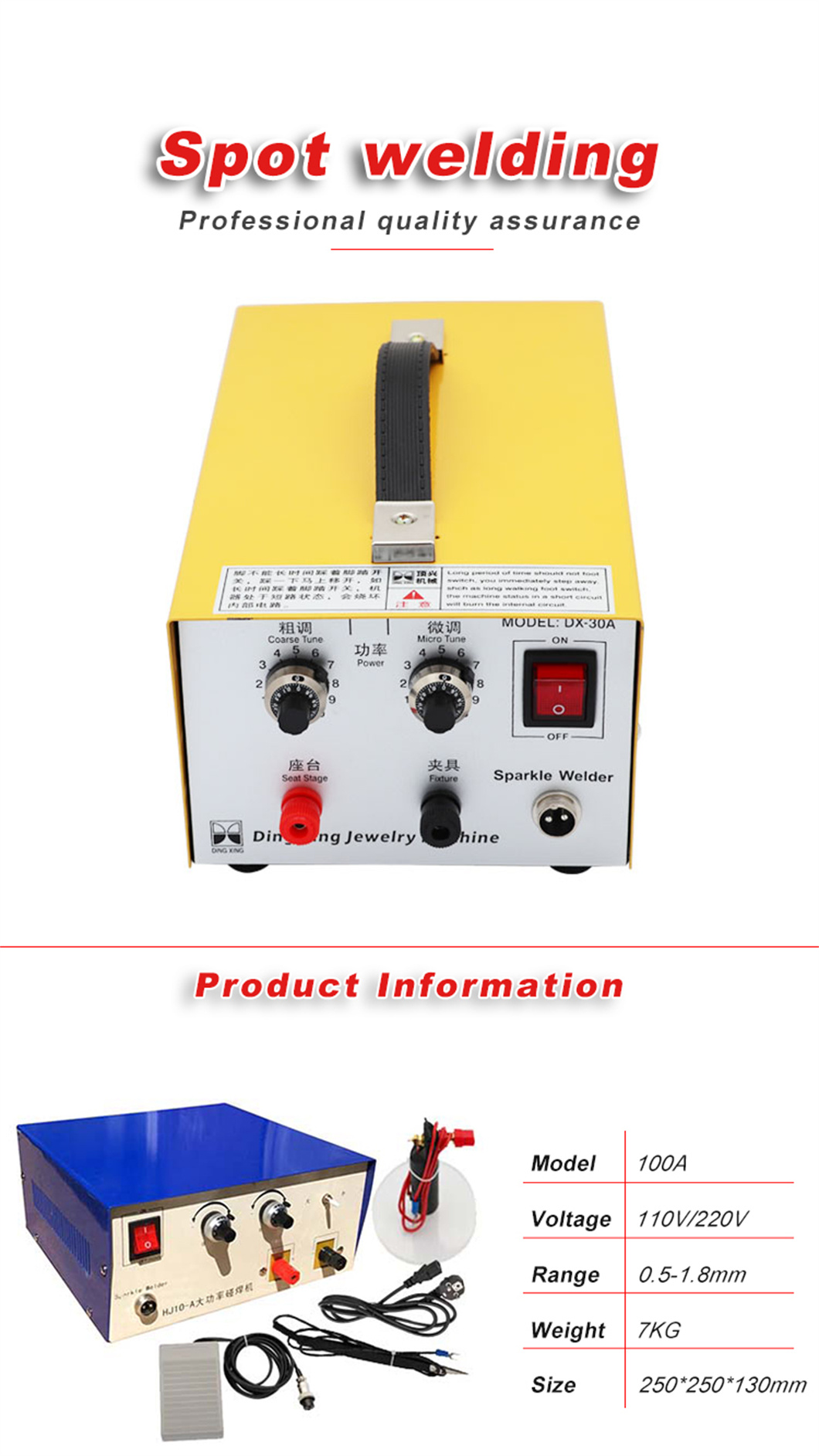

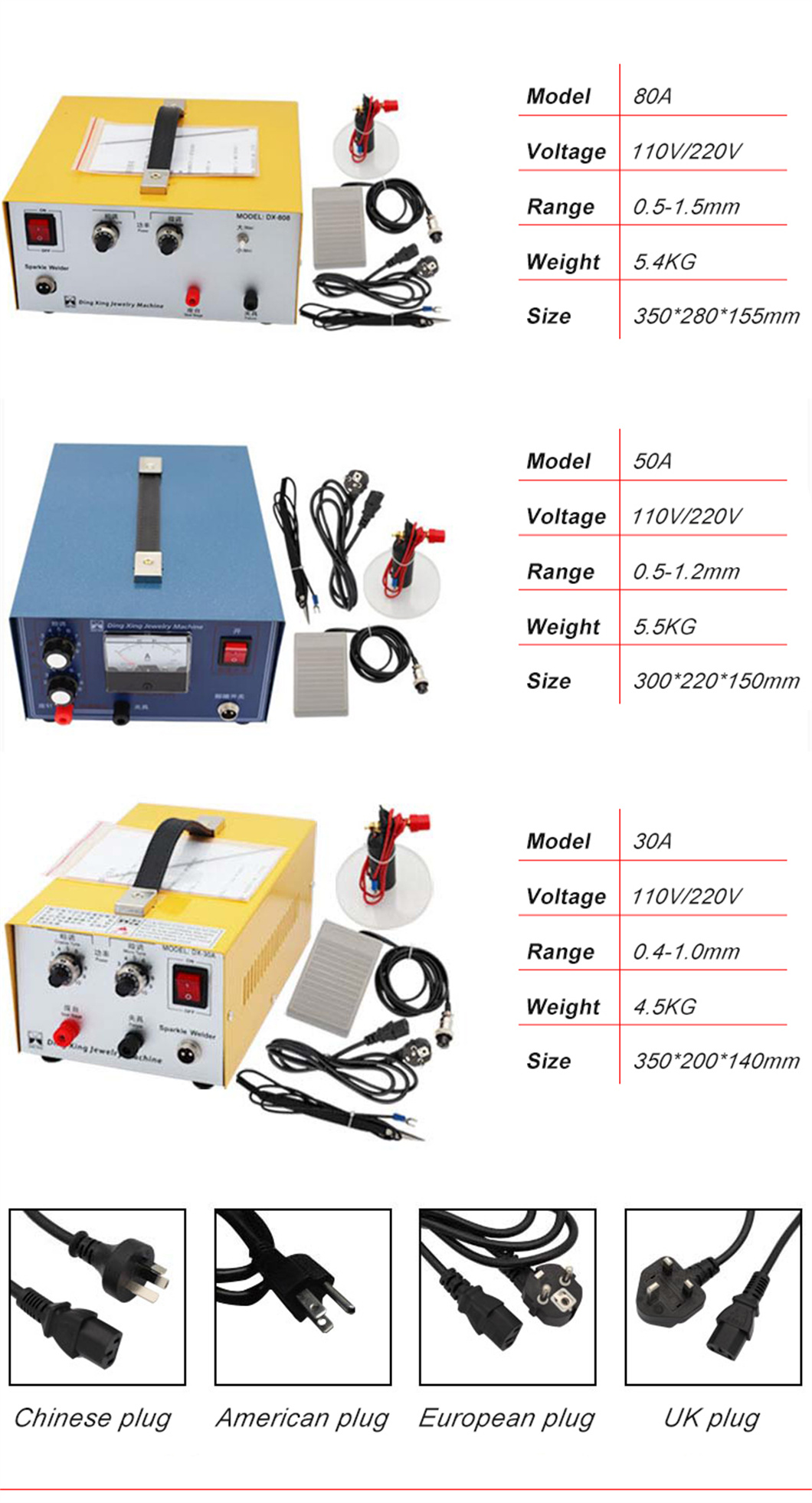

Data Sheet :
| Model | 100A | 80A | 50A | 30A |
| Voltage | 110V/220v | 110V/220v | 110V/220v | 110V/220v |
| Range | 0.5-1.8MM | 0.5-1.5MM | 0.5-1.2MM | 0.4-1.0MM |
| Weight | 7KG | 5.4KG | 5.5KG | 4.5KG |
| Size | 250*250*130MM | 350*280*155MM | 300*200*150MM | 350*200*140MM |
