3Q machine
Product overview

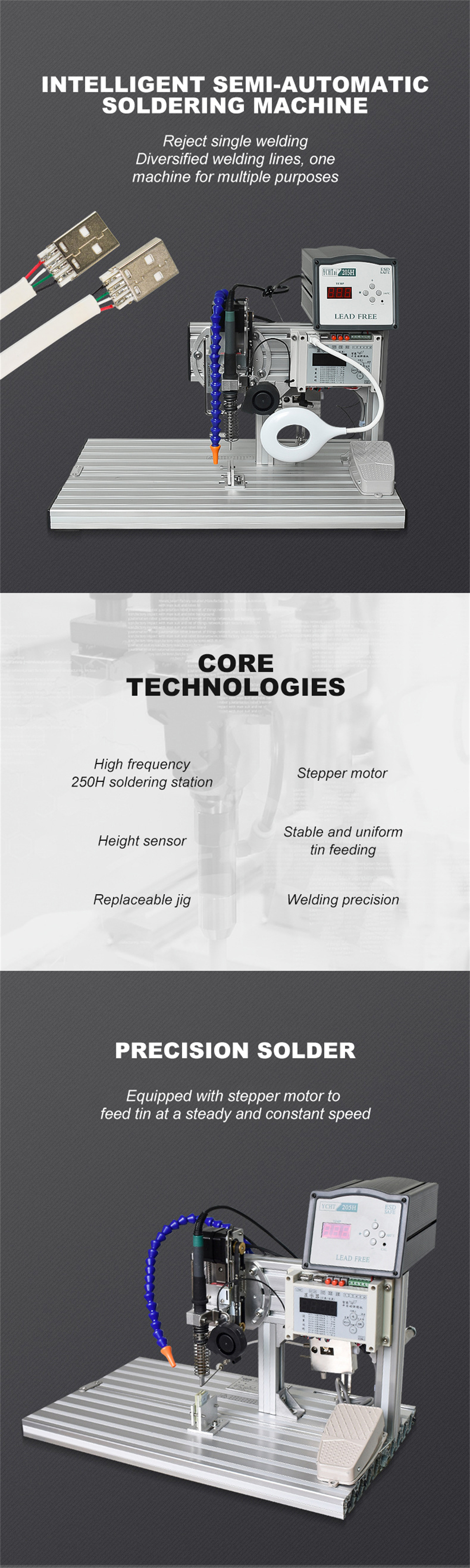

Product name: INTELLIGENT SEMI-AUTOMATIC SOLDERING MACHINE
Reject single welding Diversified welding lines, one machine for multiple purposes

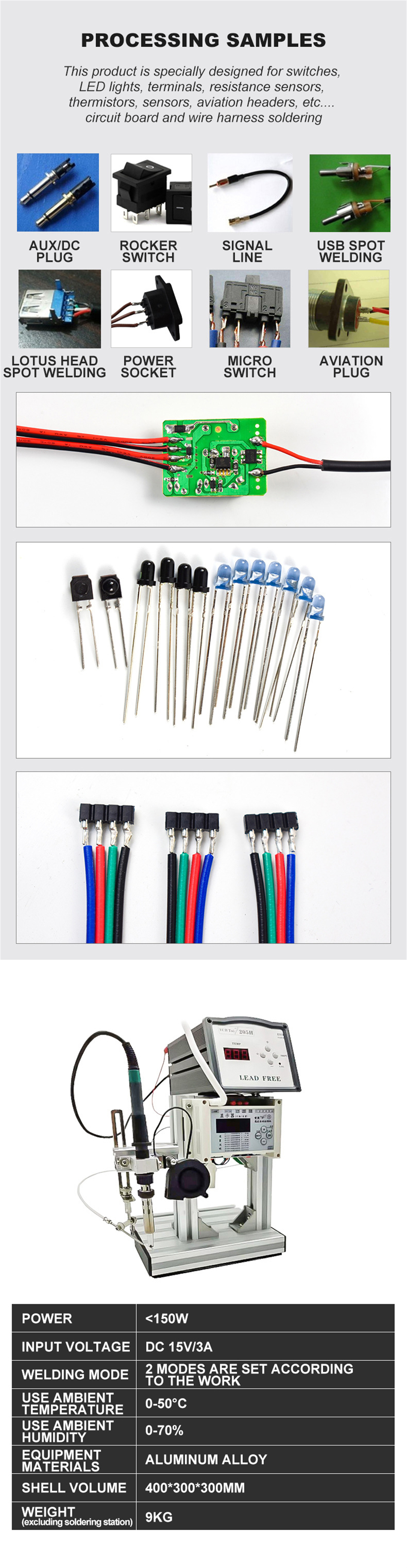

Processing sample display:
This product is specially designed for switches,LED lights, terminals, resistance sensors, sensors, aviation headers, etc... circuit board and wire harness soldering
Core technologies:
1. High frequency 250H soldering station
energy saving high welding station,Dedicated high-frequency 250H soldering
station, with its own DC 24V power supply
2. Stepper motor
3. Height sensor
4. Replaceable jig
5. Stable and uniform tin feeding
6. Welding precision
7. Precision solder
Equipped with stepper motor to feed tin at a steady and constant speed.
8. Customized mold
Diversified welding wire for multiple purposes

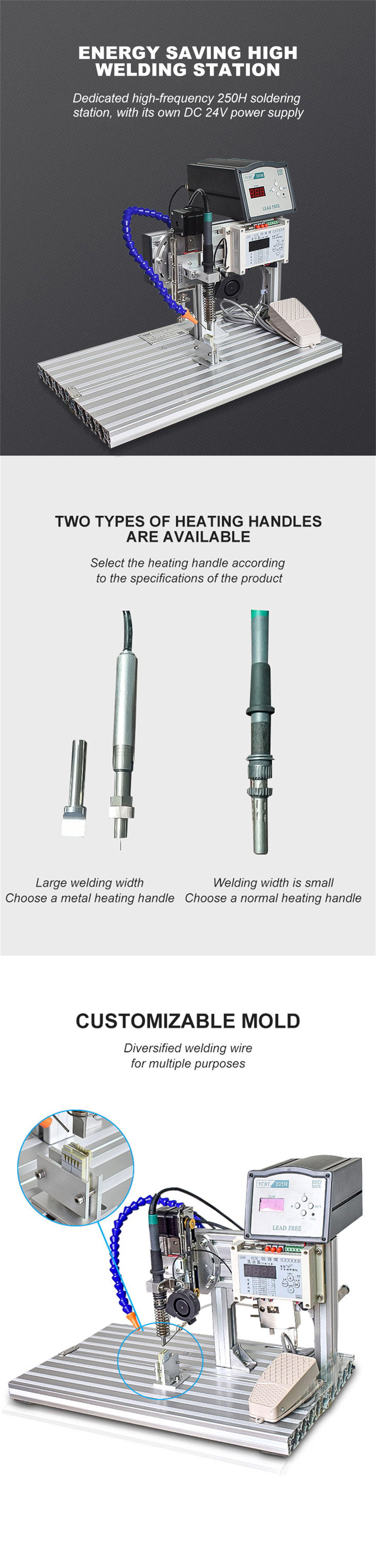

Two types of heating handles are available:
Select the heating handle according to the specifications of the product
Large welding width-Choose a metal heating handle
Welding width is small- Choose a normal heating handle
Product analysis:
1. STEPPER MOTOR
2. CIGARETTE HOLDER
3. COOLING HEAD FAN
4. WELDING HEAD
5. SOLDERING STATION
6. MASTER
7. TIN HEAD
8. FOOT PEDAL
9. MAIN SWITCH
10. POWER SOCKET
11. EQUAL POSITIONING HOLE
12. TIN ROD
13. HEATING SWITCH
14. AVIATION HEAD
15. DC OUTPUT
16. STEPPER MOTOR
17. TIN TUBE
Additional parts:
1. Working lamo
2. Fixture file
3. Tool box
4. Fixture piece
5. Scissors
6. Manual

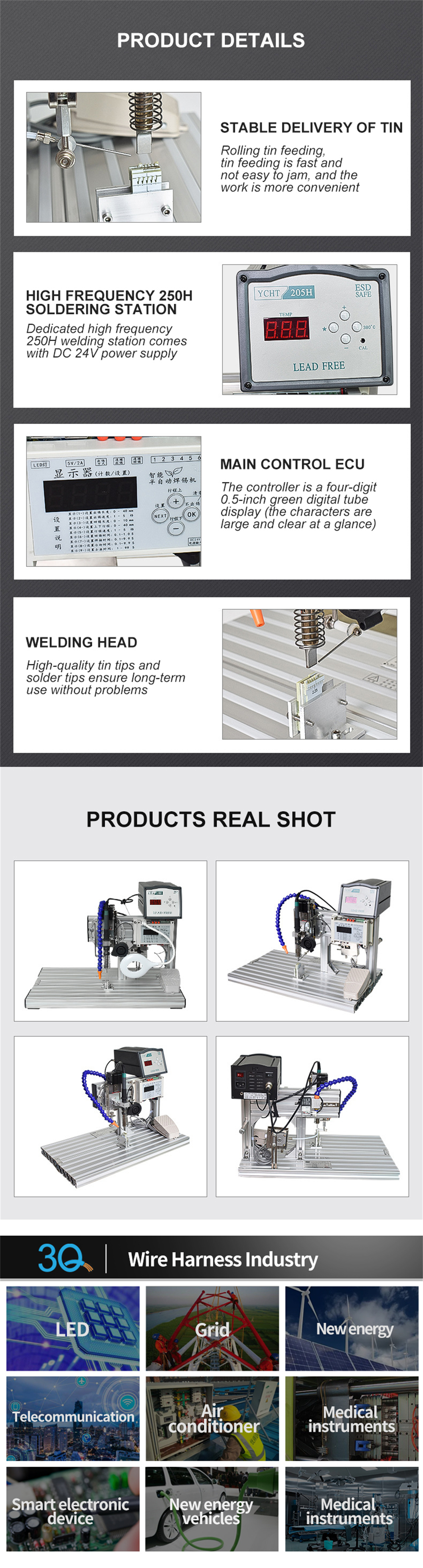

Product details:
1. Stable delivery of tin
Rolling tin feeding, tin feeding is fast and not easy to jam, and the work is more convenient
2. High frequency 250h soldering station
Dedicated high frequency 250H welding station comes with DC 24V power supply
3. Main control ecu
The controller is a four-digit 0.5-inch green digital tube display (the characters are large and clear at a glance)
4. Welding head
High-quality tin tips and solder tips ensure long-term use without problems
Wire harness industry:
1. LED
2. GRID
3. NEW ENERGY
4. TELECOMMUNICATION
5. AIR CONDITIONER
6. MEDICAL INSTRUMENTS
7. SMART ELECTRONIC DEVICE
8. NEW ENERGY VEHICLES
9. MEDICAL INSTRUMENTS
Data sheet:
POWER | <150W |
INPUT VOLTAGE | DC 15V/3A |
WELDING MODE | 2 MODES ARE SET ACCORDING TO THE WORK |
USE AMBIENT TEMPERATURE | 0-50°C |
USE AMBIENT TEMPERATURE HUMIDITY | 0-70% |
EQUIPMENT MATERIALS | ALUMINUM ALL OY |
SHELL VOLUME | 400* 300* 300MM |
WEIGHT(excluding soldering station) | 9KG |
