Semi-automatic Crystal Head Crimping Machine

Availability:
Quantity:
  • 3Q machine

详情页_01详情页_02详情页_03详情页_04详情页_05详情页_06

wire stripping machine

工厂展示_01工厂展示_02工厂展示_03独立站证书

WIRE STRIPPING MACHINE

Overview introduction

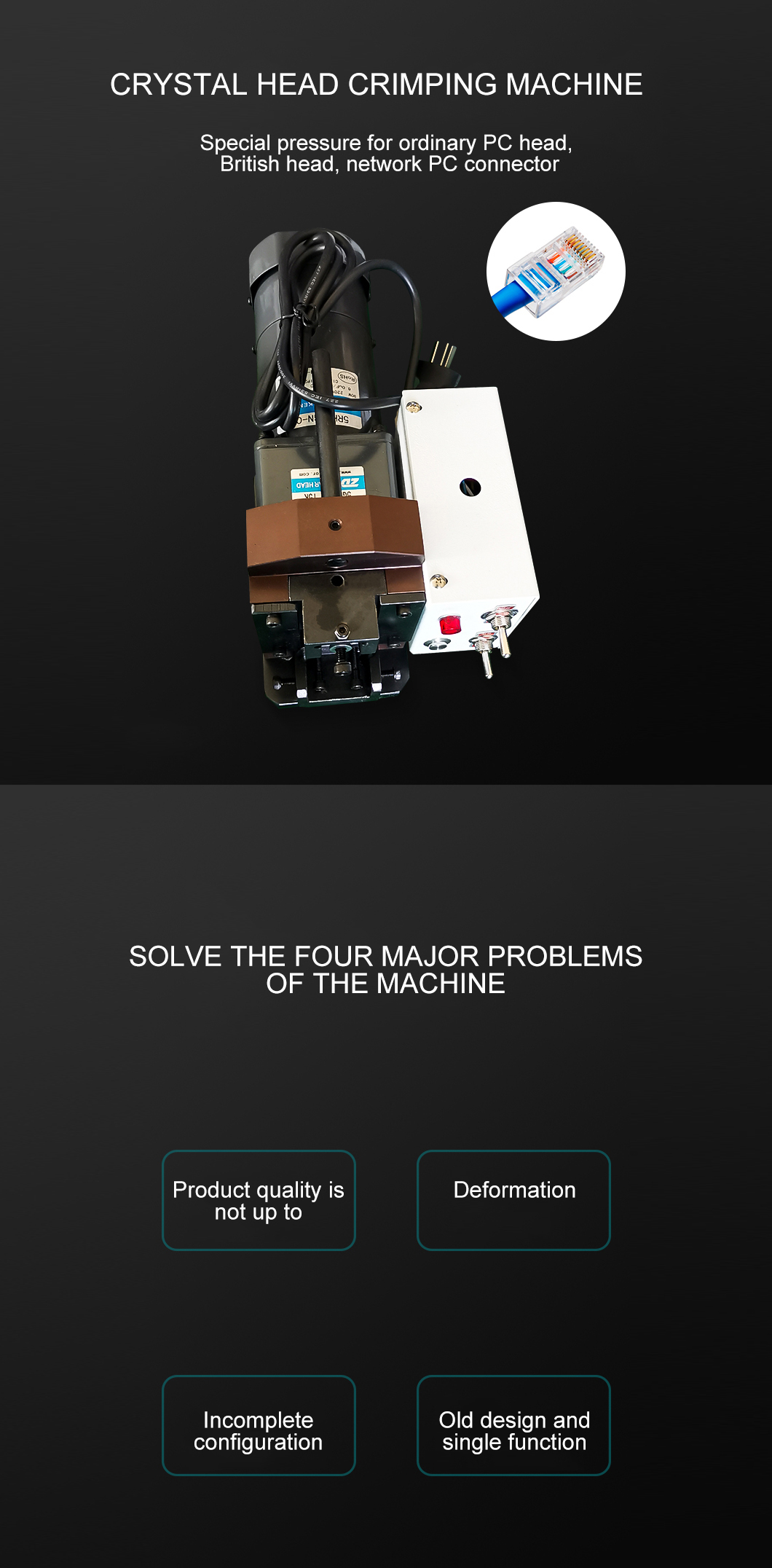

Product name: Cystal head crimping machine

Special pressure for ordinary PC head, British head, network PC connector


Features

Solve the four major problems of the machine

Product quality is not up to

Deformation

Incomplete configuration

Old design and single function

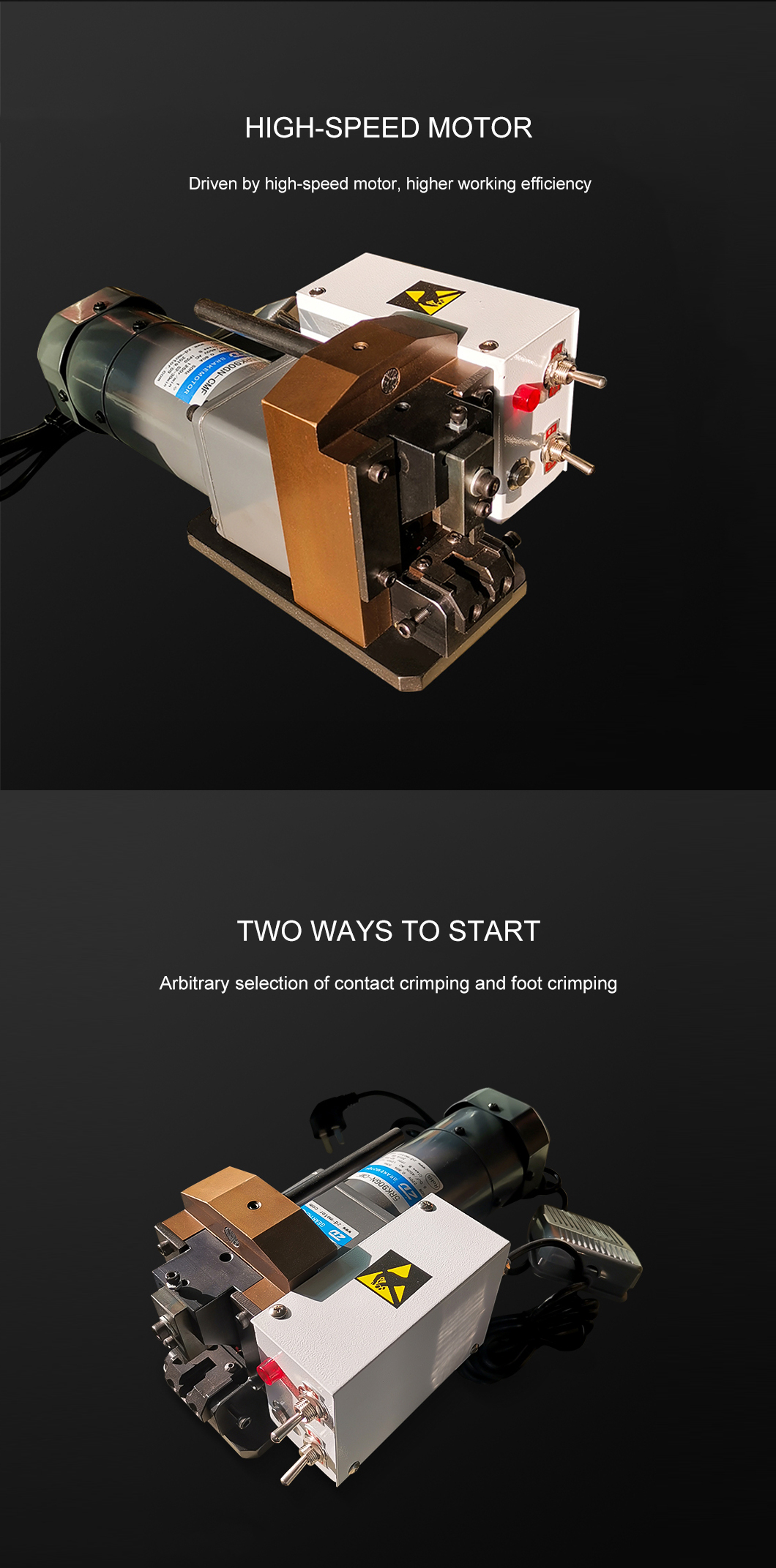

High-speed motor: Driven by high-speed motor, higher working efficiency

Two ways to start: Arbitrary selection of contact crimping and foot crimping

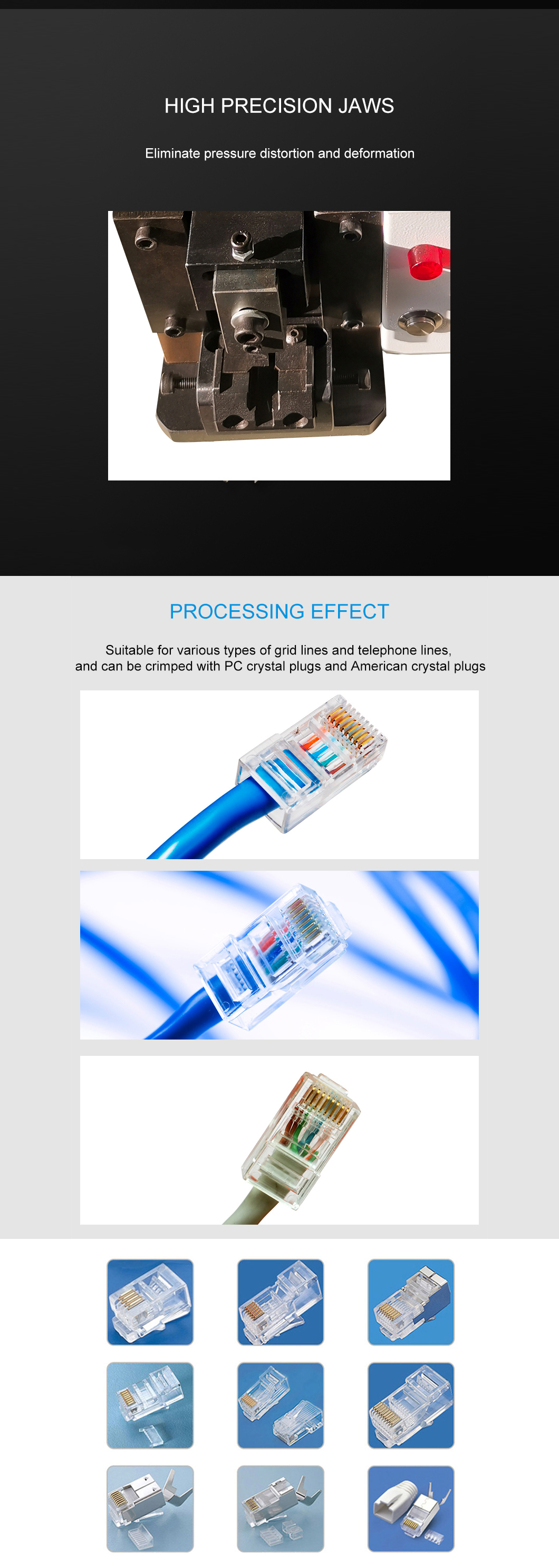

High precision jaws: Eliminate pressure distortion and deformation


Processing effect

Suitable for various types of grid lines and telephone lines, and can be crimped with PC crystal plugs and American crystal plugs


Product analysis

Motor

Portable handle

Indicator light/troubleshooting light

Toggle/reset switch

Switch

Upper die

Modulation controller


Product details

Toggle/reset switch: A total of 3 gear adjustments

1. Automatic induction file: put the crystal head into the automatic induction crimping

2. Sleep position: No operation can be done with any protection button

3. Foot pedal position: can only be operated by the foot pedal controller


Switch adjuster: A total of 2 gear adjustments

1. Power switch: control the power on

2. Mode adjustment switch: activate the

mode adjustment control switch operation


Indicator light/troubleshooting light

1. If the light is not on, it means that the power is not turned on. Turn the mode adjustment switch to gear 1 to turn it on.

2. If the light is still off, please check whether the fuse at the back is blown.

3. Modulation controller: Control the die lifting


Upper knife mold: adjust the liting height of the knife template

1. If the pressure is not enough, please loosen the upper knife fixing screw and fine-tune the pressure adjustment nut

2. If it is not punctured, fine-tune the height of the inner blade

3. Support multiple models of knife molds


Lower mold base: fine-tune left and right positions

1. Loosen the two screws on the front, and then adjust the left and right nuts


Data Sheet

Product nameCrystal head crimping machine
Crimping ability1 50kg
Scope of application2-10P
Journey25MM .
Power supplyAC 220V 50Hz
Weight12kg
Size320*180*160mm
