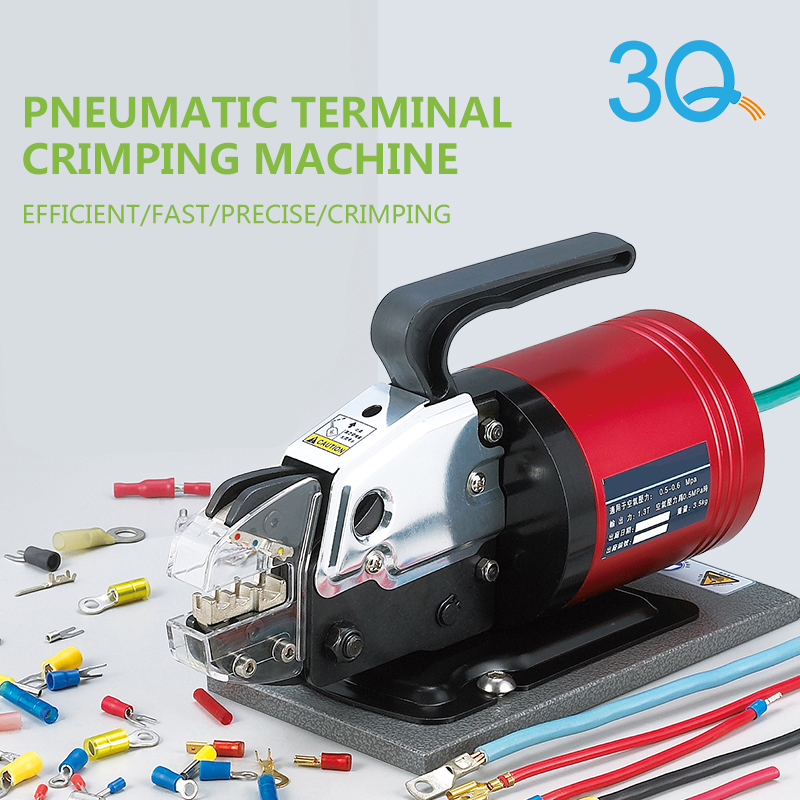

Product name: pneumatic terminal crimping machine
Features
1. Precision crimping efficient and convenient
2. Efficient Form instantly
3. Convenient foot switch
4. Portable lighter weight
5. Die No adjustment required
What is a pneumatic crimping machine?
The parts of the crimping machine are made of special alloy steel after repeated precision stamping and heat treatment. The section is smooth and flat. The crimping die is made of super-hard tool steel, with long service life, precise aperture size, and good crimping effect. The crimping end is quadrilateral.
With the pneumatic end crimping machine, you can get rid of the boring and repeated manual crimping method. The crimping speed is 10 times that of the manual crimping pliers, which has a greater cost advantage. It is suitable for special crimping of international standard tube-type
terminals. The precision die material is made of high-quality alloy steel through a special heat treatment process. There is no need to replace the jaws, the crimping is fast, and the crimping is firm and reliable.
Can crimping sleeve type terminals
Real shot of terminal crimping effect
Owning high-quality tools will bring you a pleasure at work
Terminal crimping effect display diagram
1. Put the sleeve type terminal into the crimping port
2. Insert the wires
3. Foot switch, pneumatic crimping terminal
Pneumatic crimping machine is suitable for all bushings and double bushing terminals within the range of 0.08-6MM2
Four-sided crimp
Hexagon after pressing
Suitable for factories and workshops which need to press a large number of terminals
Multiple novel designs
Bring a better crimping experience
1. Adaptive mechanics design
The die can be automatically
adjusted according to the size of the terminal
2. Foot switch control
The operation is quicker and more
convenient, and it is more efficient than
hand pressing pliers
3. Super energy-saving cylinder design
Save 50% of the gas source
4. High-quality alloy steel
Durable and long-lasting, no need
to change the die belt
5. Mini design
Mini practical, beautiful appearance, easy to carry
6. Terminal entry sideways
Terminal enters crimping sideways
7. Instructions
Before using this equipment, it is recommended that users read the instructions in this manual carefully to understand the use methods and technical performance indicators of this equipment.
How to use
Please connect to the trachea according to the corresponding markings of the equipment and its accessories Open the air source. At this time, the clamp head of the equipment should be in the open state before crimping. Place the end to be crimped in the corresponding fixture position, step on the foot valve, and release the valve after the crimping is complete. The crimping speed can be controlled manually according to the speed when the pedal air valve is stepped on, or a pipe joint with a throttle valve can be selected for adjustment.
Using conditions and precautions
This equipment uses fluid: compressed air. Use environment and fluid temperature 5~60 °C.
The medium used for the equipped cylinder should be filtered through a filter above 40um before it can be used (that is, the air source used by the cylinder should be filtered through an airfilter for use). The pipes connected to the equipment should be selected with corresponding air pipes and joints and the internal debris must be removed to prevent debris from entering the cylinder and damaging the cylinder. When crimping large square ends, please ensure sufficient air source and air pressure. Iift is used in a low temperature environment, anti-freezing measures should be taken to prevent the water in the system from freezing.It is recommended that the medium used in the cylinder be usedafter being lubricated (that is, a lubricator should be installed in the gas supply pipeline; it is recommended to use the turbineNo. oil ISOVG32).
Maintenance and storage instructions
Before use, pour a little lubricating oil into the joints of each movable shaft of the machine to extend the life of the machine. This product is a pneumatic product, no matter it is used or stored, it cannot be placed in a high, low temperature, high humidity environment. Keep clean and dry when not in use to avoid rust. The opened intake and exhaust ports should be blocked with dust caps or other dust-proof measures should be taken.
Data Sheet
Product name | Pneumatic tube terminal crimping machine |
Crimping range | 0.08-6mm2 |
Air pressure range | 0.5-0.7MPa |
Contribute | 1.2T |
Weight | 4.8KG |
Dimensions | 286*125*165mm |
