Overview introduction:

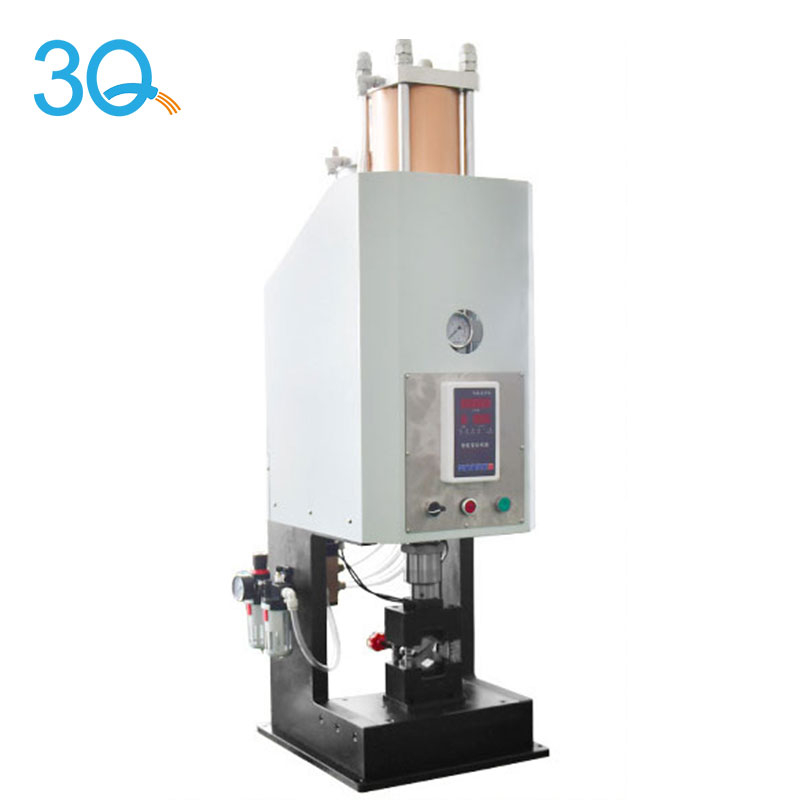

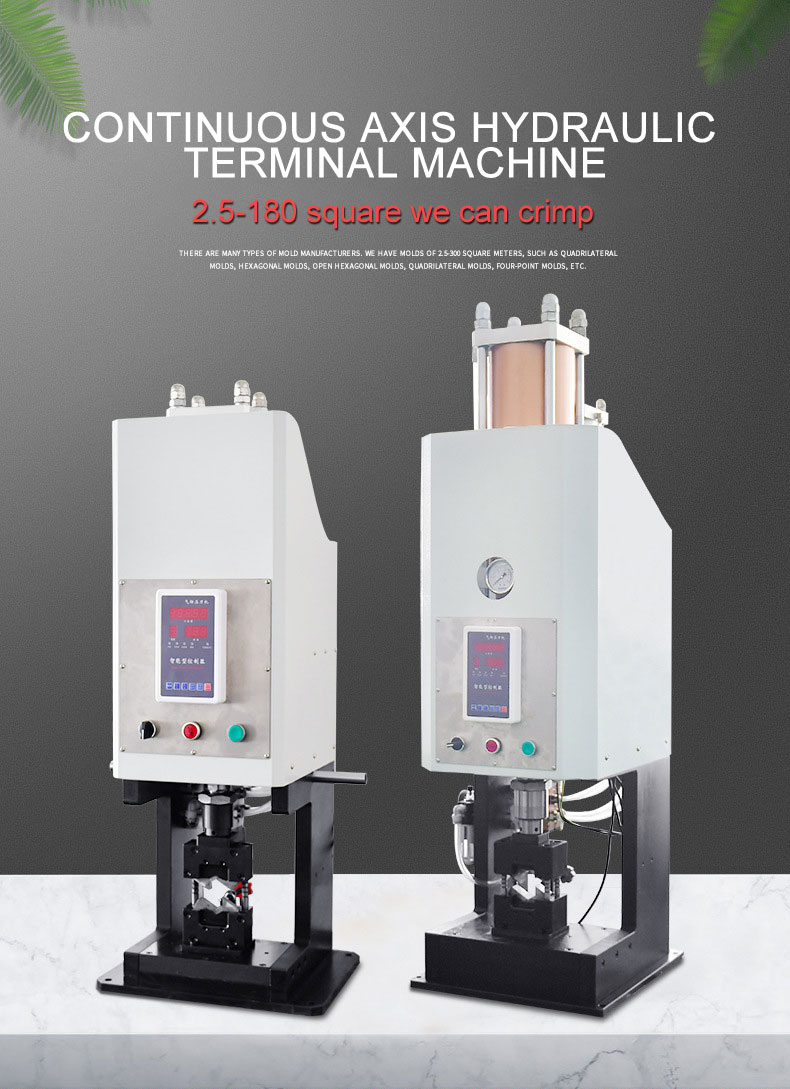

Product name: Continuous axis hydraulic terminal machine
Features:
1. 2.5-180 square we can crimp

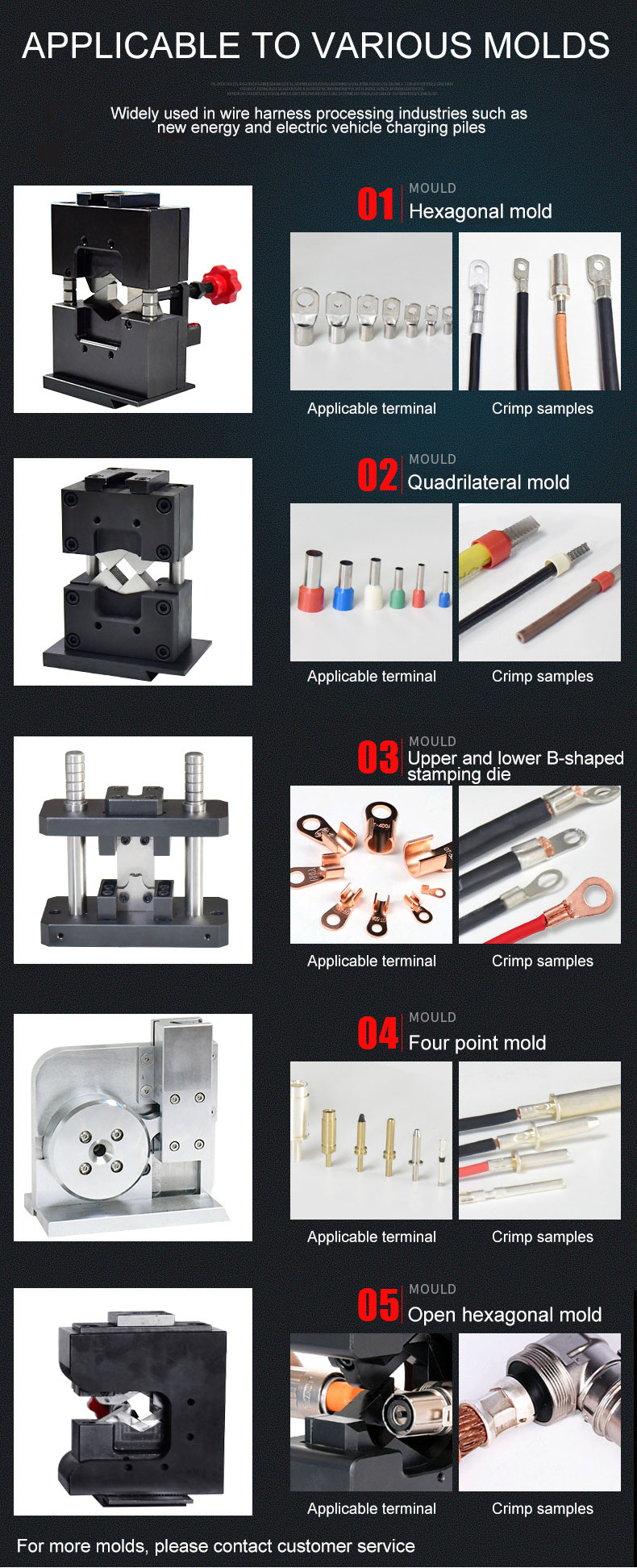

2. Applicable to various molds: Widely used in wire harness processing industries such as new energy and electric vehicle Charging piles
3. Hexagonal mold
4. Quadrilateral mold
5. Upper and lower B-shaped stamping die
6. Four point mold

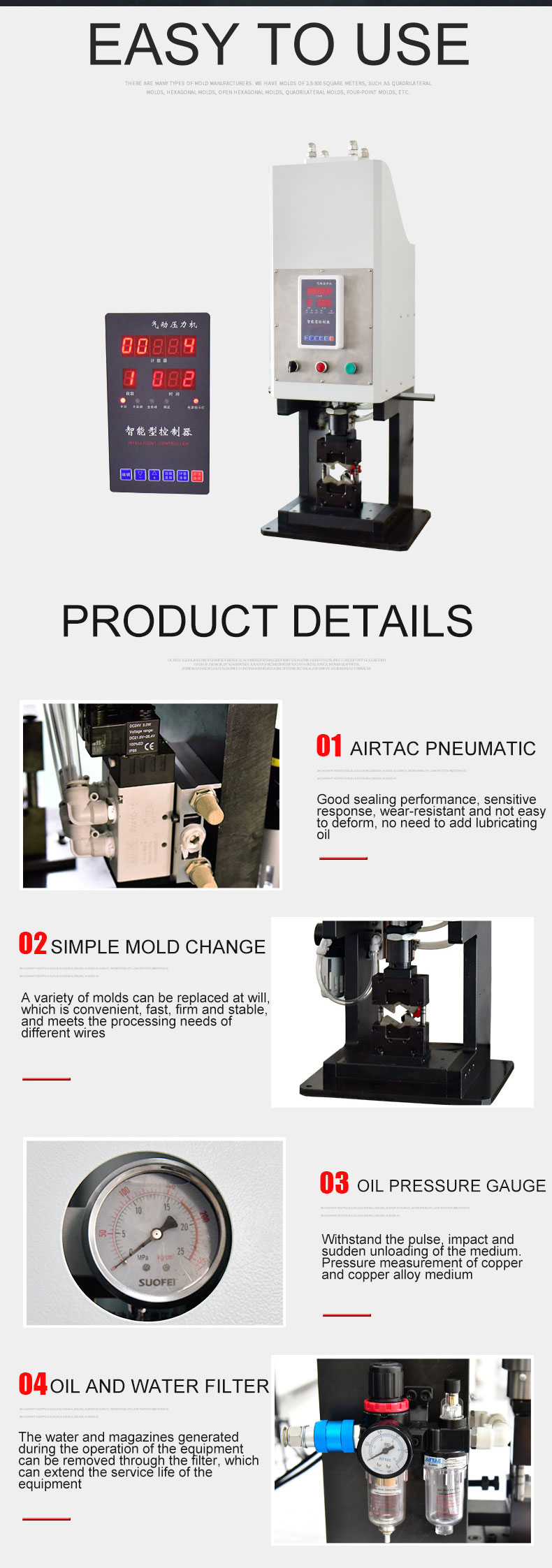

7. Airtac pneumatic: Good sealing performance, sensitive response, wear-resistant and not easy to, deform, no need to add lubricating oil
8. Simple mold change: A variety of molds can be replaced at will, which is convenient, fast, firm and stable, and meets the processing needs of different wires
9. Oil pressure gauge: Withstand the pulse, impact and sudden unloading of the medium. Pressure measurement of copper and copper alloy medium
10. Oil and water filter：
The water and magazines generated during the operation of the equipment can be removed through the filter, which can extend the service life of the equipment
Application；

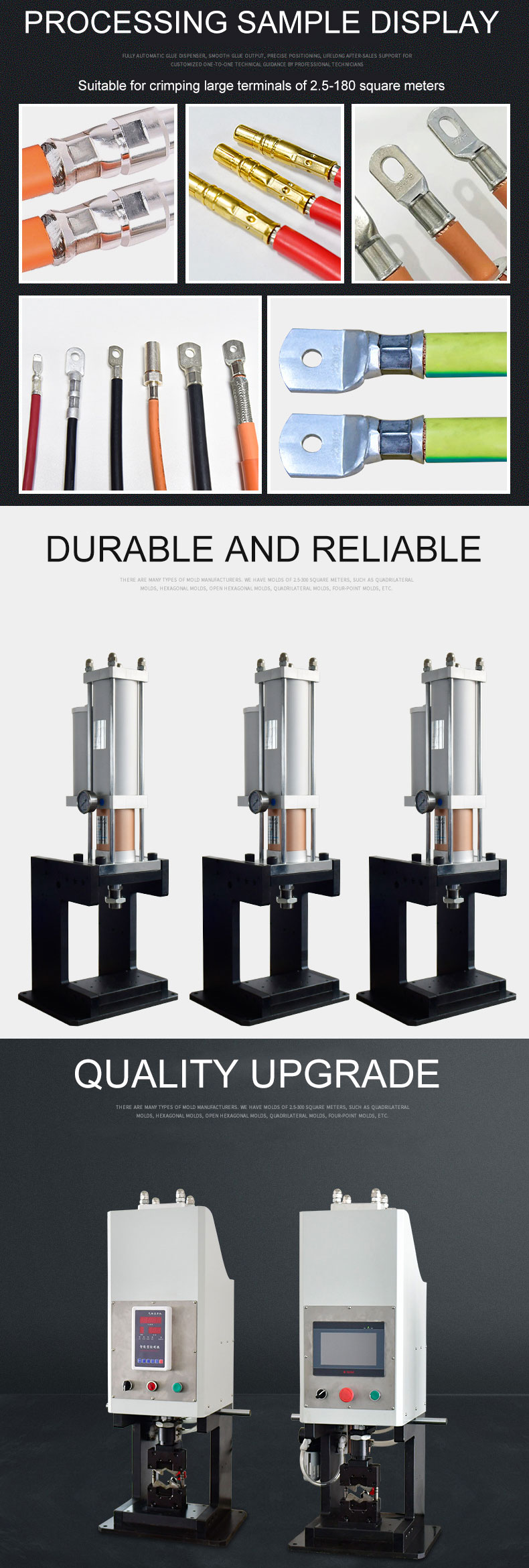

Suitable for crimping large terminals of 2.5-180 square meters

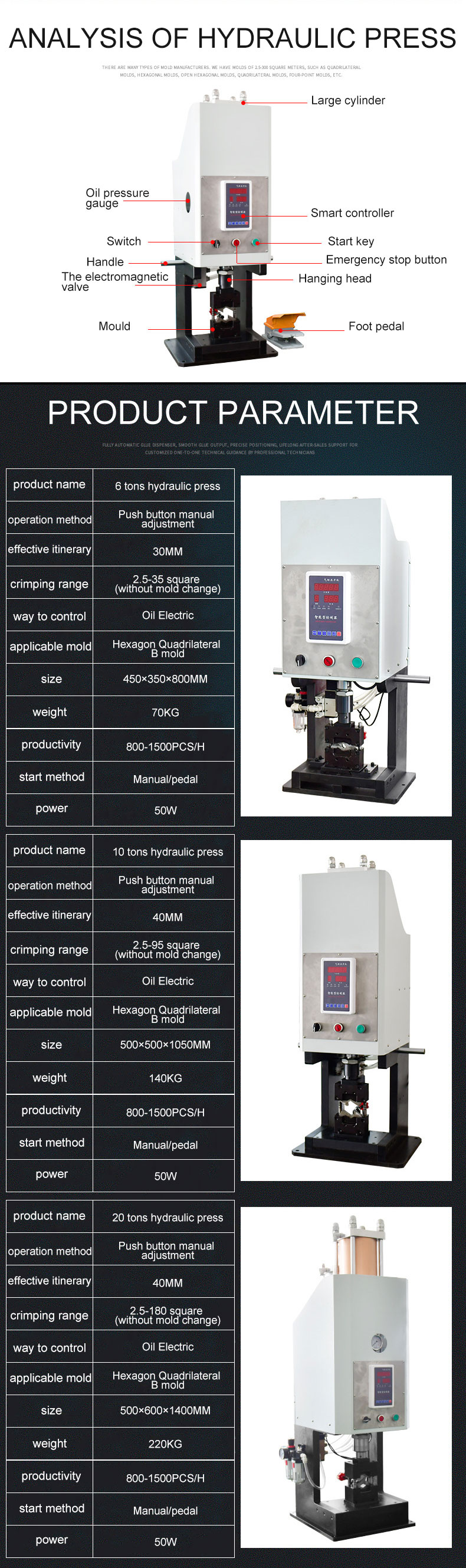

Data sheet:
| product name | 6 tons hydraulic press |
| operation method | Push button manual
adjustment |
| effective itinerary | 30MM |
| crimping range | 2.5-35 square
(without mold change) |
| way to control | Oil Electric |
| applicable mold | Hexagon Quadrilateral
B mold |
| size | 450x350x800MM |
| weight | 70KG |
| productivity | 800- 1500PCS/H |
| start method | Manual/pedal |
| power | 50W |
| product name | 10 tons hydraulic press |
| operation method | Push button manual
adjustment |
| effective itinerary| | 40MM |
| crimping range | 2.5-95 square
(without mold change) |
| way to control | Oil Electric |
| applicable mold | Hexagon Quadrilateral
B mold |
| size | 500x 500x 1050MM |
| weight | 140KG |
| productivity | 800-1500PCS/H |
| start method | Manual/pedal |
| power | 50W |
| product name | 20 tons hydraulic press |
| operation method | Push button manual
adjustment |
| effective itinerary | 40MM |
| crimping range | 2.5- 180 square
(without mold change) |
| way to control | Oil Electric |
| applicable mold | Hexagon Quadrilateral
B mold |
| size | 500x600x 1400MM |
| weight | 220KG |
| productivity | 800- 1500PCS/H |
| start method | Manual/pedal |
| power | 50W |
