3Q machine

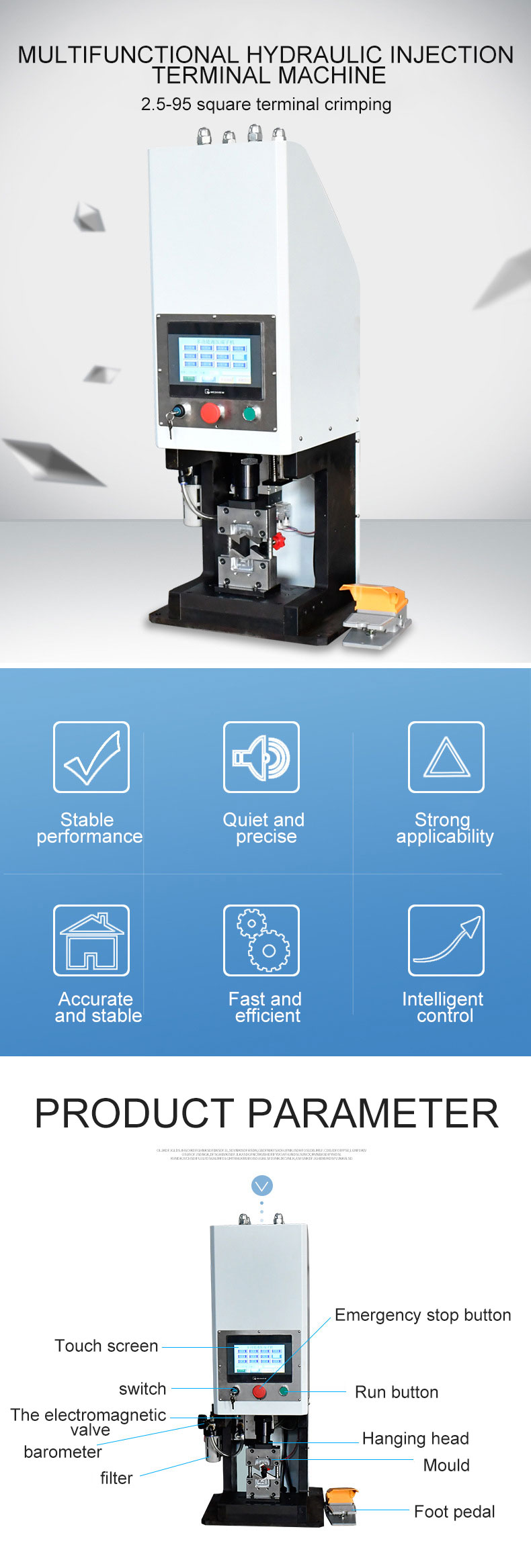

Overview introduction:

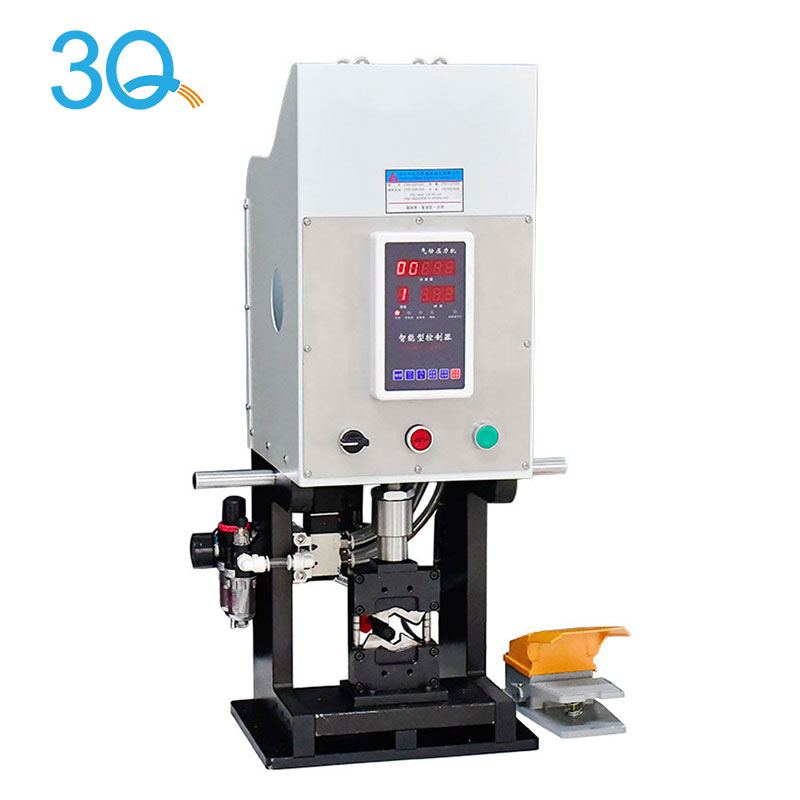

Product name: Multifunctional hydraulic injection terminal machine
Features:
1. 2.5-95 square terminal crimping
2. Stable performance
3. Quiet and precise
4. Strong applicability
5. Accurate and stable
6. Fast and efficient
7. Intelligent control
Several advantages of our hydraulic terminal machine
Let you know more about our equipment
1. Can be matched with various new energy wiring harness crimping dies: B mold, Open hexagonal mold, Hexagonal mold,

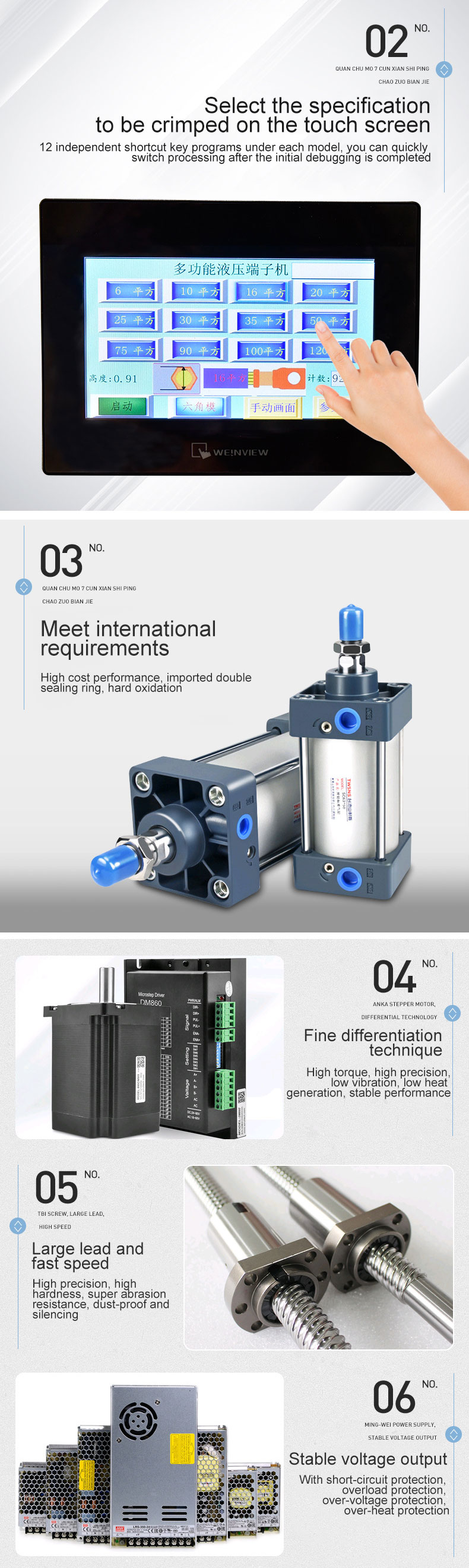

2. Select the specification to be crimped on the touch screen: 12 independent shortcut key programs under each model, you can quickly, switch processing after the initial debugging is completed
3. Meet international requirements: High cost performance, imported double sealing ring, hard oxidation
4. Fine differentiation technique: High torque, high precision, low vibration, low heat generation, stable performance
5. Large lead and fast speed: High precision, high hardness, super abrasion resistance, dust-proof and silencing
6. Stable voltage output: With short-circuit protection, overload protection, over-voltage protection, over-heat protection

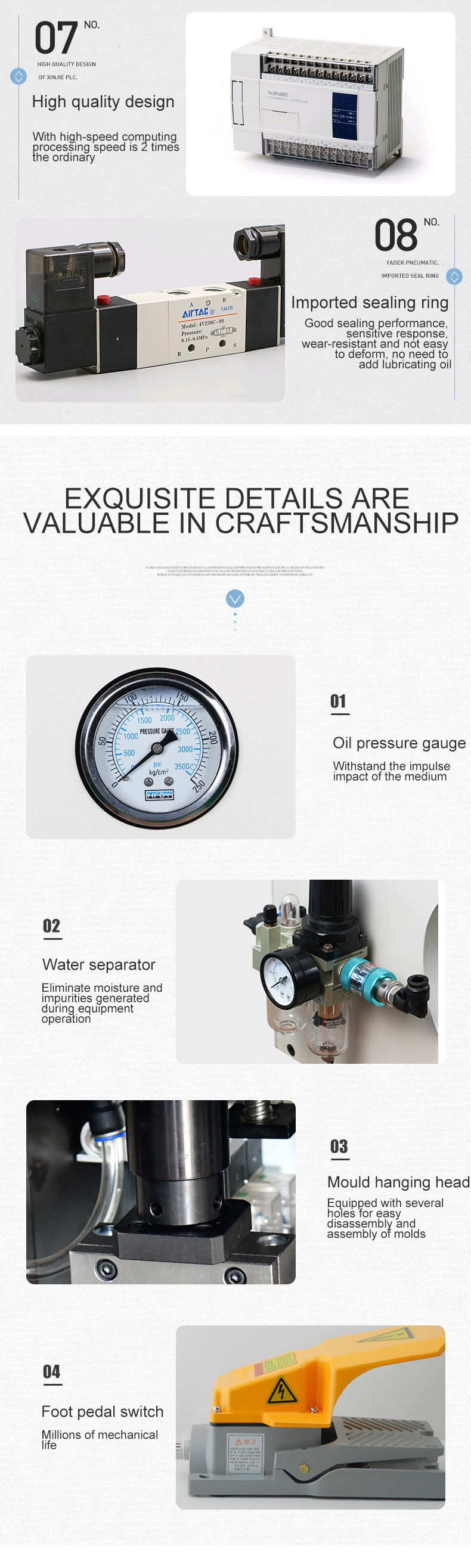

7. High quality design: With high-speed computing processing speed is 2 times the ordinary
8. Imported sealing ring: Good sealing performance, sensitive response, wear-resistant and not easy to deform, no need to add lubricating oil
Exquisite details are valuable in craftsmanship
1. Oil pressure gauge: Withstand the impulse, impact of the medium
2. Water separator: Eliminate moisture and impurities generated during equipment operation
3. Mould hanging head: Equipped with several holes for easy disassembly and assembly of molds
4. Foot pedal switch: Millions of mechanical life

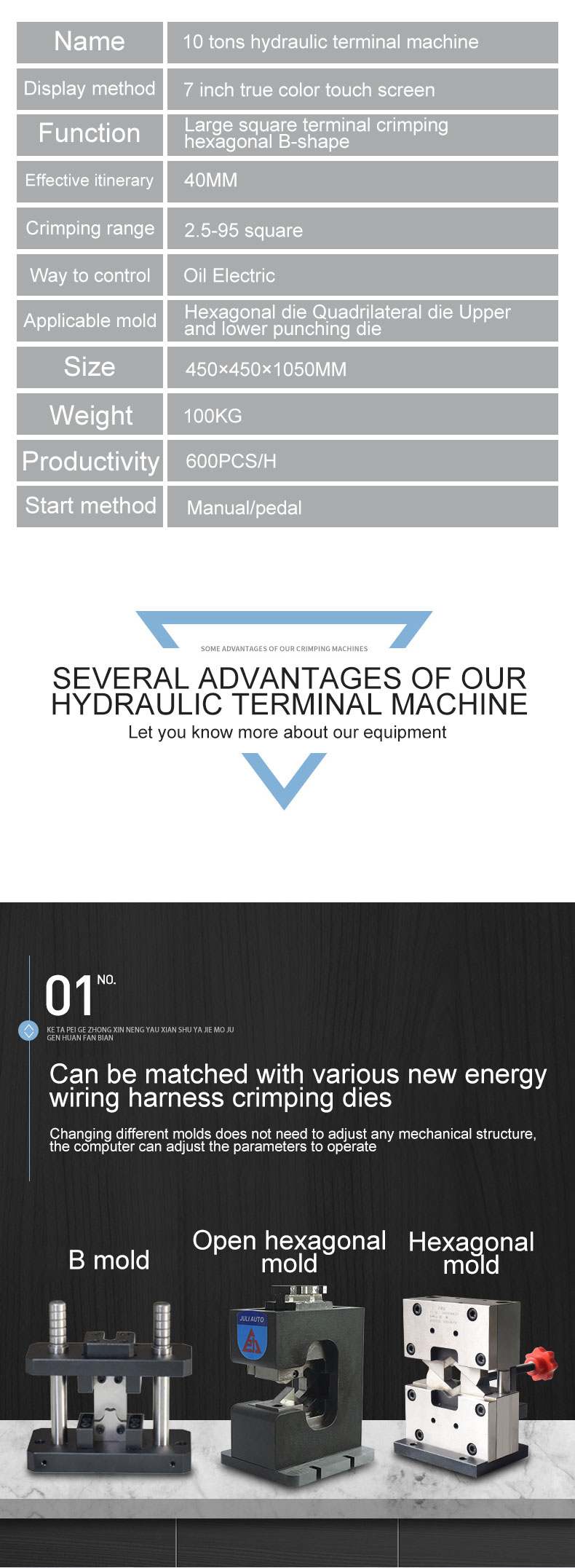

Data sheet:
Name | 10 tons hydraulic terminal machine |
Display method | 7 inch true color touch screen |
Function | Large square terminal crimping hexagonal B-shape |
Effective itinerary | 40MM |
Crimping range | 2.5-95 square |
Way to control | Oil Electric |
Applicable mold | Hexagonal die Quadrilateral die Upper and lower punching die |
Size | 450x450x 1050MM |
Weight | 100KG |
Productivity | 600PCS/H |
Start method | Manual/pedal |
