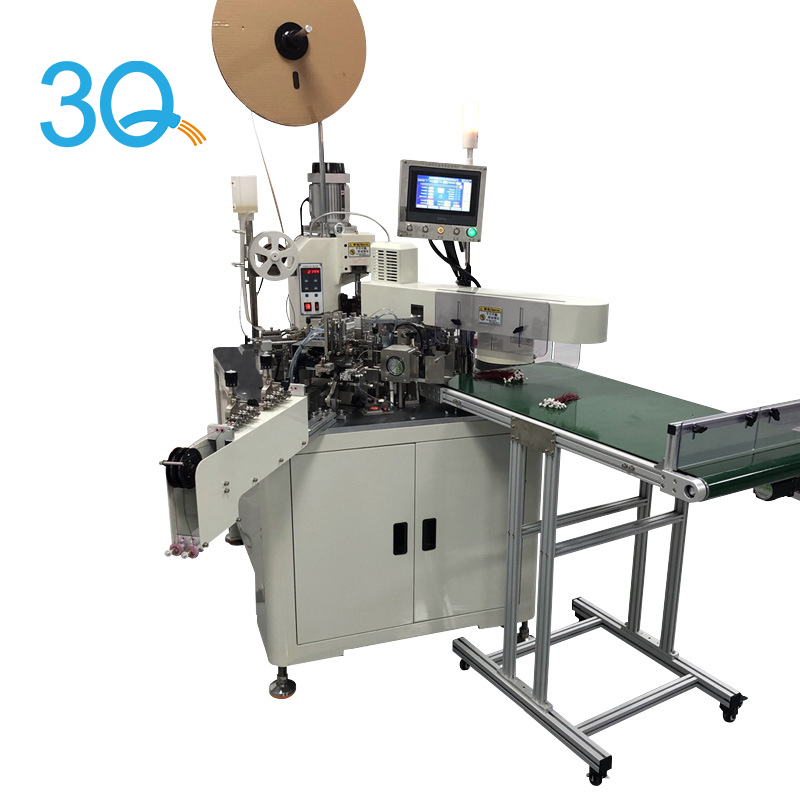

Product name:Fully automatic single head through the shell and dip tin terminal machine.
Leading technology advantage highlight professionalism

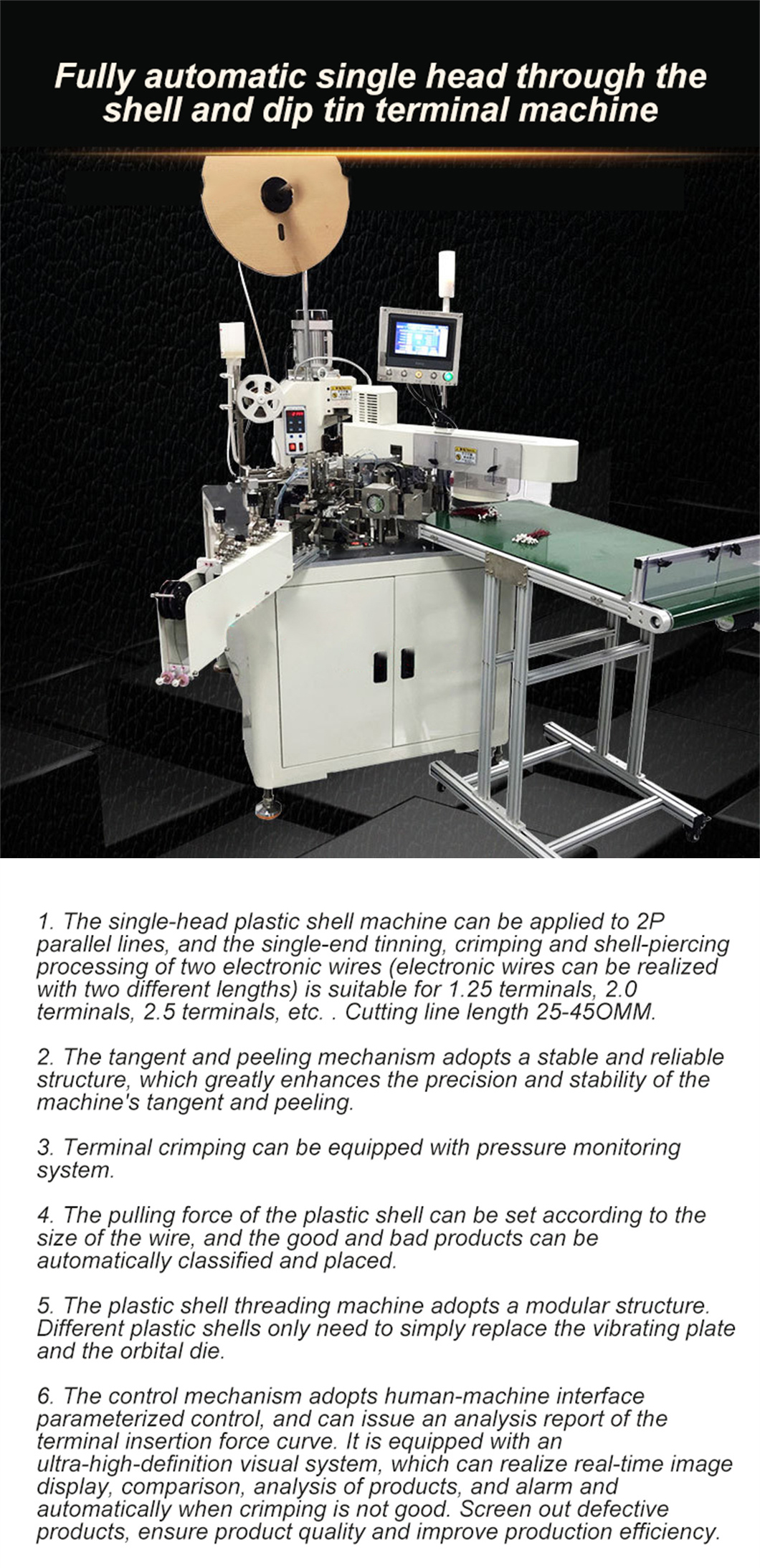

Feature：
1. The single-head plastic shell machine can be applied to 2P. parallel lines, and the single-end tinning, crimping and shell/-piercing processing of two electronic wires (electronic wires can be realized with two different lengths) is suitable for 1. 25 terminals, 2.0 terminals, 2. 5 terminals, etc. . Cutting line length 25- 45OMM.
2. The tangent and peeling mechanism adopts a stable and reliable structure, which greatly enhances the precision and stability of the machine's tangent and peeling.
3. Terminal crimping can be equipped with pressure monitoring system.
4. The pulling force of the plastic shell can be set according to the size of the wire, and the good and bad products can be automatically classified and placed.
5. The plastic shell threading machine adopts a modular structure.Different plastic shells only need to simply replace the vibrating plate and the orbital die.
6. The control mechanism adopts human-machine interface parameterized control, and can issue an analysis report of the terminal insertion force curve. It is equipped with an ultra-high-definition visual system, which can realize real-time image display, comparison, analysis of products, and alarm and automatically when crimping is not good. Screen out defective products, ensure product quality and improve production efficiency.
Advantage:
1. Pressure detection
2. Touch screen operation
3. Smart operation
4. Quiet power saving
Detail:

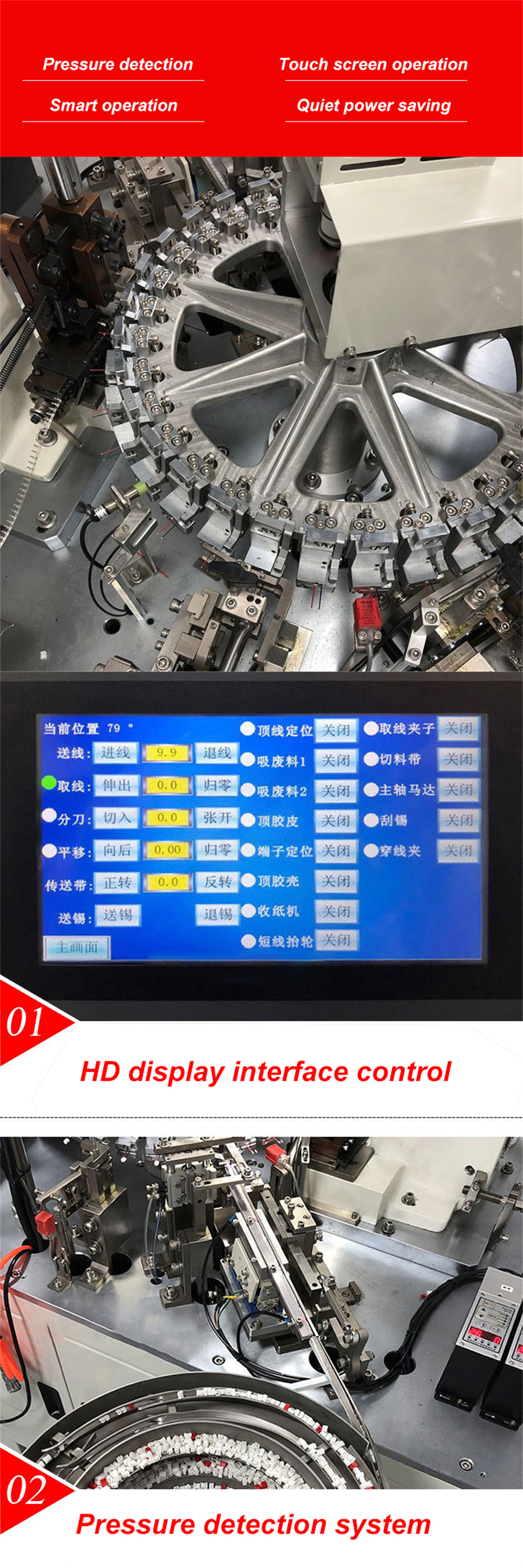

1. HD display interface control
2. Pressure detection system

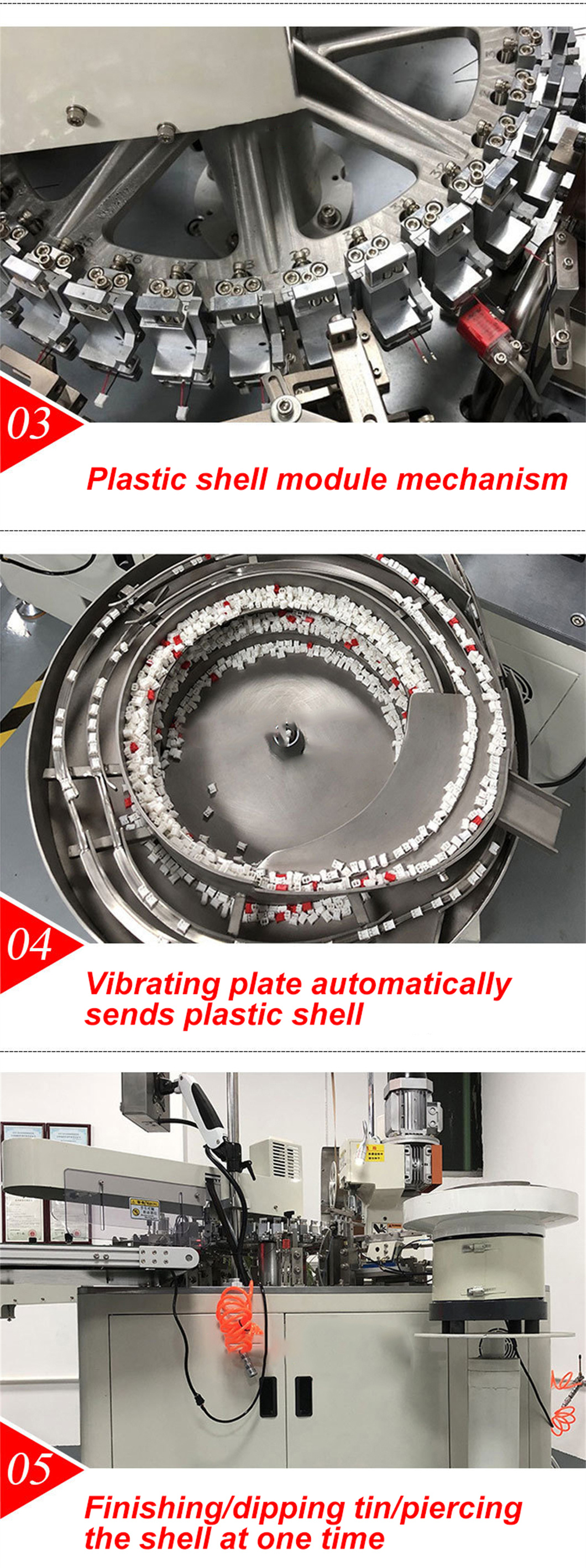

3. Plastic shell module mechanism
4. Vibrating plate automatically sends plastic shell.
5. Finishing/dipping tin/piercing the shell at one time

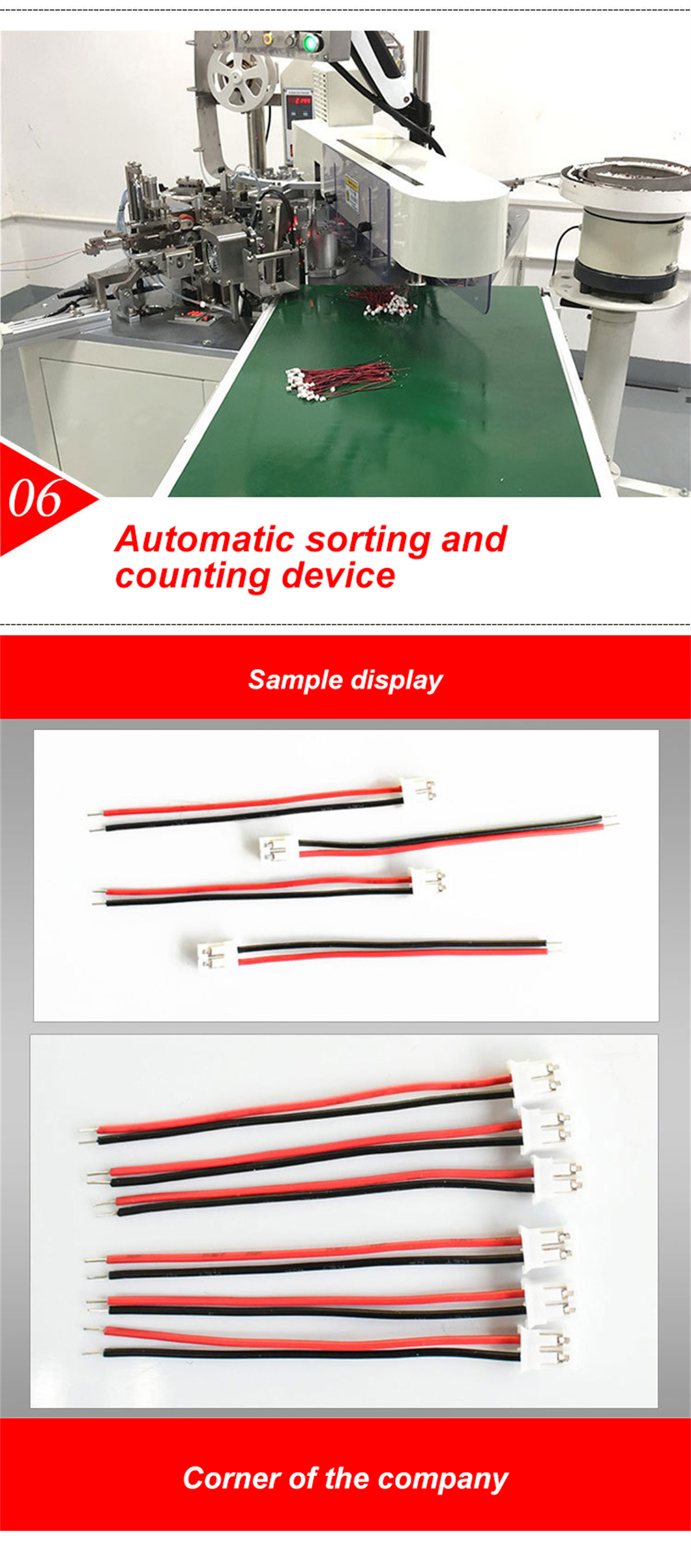

6. Automatic sorting and counting device

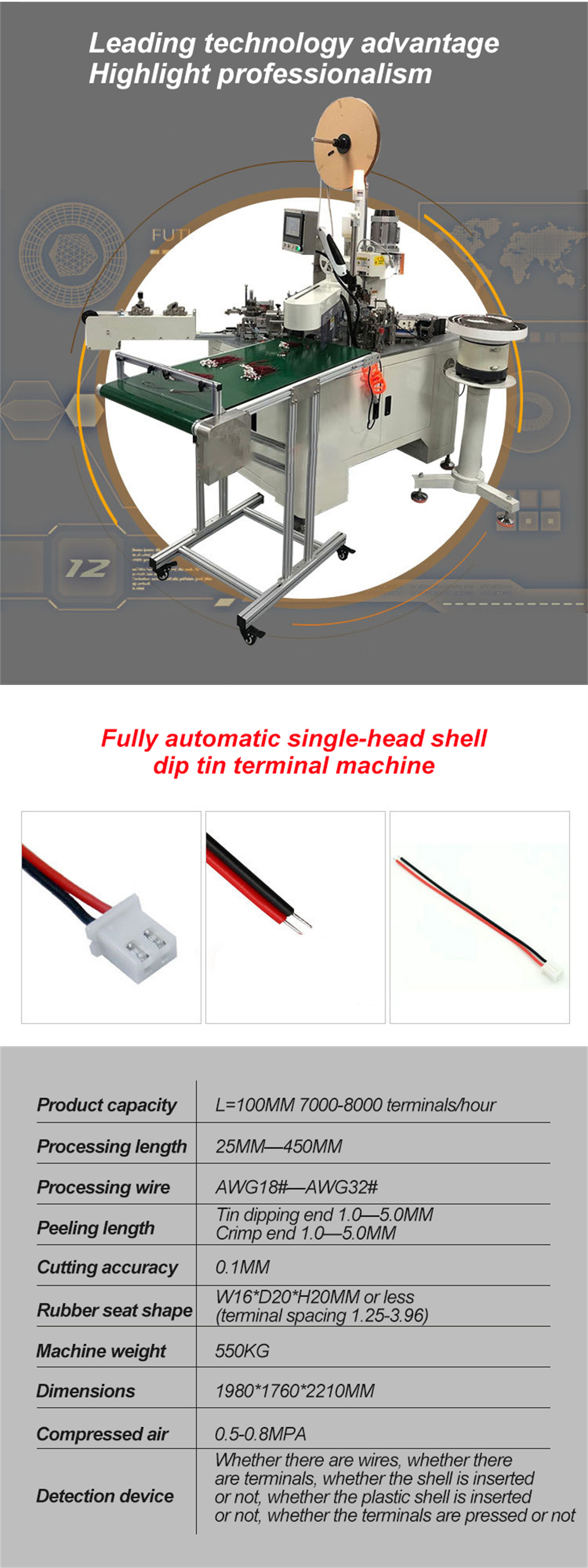

Data sheet:
| Product capacity | L=100MM 7000-8000 teminalshour |
| Processing length | 25MM- 450MM |
| Processing wire | AWG18# -AWG32# |
| Peeling length | Tin dipping end 1.0- -5.OMM Crimp end 1.0- 5 OMM |
| Cutting accuracy | 0.1MM |
| Rubber seat shape | W16*D20*H20MM or less
(terminal spacing 1.25-3.96) |
| Machine weight | 550KG |
| Dimensions | 1980*1760*2210MM |
| Compressed air | 0.5-0. 8MPA |
| Detection device | Whether there are wires, whether there are terminals, whether the shell is inserted or not, whether the plastic shell is inserted or not, whether the terminals are pressed or not |
