Double Wire Crimping Knives Set
Home » Products » Machine Mold & Blade & Accessories » Double Wire Crimping Knives Set

Double Wire Crimping Knives Set

Availability:
Quantity:
  • 3Q machine

详情_01详情_02详情_03详情_04详情_05详情_06

Overview introduction


Product name: Loose terminals copper terminals cold press connector blades spade terminal crimp knives for applicator


Cold pressed single grain Terminal machine blade

DC terminal stripping machine blade

Special blade for terminal machine


Features

1. Riveting 500,000 times

2. Spot seconds

3. Ten days break and return

4. Four major advantages trustworthy

5. High quality and low price, are you impressed?

6. Imported steel

7. Durable

8. Support customization

9. Ten days return

10. Selected high-quality DC53 steel: High quality DC53 steel Select high-quality DC53 steel, each piece of steel will be strictly tested before processing to ensure the quality of the steel

11. American Niton

12. Spectrometer

13. Testing material


Combination packages

Horizontal die blade set

Straight mold blade set

860 mold blade set


Customized Notice

How to get your terminal crimping blade die?


Method 1

Please advise us your used blade's size, upper and down blades, inner and outter as picture red one


Method 2

Please send us your terminal drawing pictures with data, or you can meansurement it. We perfer to receive the drawing pictures for high accuracy considered. Thanks.


Method 3

Please delivery 10-20 pcs terminals samples to us. If you have terminal supplier in China, you can

ask them delivery to our factory directly. Thanks.


36 processes Strictly control every process


Vacuum quenching process

The oxidation and decarburization of the heated blade surface are completely eliminated, and a clean surface without deteriorating layer can be obtained. At the same time, it has a great influence on the improvement of the cutting performance of the tool. No pollution to the environment, no need to deal with the three wastes.


36 working procedures

Under the condition of vacuum quenching heat treatment, the retained austenite is almost completely decomposed, which can eliminate surface oxidation and decarburization to achieve a clean surface without deterioration layer, and maintain high toughness under strong hardness.


A large amount of spot supply

High precision, quality assurance, support custom-made, factory direct sales


Processing semi-finished products

Finished product

Raw materials


Data Sheet

Other specifications blade
Please refer to tne following table for dimensions
Product nameUpper inner knifeLower inner knifeUpper outer knifeOutside knife
0.80. 7*0. 60. 8*0.60. 8*0. 60. 8*0.6
SH1.01.0*0. 71.1*0.71.2*0. 751. 2*0. 75
1.251.0*0. 81.1*0. 81.2*0. 91.2*0. 9
ZH1.51. 0*1.01.1*1.01. 2*1.11.2*1.!
PH2.01.5*1. 31.6*1. 31.5*1. 51. 5*1. 5
XH2. 54 (C3)1. 5*1. 51.6*1. 51.8*1. 81.8*1. 8
25102.1*1.52. 2*1.52. 6*1. 72. 6*1.7
DuPont 2.01.2*1. 21.3*1. 21.4*1. 41.4*1. 4
DuPont 2. 542. 5*1.42. 6*1. 42. 6*1. 6R2. 6*1.6
VH3. 962. 2*2. 22. 3*2. 22. 4*2. 82. 4*2.8
CH3. 962. 2*2. 22. 3*2. 23. 2*2. 6R3. 2*2.6
55562. 0*1.52.1*1.52. 6*2. 02. 6*2. 0

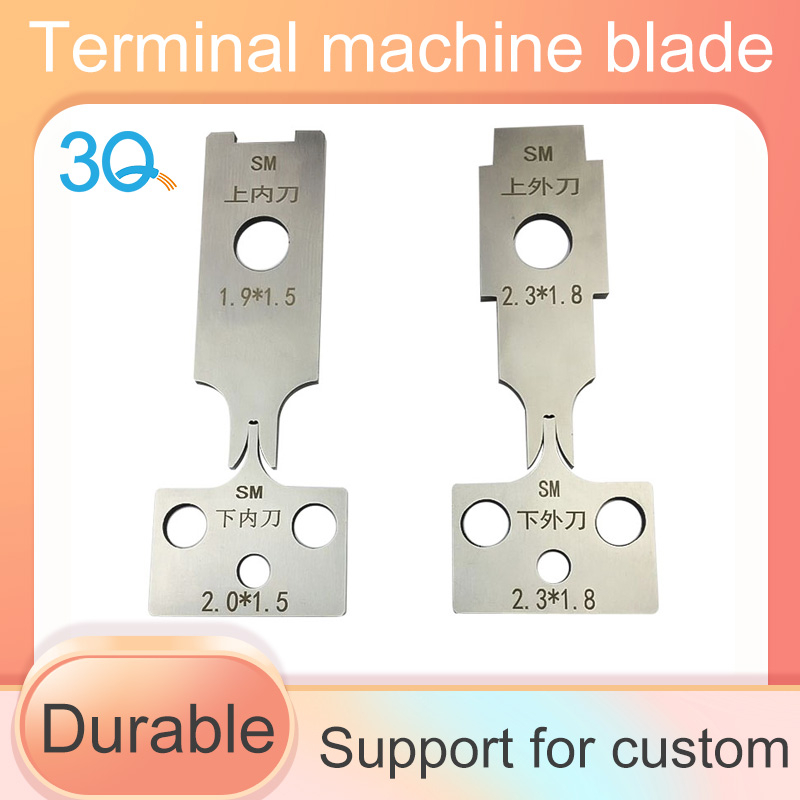

SM male and female, terminals shared1.9*1. 62. 0*1.62. 3*1. 82. 3*1.8
5557/55592. 0*1.82.1*1.82. 3*2. 22. 3*2. 2
2. 8 Male3. 5*2. 83. 6*2. 83. 5*2.63. 7*2.6
2. 8 Famale3. 8*2. 24. 0*2.23. 2*3. 23. 2*3. 2
YL4. 52. 0*2. 22.1*2. 22. 8*2. 82. 8*2. 8
52641. 5*1.51. 6*1. 52. 0*1. 82. 0*1.8
EL4.52. 0*2.22.1*2.22. 7*2.52. 7*2.5
MX1.20. 7*0. 70. 8*0. 70. 65*0. 750. 65*0. 75
MX1. 51. 0*1.01.1*1.01. 6*1.11. 6*1.1
MX2. 01.2*1. 31.3*1. 31.4*1. 41.4*1. 4
MX3. 0 (小5557)2. 0*1.52.1*1.51.8*1. 81.8*1. 8
L6. 23. 2*3. 03. 3*3. 03. 0*3. 53. 0*3. 5
小4P2. 3*1.52. 4*1.52. 7*1. 82. 7*1. 8
大4P2. 3*2. 02. 4*2. 03. 0*2.43. 0*2. 4
5195/51942. 0*2. 02.1*2. 03. 2*2. 53. 2*2. 5
3. 2U type3. 0*2. 63. 2*2. 63. 5*3. 03. 5*3. 0
4. 2U type3. 5*2. 83. 7+2. 84. 0*3. 04. 0*3. 0
Fuse box terminal2. 5*2. 42. 6*2.43. 2*2. 63. 2*2.6
EH2. 51. 5*1. 31. 6*1. 31. 5*1.61. 5*1. 6
4. 8 Insert spring3. 5*2. 83. 6*2.83. 8*3. 43. 8*3. 4
6. 3 Insert spring/plug4. 0*3. 04.1*3. 04. 0*3. 44. 0*3. 4
JC15 90°1.5*0. 9*1.01. 6*1.01.5*0. 8*1.11. 5*1.1
JC20 90°1. 3*1. 0*1. 31.4*1. 32. 5*1.1*1. 52. 5*1.5
JC25 90°1.5*1. 2*1. 51.6*1. 52. 7*1. 2*1. 82. 7*1.8
51005/510061.2*1. 21.3*1. 21. 4*1. 41.4*1. 4
3191 Terminal pitch6. 73. 0*2. 53.1*2.53. 2*3. 03. 2*3. 0
SZN1.1*1. 21.2*1. 21. 4*1.41. 4*1. 4
