3Q machine
Overview introduction

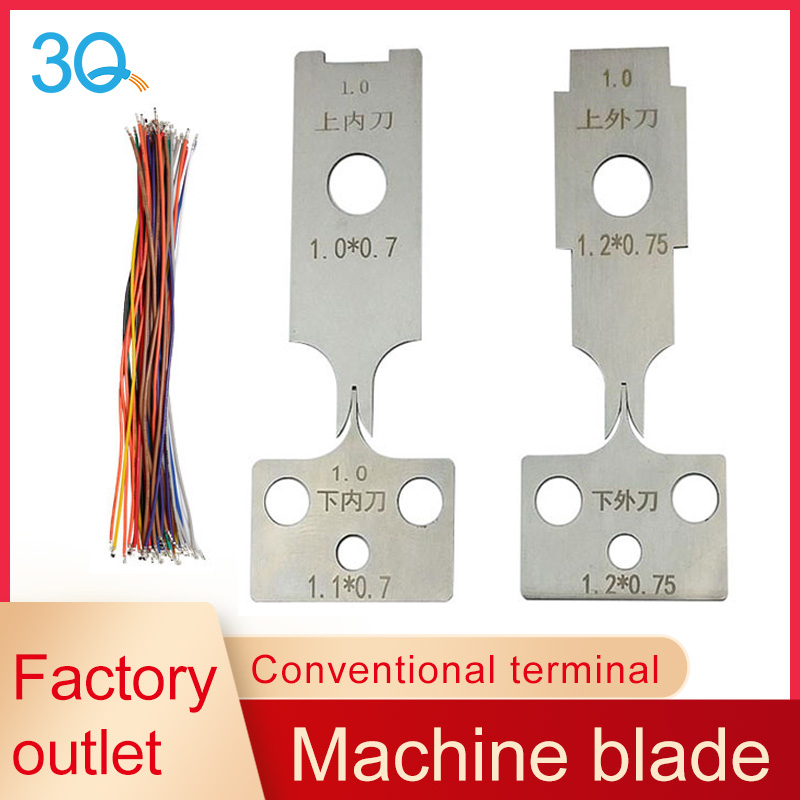

Product name: Loose terminals copper terminals cold press connector blades spade terminal crimp knives for applicator
Cold pressed single grain Terminal machine blade
DC terminal stripping machine blade
Special blade for terminal machine
Features
1. Riveting 500,000 times
2. Spot seconds
3. Ten days break and return
4. Four major advantages trustworthy
5. High quality and low price, are you impressed?
6. Imported steel
7. Durable
8. Support customization
9. Ten days return
10. Selected high-quality DC53 steel: High quality DC53 steel Select high-quality DC53 steel, each piece of steel will be strictly tested before processing to ensure the quality of the steel
11. American Niton
12. Spectrometer
13. Testing material
Combination packages
Horizontal die blade set
Straight mold blade set
860 mold blade set
Customized Notice
How to get your terminal crimping blade die?
Method 1
Please advise us your used blade's size, upper and down blades, inner and outter as picture red one
Method 2
Please send us your terminal drawing pictures with data, or you can meansurement it. We perfer to receive the drawing pictures for high accuracy considered. Thanks.
Method 3
Please delivery 10-20 pcs terminals samples to us. If you have terminal supplier in China, you can
ask them delivery to our factory directly. Thanks.
36 processes Strictly control every process
Vacuum quenching process
The oxidation and decarburization of the heated blade surface are completely eliminated, and a clean surface without deteriorating layer can be obtained. At the same time, it has a great influence on the improvement of the cutting performance of the tool. No pollution to the environment, no need to deal with the three wastes.
36 working procedures
Under the condition of vacuum quenching heat treatment, the retained austenite is almost completely decomposed, which can eliminate surface oxidation and decarburization to achieve a clean surface without deterioration layer, and maintain high toughness under strong hardness.
A large amount of spot supply
High precision, quality assurance, support custom-made, factory direct sales
Processing semi-finished products
Finished product
Raw materials
Data Sheet
| Other specifications blade Please refer to tne following table for dimensions | ||||
| Product name | Upper inner knife | Lower inner knife | Upper outer knife | Outside knife |
| 0.8 | 0. 7*0. 6 | 0. 8*0.6 | 0. 8*0. 6 | 0. 8*0.6 |
| SH1.0 | 1.0*0. 7 | 1.1*0.7 | 1.2*0. 75 | 1. 2*0. 75 |
| 1.25 | 1.0*0. 8 | 1.1*0. 8 | 1.2*0. 9 | 1.2*0. 9 |
| ZH1.5 | 1. 0*1.0 | 1.1*1.0 | 1. 2*1.1 | 1.2*1.! |
| PH2.0 | 1.5*1. 3 | 1.6*1. 3 | 1.5*1. 5 | 1. 5*1. 5 |
| XH2. 54 (C3) | 1. 5*1. 5 | 1.6*1. 5 | 1.8*1. 8 | 1.8*1. 8 |
| 2510 | 2.1*1.5 | 2. 2*1.5 | 2. 6*1. 7 | 2. 6*1.7 |
| DuPont 2.0 | 1.2*1. 2 | 1.3*1. 2 | 1.4*1. 4 | 1.4*1. 4 |
| DuPont 2. 54 | 2. 5*1.4 | 2. 6*1. 4 | 2. 6*1. 6R | 2. 6*1.6 |
| VH3. 96 | 2. 2*2. 2 | 2. 3*2. 2 | 2. 4*2. 8 | 2. 4*2.8 |
| CH3. 96 | 2. 2*2. 2 | 2. 3*2. 2 | 3. 2*2. 6R | 3. 2*2.6 |
| 5556 | 2. 0*1.5 | 2.1*1.5 | 2. 6*2. 0 | 2. 6*2. 0 |
| SM male and female, terminals shared | 1.9*1. 6 | 2. 0*1.6 | 2. 3*1. 8 | 2. 3*1.8 |
| 5557/5559 | 2. 0*1.8 | 2.1*1.8 | 2. 3*2. 2 | 2. 3*2. 2 |
| 2. 8 Male | 3. 5*2. 8 | 3. 6*2. 8 | 3. 5*2.6 | 3. 7*2.6 |
| 2. 8 Famale | 3. 8*2. 2 | 4. 0*2.2 | 3. 2*3. 2 | 3. 2*3. 2 |
| YL4. 5 | 2. 0*2. 2 | 2.1*2. 2 | 2. 8*2. 8 | 2. 8*2. 8 |
| 5264 | 1. 5*1.5 | 1. 6*1. 5 | 2. 0*1. 8 | 2. 0*1.8 |
| EL4.5 | 2. 0*2.2 | 2.1*2.2 | 2. 7*2.5 | 2. 7*2.5 |
| MX1.2 | 0. 7*0. 7 | 0. 8*0. 7 | 0. 65*0. 75 | 0. 65*0. 75 |
| MX1. 5 | 1. 0*1.0 | 1.1*1.0 | 1. 6*1.1 | 1. 6*1.1 |
| MX2. 0 | 1.2*1. 3 | 1.3*1. 3 | 1.4*1. 4 | 1.4*1. 4 |
| MX3. 0 (小5557) | 2. 0*1.5 | 2.1*1.5 | 1.8*1. 8 | 1.8*1. 8 |
| L6. 2 | 3. 2*3. 0 | 3. 3*3. 0 | 3. 0*3. 5 | 3. 0*3. 5 |
| 小4P | 2. 3*1.5 | 2. 4*1.5 | 2. 7*1. 8 | 2. 7*1. 8 |
| 大4P | 2. 3*2. 0 | 2. 4*2. 0 | 3. 0*2.4 | 3. 0*2. 4 |
| 5195/5194 | 2. 0*2. 0 | 2.1*2. 0 | 3. 2*2. 5 | 3. 2*2. 5 |
| 3. 2U type | 3. 0*2. 6 | 3. 2*2. 6 | 3. 5*3. 0 | 3. 5*3. 0 |
| 4. 2U type | 3. 5*2. 8 | 3. 7+2. 8 | 4. 0*3. 0 | 4. 0*3. 0 |
| Fuse box terminal | 2. 5*2. 4 | 2. 6*2.4 | 3. 2*2. 6 | 3. 2*2.6 |
| EH2. 5 | 1. 5*1. 3 | 1. 6*1. 3 | 1. 5*1.6 | 1. 5*1. 6 |
| 4. 8 Insert spring | 3. 5*2. 8 | 3. 6*2.8 | 3. 8*3. 4 | 3. 8*3. 4 |
| 6. 3 Insert spring/plug | 4. 0*3. 0 | 4.1*3. 0 | 4. 0*3. 4 | 4. 0*3. 4 |
| JC15 90° | 1.5*0. 9*1.0 | 1. 6*1.0 | 1.5*0. 8*1.1 | 1. 5*1.1 |
| JC20 90° | 1. 3*1. 0*1. 3 | 1.4*1. 3 | 2. 5*1.1*1. 5 | 2. 5*1.5 |
| JC25 90° | 1.5*1. 2*1. 5 | 1.6*1. 5 | 2. 7*1. 2*1. 8 | 2. 7*1.8 |
| 51005/51006 | 1.2*1. 2 | 1.3*1. 2 | 1. 4*1. 4 | 1.4*1. 4 |
| 3191 Terminal pitch6. 7 | 3. 0*2. 5 | 3.1*2.5 | 3. 2*3. 0 | 3. 2*3. 0 |
| SZN | 1.1*1. 2 | 1.2*1. 2 | 1. 4*1.4 | 1. 4*1. 4 |
