3Q machine
Overview introduction

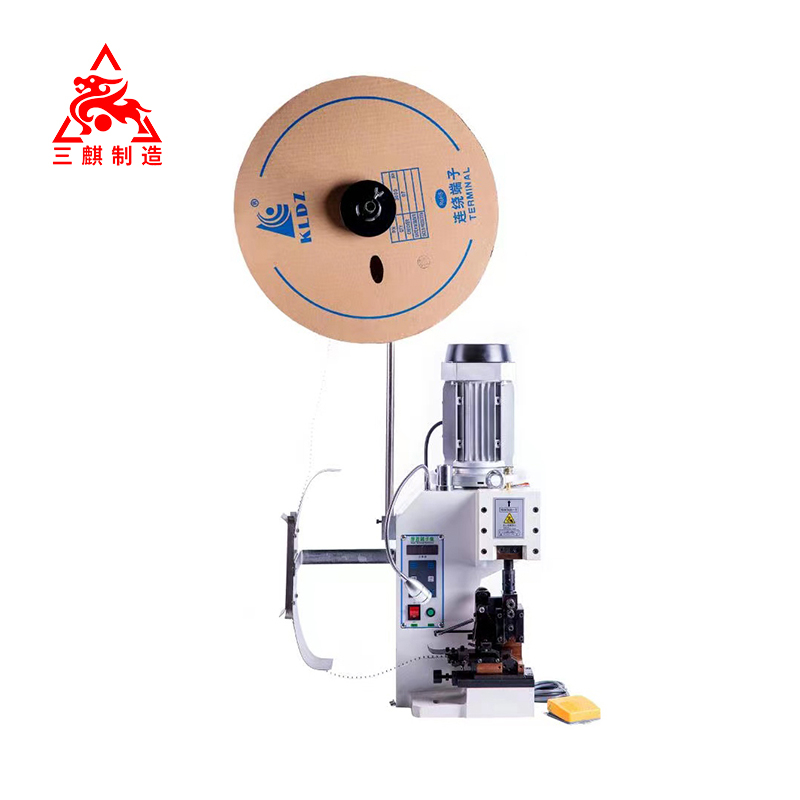

Product name: wire stripping and crimping machine
High quality material pressing precision presentation

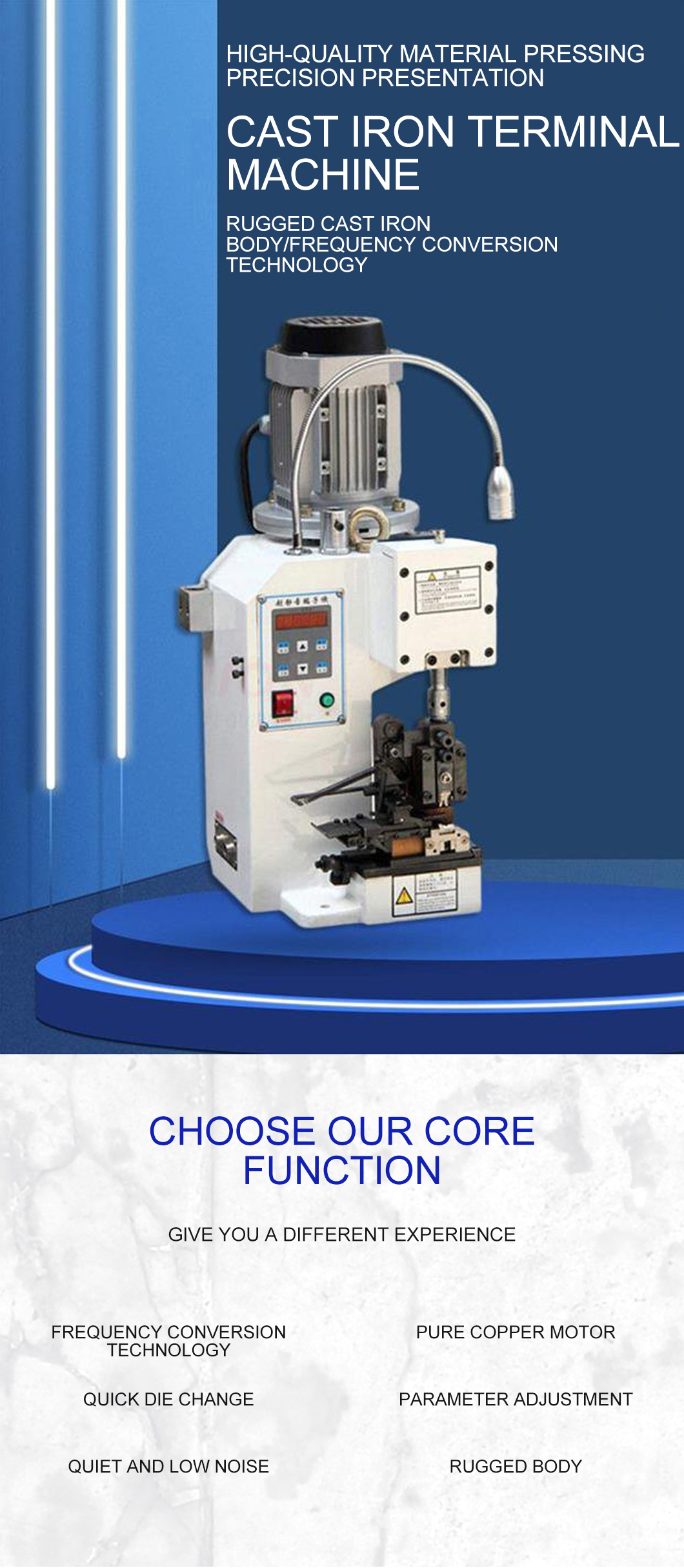

Cast iron terminal machine
Rugged cast iron body/frequency conversation technology
Features
Choose our core function
Give you a different experience
Frequency conversation technology
Quick die change
Quiet and low noise
Pure copper motor
Parameter adjustment rugged body
Product technical features
The com[any wins customers by quality and wins the market by reputation
Product details
1. Control panel: The buttons are arranged neatly, the adjustment is convenient, the
high-definition digital display, with the counting function, the output is clear at a glance
2. Copper stepper motor: Using copper motor, the current is smoother, the heat generation is low, the performance is stable, and the power is strong
3. LED Lighting: The LED lighting lamp is energy-saving and power-saving, has a long service life, is clear and does not dazzle the eyes, and is convenient to debug the mold
4. cast mold: The replacement is simple and convenient, and a variety of molds can be replaced at any time, which is firm and stable to meet different work needs

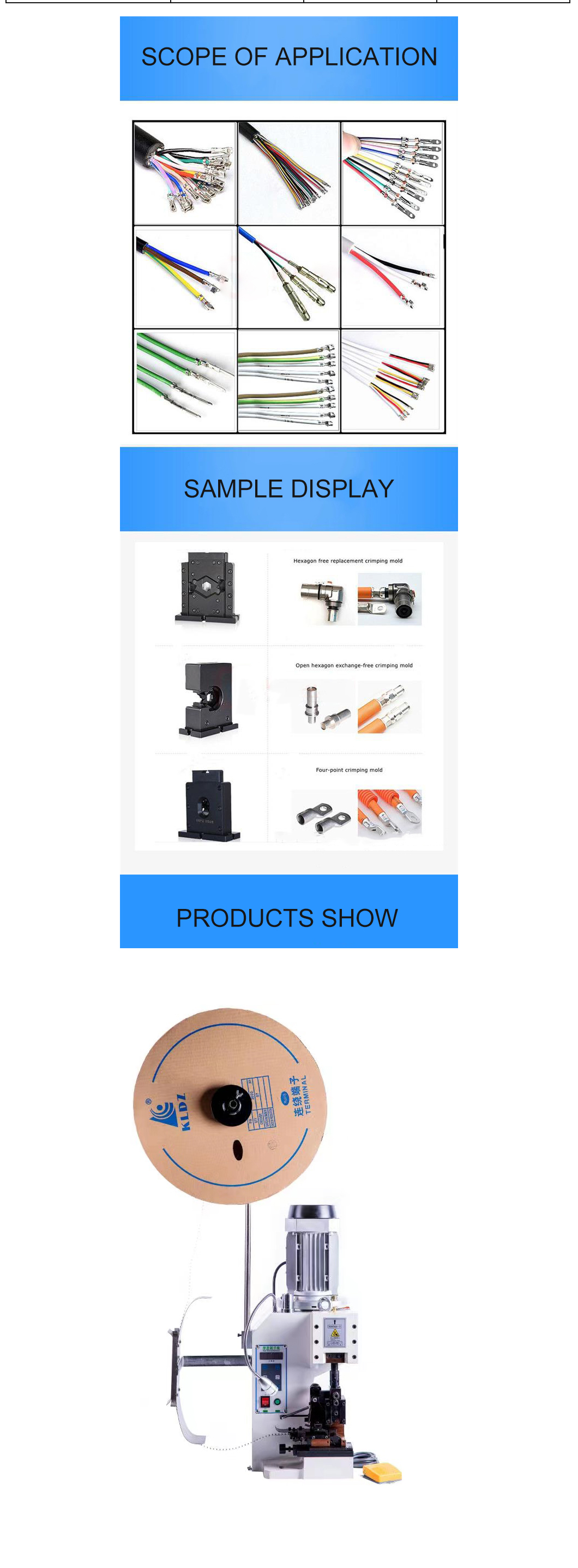

Application
Hexagon free replacement crimping mold
Open hexagon exchange-free crimping mold
Four- point crimping mold
Data Sheet:
Crimping ability | 20KN | 30KN | 40KN |
Journey | 30MM | 30MM | 30MM |
Work efficiency | About 3000 times/hour(Depending on proficiency) | About 3000 times/hour (Depending on proficiency) | About 3000 times/hour (Depending on proficiency) |
Applicable wire | Within 10 square | Within 16 square | Within 25 square |
Adjusting force | 1-50 | 1-50 | 1-50 |
Crimping speed | 40-80MM | 40-80MM | 40-80MM |
Power supply | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz |
Power | About 0.75KW | About 1.1 KW | About 1.5KW |
Net weight of bare metal | About 70kg | About 70kg | About 75kg |
Dimensions | 320X330X680mm | 320X330X680mm | 320X330X730mm |
