3Q machine
Overview introduction

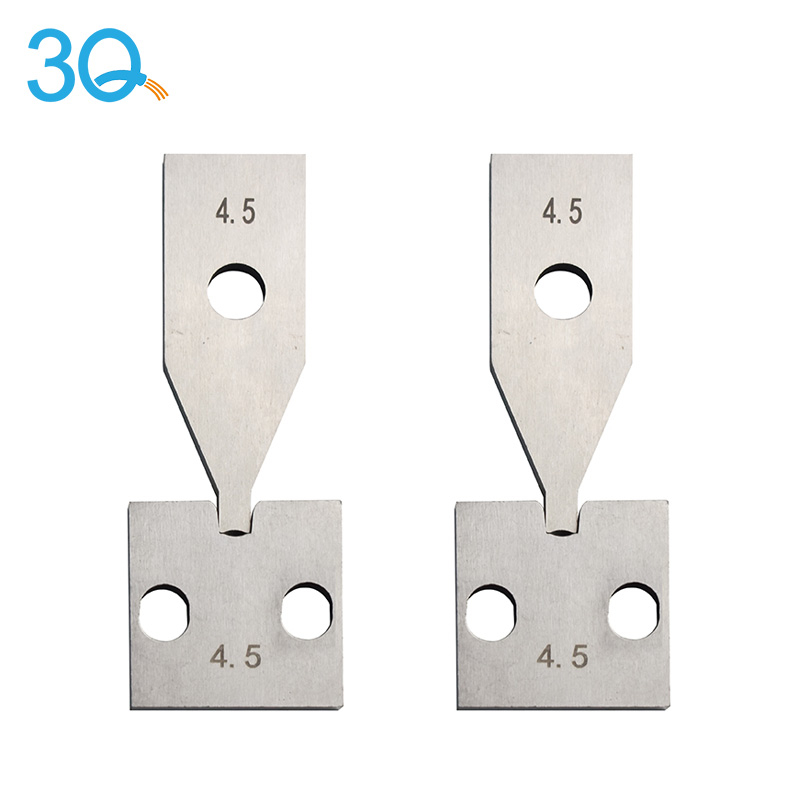

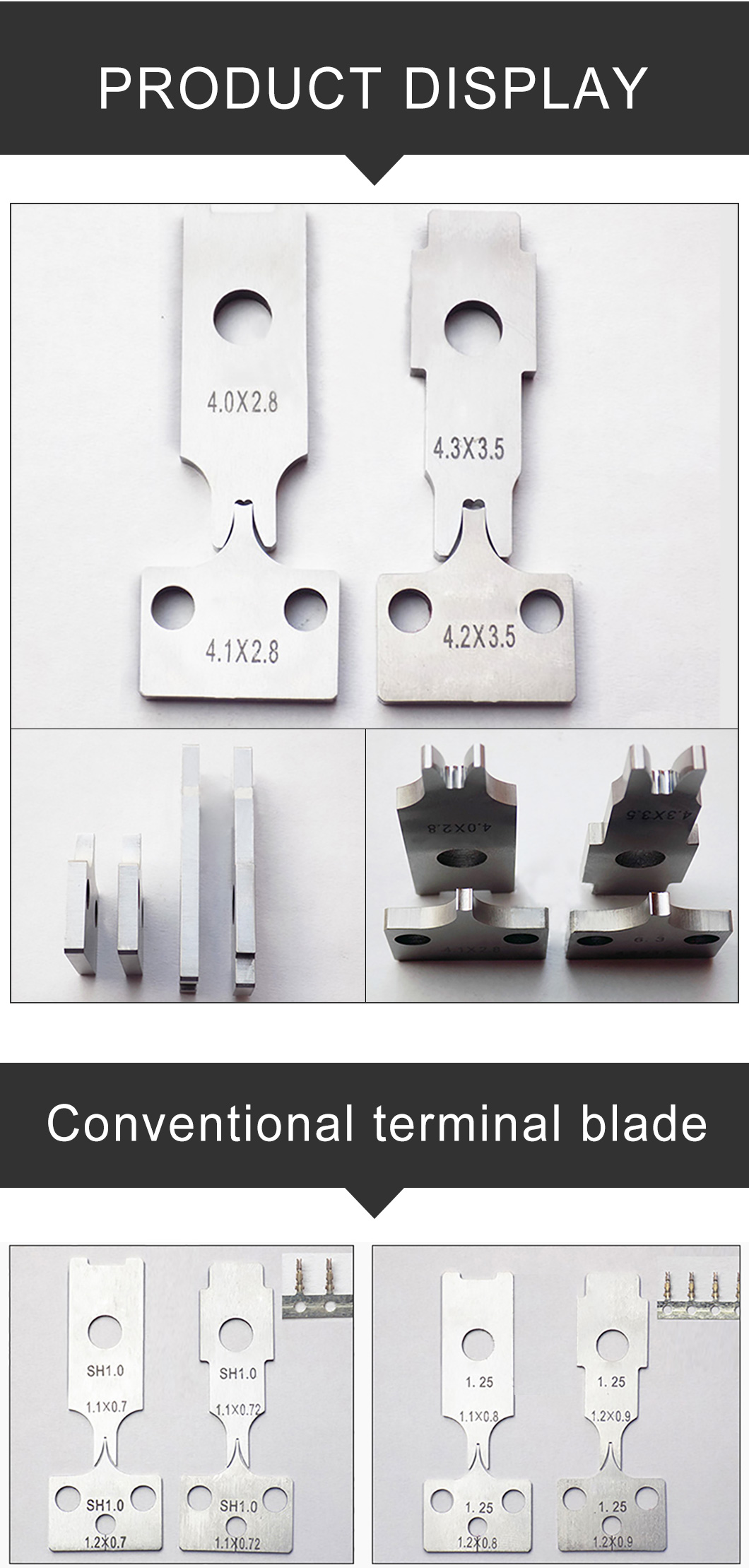

Product name: OTP terminal blade
Support custom, factory direct sale
Product features
1. Customizable
2. Durable
3. Strong
4. High quality
5. High quality DC503 steel: Select high-quality raw materials, every piece of steel we will strictly test.
6. Testing standard: The blade reaches the standard by spectrograph.

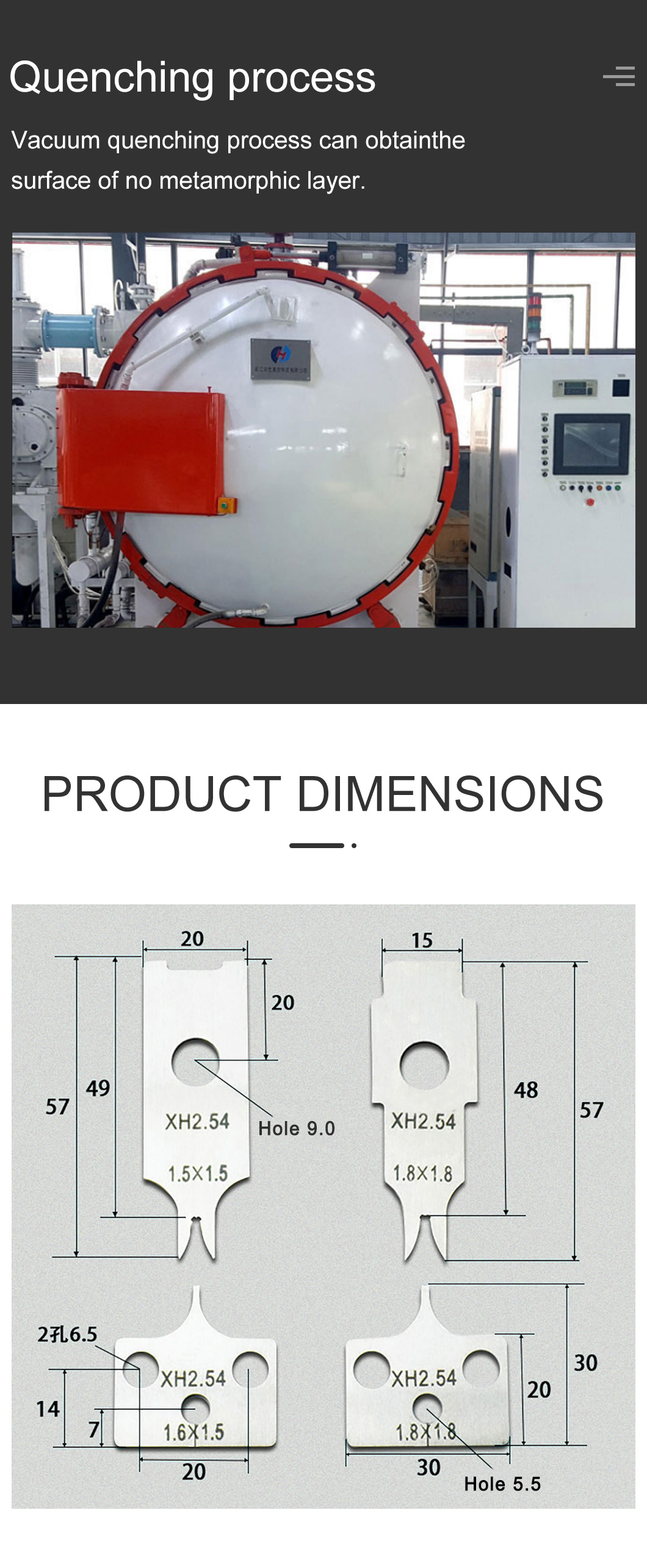

7. Quenching process: Vacuum quenching process can obtainthe surface of no metamorphic layer.
Custom methods
How to get your terminal machine blade?
Method 1
Please send us the size of your blade, upper and lower, inside and outside.
Method 2
Send 10-20 pieces of your terminal samples to us. If your terminal supplier is in China, you can
ask them to send them directly to our factory.
Data Sheet

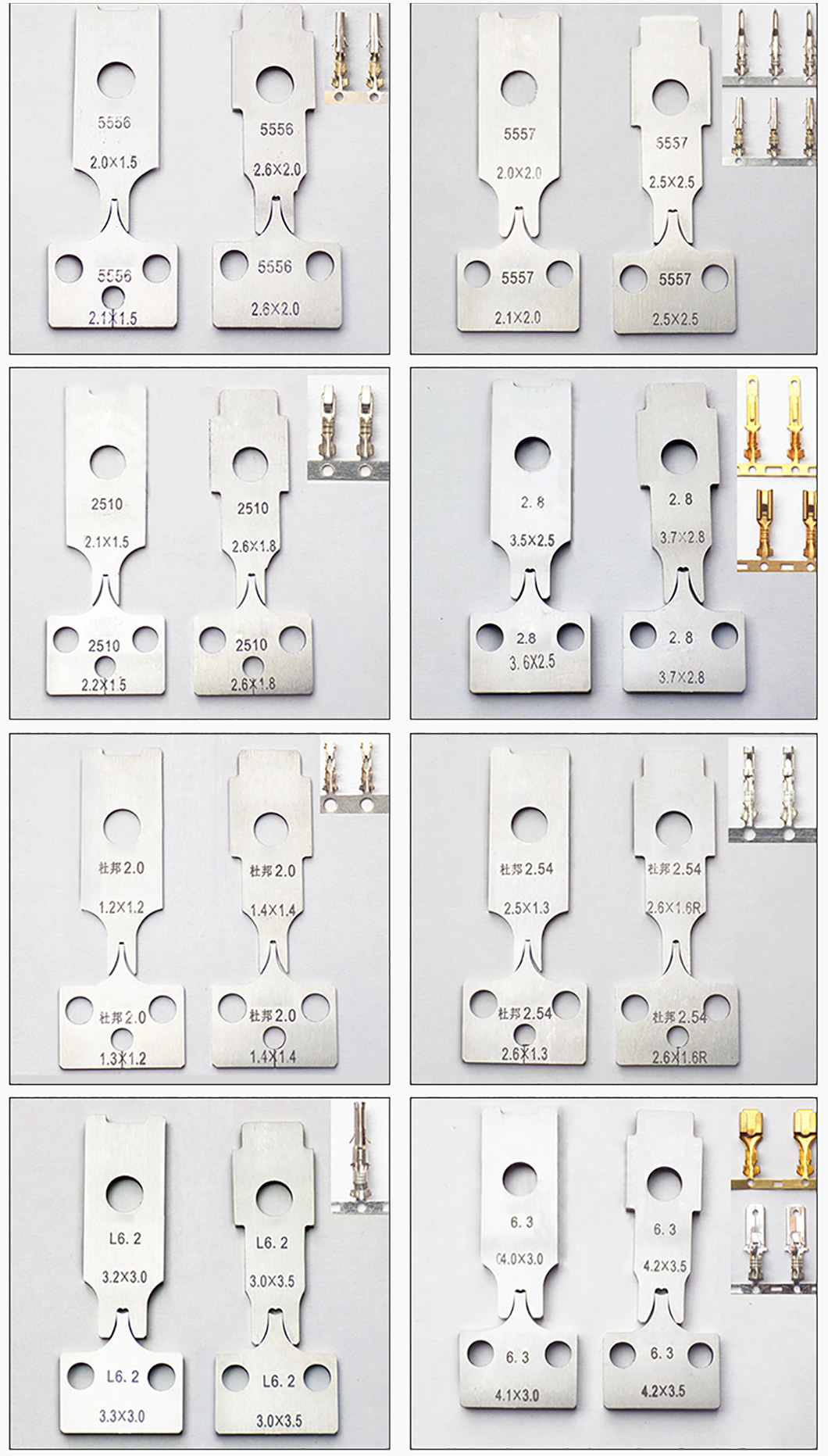

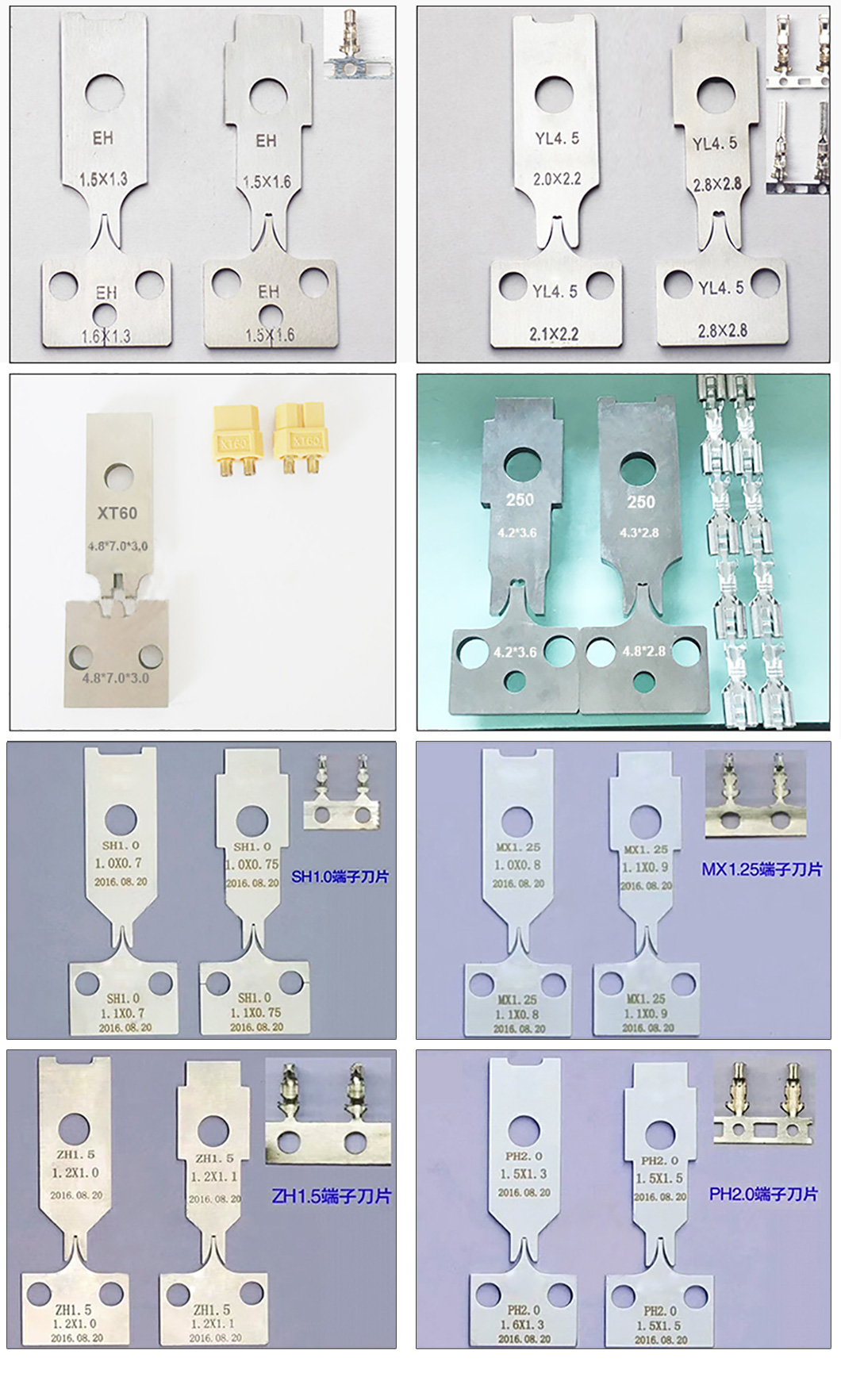

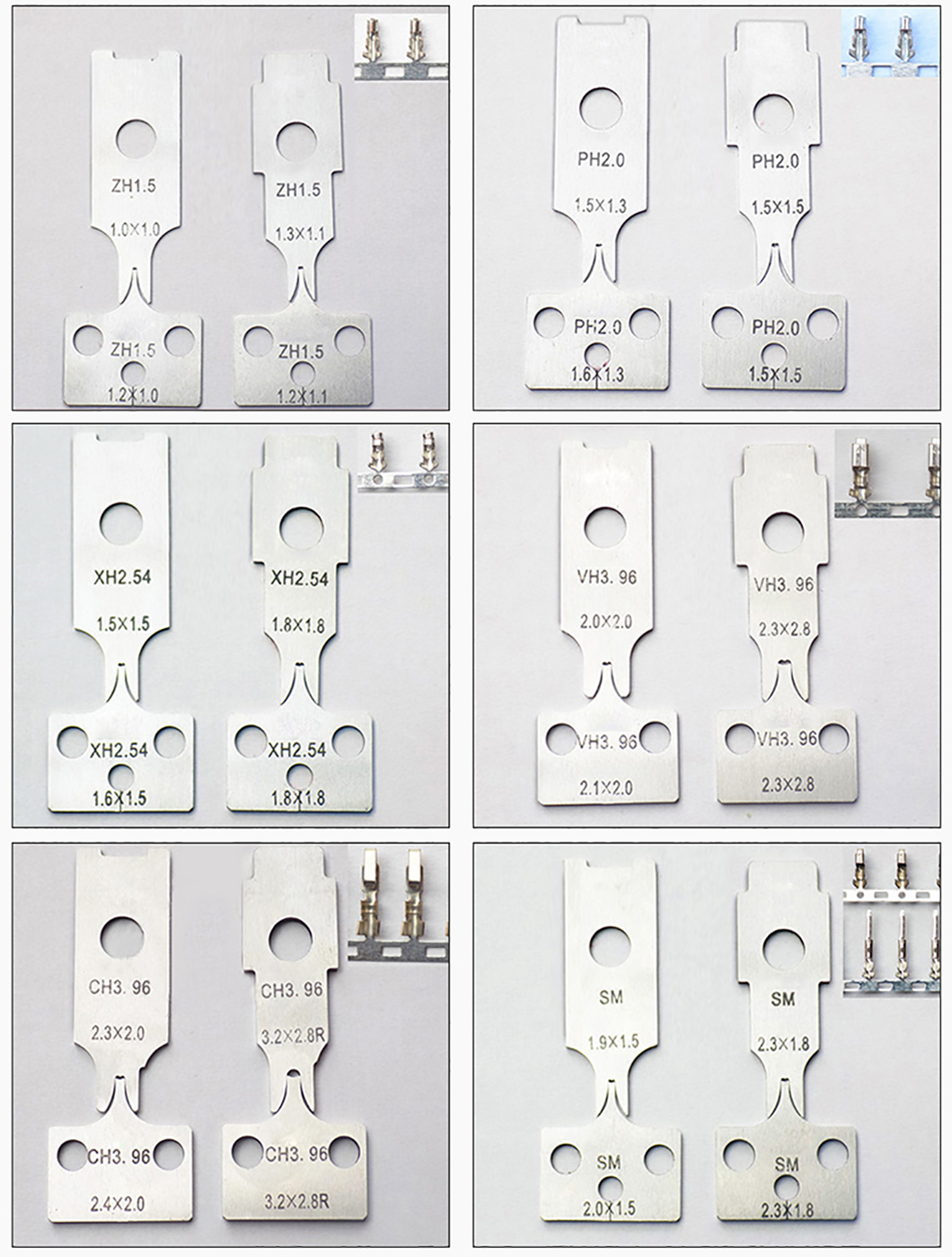

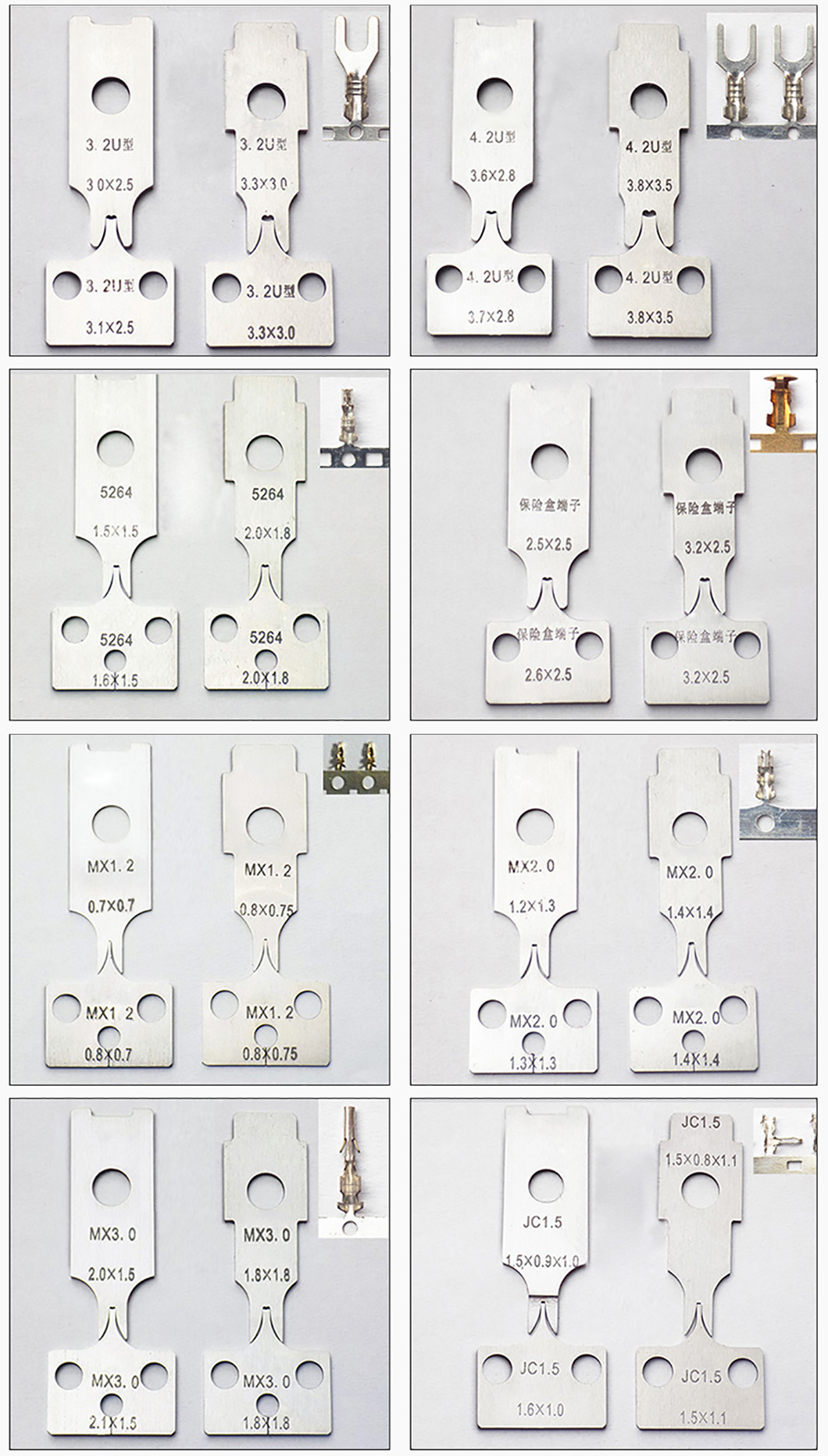

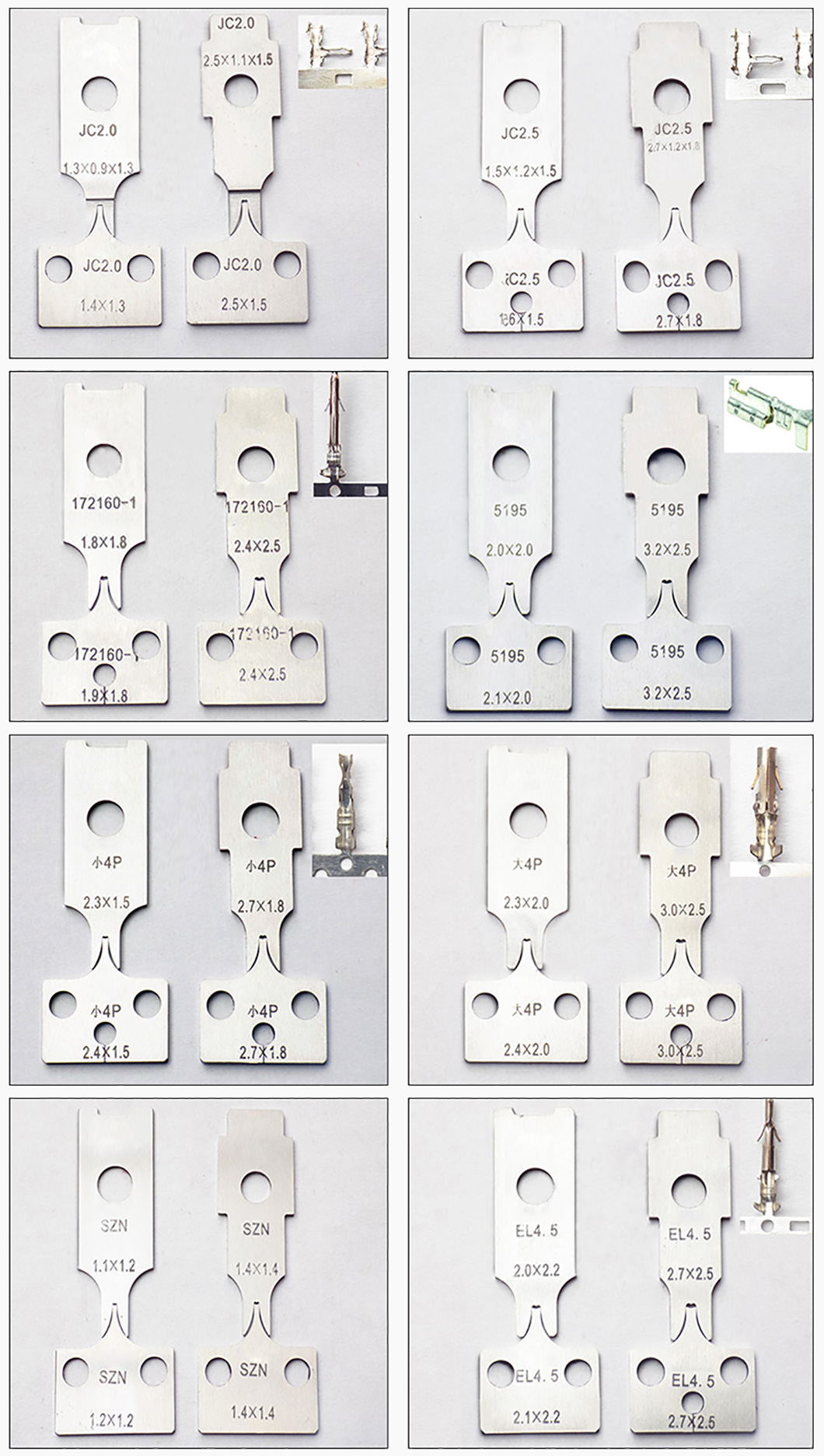

| Other specifications blade Please refer to tne following table for dimensions | ||||
| Product name | Upper inner knife | Lower inner knife | Upper outer knife | Outside knife |
| 0.8 | 0. 7*0. 6 | 0. 8*0.6 | 0. 8*0. 6 | 0. 8*0.6 |
| SH1.0 | 1.0*0. 7 | 1.1*0.7 | 1.2*0. 75 | 1. 2*0. 75 |
| 1.25 | 1.0*0. 8 | 1.1*0. 8 | 1.2*0. 9 | 1.2*0. 9 |
| ZH1.5 | 1. 0*1.0 | 1.1*1.0 | 1. 2*1.1 | 1.2*1.! |
| PH2.0 | 1.5*1. 3 | 1.6*1. 3 | 1.5*1. 5 | 1. 5*1. 5 |
| XH2. 54 (C3) | 1. 5*1. 5 | 1.6*1. 5 | 1.8*1. 8 | 1.8*1. 8 |
| 2510 | 2.1*1.5 | 2. 2*1.5 | 2. 6*1. 7 | 2. 6*1.7 |
| DuPont 2.0 | 1.2*1. 2 | 1.3*1. 2 | 1.4*1. 4 | 1.4*1. 4 |
| DuPont 2. 54 | 2. 5*1.4 | 2. 6*1. 4 | 2. 6*1. 6R | 2. 6*1.6 |
| VH3. 96 | 2. 2*2. 2 | 2. 3*2. 2 | 2. 4*2. 8 | 2. 4*2.8 |
| CH3. 96 | 2. 2*2. 2 | 2. 3*2. 2 | 3. 2*2. 6R | 3. 2*2.6 |
| 5556 | 2. 0*1.5 | 2.1*1.5 | 2. 6*2. 0 | 2. 6*2. 0 |
| SM male and female, terminals shared | 1.9*1. 6 | 2. 0*1.6 | 2. 3*1. 8 | 2. 3*1.8 |
| 5557/5559 | 2. 0*1.8 | 2.1*1.8 | 2. 3*2. 2 | 2. 3*2. 2 |
| 2. 8 Male | 3. 5*2. 8 | 3. 6*2. 8 | 3. 5*2.6 | 3. 7*2.6 |
| 2. 8 Famale | 3. 8*2. 2 | 4. 0*2.2 | 3. 2*3. 2 | 3. 2*3. 2 |
| YL4. 5 | 2. 0*2. 2 | 2.1*2. 2 | 2. 8*2. 8 | 2. 8*2. 8 |
| 5264 | 1. 5*1.5 | 1. 6*1. 5 | 2. 0*1. 8 | 2. 0*1.8 |
| EL4.5 | 2. 0*2.2 | 2.1*2.2 | 2. 7*2.5 | 2. 7*2.5 |
| MX1.2 | 0. 7*0. 7 | 0. 8*0. 7 | 0. 65*0. 75 | 0. 65*0. 75 |
| MX1. 5 | 1. 0*1.0 | 1.1*1.0 | 1. 6*1.1 | 1. 6*1.1 |
| MX2. 0 | 1.2*1. 3 | 1.3*1. 3 | 1.4*1. 4 | 1.4*1. 4 |
| MX3. 0 (小5557) | 2. 0*1.5 | 2.1*1.5 | 1.8*1. 8 | 1.8*1. 8 |
| L6. 2 | 3. 2*3. 0 | 3. 3*3. 0 | 3. 0*3. 5 | 3. 0*3. 5 |
| 小4P | 2. 3*1.5 | 2. 4*1.5 | 2. 7*1. 8 | 2. 7*1. 8 |
| 大4P | 2. 3*2. 0 | 2. 4*2. 0 | 3. 0*2.4 | 3. 0*2. 4 |
| 5195/5194 | 2. 0*2. 0 | 2.1*2. 0 | 3. 2*2. 5 | 3. 2*2. 5 |
| 3. 2U type | 3. 0*2. 6 | 3. 2*2. 6 | 3. 5*3. 0 | 3. 5*3. 0 |
| 4. 2U type | 3. 5*2. 8 | 3. 7+2. 8 | 4. 0*3. 0 | 4. 0*3. 0 |
| Fuse box terminal | 2. 5*2. 4 | 2. 6*2.4 | 3. 2*2. 6 | 3. 2*2.6 |
| EH2. 5 | 1. 5*1. 3 | 1. 6*1. 3 | 1. 5*1.6 | 1. 5*1. 6 |
| 4. 8 Insert spring | 3. 5*2. 8 | 3. 6*2.8 | 3. 8*3. 4 | 3. 8*3. 4 |
| 6. 3 Insert spring/plug | 4. 0*3. 0 | 4.1*3. 0 | 4. 0*3. 4 | 4. 0*3. 4 |
| JC15 90° | 1.5*0. 9*1.0 | 1. 6*1.0 | 1.5*0. 8*1.1 | 1. 5*1.1 |
| JC20 90° | 1. 3*1. 0*1. 3 | 1.4*1. 3 | 2. 5*1.1*1. 5 | 2. 5*1.5 |
| JC25 90° | 1.5*1. 2*1. 5 | 1.6*1. 5 | 2. 7*1. 2*1. 8 | 2. 7*1.8 |
| 51005/51006 | 1.2*1. 2 | 1.3*1. 2 | 1. 4*1. 4 | 1.4*1. 4 |
| 3191 Terminal pitch6. 7 | 3. 0*2. 5 | 3.1*2.5 | 3. 2*3. 0 | 3. 2*3. 0 |
| SZN | 1.1*1. 2 | 1.2*1. 2 | 1. 4*1.4 | 1. 4*1. 4 |
Overview introduction
Product name: OTP terminal blade
Support custom, factory direct sale
Product features
1. Customizable
2. Durable
3. Strong
4. High quality
5. High quality DC503 steel: Select high-quality raw materials, every piece of steel we will strictly test.
6. Testing standard: The blade reaches the standard by spectrograph.
7. Quenching process: Vacuum quenching process can obtainthe surface of no metamorphic layer.
Custom methods
How to get your terminal machine blade?
Method 1
Please send us the size of your blade, upper and lower, inside and outside.
Method 2
Send 10-20 pieces of your terminal samples to us. If your terminal supplier is in China, you can
ask them to send them directly to our factory.
Data Sheet
| Other specifications blade Please refer to tne following table for dimensions | ||||
| Product name | Upper inner knife | Lower inner knife | Upper outer knife | Outside knife |
| 0.8 | 0. 7*0. 6 | 0. 8*0.6 | 0. 8*0. 6 | 0. 8*0.6 |
| SH1.0 | 1.0*0. 7 | 1.1*0.7 | 1.2*0. 75 | 1. 2*0. 75 |
| 1.25 | 1.0*0. 8 | 1.1*0. 8 | 1.2*0. 9 | 1.2*0. 9 |
| ZH1.5 | 1. 0*1.0 | 1.1*1.0 | 1. 2*1.1 | 1.2*1.! |
| PH2.0 | 1.5*1. 3 | 1.6*1. 3 | 1.5*1. 5 | 1. 5*1. 5 |
| XH2. 54 (C3) | 1. 5*1. 5 | 1.6*1. 5 | 1.8*1. 8 | 1.8*1. 8 |
| 2510 | 2.1*1.5 | 2. 2*1.5 | 2. 6*1. 7 | 2. 6*1.7 |
| DuPont 2.0 | 1.2*1. 2 | 1.3*1. 2 | 1.4*1. 4 | 1.4*1. 4 |
| DuPont 2. 54 | 2. 5*1.4 | 2. 6*1. 4 | 2. 6*1. 6R | 2. 6*1.6 |
| VH3. 96 | 2. 2*2. 2 | 2. 3*2. 2 | 2. 4*2. 8 | 2. 4*2.8 |
| CH3. 96 | 2. 2*2. 2 | 2. 3*2. 2 | 3. 2*2. 6R | 3. 2*2.6 |
| 5556 | 2. 0*1.5 | 2.1*1.5 | 2. 6*2. 0 | 2. 6*2. 0 |
| SM male and female, terminals shared | 1.9*1. 6 | 2. 0*1.6 | 2. 3*1. 8 | 2. 3*1.8 |
| 5557/5559 | 2. 0*1.8 | 2.1*1.8 | 2. 3*2. 2 | 2. 3*2. 2 |
| 2. 8 Male | 3. 5*2. 8 | 3. 6*2. 8 | 3. 5*2.6 | 3. 7*2.6 |
| 2. 8 Famale | 3. 8*2. 2 | 4. 0*2.2 | 3. 2*3. 2 | 3. 2*3. 2 |
| YL4. 5 | 2. 0*2. 2 | 2.1*2. 2 | 2. 8*2. 8 | 2. 8*2. 8 |
| 5264 | 1. 5*1.5 | 1. 6*1. 5 | 2. 0*1. 8 | 2. 0*1.8 |
| EL4.5 | 2. 0*2.2 | 2.1*2.2 | 2. 7*2.5 | 2. 7*2.5 |
| MX1.2 | 0. 7*0. 7 | 0. 8*0. 7 | 0. 65*0. 75 | 0. 65*0. 75 |
| MX1. 5 | 1. 0*1.0 | 1.1*1.0 | 1. 6*1.1 | 1. 6*1.1 |
| MX2. 0 | 1.2*1. 3 | 1.3*1. 3 | 1.4*1. 4 | 1.4*1. 4 |
| MX3. 0 (小5557) | 2. 0*1.5 | 2.1*1.5 | 1.8*1. 8 | 1.8*1. 8 |
| L6. 2 | 3. 2*3. 0 | 3. 3*3. 0 | 3. 0*3. 5 | 3. 0*3. 5 |
| 小4P | 2. 3*1.5 | 2. 4*1.5 | 2. 7*1. 8 | 2. 7*1. 8 |
| 大4P | 2. 3*2. 0 | 2. 4*2. 0 | 3. 0*2.4 | 3. 0*2. 4 |
| 5195/5194 | 2. 0*2. 0 | 2.1*2. 0 | 3. 2*2. 5 | 3. 2*2. 5 |
| 3. 2U type | 3. 0*2. 6 | 3. 2*2. 6 | 3. 5*3. 0 | 3. 5*3. 0 |
| 4. 2U type | 3. 5*2. 8 | 3. 7+2. 8 | 4. 0*3. 0 | 4. 0*3. 0 |
| Fuse box terminal | 2. 5*2. 4 | 2. 6*2.4 | 3. 2*2. 6 | 3. 2*2.6 |
| EH2. 5 | 1. 5*1. 3 | 1. 6*1. 3 | 1. 5*1.6 | 1. 5*1. 6 |
| 4. 8 Insert spring | 3. 5*2. 8 | 3. 6*2.8 | 3. 8*3. 4 | 3. 8*3. 4 |
| 6. 3 Insert spring/plug | 4. 0*3. 0 | 4.1*3. 0 | 4. 0*3. 4 | 4. 0*3. 4 |
| JC15 90° | 1.5*0. 9*1.0 | 1. 6*1.0 | 1.5*0. 8*1.1 | 1. 5*1.1 |
| JC20 90° | 1. 3*1. 0*1. 3 | 1.4*1. 3 | 2. 5*1.1*1. 5 | 2. 5*1.5 |
| JC25 90° | 1.5*1. 2*1. 5 | 1.6*1. 5 | 2. 7*1. 2*1. 8 | 2. 7*1.8 |
| 51005/51006 | 1.2*1. 2 | 1.3*1. 2 | 1. 4*1. 4 | 1.4*1. 4 |
| 3191 Terminal pitch6. 7 | 3. 0*2. 5 | 3.1*2.5 | 3. 2*3. 0 | 3. 2*3. 0 |
| SZN | 1.1*1. 2 | 1.2*1. 2 | 1. 4*1.4 | 1. 4*1. 4 |
