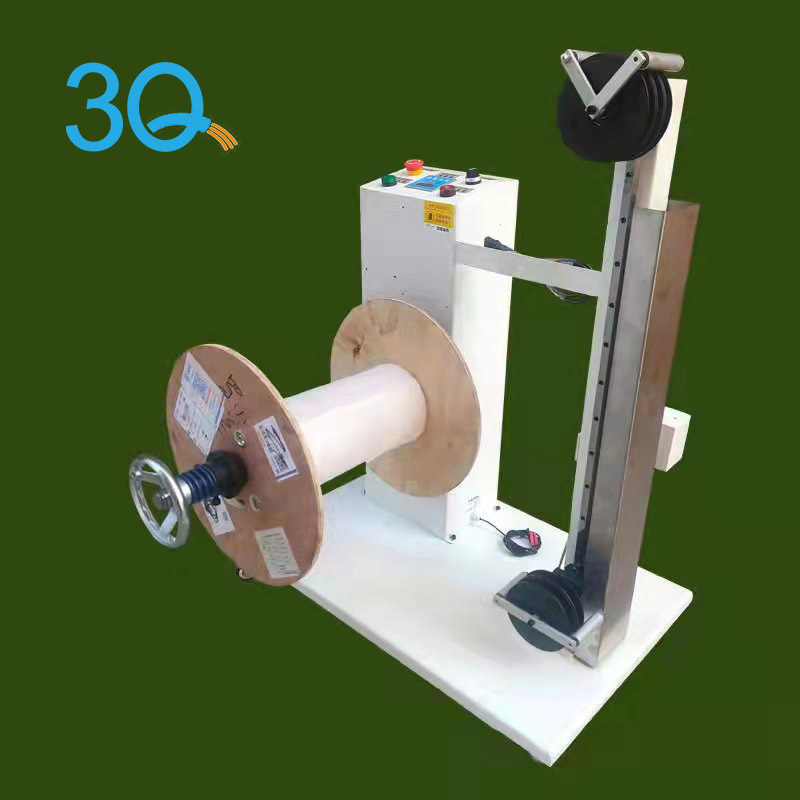

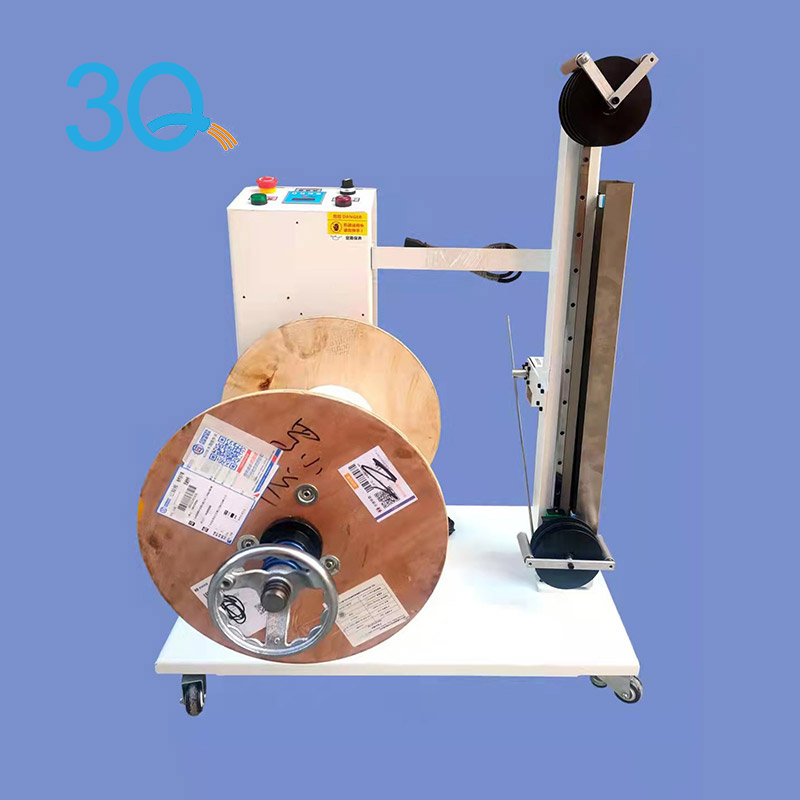

Automatic High Speed Cable Wire Prefeeder Machine
Home » Products » Machine Mold & Blade & Accessories » Automatic High Speed Cable Wire Prefeeder Machine

Automatic High Speed Cable Wire Prefeeder Machine

Availability:
Quantity:
  • 3Q machine

详情页_01详情页_02详情页_03详情页_04详情页_05详情页_06详情页_07

Overview introduction

Automatic frequency conversation wire feeder

Variable frequency stepless speed change

Automatically adjust the speed



Core technologies

1.Dual induction, dual drive

2. Stepless speed regulation and active wire feeding

3.Wire feeding length 2. 5M/sec

4. Stable, efficient and accurate wire feeding



Features

Reduce the labor intensity Of employees

Born for industrial Manufacturing

Cable, data cable, electronic wire active wire feed


Data sheet

product namefour-axis pay-off machine
specification700*850*900
cold plate4.0mm
spool400mm
induction block0.5kg
colourwhite paint
load-bearingsingle shaft 15kg
product namehorizontal and vertical dual-purpose pay-off machine
power120W
directiondirect
specification500*500*900mm
bearing weight15kg
applicable modelsterminal machine / wire cutting machine
product namefully automatic frequency conversion wire feeder
inverter1. 5W with brake
shaft30* 500mm
specification500*700*900mm
bearing weight30kg
lock head60*30mm
product namehorizontal and vertical dual-purpose pay-off machine
power1 20W
pay-off weightdirect
specification500* 500*900mm
weight1 5kg
voltageterminal machine / wire cutting machine
product nameautomatic pay-off machine
turnpositive and negative
power1 20w/180w
shaft25mm
loadz50kg
voltage220v
product namedouble-line automatic pay-off machine
directionpositive and negative
power140w
shaft20mm
load230kg
specification650* 500*900mm
product nameinfinitely variable speed electric pay-off reel
inverter1. 5kw
voltage220v
bearing weight50kg
braking0.1 seconds
specification450*800*1120mm
product nameautomatic pay-off reel
specification390*390*500
product weight8.8kg
bearing weight14kg
product namepay-off reel
materialiron + high temperature baking varnish
product weight2.5kg
