3Q machine
Overview Introduction:

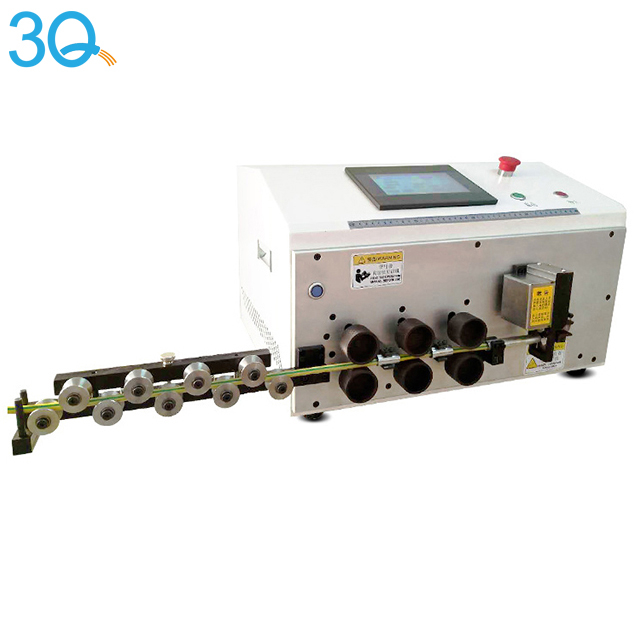

Product Name: Microcomputer wire stripping and bending machine
Features:
1. Six-wheel drive at the same time
2. Cutting, Stripping, Bending
3. Running stability
4. Quality assurance
5. Easy to operation
6. Efficient time saving
7. The machine can only strip the wire
8. Wire can be stripped or half stripped
9. Straightening, cutting, bending to forming
10. The degree of curvature can be adjusted freely
11. Microcomputer touch screen: Chinese- English switch / clear display
12. Metal straightener: Improve the adhesion of wire
13. Pneumatic valve device: High quality voltmeters

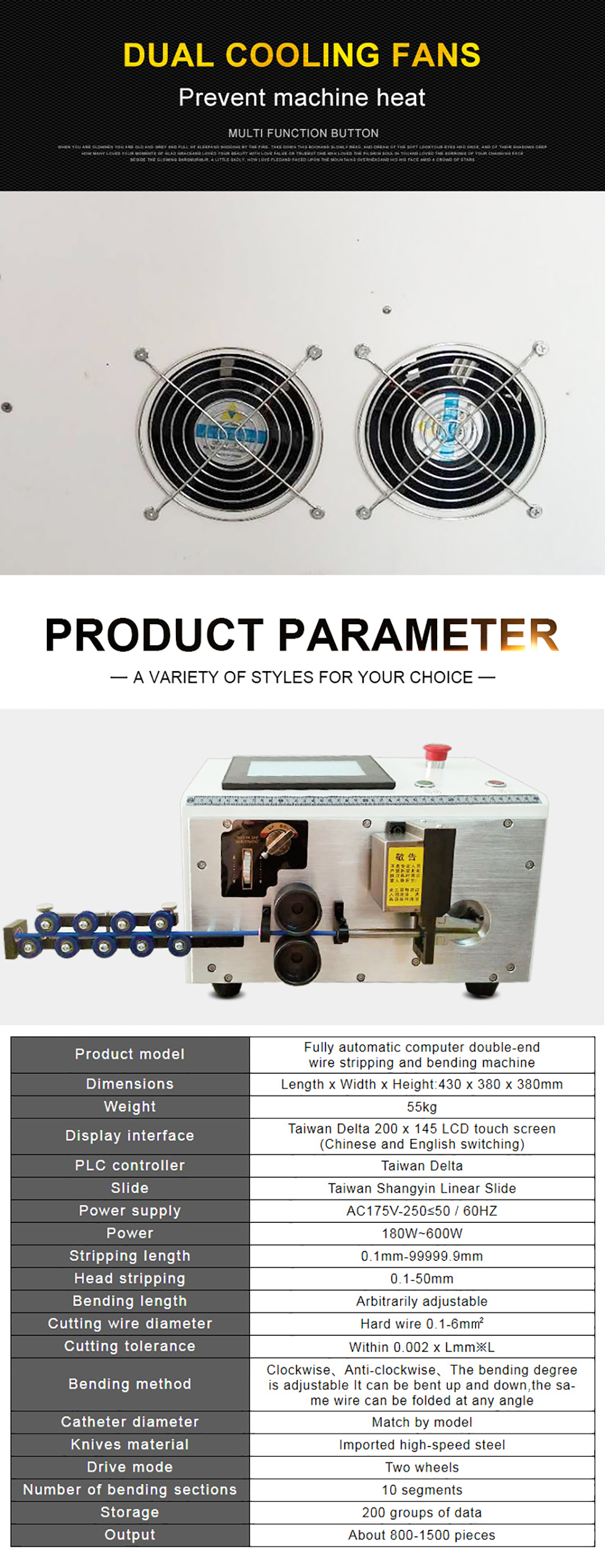

14. Dual cooling fans: Prevent machine heat
It can meet your many needs
1. Tail end stripping
2. Straightening
3. Head stripping
4. Half stripping
5. Bending
6. Cut off
Choose us
Let you complete your work efficiently. Helping you save time and effort

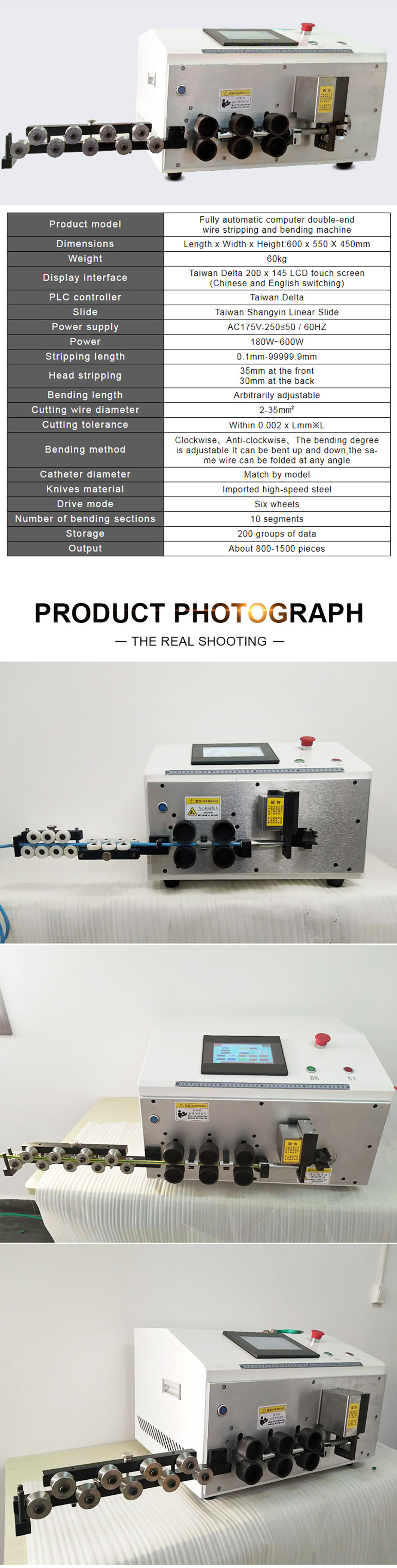

Data Sheet
| Model | 1 |
| Product name | Fully automatic computer double-end wire stripping and bending machine |
| Dimensions | Length X Width X Height:600 X 550 X 450mm |
| Weight | 60kg |
| Display interface | Taiwan Delta 200 x 145 LCD touch screen (Chinese and English switching) |
| PL C controller | Taiwan Delta 200 x 145 LCD touch screen (Chinese and English switching) |
| Slide | Taiwan Shangyin Linear Slide |
| Power supply | AC175V-250≤50 / 60HZ |
| P ower | 180W-600W |
| Stripping length | 0.1mm-999999mm |
| Head stripping | 35mm at the front 30mm at the back |
| Bending length | Arbitrarily adjustable |
| Cutting wire diameter | 2-25mm2 |
| Cutting tolerance | Within 0.002 x Lmm※L |
| Bending method | Clockwise、Anti-clockwise、 The bending degree is adjustable It can be bent up and down,the same wire can be folded at any angle |
| Catheter diameter | Match by model |
| Knives material | Imported high-speed steel |
| Drive mode | Six wheels |
| Number of bending sections | 10 segments |
| Storage | 200 groups of data |
| Output | About 800- 1500 pieces |
| Model | 2 |
| Product model | Fully automatic computer double-end wire stripping and bending machine |
| Dimensions | Length x Width X Height:600 x 550 X 450mm |
| Weight | 60kg |
| Display interface | Taiwan Delta 200 x 145 LCD touch screen (Chinese and English switching) |
| PLC controller | Taiwan Delta |
| Slide | Taiwan Shangyin Linear Slide |
| Power supply | AC175V-250≤50 1 60HZ |
| Power | 1 80W~600W |
| Stripping length | 0.1mm-99999.9mm |
| Head stripping | 35mm at the front 30mm at the back |
| Bending length | Arbitrarily adjustable |
| Cutting wire diameter | 2-35mm2 |
| Cutting tolerance | Within 0.002 x Lmm※L |
| Bending method | Clockwise、Anti-clockwise、 The bending degree is adjustable It can be bent up and down,the same wire can be folded at any angle |
| Catheter diameter | Match by model |
| Knives material | Imported high-speed steel |
| Drive mode | Six wheels |
| Number of bending sections | 10 segments |
| Storage | 200 groups of data |
| Output | About 800-1500 pieces |

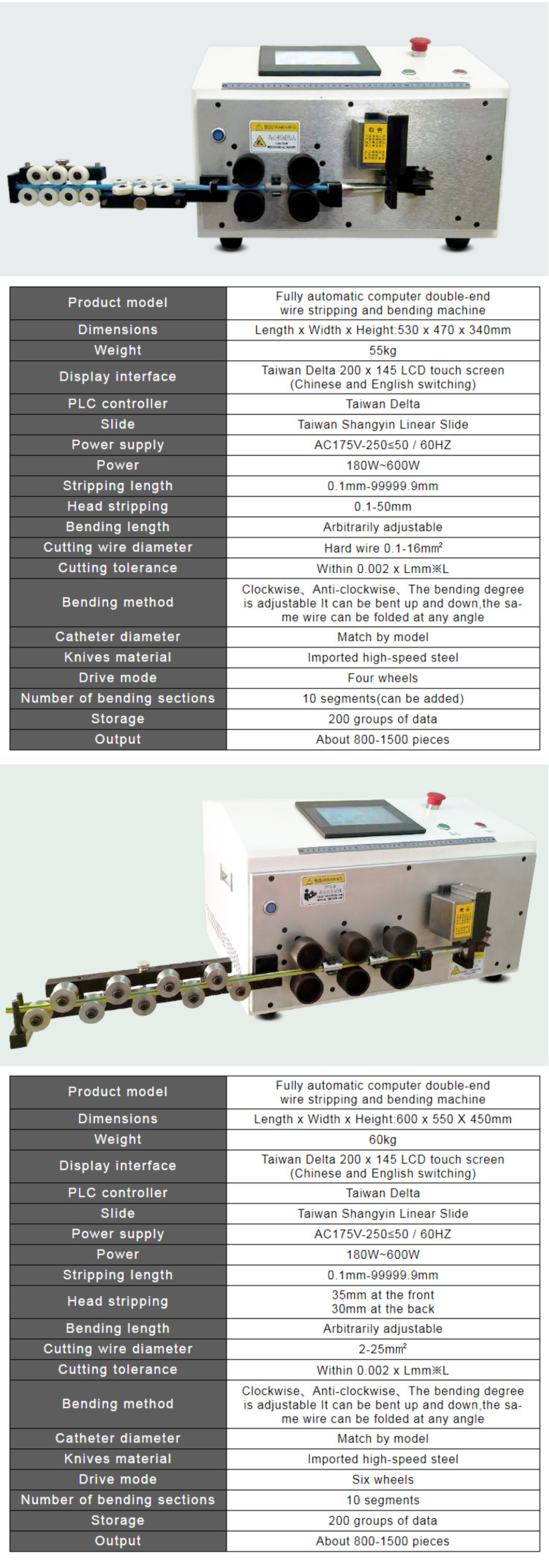

| Model | 3 |
| Product model | Fully automatic computer double-end wire stripping and bending machine |
| Dimensions | Length x Width X Height:530 x 470 X 340mm |
| Weight | 55kg |
| Display interface | Taiwan Delta 200 x 145 LCD touch screen (Chinese and English switching) |
| PL C controller | Taiwan Delta |
| Slide | Taiwan Shangyin Linear Slide |
| Power supply | AC1 75V-250≤50 / 60HZ |
| P ower | 1 80W~600W |
| Stripping length | 0.1mm-99999.9mm |
| Head stripping | 0.1-50mm |
| Bending length | Arbitrarily adjustable |
| Cutting wire diameter | Hard wire 0.1-6mm2 |
| Cutting tolerance | Within 0.002 x Lmm※L |
| Bending method | Clockwise、Anti-clockwise、 The bending degree is adjustable It can be bent up and down,the same wire can be folded at any angle |
| Catheter diameter | Match by model |
| Knives material | Imported high-speed steel |
| Drive mode | Four wheels |
| Number of bending sections | 10 segments(can be added) |
| Storage | 200 groups of data |
| Output | About 800-1500 pieces |
| Model | 4 |
| Product model | Fully automatic computer double-end wire stripping and bending machine |
| Dimensions | Length x Width x Height:430 x 380 X 380mm |
| Weight | 55kg |
| Display interface | Taiwan Delta 200 x 145 LCD touch screen (Chinese and English switching) |
| PLC controller | Taiwan Delta |
| Slide | Taiwan Shangyin Linear Slide |
| Power supply | AC175V-250≤50 / 60HZ |
| P ower | 180W~600W |
| Stripping length | 0.1mm-99999.9mm |
| Head stripping | 0.1-50mm |
| Bending length | Arbitrarily adjustable |
| Cutting wire diameter | Hard wire 0.1-6mm2 |
| Cutting tolerance | Within 0.002 x Lmm※L |
| Bending method | Clockwise、Anti-clockwise、 The bending degree is adjustable It can be bent up and down,the same wire can be folded at any angle |
| Catheter diameter | Match by model |
| Knives material | Imported high-speed steel |
| Drive mode | Two wheels |
| Number of bending sections | 10 segments |
| Storage | 200 groups of data |
| Output | About 800-1500 pieces |
