3Q machine
Product overview

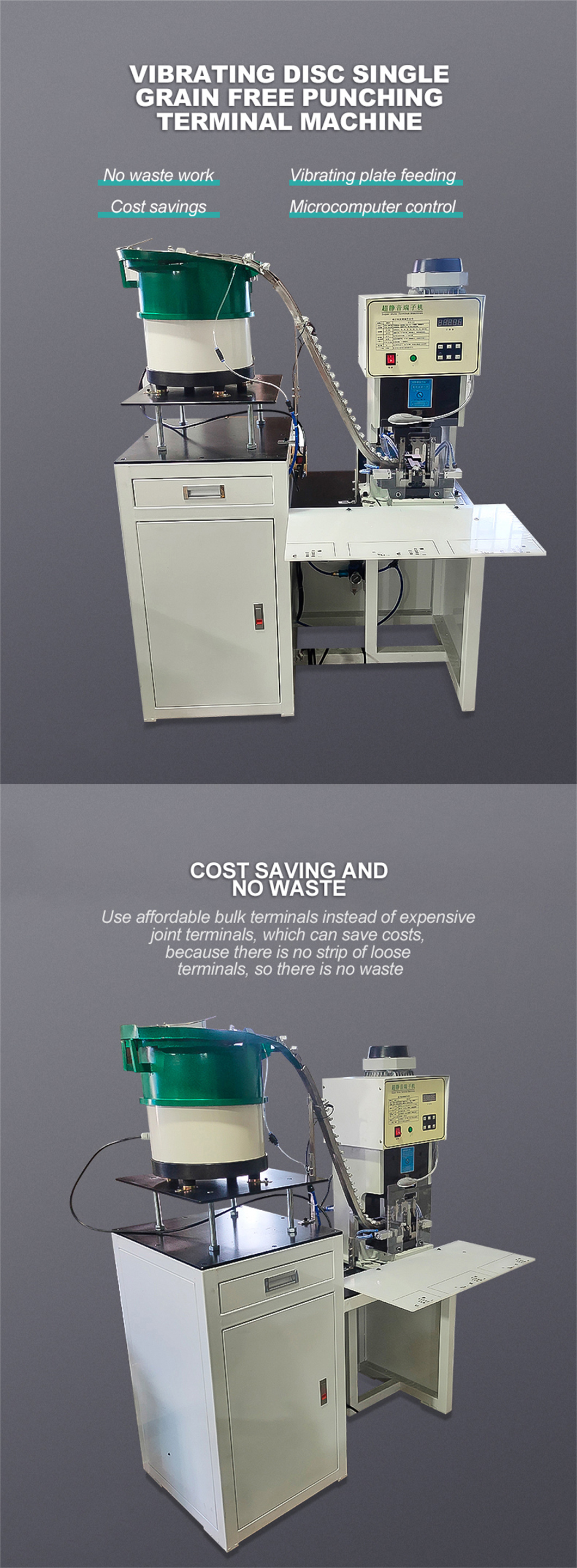

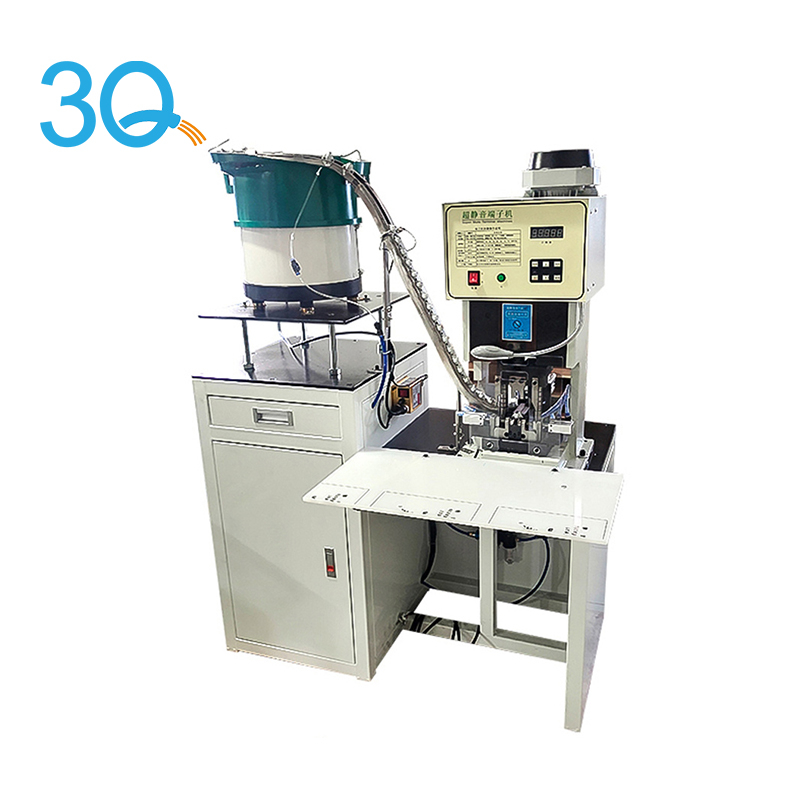

Product name: Vibrating plate single grain free punching terminal machine
Processing sample display:
Applicable to all single-grain terminals,saving expensive joint terminals

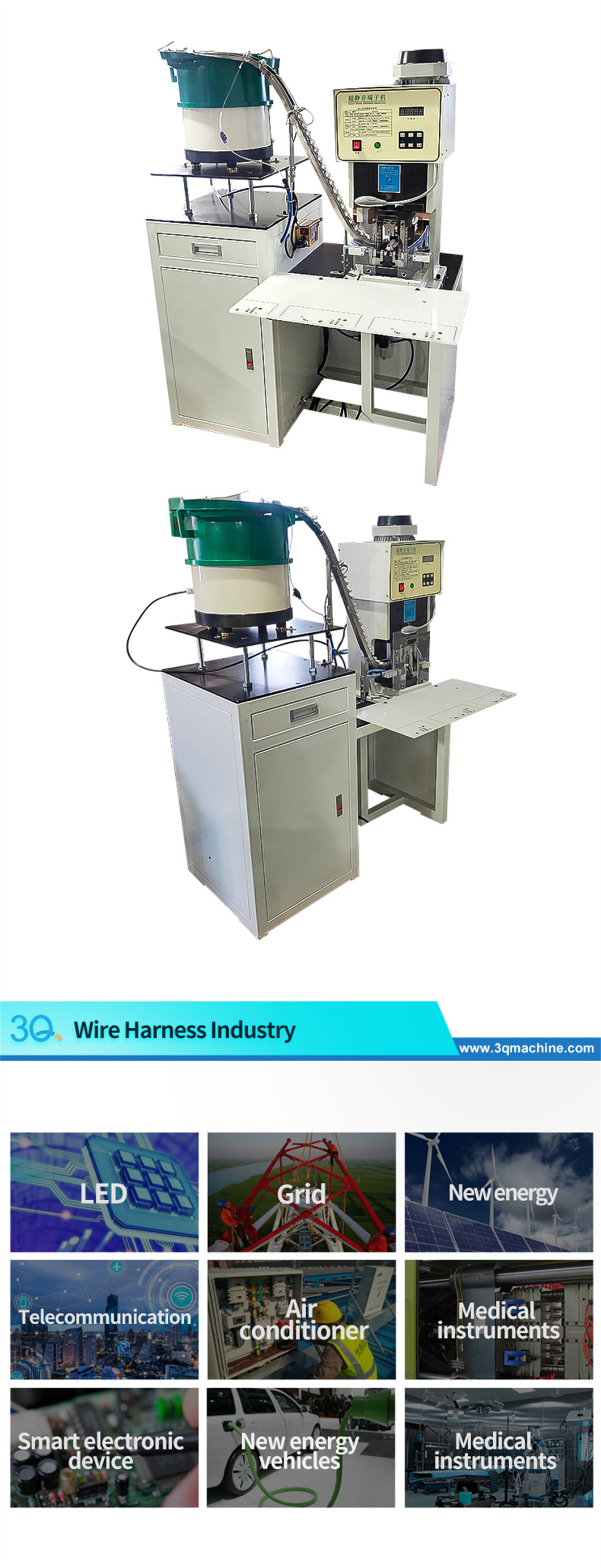

Application field:
Home wiring harness
Factory reset
Military wiring harness
Communication harness
Power harness

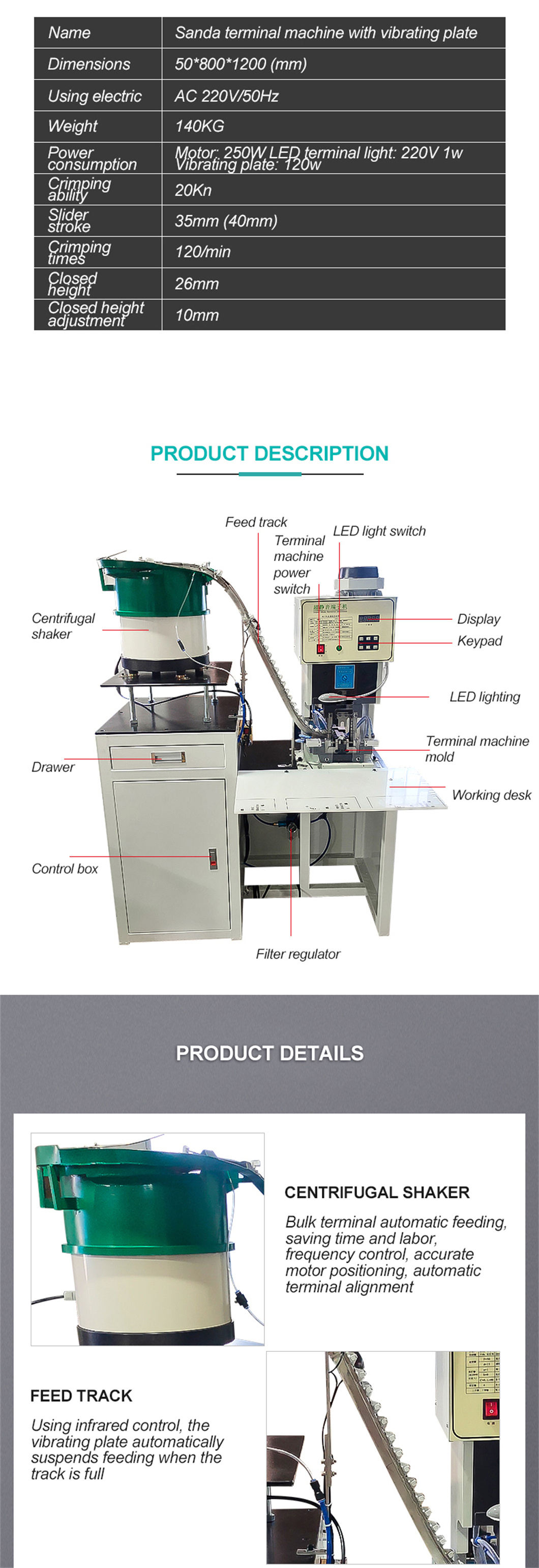

Product analysis:
1.Feed track
2.Terminal machine power switch
3.LED light switch
4.Display
5.Keypad
6.LED lighting
7.Terminal machine mold
8.Working desk
9.Centrifugal shaker
10.Drawer
11.Control box
12.Filter regulator
Product details:

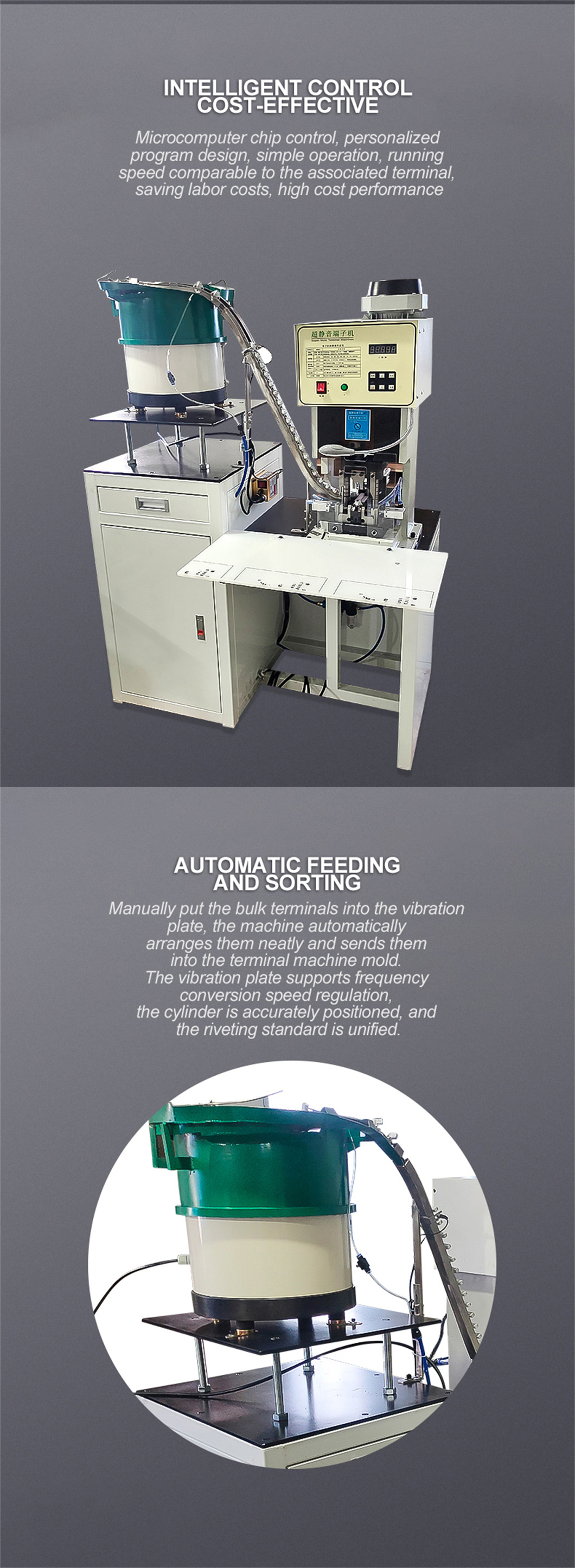

1.Centrifugal shaker
Bulk terminal automatic feeding,saving time and labor,frequency control, accurate motor positioning, automatic terminal alignment
2.Feed track
Using infrared control, the vibrating. plate automatically suspends feeding when the track is full.

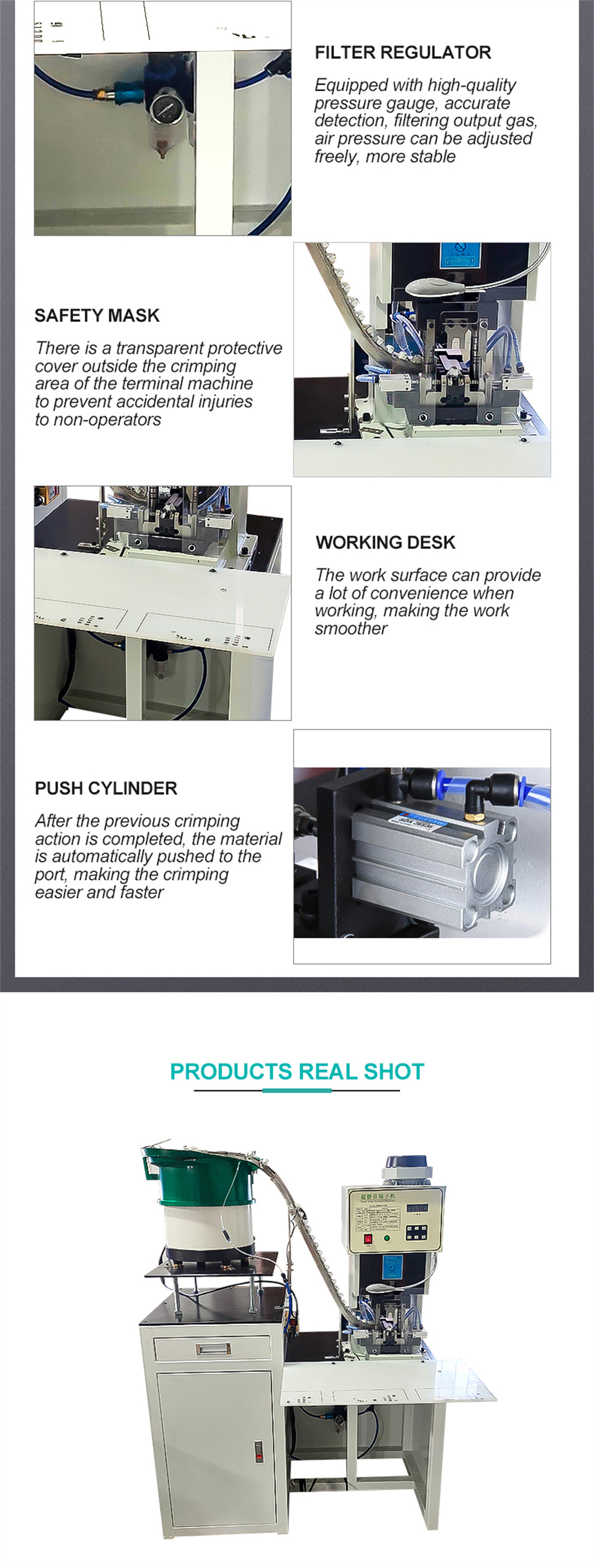

3.Filter regulator
Equipped with high-quality pressure gauge, accurate detection, filtering output gas, air pressure can be adjusted freely, more stable
4.Safety mask
There is a transparent protective cover outside the crimping area of the terminal machine to prevent accidental injuries to non-operators
5.Worming desk
The work surface can provide a lot of convenience when working, making the work smoother.
6.Push cylinder
After the previous crimping action is completed, the material is automatically pushed to the port, making the crimping easier and faster
Data sheet:
Name | Sanda terminal machine with vibrating plate |
Dimensions | 50*800*1200 (mm) |
Using electric | AC 220V/50Hz |
Weight | 140KG |
Power consuimption | Motor: 250WLEBterminal light: 220V 1w Vibrating plate:120W |
Gimping ability | 20Kn |
Slider stroke | 35mm (40mm) |
Crimping times | 120/min |
Clased height | 26mm |
Closed height adjustmemt | 10mm |
