Ribbon wire Stripping And Terminal Crimping Machine

Availability:
Quantity:
  • 3Q machine

01_0101_02Cable Stripping and Ending MachineCable Stripping and Ending MachineCable Stripping and Ending Machine

wire stripping machine

工厂展示_01工厂展示_02工厂展示_03独立站证书

WIRE STRIPPING MACHINE

Product overview

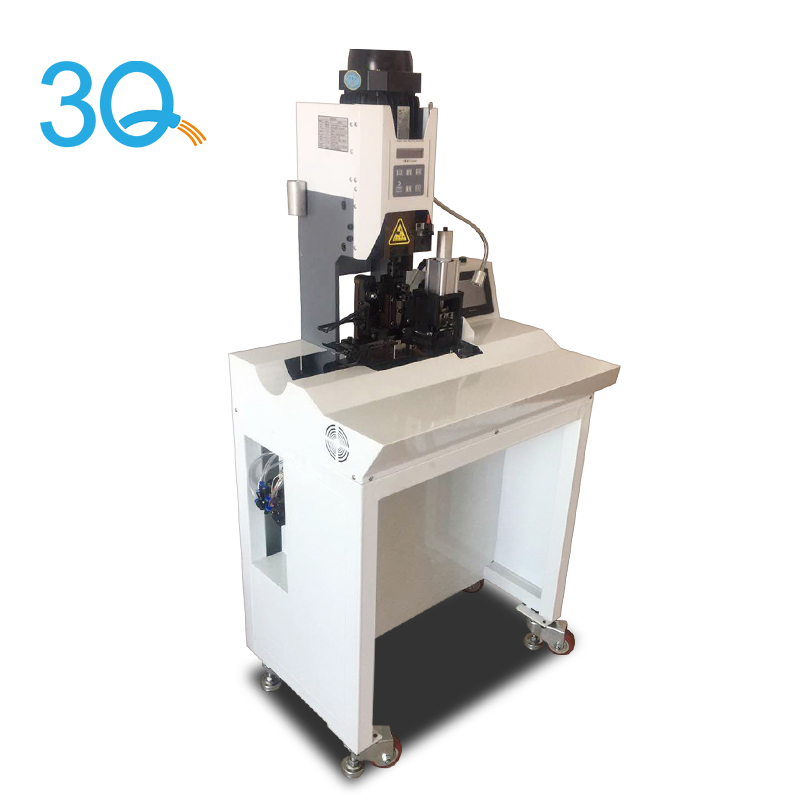

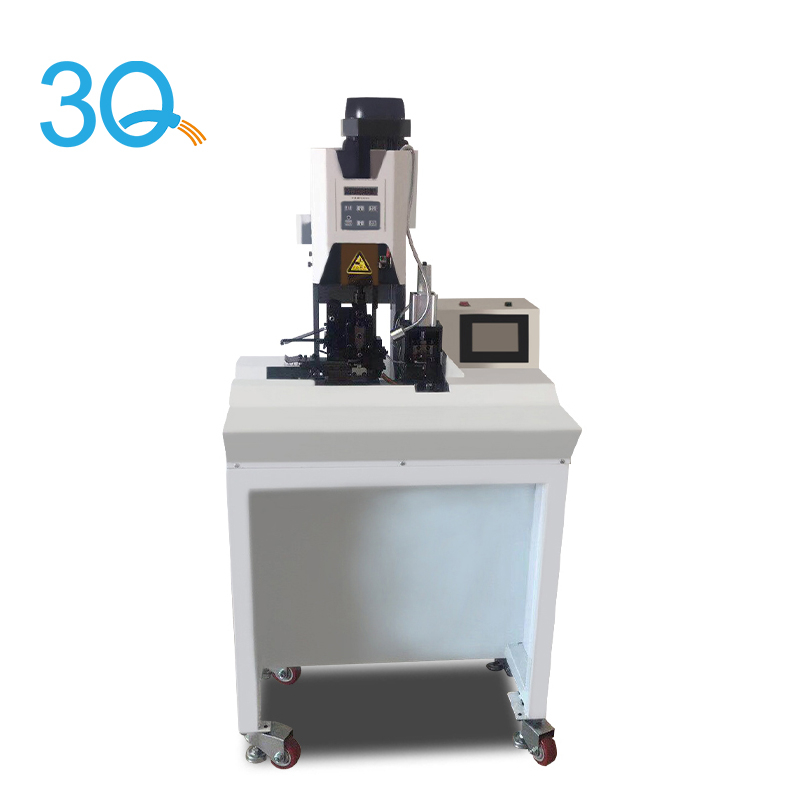

Product name: SEMI-AUTOMATIC SHEATHED WIRE TERMINAL MACHINE


Feature:

1. PLC control

2. Screw control stroke

3. Touch screen operation

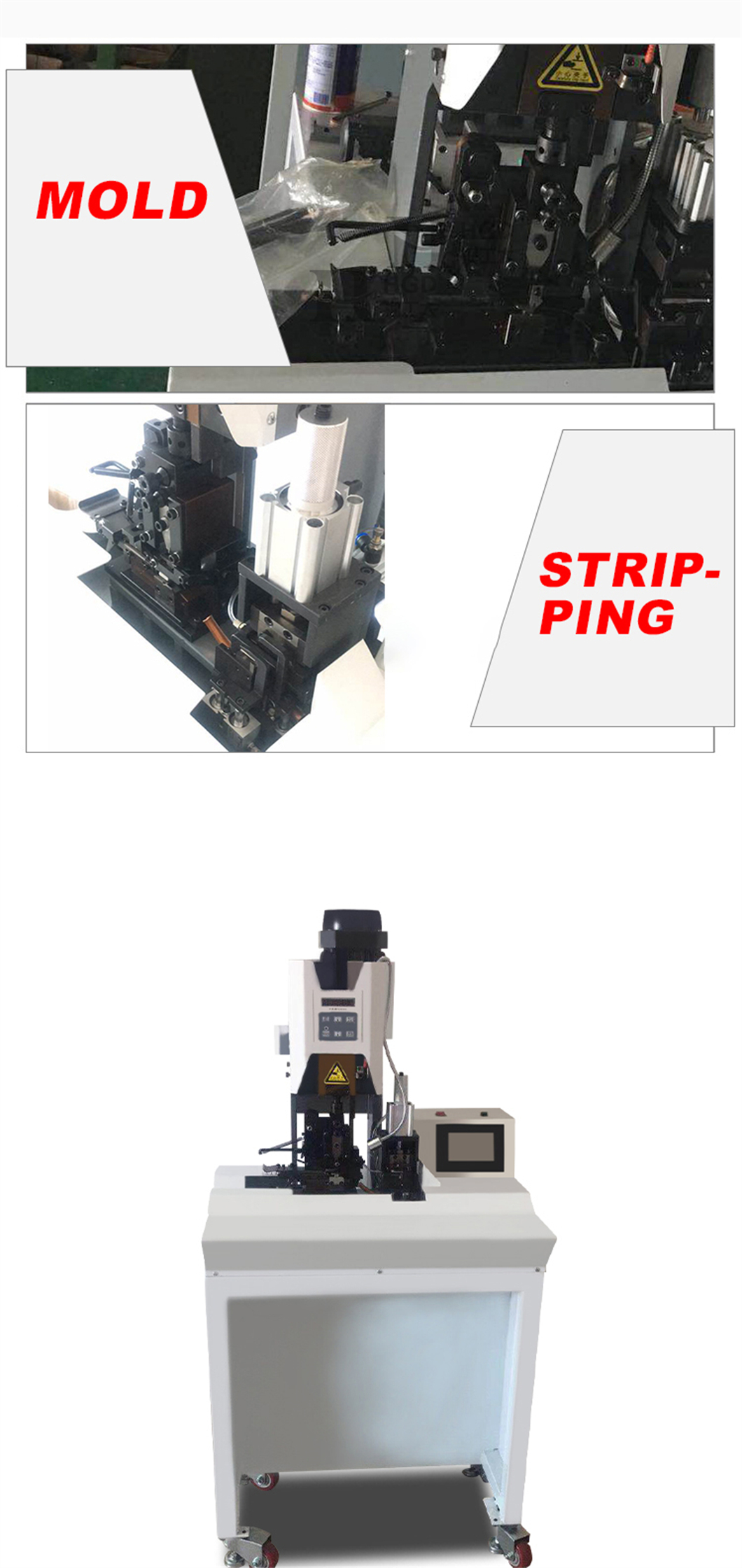

4. Multi-core sheathed wire stripping and terminal crimping are completed at one time.


Applicable industry:

1. Mainly used in: USB cable, power cord, headphones line, audio line, can be pressed with peeling and terminal several core one-time completed, by compressed air to blow away the peel and waste, ensure consistent pressure depth percent advanced CPU control by using the motion precision, improve the efficiency of work.

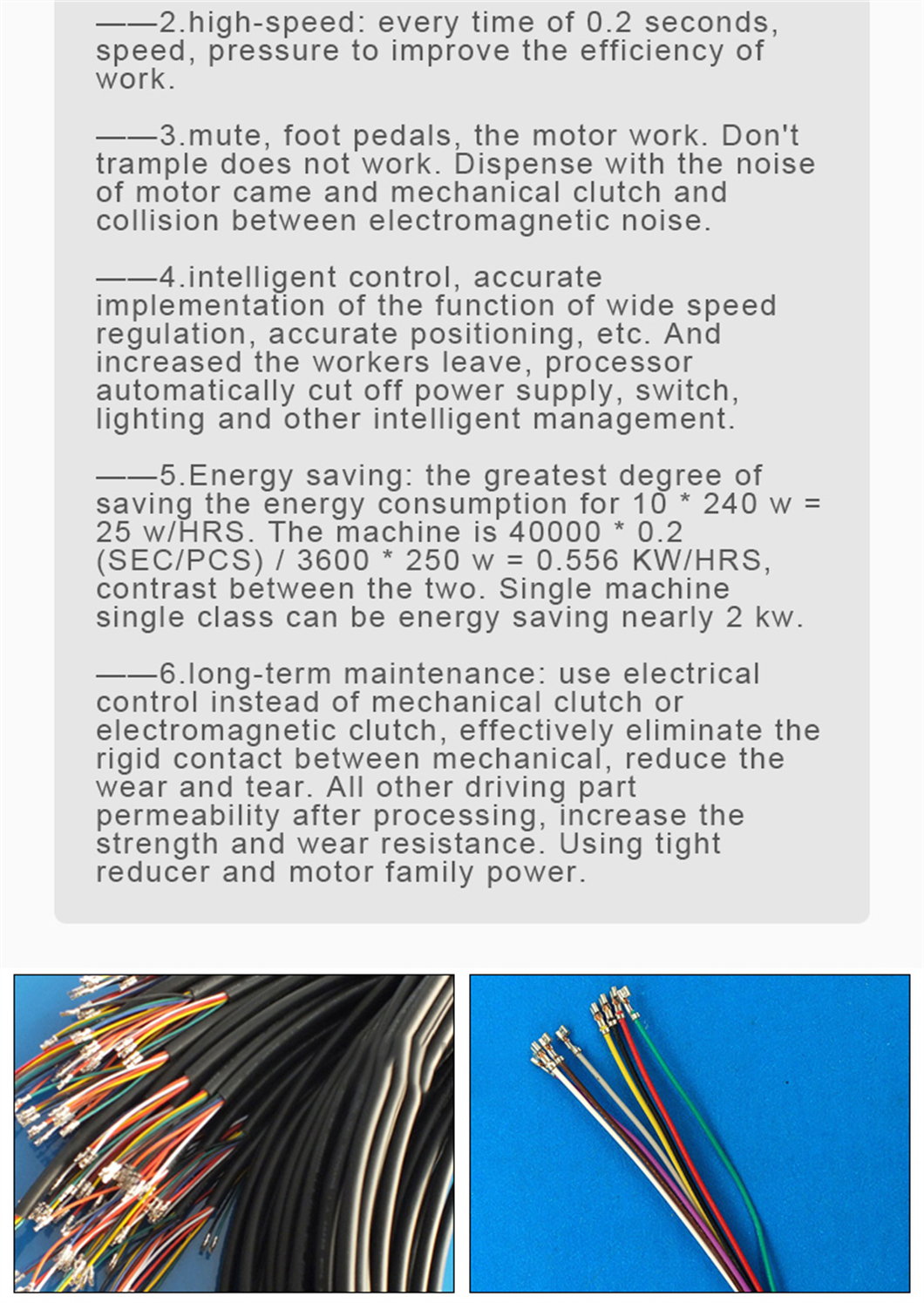

2. high-speed: every time of 0.2 seconds,speed, pressure to improve the efficiency of work.

3. Mute, foot pedals, the motor work. Don't trample does not work. Dispense with the noise of motor came and mechanical clutch and collision between electromagnetic noise.

4. Intelligent control, accurate implementation of the function of wide speed regulation, accurate positioning, etc. And increased the workers leave, processor automatically cut off power supply, switch,lighting and other intelligent management.

5. Energy saving: the greatest degree of saving the energy consumption for 10 * 240 w = 25 w/HRS. The machine is 40000*0.2(SEC/PCS) / 3600 * 250 w = 0.556 KW/HRS,contrast between the two. Single machine single class can be energy saving nearly 2 kw.

6. Long-term maintenance: use electrical control instead of mechanical clutch or electromagnetic clutch, effectively eliminate the rigid contact between mechanical, reduce the wear and tear. AlI other driving part permeabillity after processing, increase the strength and wear resistance. Using tight reducer and motor family power.

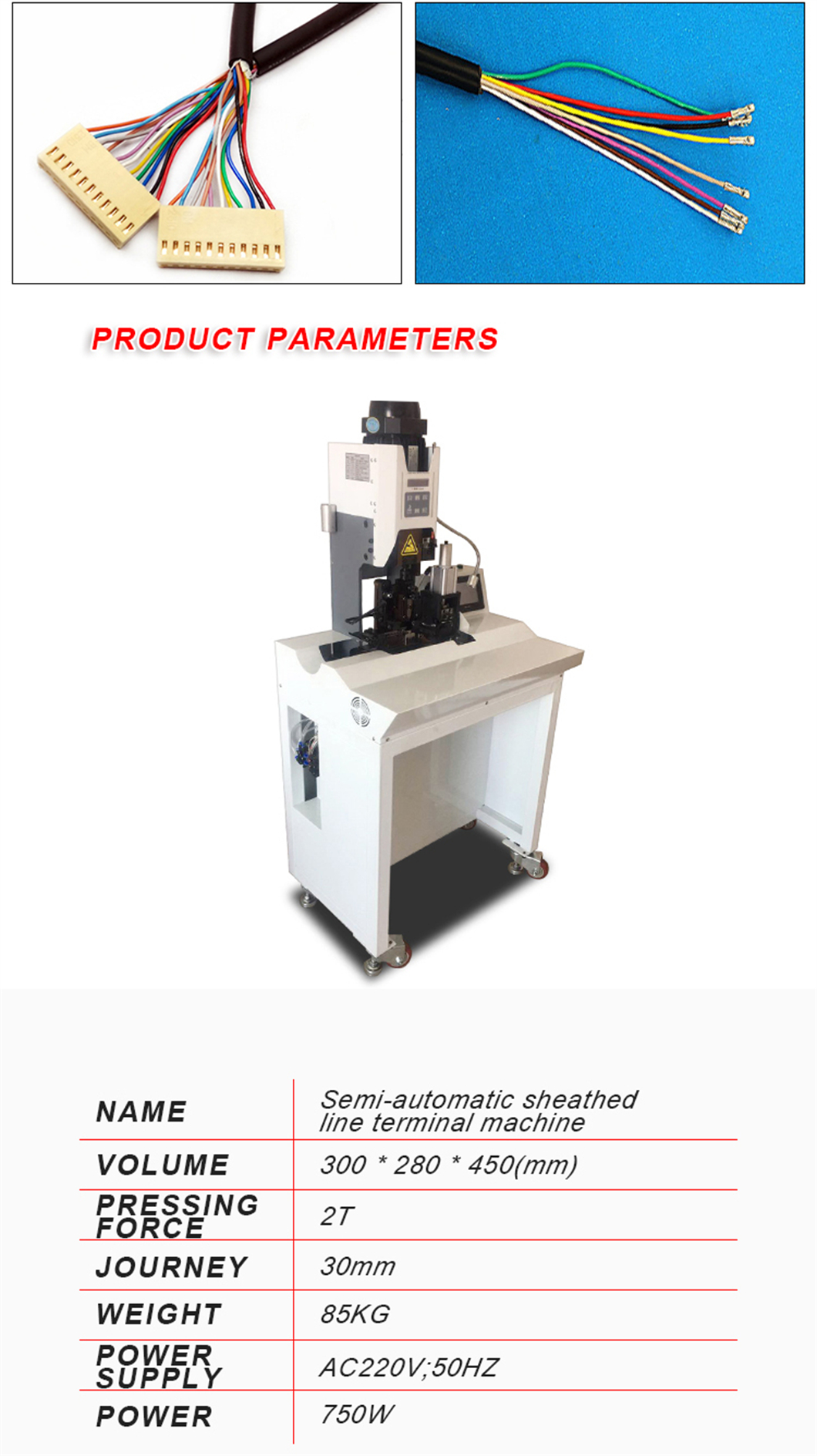

Data sheet:

NAMESemi-automatic sheathed line terminal machine
VOLUME300 * 280 * 450(mm)
PRESSING FORCE2T
JOURNEY30mm
WEIGHT85KG
POWER SUPPLYAC220V;50HZ
POWER750W
