3Q machine
Product overview

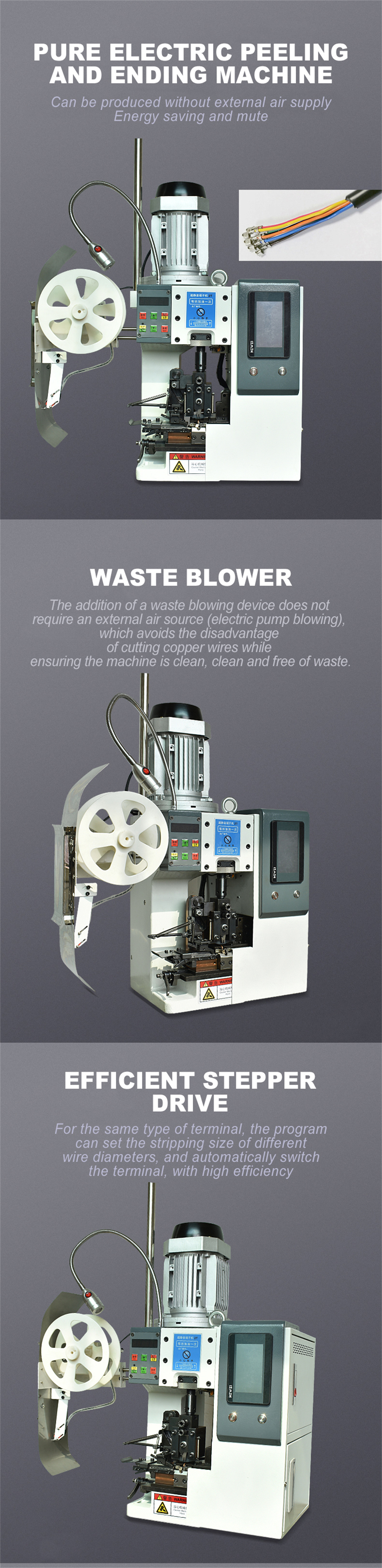

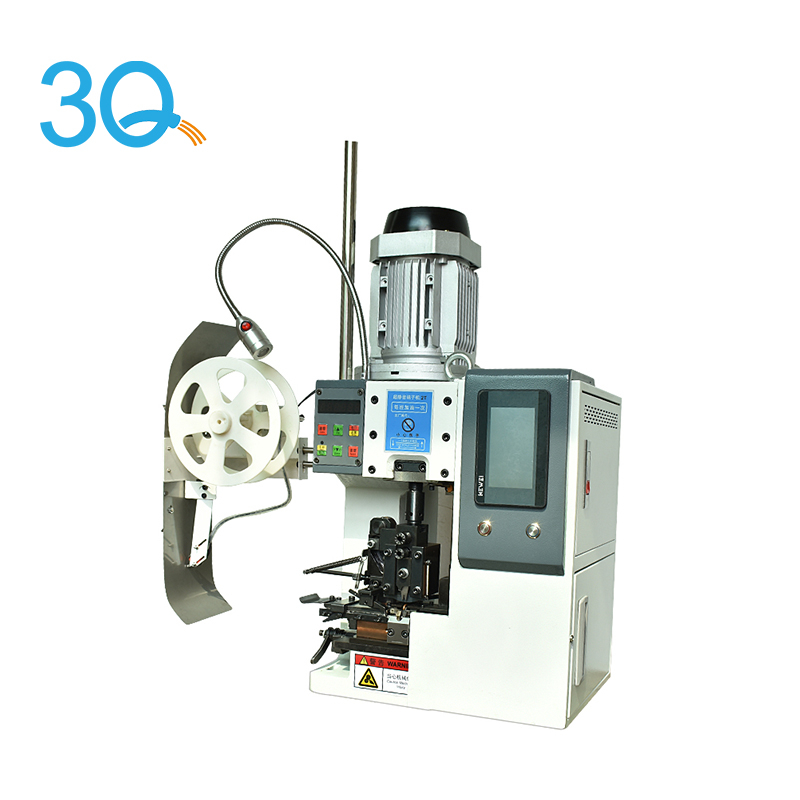

Product name: Pure electric peeling and ending machine
Can be produced without external air supply energy saving and mute
Processing sample display:
Electronic wire diameter:0.5mm-3.0mm(AWG32#-AWG18#)
Crimping terminals:Open continuous horizontal terminals
Product analysis:
1. Waste blower
The addition of a waste blowing device does not require an external air source (electric pump blowing),which avoids the disadvantage of cutting copper wires while ensuring the machine is clean, clean and free of waste.
2. Efficient stepper drive
For the same type of terminal, the program can set the stripping size of different wire diameters, and automatically switch the terminal, with high efficiency

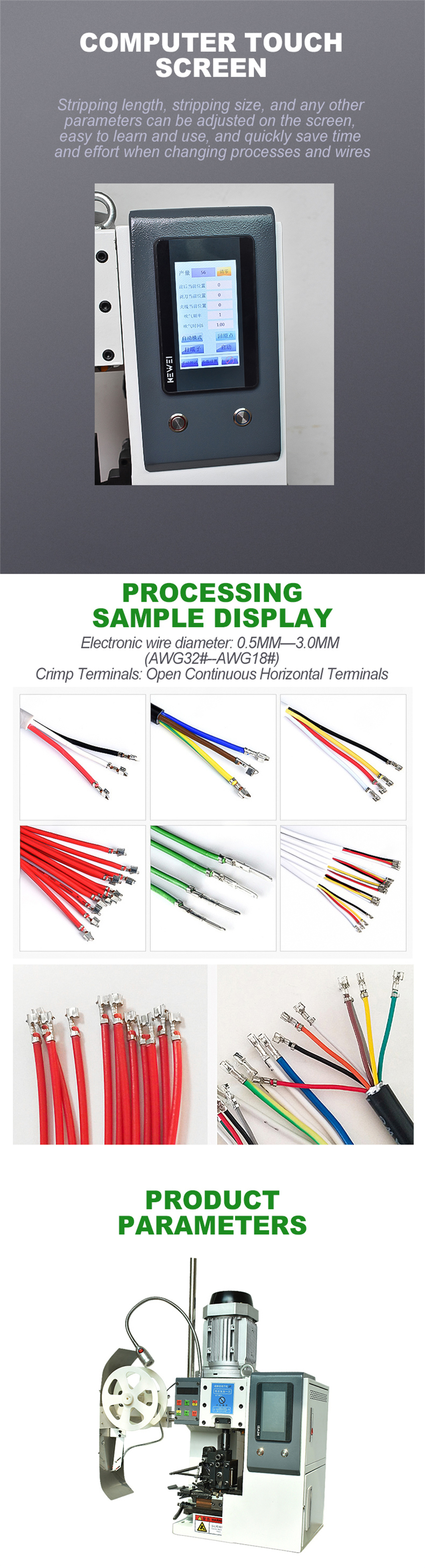

3. Computer touch screen
Stripping length, stripping size, and any other parameters can be adjusted on the screen, easy to learn and use, and quickly save time and effort when changing processes and wires.

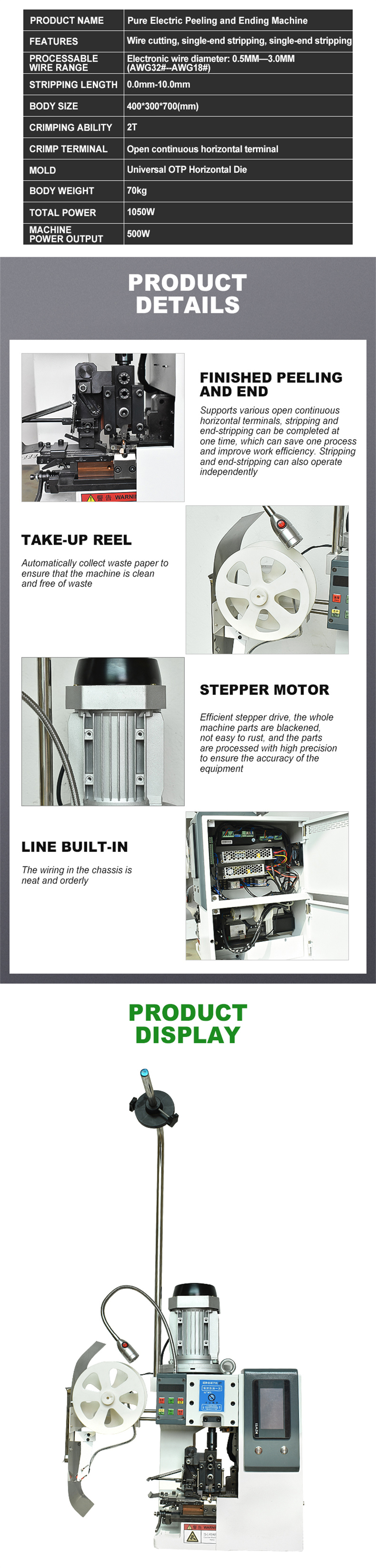

Product details:
1. Finished peeling and end
Supports various open continuous horizontal terminals, stripping and end-stripping can be completed at one time, which can save one process and improve work efficiency. Stripping and end-stripping can also operate independently
2. take-up reel
Automatically collect waste paper to ensure that the machine is clean and free of wast.
3. Stepper motor
Efficient stepper drive, the whole machine parts are blackened, not easy to rust, and the parts are processed with high precision to ensure the accuracy of the equipment
4. Line built-in
The wiring in the chassis is neat and orderly.

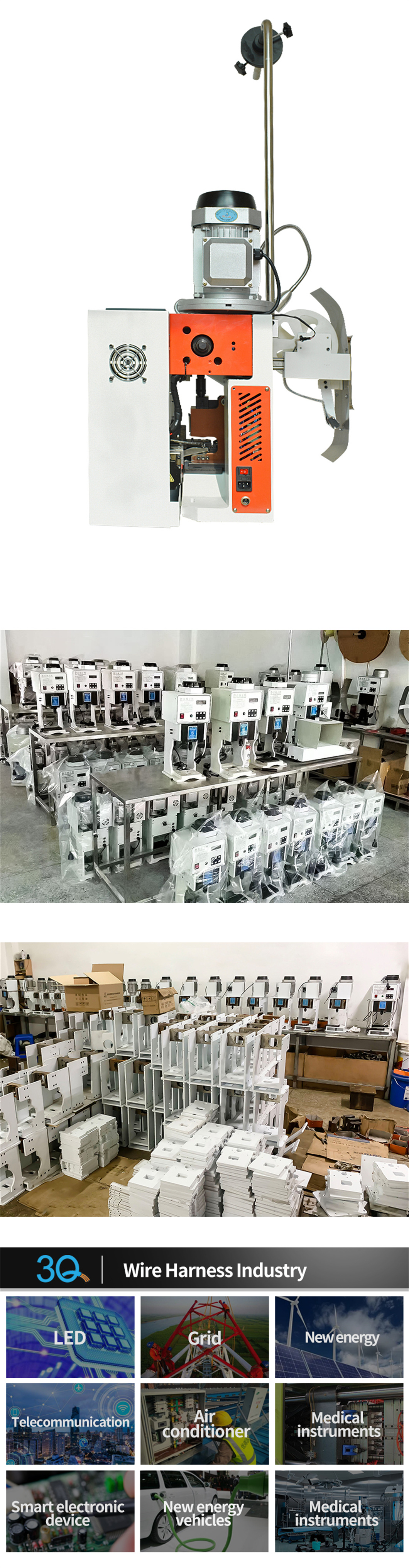

Wire harness industry:
1. LED
2. GRID
3. NEW ENERGY
4. TELECOMMUNICATION
5. AIR CONDITIONER
6. MEDICAL INSTRUMENTS
7. SMART ELECTRONIC DEVICE
8. NEW ENERGY VEHICLES
9. MEDICAL INSTRUMENTS
Data sheet:
PRODUCT NAME | Pure Electric Peeling and Ending Machine |
FEATURES | Wire cutting, single end stripping, single end stripping |
PROCESSABLE WIRE RANGE | Electronic wire diameter: 0.5MM- 3.0MM (AWG32#-AWG18#) |
STRIPPING LENGTH | 0.0mm-10.0mm |
BODY SIZE | 400*300*700(mm) |
CRIMPING ABILITY | 2T |
CRIMP TERMINAL | Open continuous horizontal terminal |
MOLD | Universal OTP Horizontal Die |
BODY WEIGHT | 70kg |
TOTAL POWER | 1050W |
MACHINE POWER OUTPUT | 500W |
