3Q machine
Product overview

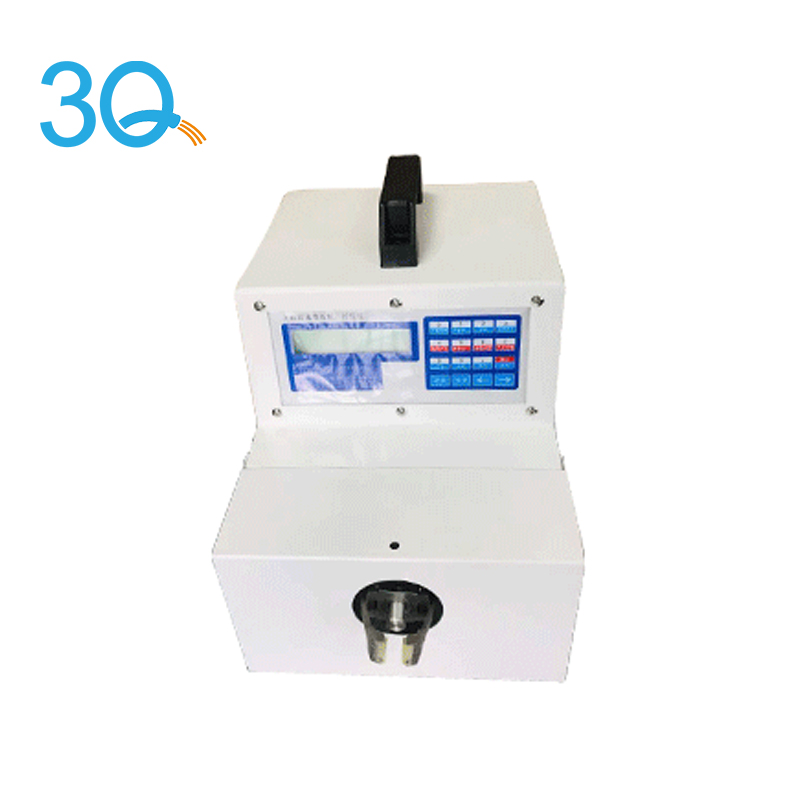

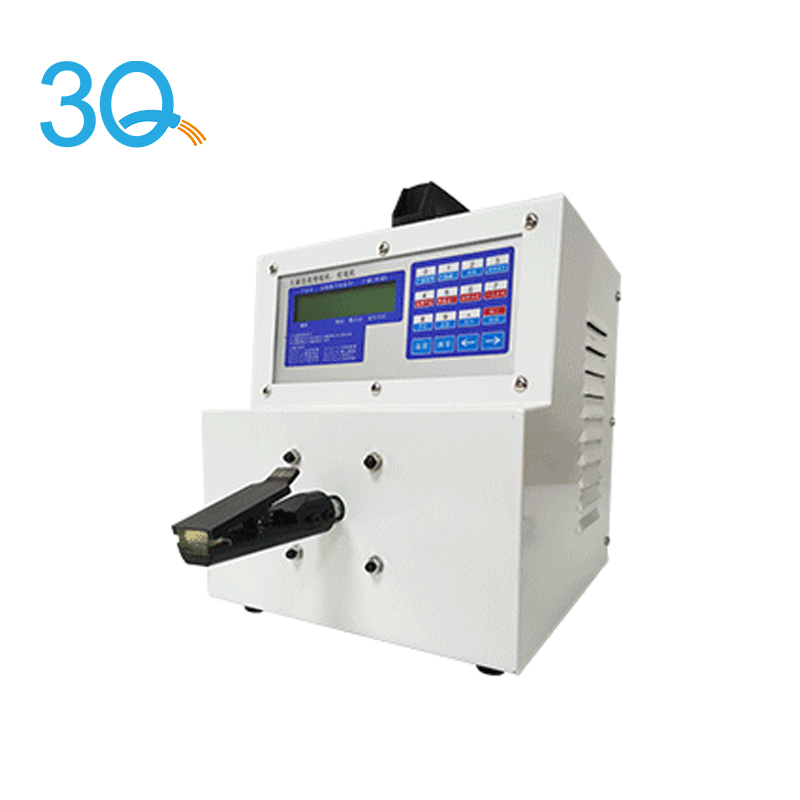

Product name:Microcomputer single head high speed twisting wire stranding machine.
Product principle:
1. It is specially used for electronic wire stranding, with uniform output and stable quality.
2. It can twist 1-5 groups of electronic wires at the same time.
3. The twisting speed and time can be adjusted according to customer requirements, and the forward and reverse rotation can be set.
4. The number of strands is counted by itself.
5. Simple operation, not easy to malfunction.

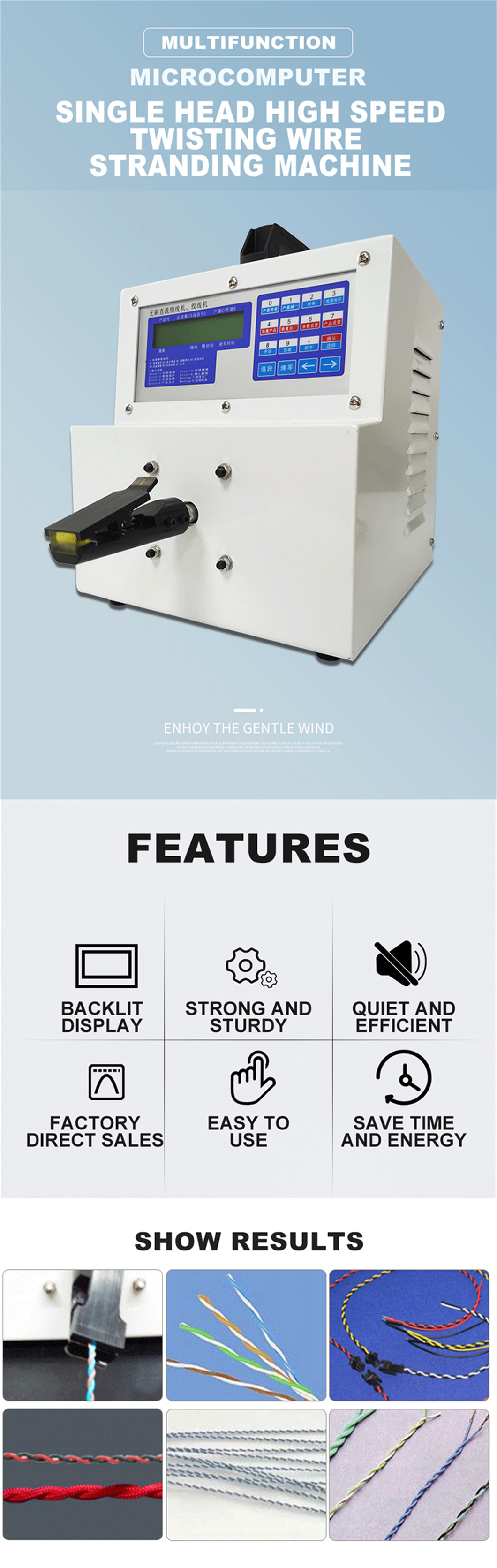

Product feature:
1. Backbit display
2. Strong and sturdy
3. Quiet and efficient
4. Factory direct sales
5. Easy to use
6. Save time and energy

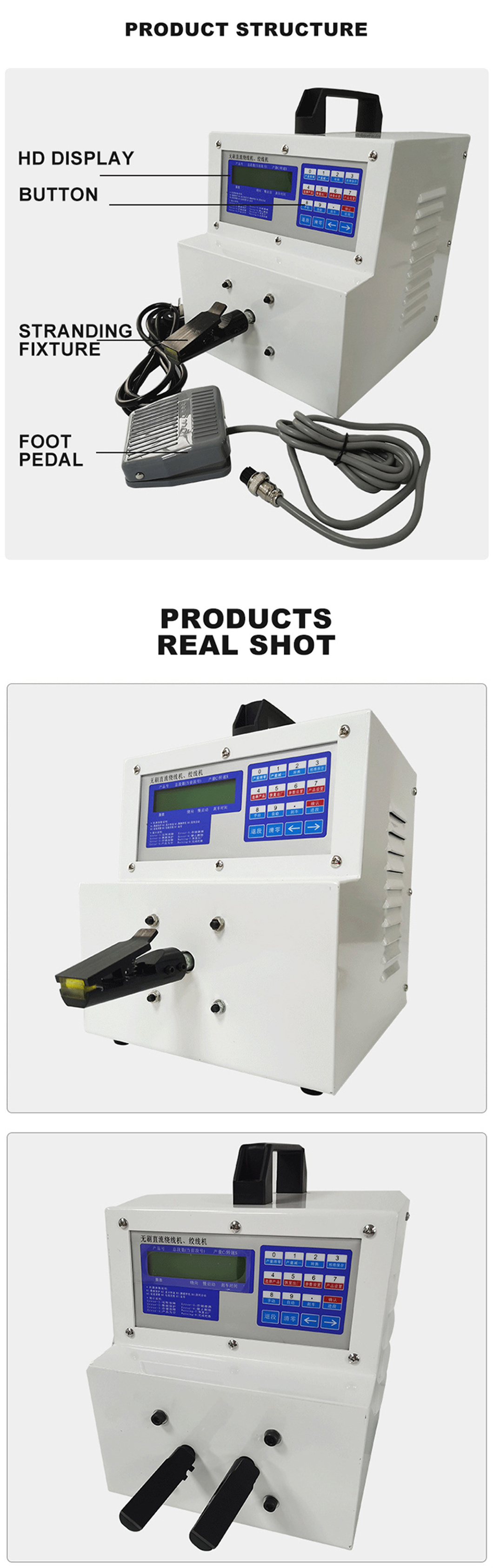

Product structure:
1. HD display
2. Button
3. Stranding fixture
4. Foot pedal

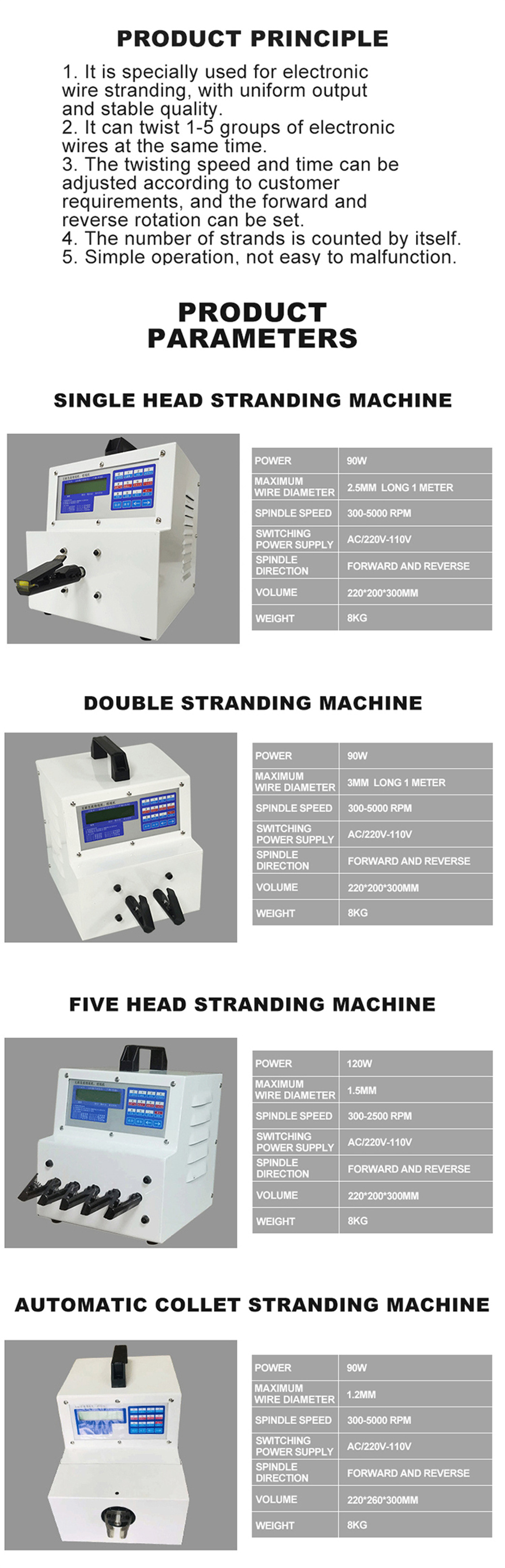

Data sheet:
Product name | Single head stranding machine | Double stranding machine | Five head stranding machine | Automatic collect stranding machine |
Power | 90W | 90w | 120W | 90w |
Maximum wire diameter | 2.5mm logn 1 meter | 3mm logn 1 meter | 1.5MM | 1.2mm |
Spindle speed | 300-500 rpm | 300-500rpm | 300-2500rpm | 300-5000rpm |
Switching power supply | AC/220V-110V | AC/220V-110V | AC/220V-110V | AC/220V-110V |
Spindle direction | Forward and reverse | Forward and reverse | Forward and reverse | Forward and reverse |
Volume | 220*200*300mm | 220*200*300mm | 220*200*300mm | 220*260*300mm |
Weight | 8kg | 8kg | 8kg | 8kg |
