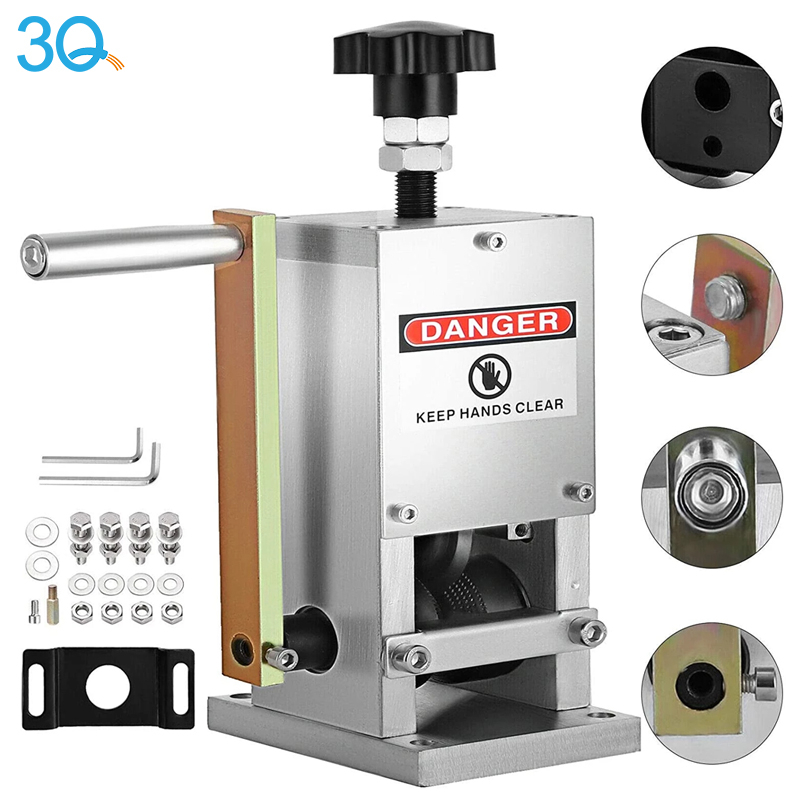

Scrap Copper Wire Stripping Machine
Scrap Copper Wire Stripping Machine

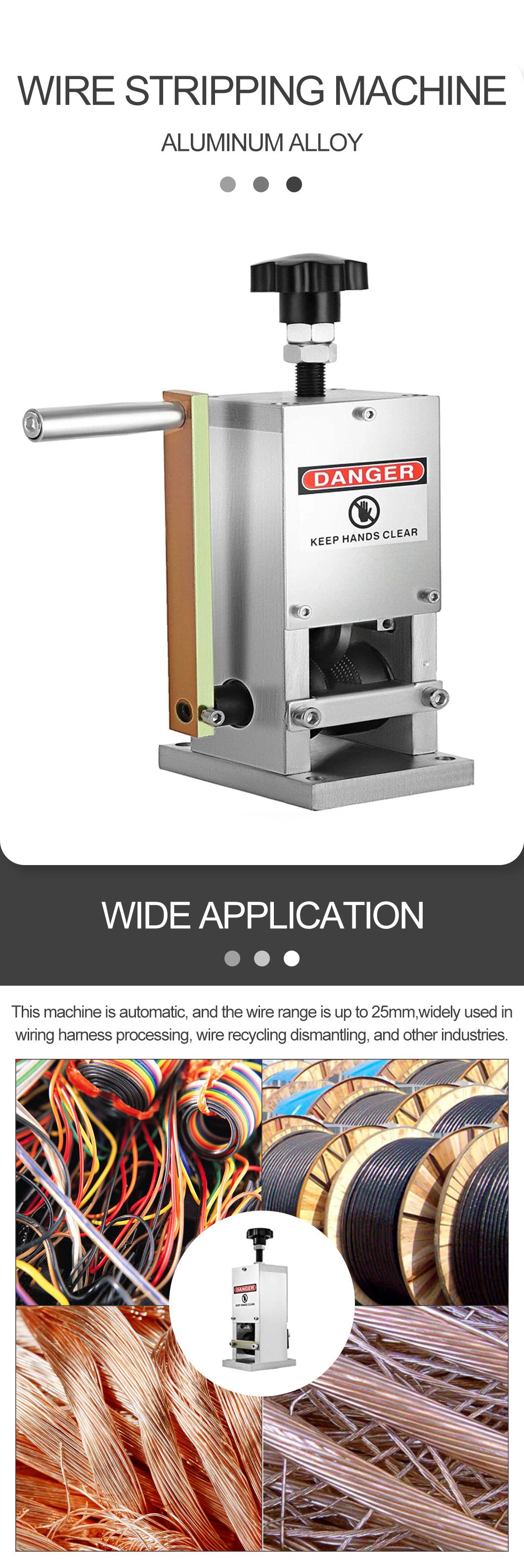

Product overview
Product name: wire stripping machine.
Wire application:This machine is automatic, and the wire range is up to 25mm,widely used in wiring harness processing, wire recycling dismantling, and other industries.
Processing sample display: This model is a new type of CNC servo terminal crimping equipment,which is suitable for crimping large square cables. It adopts advanced' servo control! system and HMI man-machine interface operation,which can intuitively understand and set working parameters. After the parameters are preset, the data can be automatically called out for crimping according to the product specifications, this work data can be traced back, various industrial transmission protocols are supported, the appearance is beautiful, and the ergonomic design.
Features:

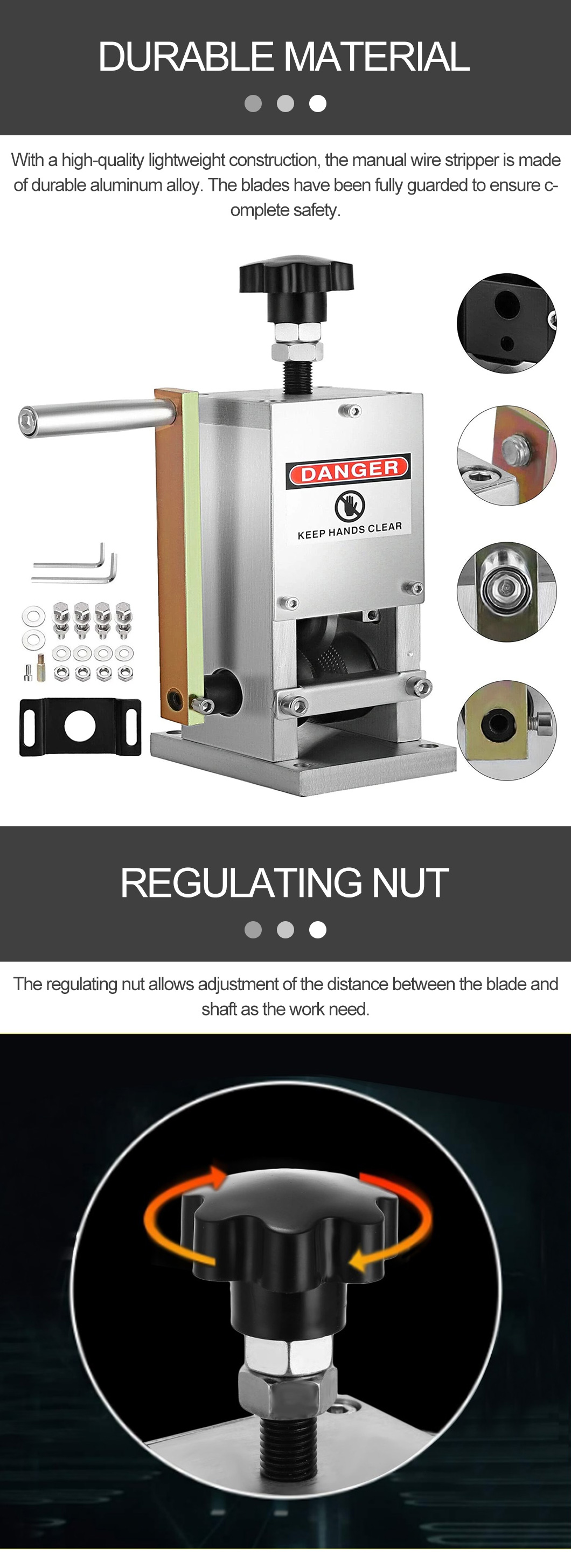

1. Durable material
With a high-quality lightweight construction, the manual wire stripper is made of durable aluminum alloy. The blades have been fully guarded to ensure Complete safety.
2. Regulating nut
The regulating nut allows adjustment of the distance between the blade and shaft as the work need.

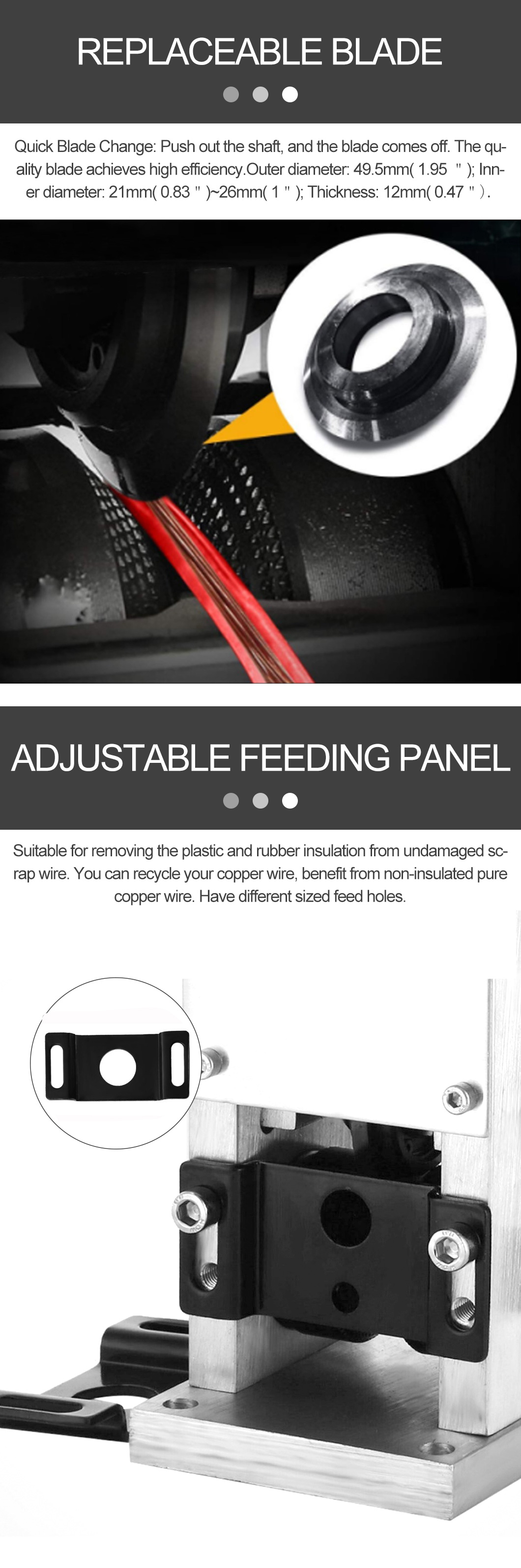

3. Replaceable blade
Quick Blade Change: Push out the shaft, and the blade comes off. The quality blade achieves high efficiency. Outer diameter. 49.5mm(1.95 " ); Inn-er diameter: 21mm( 0.83 " )~26mm(1 " ); Thickness: 12mm( 0.47 ").
4. Adjustable feeding panel
Suitable for removing the plastic and rubber insulation from undamaged scrap wire. You can recycle your copper wire, benefit from non-insulated pure copper wire. Have different sized feed holes.

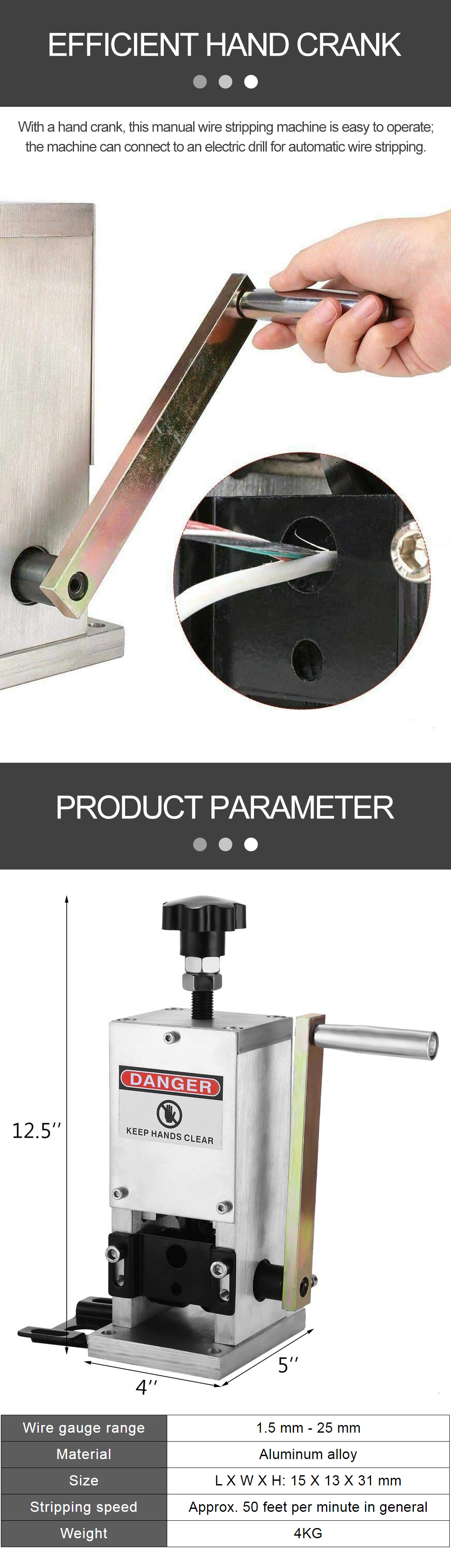

5. Efficient hand crank
With a hand crank, this manual wire stripping machine is easy to operate; the machine can connect to an electric drill for automatic wire stripping.

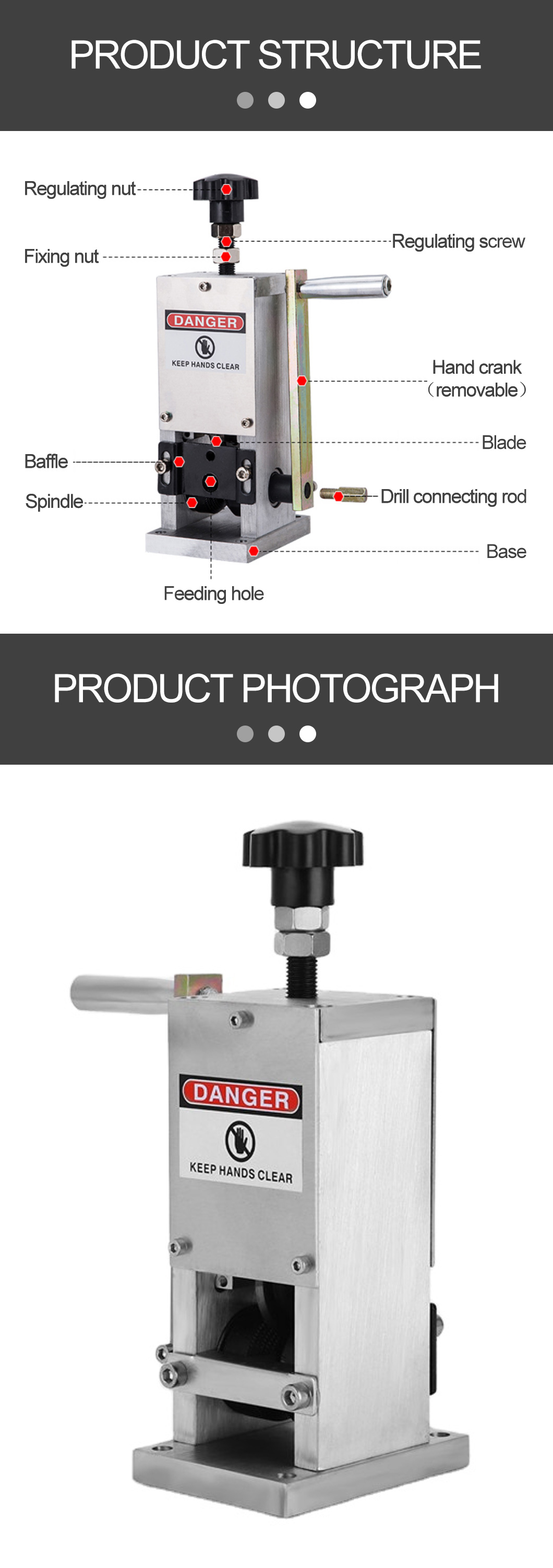

Product structure:
1. Regulating nut
2. Fixing nut
3. Baffle
4. Spindle
5. Feeding hole
6. Regulating screw
7. Hand crank
8. Blade
9. Drill connecting rod
10. Base
Date sheet:
| Wire gauge range | 1.5mm-25mm |
| Material | aluminum alloy |
| Size | 15*13*31mm |
| Stripping speed | approx. 50 feet per minute in general |
| Weight | 4KG |
