Industrial Grade Automatic Wire Stripping Machine

Availability:
Quantity:
  • 3Q machine

Stripping Machine parts

Wire CutterWire Cutter displayWire Cutter displayWire Cutter displayWire Cutter display

wire stripping machine


工厂展示_01工厂展示_02工厂展示_03

独立站证书

Product overview

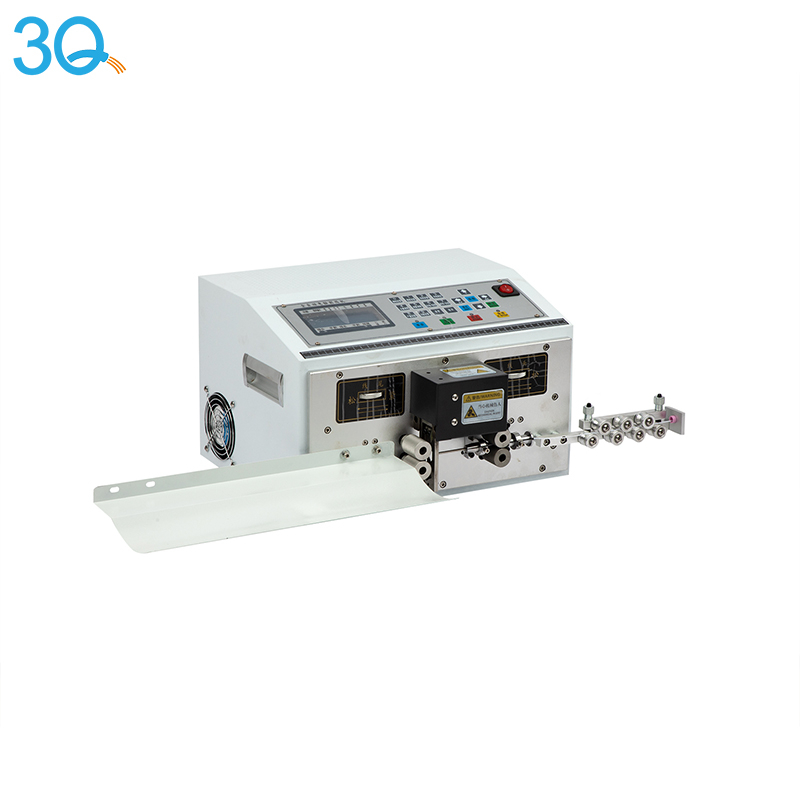

Product name: touch screen Wire Stripping Machine

Four-wheel drive, high precision; economical high-speed design and fast speed. (Slicing andstripping more than 10000 times/hour is suitable for 12-32# different line types) Short line design.(The short length can be cut to 5mm,both ends can be stripped, full stripping or half stripping or multiple stripping in the middle) suitable for various enterprises. (Applicable to wire processing companies/transformer manufacturers, socket manufacturers and other materials (also companies that need to use the wire cutting and stripping process) Diversified suitable used for cable tie cutting, heat shrink tube cutting, and casing cutting); Low noise, low energy consumption); Chinese and English panel, upgraded touch screen design, simple operation.



Features:

1.Upgrade design: touch screen design

2.Simple operation: chinese English itertace

3.Efficient stripping: cutting and stripping 1000+/hour

4.Can cut short wires: can cut 5MM two ends sripping

5.Widely applicable: suitable for multiple cuting and stipping

6.Multiple wire stripping methods: Full strip/half strip/multi-section peeling in the middle

7.Microcomputer touch screen: Clear display / Chinese-English switch

8.High speed steel blade: Flat incision / Stable stripping

9.Crimping four-wheel drive: The surface has fine lines and does not slip

10.Crimping wheel Adjustment: The crimping wheel can be adjusted by hand

11. Seven-wheel Straightener: Correct wire / Running smoothly


Data Sheet:

Product number

2.5square

4square

Stripping length

Head stripping 10mm,tail stripping 10mm

Head stripping 15mm,tail stripping 15mm

Motor accuracy

Motor 0.005mm per step

Motor 0.001mm per step

Cutting core

0.1 ~ 2.5 square meters

0.1 ~ 4 square meters

Applicable wire diameter

1.5~ 5mm

1.5~6mm

Weight

28KG

32KG

Cutting length

3~99999.9mm

Productivity

3500-7000 pieces / hour

Display

LCD display 1 Chinese- English switch

Drive mode

Four wheel drive at the same time

Appearance size

440*420*270mm

Multi- segment stripping

6 segments

Power

220V 50/ 60HZ

Program

Save 80 sets of data

Knives thickness

Thicken 4mm
