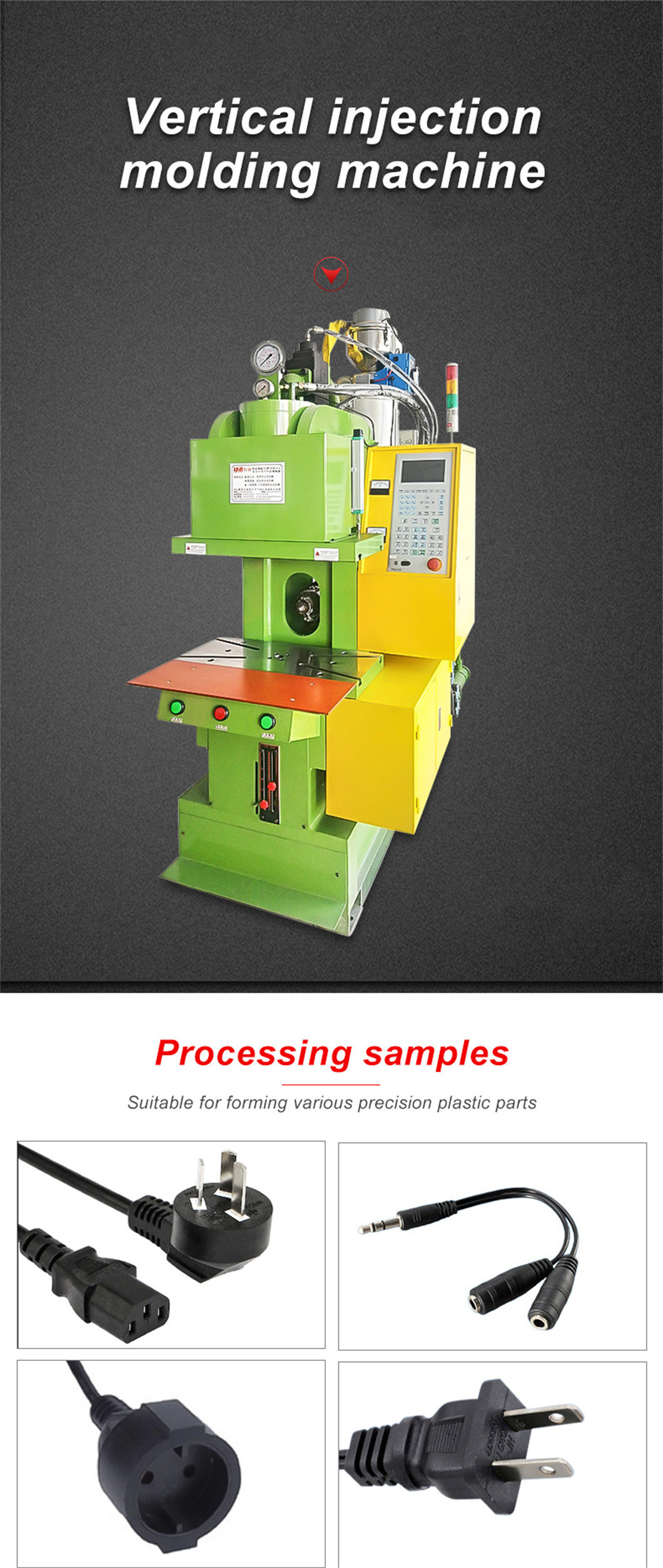

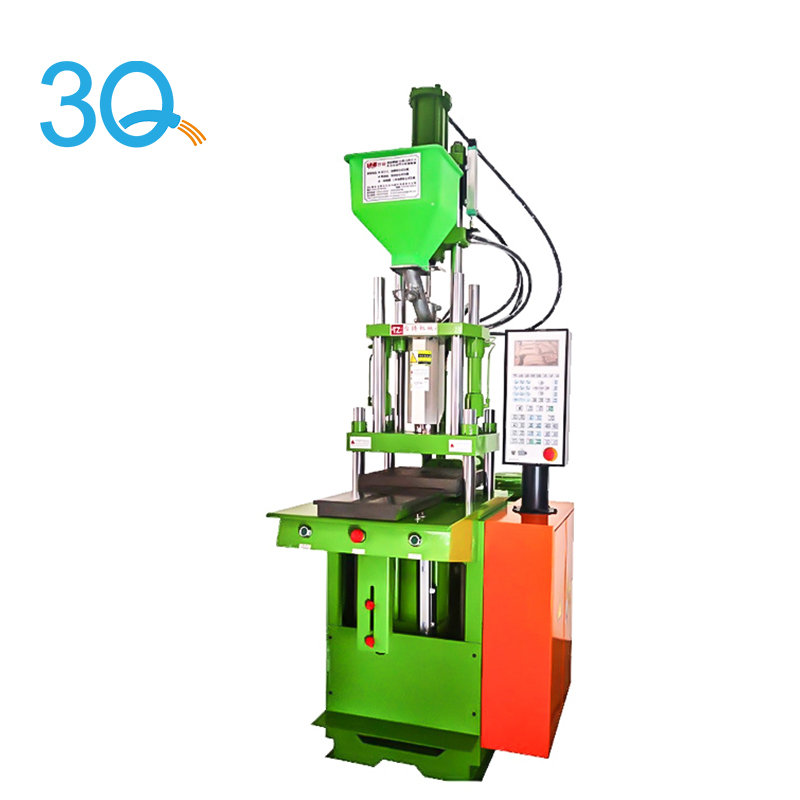

Product name: Vertical injection molding machine.
Applicable range: suitable for forming various precision plastic parts.

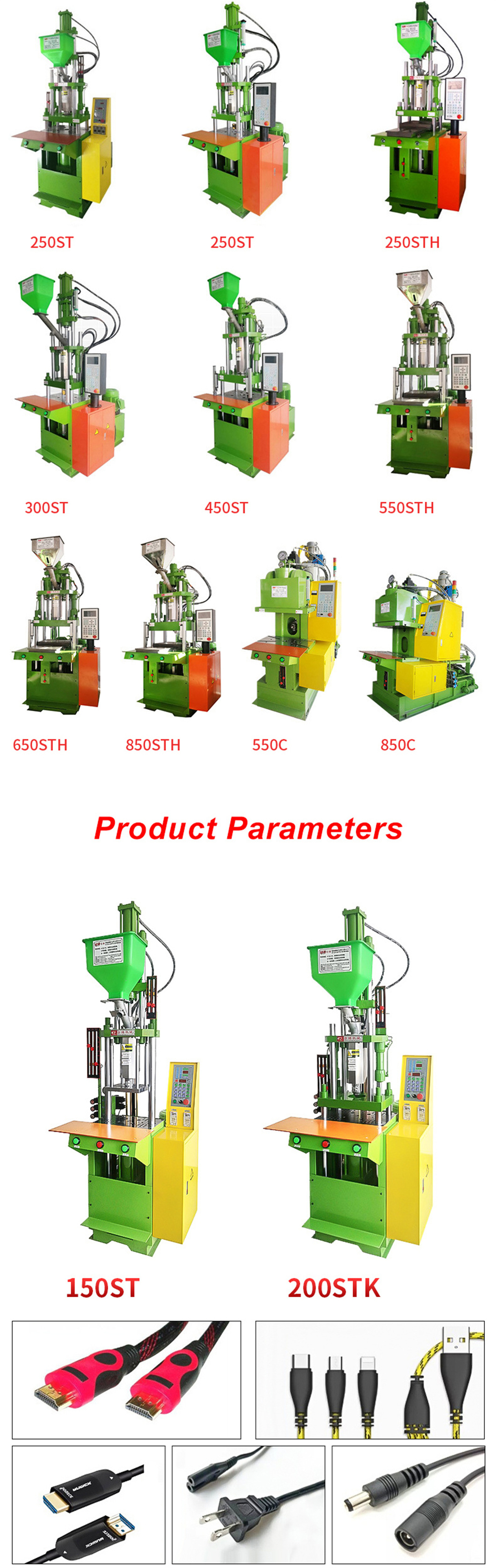

Complete style:
1. 150ST
2. 150ST2
3. 200ST
4. 200STK
5. 250ST
6. 250STH
7. 300ST
8. 450ST
9. 550STH
10. 650STH
11. 850STH
12. 550C
13. 850C

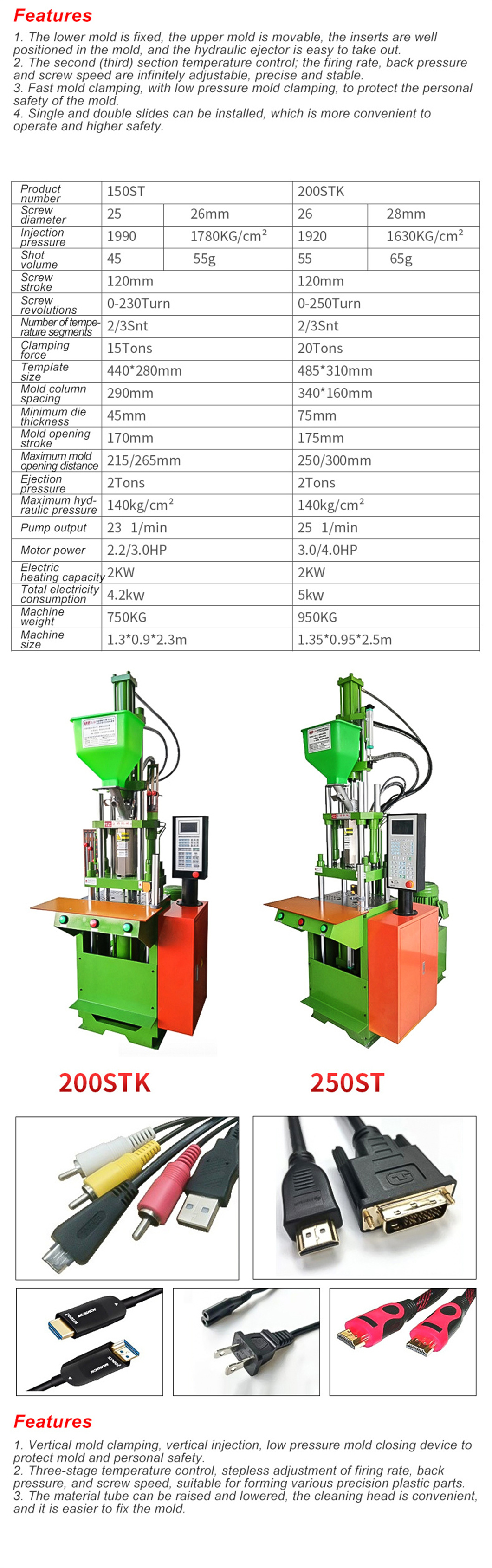

Feature:

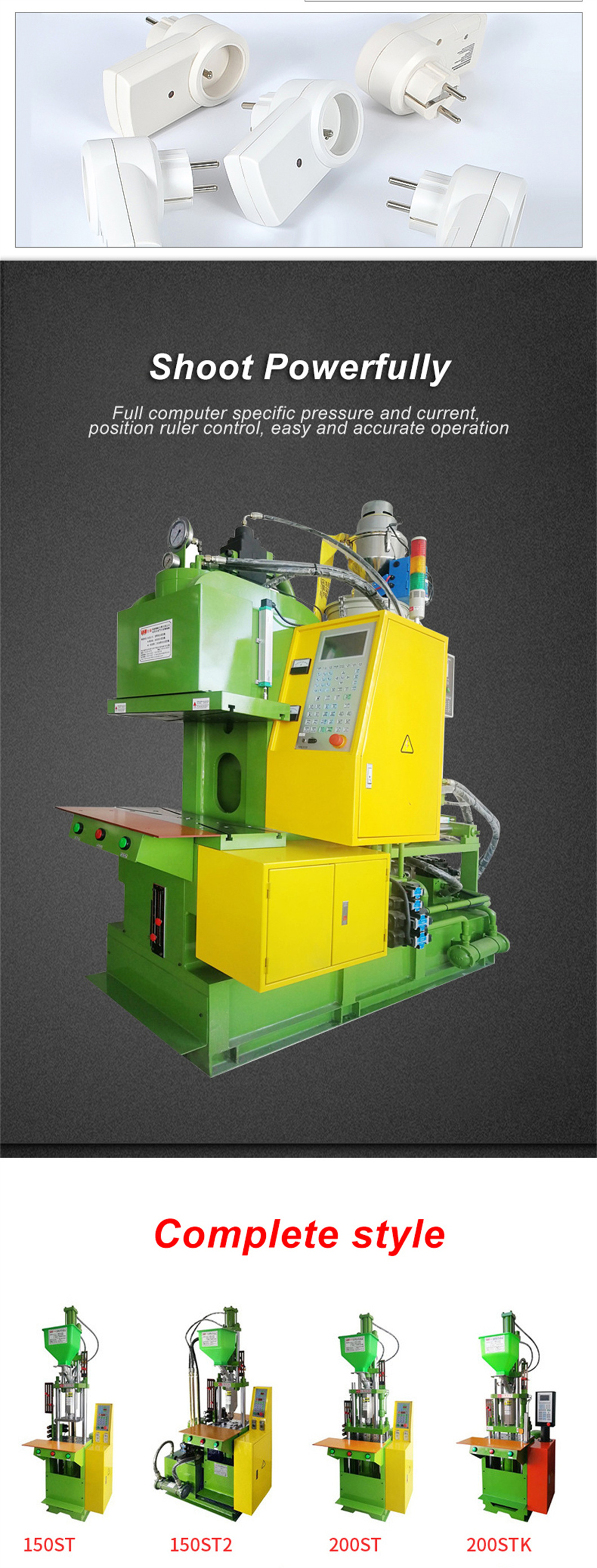

1. Shoot powerfully
Full computer specify pressure and current, position ruler control, easy and accurate operation.
2. The lower mold is fixed, the upper mold is movable, the inserts are well positioned in the mold, and the hydraulic ejector is easy to take out.
3. The second (third) section temperature control; the firing rate, back pressure and screw speed are infinitely adjustable, precise and stable.
4. Fast mold clamping, with low pressure mold clamping, to protect the personal safety of the mold.
5. Single and double slides can be installed, which is more convenient to operate and higher safety.
6. Vertical mold clamping, vertical injection, low pressure mold closing device to protect mold and personal safety.
7. Three-stage temperature control, sleepless adjustment of firing rate, back pressure, and screw speed, suitable for forming various precision plastic parts.
8. The material tube can be raised and lowered, the cleaning head is convenience, and it is easier to fix the mold.
9. High-speed mo/d clamping, low-pressure slow-speed mold clamping.
10. Fully computerized specific pressure and specific flow, controlled by position ruler, easy and accurate to operate, and the injection adopts a double-cylinder balanced injection system, which is stable and powerful.
11. It is more suitable for molding of various special engineering plastics.
12. The clamping system adopts the supercharged large cylinder in the middle, the pulling cylinder is independent and external, and the clamping is stable and fast.
13. Single and double slides can be installed for more convenient operation and higher safety.

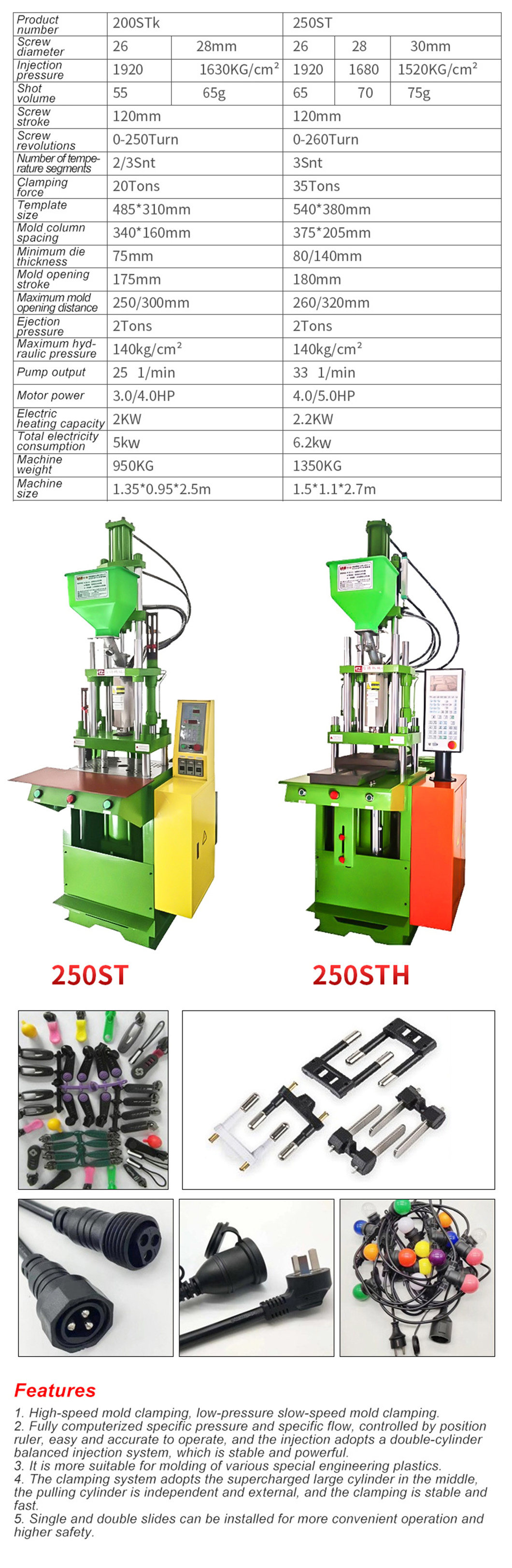

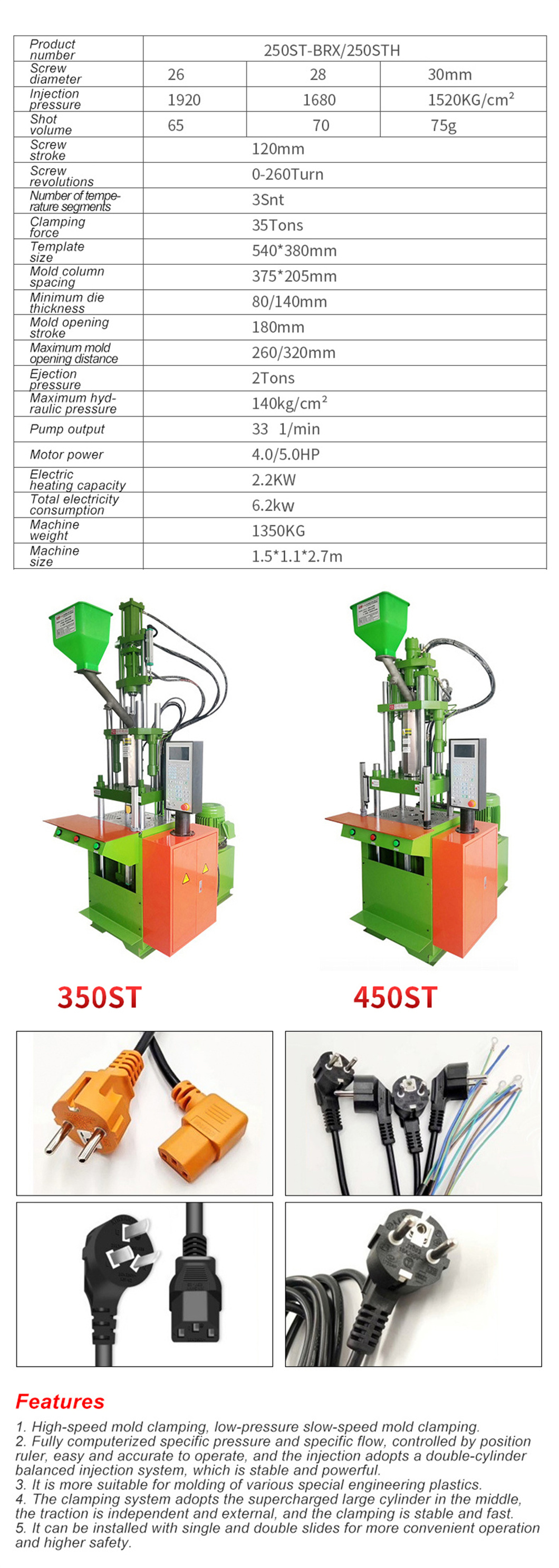

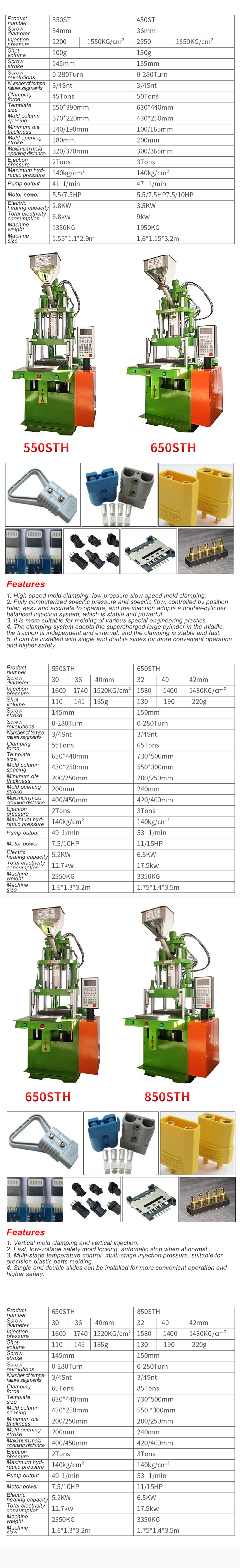

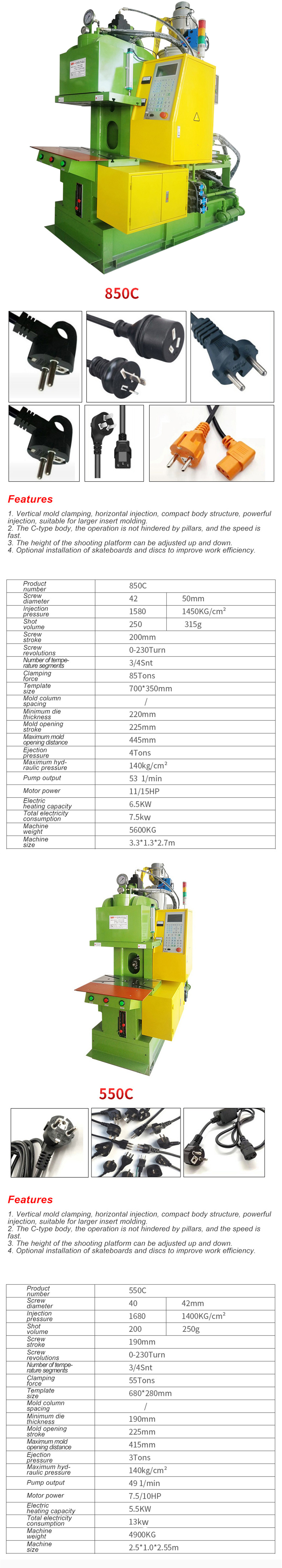

Data sheet:
| Product number | 150ST | 200STK | 250ST | 250ST-BRX/250STH | 350ST | 450ST | 550STH | 650STH | 650STH | 850STH | 850C | 550c |
| Screw diameter | 25/26MM | 26/28MM | 26/28/30MM | 26/28/33MM | 34MM | 36MM | 30/36/40MM | 32/40/42MM | 30/36/40mm | 32/40/42MM | 42/50MM | 40/42mm |
| Injection pressure | 1990/1780KG/CM2 | 1920/1630KG/CM2 | 1920/1680/1520KG/CM2 | 1920/1680/1520KG/CM2 | 2200/1550KG/CM2 | 2350/1650KG/CM2 | 1600/1740/1520KG/CM2 | 1580/1400/1480KG/CM2 | 1600/1740/1520KG/CM22 | 1580/1400/1480KG/CM2 | 1508/1450KG/CM2 | 1680/1400kg/cm2 |
| Shot Volume | 45/55G | 55/65G | 65/70/75G | 65/70/75G | 100g | 150g | 110/145/185G | 130/190/220G | 110/145/185G | 130/190/220G | 250/315G | 200/250g |
| Screw stroke | 1 20mm | 120mm | 120mm | 120mm | 145mm | 155mm | 145mm | 150mm | 1 45mm | 150mm | 200mm | 190mm |
| Screw revolutions | 0-230Turn | 0-250Turn | 0-260Turn | 0-260Turn | 0-280Turn | 0-280Turn | 0-280Turn | 0- 280Turn | 0-280Turn | 0-280Turn | 0-230Turn | 0-230Turn |
| Number of temperature segments | 2/3Snt | 2/3Snt | 3Snt | 3Snt | 3/4Snt | 3/4Snt | 3/4Snt | 3/4Snt | 3/4Snt | 3/4Snt | 3/4Snt | 3/4Snt |
| Clamping force | 15Tons | 20Tons | 35Tons | 35Tons | 45Tons , | 50Tons | 55Tons | 65Tons | 65Tons | 85Tons | 85Tons | 55Tons |
| Template size | 440* 280mm | 485*310mm | 540* 380mm | 540* 380mm | 550* 390mm | 630* 440mm | 630* 440mm | 730* 500mm | 630* 440mm | 730* 500mm | 700* 350mm | 680* 280mm |
| Mold column spacing | 290mm | 340* 160mm | 375* 205mm | 375* 205mm | 370* 220mm | 430* 250mm | 430* 250mm | 550* 300mm | 430* 250mm | 550.* 300mm | / | / |
| Minimum die thickness | 45mm | 75mm | 80/140mm | 80/140mm | 140/190mm | 100/165mm | 200/250mm | 200/250mm | 200/250mm | 200/250mm | 220mm | 190mm |
| Mold opening stroke | 170mm | 175mm | 180mm | 180mm | 1 80mm | 200mm | 200mm | 240mm | 200mm | 240mm | 225mm | 225mm |
| Maximum mold opening distance | 215/265mm | 250/300mm | 260/320mm | 260/320mm | 320/370mm | 300/365mm | 400/450mm | 420/460mm | 400/450mm | 420/460mm | 445mm | 415mm |
| Ejection pressure | 2Tons | 2Tons | 2Tons | 2Tons | 2Tons | 3Tons | 2Tons | 3Tons | 2Tons | 3Tons | 4Tons | 3Tons |
| Maximum hyd-raulic pressure | 140kg/cm2 | 140kg/cm2 | 140kg/cm | 140kg/cm2 | 140kg/cm2 | 140kg/cm2 | 140kg/cm2 | 140kg/cm2 | 140kg/cm2 | 140kg/cm2 | 140kg/cm2 | 140kg/cm2 |
| Pump output | 23 1/min | 25 1/min | 331/min | 33 1/min . | 41 1/min | 47 1/min | 49 1/min | 531/min | 491/min | 53 1/min | 531/min | 49 1/min |
| Motor power | 2.2/3.0HP | 3.0/4.0HP | 4.0/5.0HP | 4.0/5.0HP | 5.5/7.5HP | 5.5/7.5HP7.5/10HP | 7.5/10HP | 11/15HP | 7.5/10HP | 11/15HP | 11/15HP | 7.5/10HP |
| Electric heating capacity | 2KW | 2KW | 2.2KW | 2.2KW | 2.8KW | 3.5KW | 5.2KW | 6.5KW | 5.2KW | 6.5KW | 6.5KW | 5.5KW |
| Total electricity consumption | 4.2kw | 5kw | 6.2kw | 6.2kw | 6.8kw | 9kw | 12.7kw | 17.5kw | 12.7kw | 17.5kw | 7.5kw | 13kw |
| Machine weight | 750KG | 950KG | 1350KG | 1350KG | 1350KG | 1950KG | 2350KG | 3350KG | 2350KG | 3350KG | 5600KG | 4900KG |
| Machine size | 1.3*0.9*2.3m | 1.35*0.95*2.5m | 1.5*1.1*2.7m | 1.5*1.1*2.7m | 1.55*1.1*2.9m | 1.6*1.15*3.2m | 1.6* 1.3*3.2m | 1.75*1.4*3.5m | 1.6*1.3*3.2m | 1.75*1.4*3.5m | 3.3* 1.3*2.7m | 2.5*1.0*2.55m |
