3Q machine
Product overview

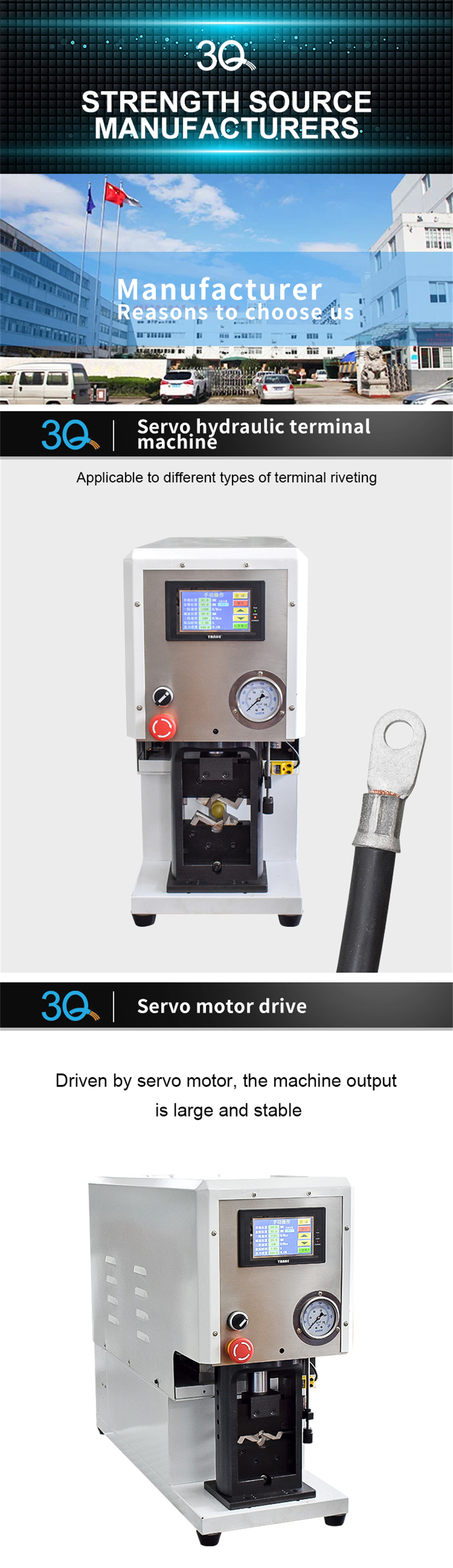

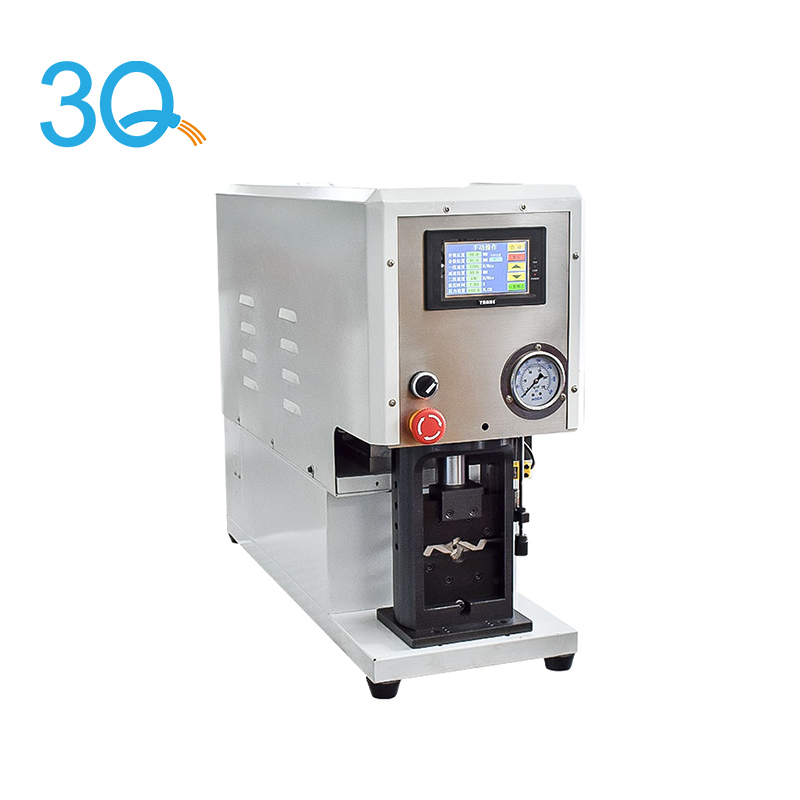

Product name:3Q Servo hydraulic terminal machine.
Applicable to different types of terminal riveting.
Product principle:
1. Servo motor drive
Driven by servo motor, the machine output is large and stable.

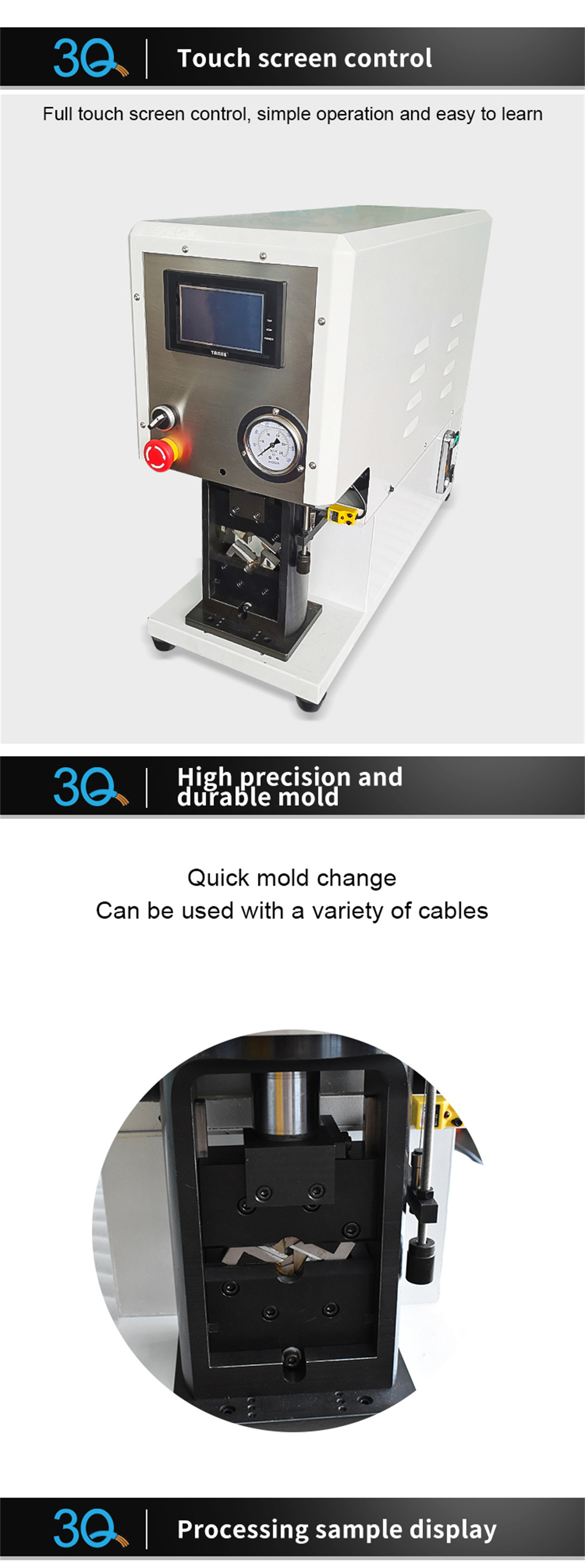

2. Touch screen control
Full touch screen control, simple operation and easy to learn
3. High precision and durable mold
Quick mold change,Can be used with a variety of cables
4. Applicable to different types of terminal riveting, the stay position of mold opening and closing can be set on the touch screen

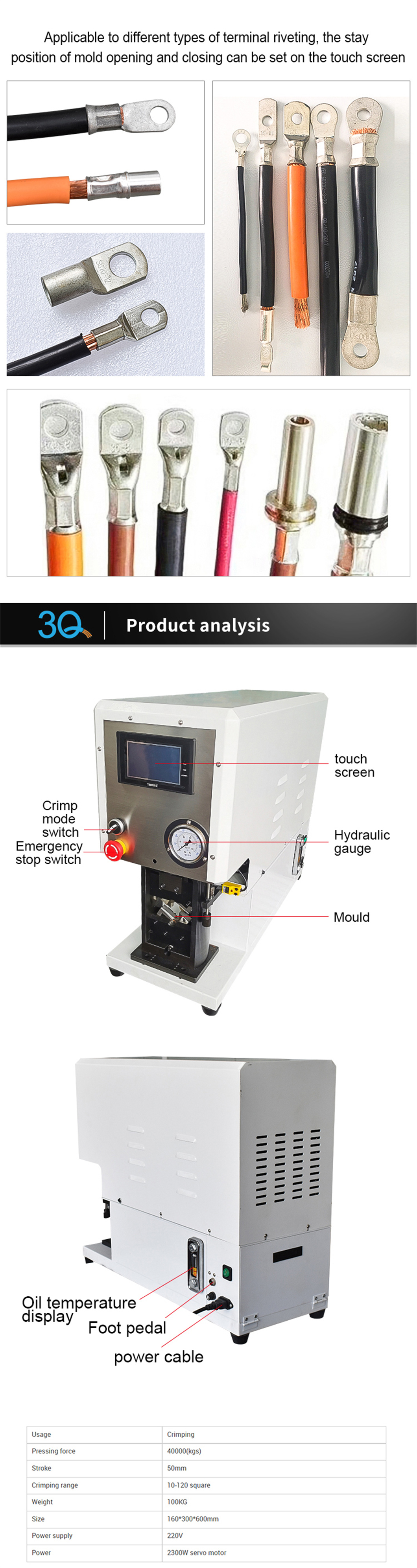

Product structure:
1. Crimping
2. Mode switch
3. Emergency stop switch
4. Touch screen
5. Hydraulic gauge
6. Mould
7. Oil temperature display
8. Foot pedal
9. Power cable

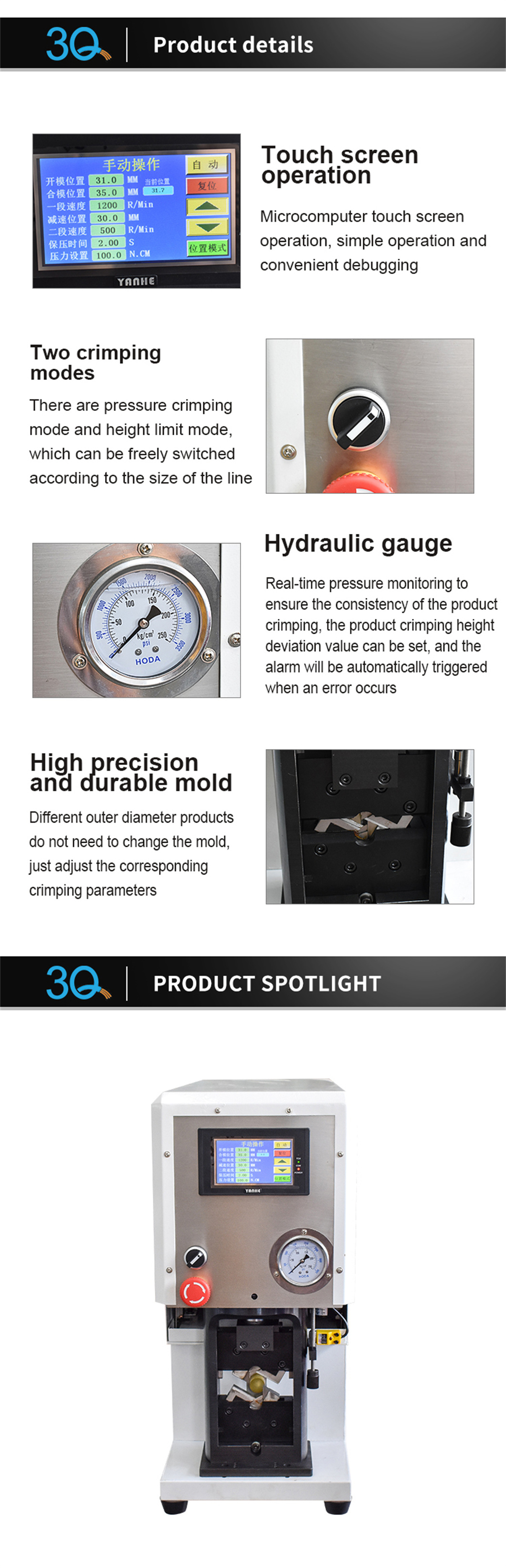

Product details:
1. Touch screen operation
Microcomputer touch screen operation, simple operation and convenient debugging。
2. Two crimping modes
There are pressure crimping mode and height limit mode, which can be freely switched according to the size of the line.
3. Hydraulic gauge
Real-time pressure monitoring to ensure the consistency of the product crimping, the product crimping height deviation value can be set, and the alarm will be automatically triggered when an error occurs
4. High precision and durable mold
Different outer diameter products do not need to change the mold, just adjust the corresponding crimping parameters.

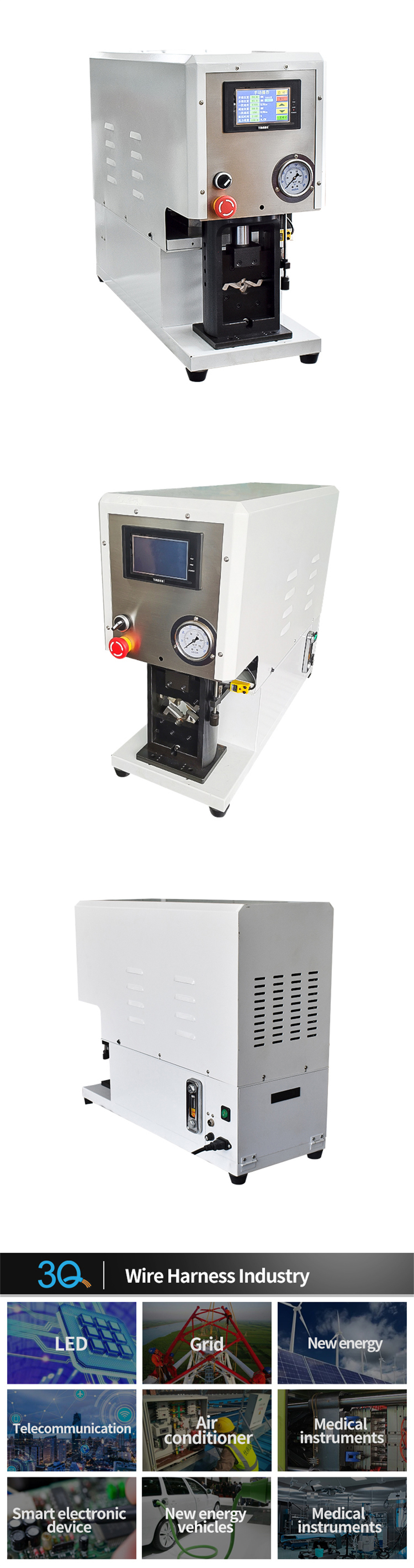

Wire harness industry:
1. LED
2. GRID
3. NEW ENERGY
4. TELECOMMUNICATION
5. AIR CONDITIONER
6. MEDICAL INSTRUMENTS
7. SMART ELECTRONIC DEVICE
8. NEW ENERGY VEHICLES
9. MEDICAL INSTRUMENTS
Data sheet:
Usage | Crimping |
Pressing force | 40000(kgs) |
Stroke | 50mm |
Crimping range | 10-120 square |
Weight | 100KG |
Size | 160*300*600mm |
Power supply | 220V |
Power | 2300W servo motor |
