Fully Automatic Five-wire Single-end Dip Tin Machine

  • 3Q machine

Fully Automatic Five-wire Single-end Dip Tin MachineFully Automatic Five-wire Single-end Dip Tin MachineFully Automatic Five-wire Single-end Dip Tin Machine

wire stripping machine

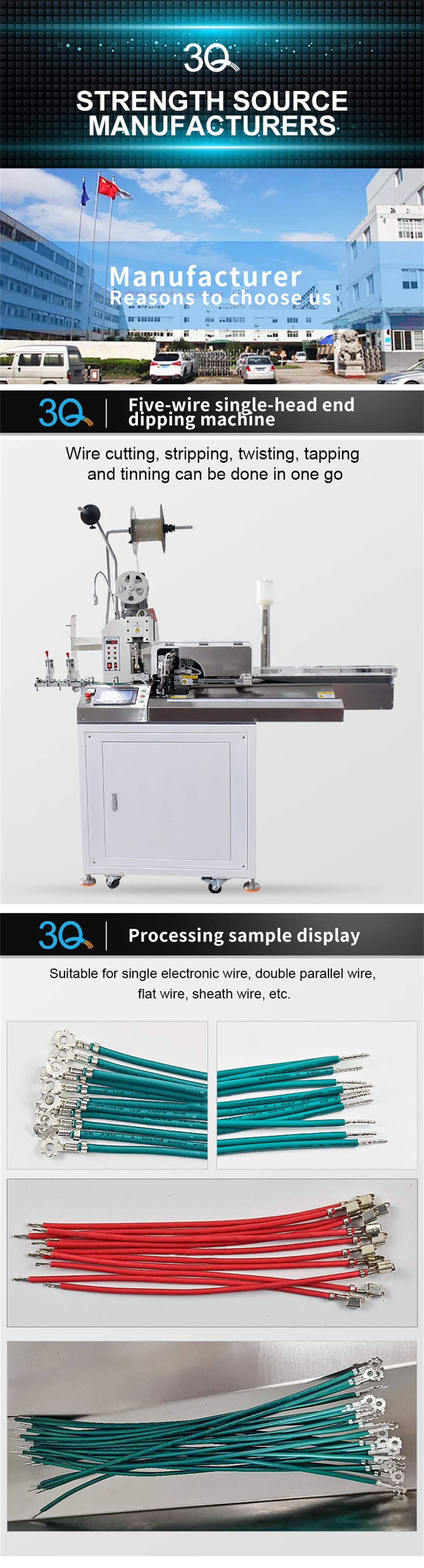

Product overview:

Product name:five-wire single-head end dipping machine.

Applicable range:wire cutting,stripping,twisting,tapping and tinning can be done in one go.

Processing sample display:suitable for single electronic wire,double parallel wire,falt wire, sheath wire,etc

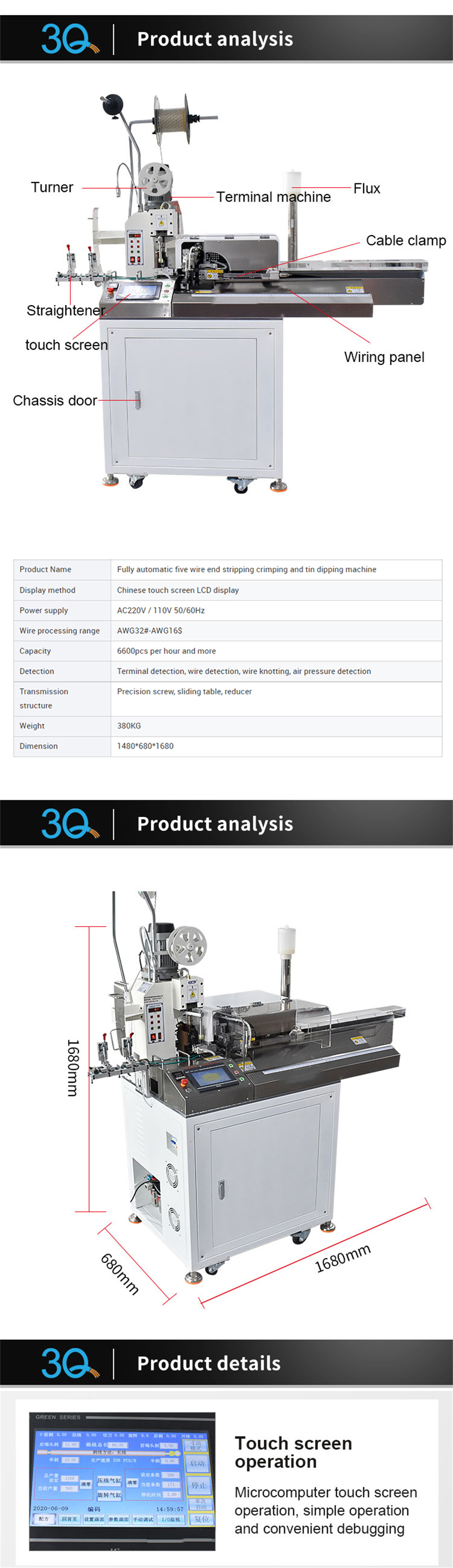

Product analysis:

1. Turner

2. Terminal machine

3. Flux

4. Cable clamp

5. Straightener

6. Touch screen

7. Chassis door

8. Wiring panel

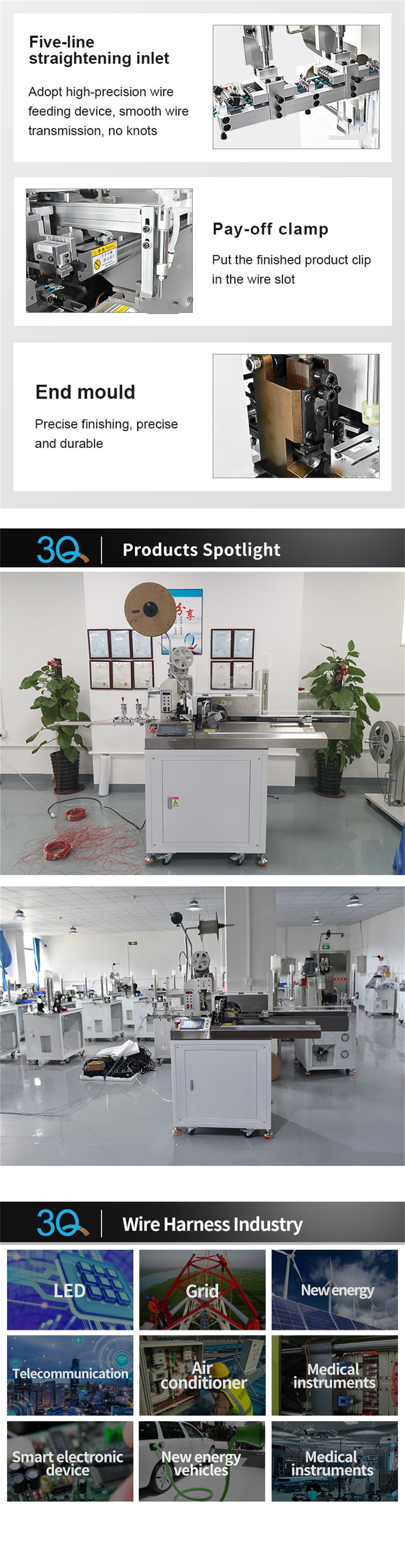

Product details:

1. Touch screen operation

Microcomputer touch screen operation, simple operation and convenient debugging.

2. Five-line straightening inlet.

Adopt high-precision wire feeding device, smooth wire transmission, no knots.

3. Pay-off clamp

Put the finished product clip in the wire slot

4. End mould

Precise finishing ,precise and durable.

Wire harness industry:

1. Led

2. Grid

3. New energy

4. Telecommunication

5. Air conditioner

6. Medical instruments

7. Smart electronic device

8. New energy vehicles

9. Medical instruments

Data sheet:

Product NameFully automatic five wire end stripping crimping and tin dipping machine
Display methodChinese touch screen LCD display
Power supplyAC220V1 110V 50/60Hz
Wire processing rangeAWG32#-AWG16S
Capacity6600pcs per hour and more
DetectionTerminal detection, wire detection, wire knotting, air pressure detection
Transmission structurePrecision screw, sliding table, reducer
