Product overview

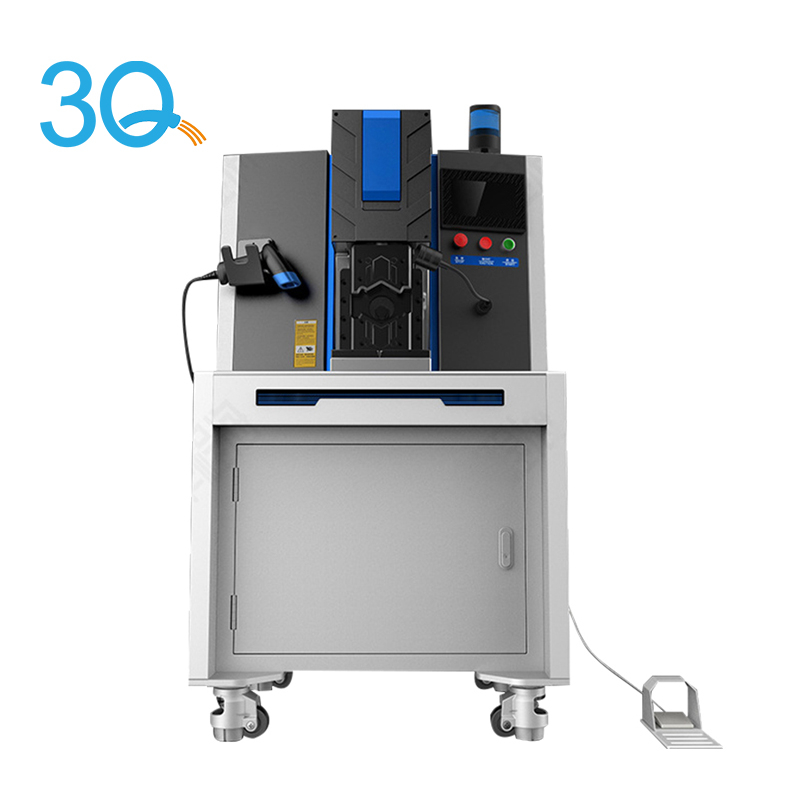

Product name: CNC servo terminal crimping machine.
Processing sample display:This model is a new type of CNC servo terminal crimping equipment,which is suitable for crimping large square cables. It adopts advanced' servo control! system and HMI man-machine interface operation,which can intuitively understand and set working parameters. After the parameters are preset, the data can be automatically called out for crimping according to the product specifications, this work data can be traced back, various industrial transmission protocols are supported, the appearance is beautiful, and the ergonomic design.
Features:

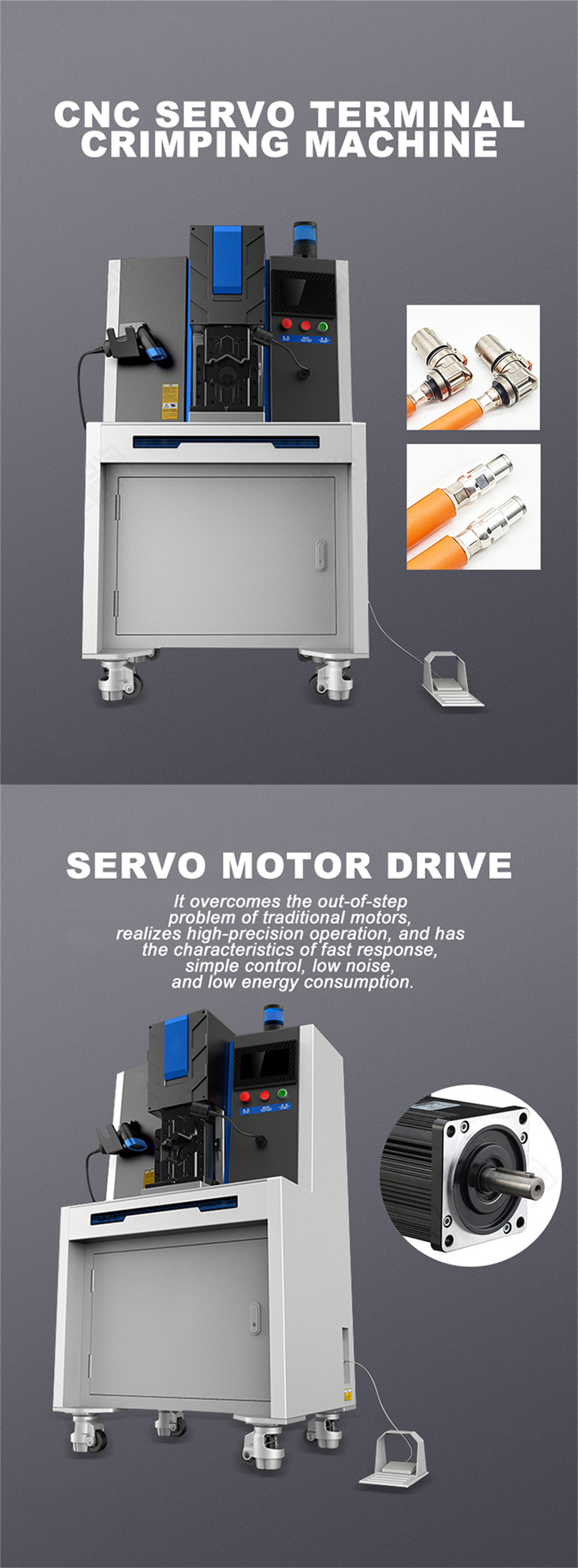

1. Servo motor drive
It overcomes the out-of- step problem of traditional motors, realizes high-precision operation, and has the characteristics of fast response, simple control, low noise, and low energy consumption.

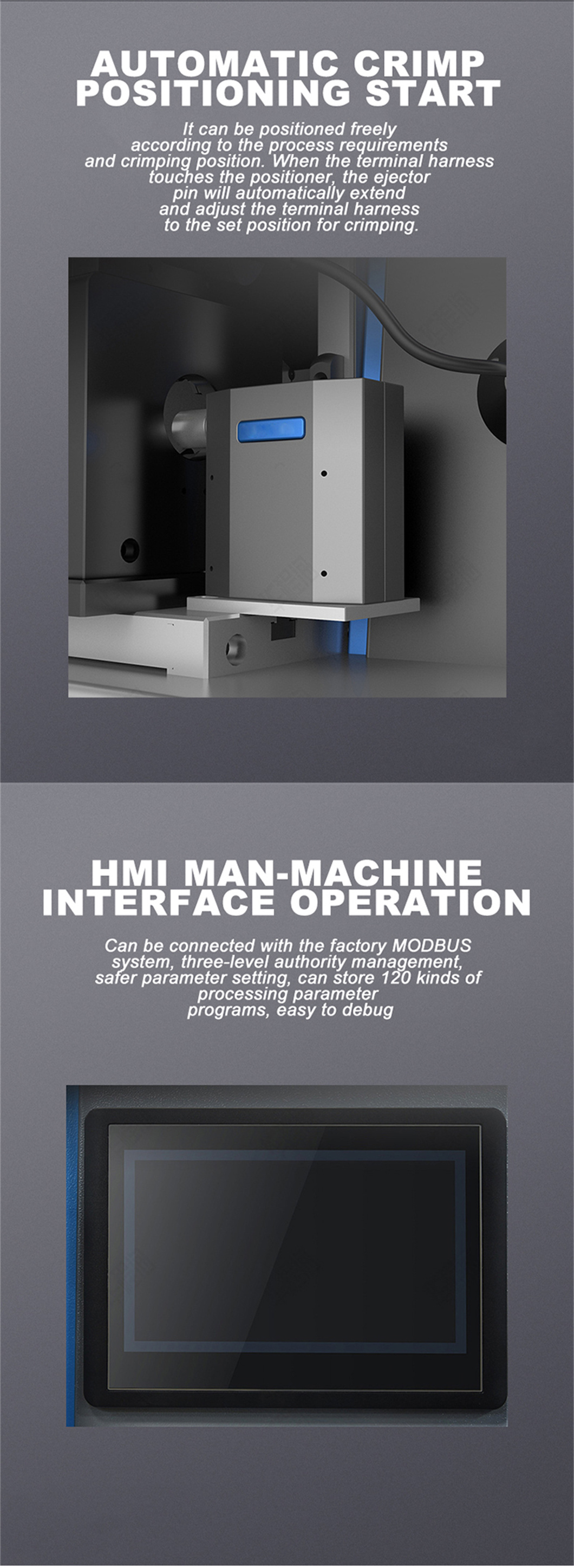

2. Automatic crimp positioning start.
It can be positioned freely according to the process requirements and crimping position. When the terminal harness touches the positioner, the ejector pin will automatically extend and adjust the terminal harness to the set position for crimping.
3. Hmi man-machine interface operation.
Can be connected with the factory MODBUS system, three-level authority management, safer parameter setting, can store 120 kinds of processing parameter programs, easy to debug.

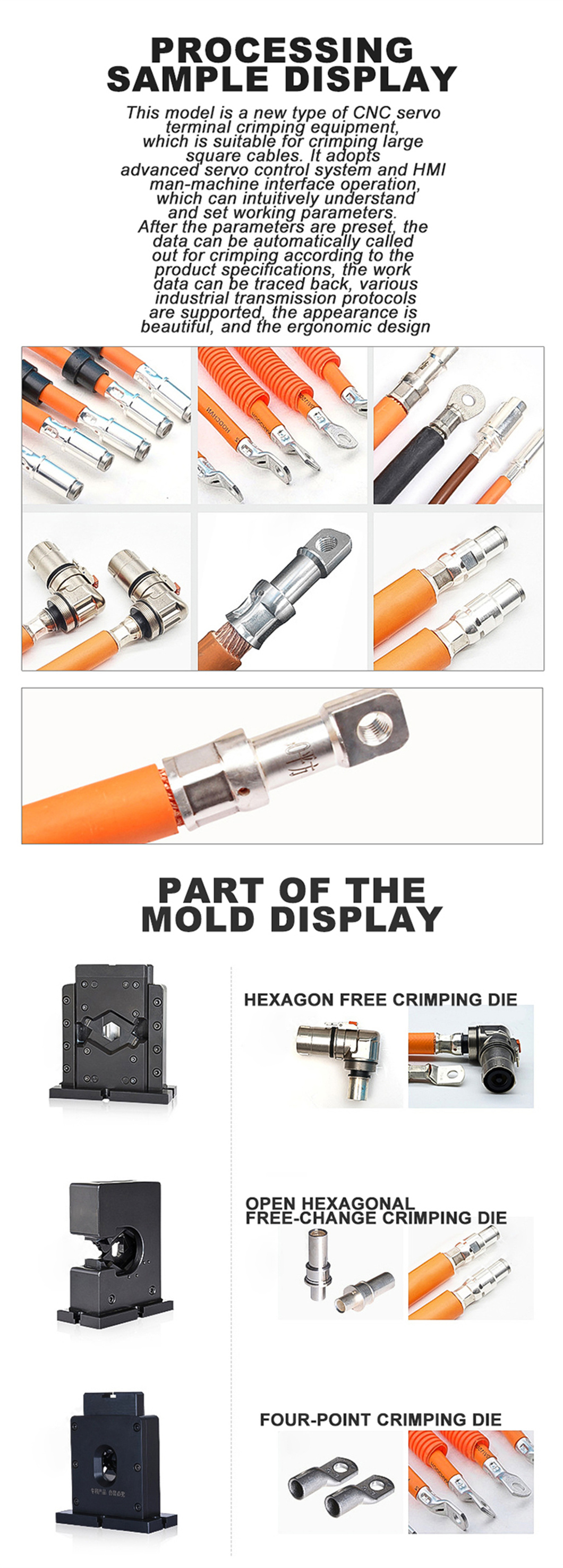

Part of the mold display:
1. Hexagon free crimping die
2. Open hexagonal free- change crimping die
3. Four-point crimping die.
Product parameters:

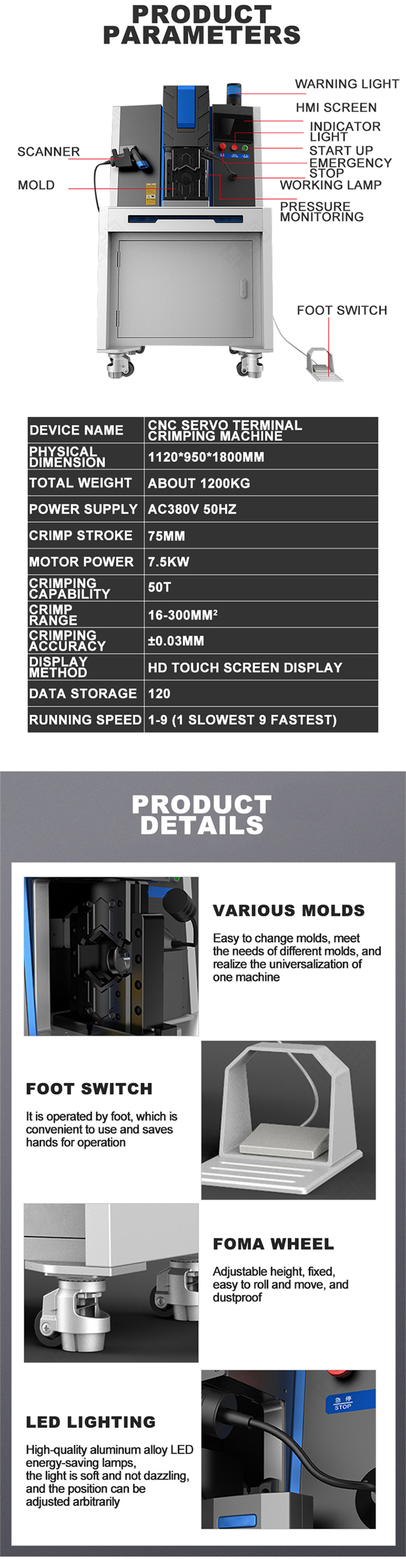

1. Scanner
2. Mold
3. Warning light
4. Hmi screen
5. Indicator light
6. Start up
7. Emergency stop
8. Working lamp
9. Pressure monitor
10. Foot switch
Product details:
1. VARIOUS MOLDS
Easy to change molds, meet the needs of different molds, and realize the universalization of one machine.
2. Foot switch
It is operated by foot, which is convenient to use and saves hands for operation
3. Foma wheel
Adjustable height, fixed, easy to roll and move, and dustproof.
4. LEDLIGHTI NG
High-quality aluminum alloy LED energy-saving lamps, the light is soft and not dazzling, and the position can be adjusted arbitrarily

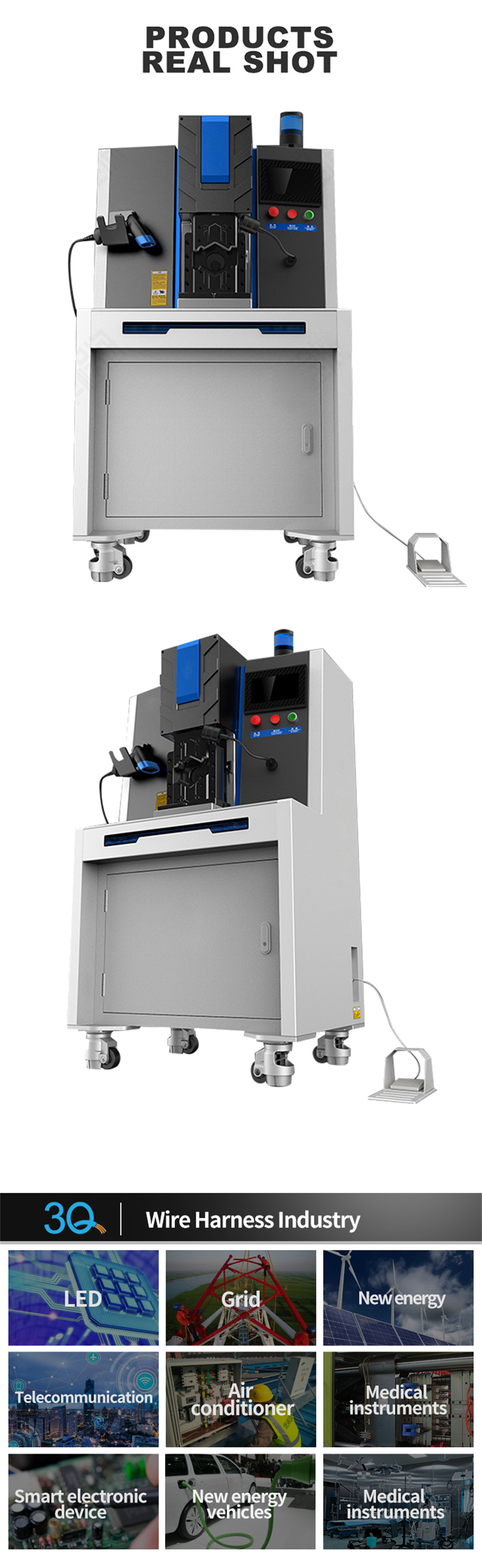

Wire harness industry
1. LED
2. Grid
3. New energy
4. Telecommunication
5. Air conditioner
6. Medical instruments
7. Smart electronic device
8. New energy vehicles
9. Medical instruments.
Data sheet:
| DEVICE NAME | CNC SERVO TERMINAL CRIMPING MACHINE |
| PHYSICAL DIMENSION | 1120*950*1 800MM |
| TOTAL WEIGHT | ABOUT 1200KG |
| POWER SUPPLY | AC380V 50HZ |
| CRIMP STROKE | 7 5MM |
| MOTOR POWER | 7.5KW |
| CRIMPING CAPABLLITY | 50T |
| CRIMP RANGE | 1 6-300MM2 |
| CRIMPING ACCURACY | +0.03MM |
| DISPLAY METHOD | HD TOUCH SCREEN DISPL AY |
| DATA STORAGE | 120 |
| RUNNING SPEED | 1-9 (1 SLOWEST 9 FASTEST) |
